Проволочная обмотка
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сечение провода | Диаметр проводника | Длина | Материал оболочки (изоляции) | Диаметр оболочки (изоляции) | Материал проводника | Покрытие проводника | Цвет оболочки | Номинальные значения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R30R-1000WIRE WW 30AWG PVDF RED 1000' |
5 |
|
Таблицы данных |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 1000' (304.80m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Red | UL Style 1423, VW-1 | - |
|
30-Y-50-020WIRE WW 30AWG PVDF YELLW 4" 50PC |
51 |
|
Таблицы данных |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.333' (101.60mm, 4.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Yellow | UL Style 1423, VW-1 | - |
|
30-B-50-010WIRE WW 30AWG PVDF BLUE 3" 50PC |
21 |
|
Таблицы данных |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.250' (76.20mm, 3.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Blue | UL Style 1423, VW-1 | - |
|
30-R-50-020WIRE WW 30AWG PVDF RED 4" 50PC |
17 |
|
Таблицы данных |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.333' (101.60mm, 4.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Red | UL Style 1423, VW-1 | - |
|

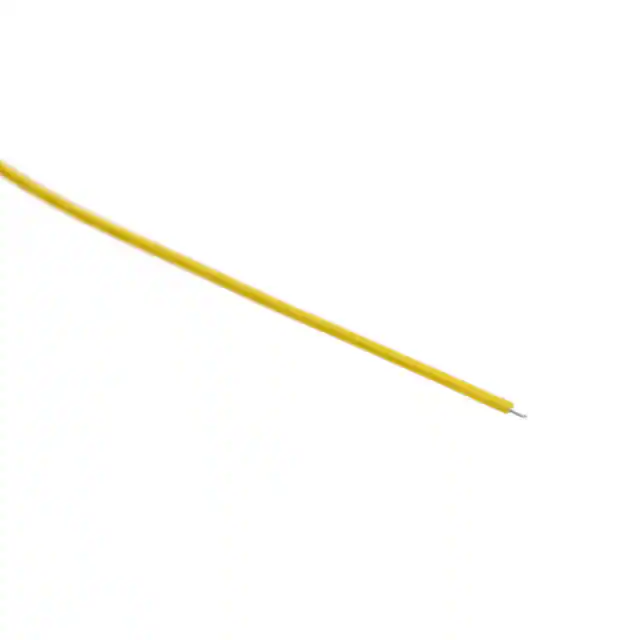

R-30Y-0050WIRE WW 30AWG PVDF YELLOW 50' |
80 |
|
Таблицы данных |
WD-30 | Roll | Active | 30 AWG | 0.010" (0.25mm) | 50' (15.24m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Yellow | UL Style 1423, VW-1 | - |
|

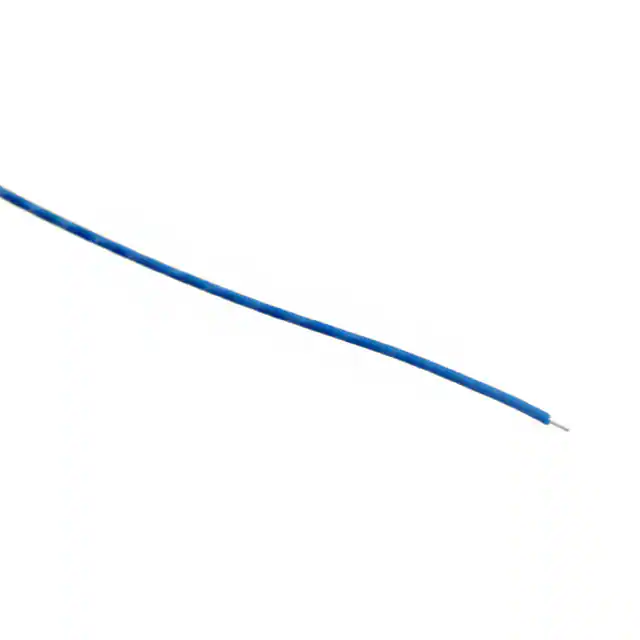

R-30B-0050WIRE WW 30AWG PVDF BLUE 50' |
44 |
|
Таблицы данных |
WD-30 | Roll | Active | 30 AWG | 0.010" (0.25mm) | 50' (15.24m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Blue | UL Style 1423, VW-1 | - |
|

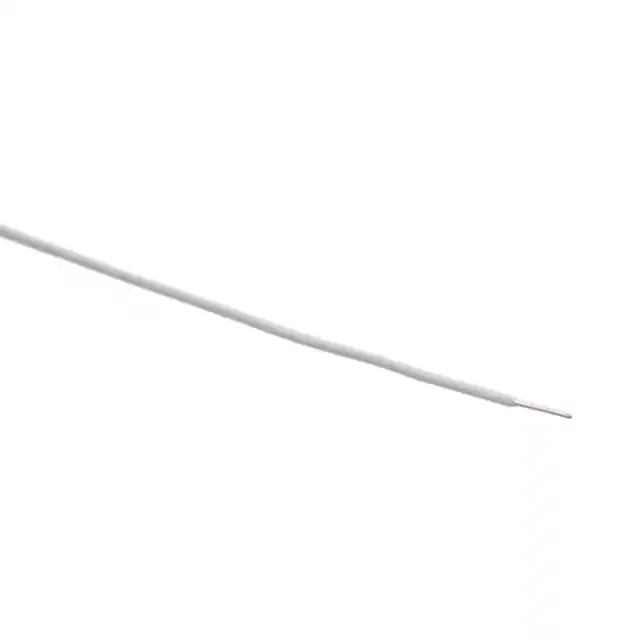

R-30W-0050WIRE WW 30AWG PVDF WHITE 50' |
16 |
|
Таблицы данных |
WD-30 | Roll | Active | 30 AWG | 0.010" (0.25mm) | 50' (15.24m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | White | UL Style 1423, VW-1 | - |
|

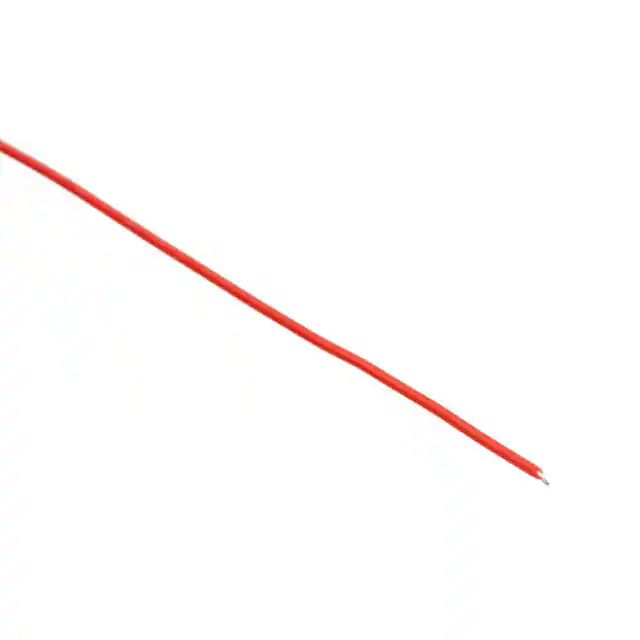

R-30R-0050WIRE WW 30AWG PVDF RED 50' |
14 |
|
Таблицы данных |
WD-30 | Roll | Active | 30 AWG | 0.010" (0.25mm) | 50' (15.24m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Red | UL Style 1423, VW-1 | - |
|
30-W-50-030WIRE WW 30AWG PVDF WHITE 5" 50PC |
13 |
|
Таблицы данных |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.417' (127.00mm, 5.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | White | UL Style 1423, VW-1 | - |
|
|
30-B-50-050WIRE WW 30AWG PVDF BLUE 7" 50PC |
11 |
|
Таблицы данных |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.583' (177.70mm, 7.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Blue | UL Style 1423, VW-1 | - |
|
|
30-B-50-030WIRE WW 30AWG PVDF BLUE 5" 50PC |
25 |
|
Таблицы данных |
- | 50 per Pkg | Active | 30 AWG | 0.010" (0.25mm) | 0.417' (127.00mm, 5.00") | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Blue | UL Style 1423, VW-1 | - |
|
R30Y-0100WIRE WW 30AWG PVDF YELLOW 100' |
98 |
|
Таблицы данных |
- | Roll | Active | 30 AWG | 0.010" (0.25mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.019" (0.50mm) | Copper, Bare | Silver | Yellow | UL Style 1423, VW-1 | - |
|

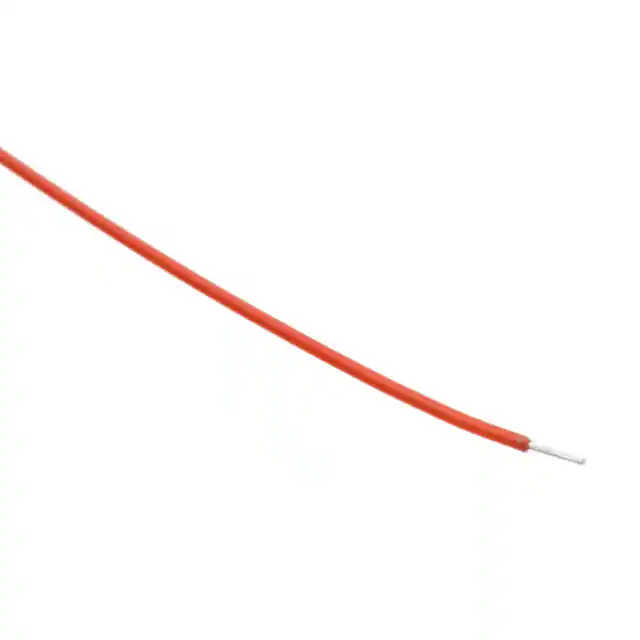

R28R-0100WIRE WW 28AWG PVDF RED 100' |
34 |
|
Таблицы данных |
- | Roll | Active | 28 AWG | 0.013" (0.32mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.023" (0.58mm) | Copper, Bare | Silver | Red | UL Style 1422 | - |
|

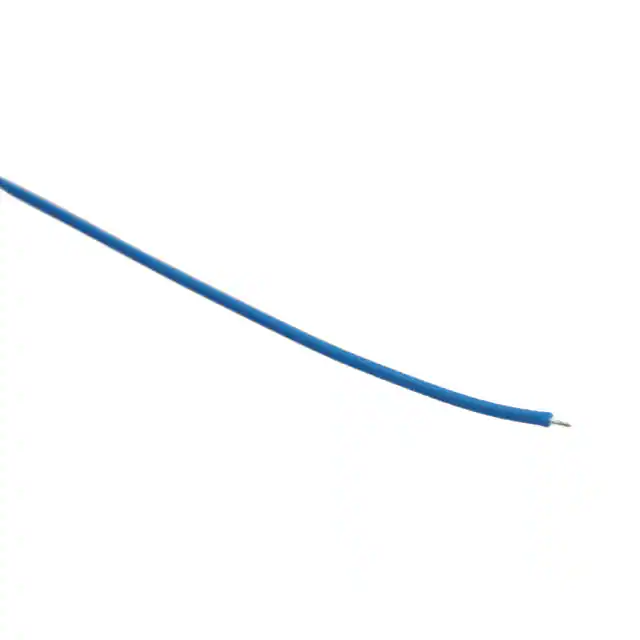

R26B-0100WIRE WW 26AWG PVDF BLUE 100' |
90 |
|
Таблицы данных |
- | Roll | Active | 26 AWG | 0.016" (0.40mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.027" (0.69mm) | Copper, Bare | Silver | Blue | UL Style 1422 | - |
|

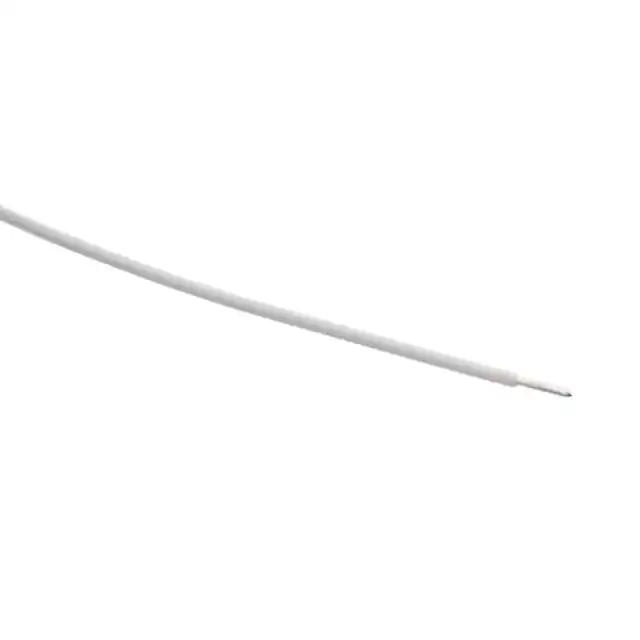

R26W-0100WIRE WW 26AWG PVDF WHITE 100' |
71 |
|
Таблицы данных |
- | Roll | Active | 26 AWG | 0.016" (0.40mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.027" (0.69mm) | Copper, Bare | Silver | White | UL Style 1422 | - |
|

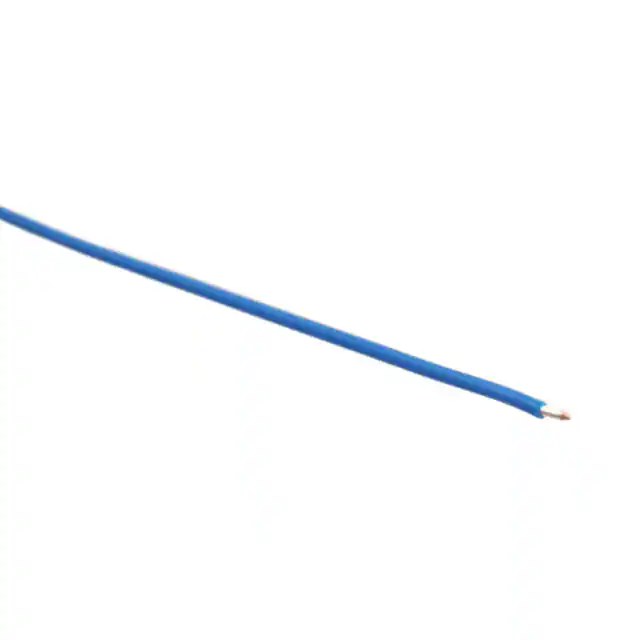

R24B-0100WIRE WW 24AWG PVDF BLUE 100' |
45 |
|
Таблицы данных |
- | Roll | Active | 24 AWG | 0.019" (0.50mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.030" (0.76mm) | Copper, Bare | Silver | Blue | UL Style 1422 | - |
|
R24BLK-0100WIRE WW 24AWG PVDF BLACK 100' |
28 |
|
Таблицы данных |
- | Roll | Active | 24 AWG | 0.019" (0.50mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.030" (0.76mm) | Copper, Bare | Silver | Black | UL Style 1422 | - |
|

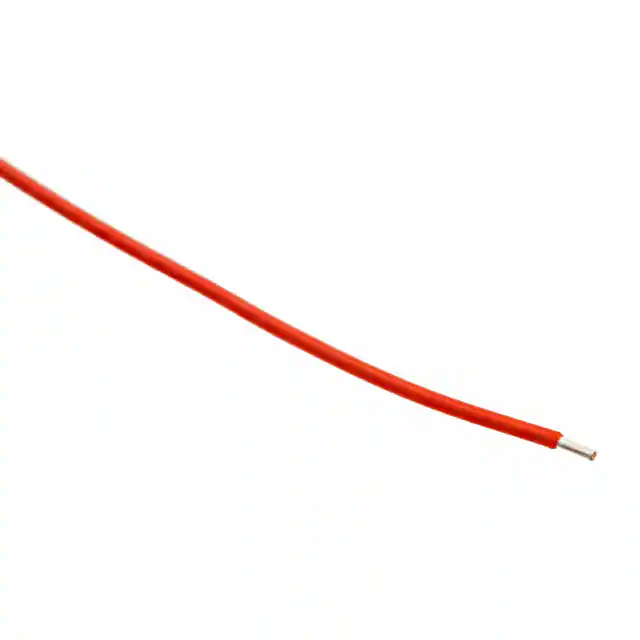

R24R-0100WIRE WW 24AWG PVDF RED 100' |
26 |
|
Таблицы данных |
- | Roll | Active | 24 AWG | 0.019" (0.50mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.030" (0.76mm) | Copper, Bare | Silver | Red | UL Style 1422 | - |
|

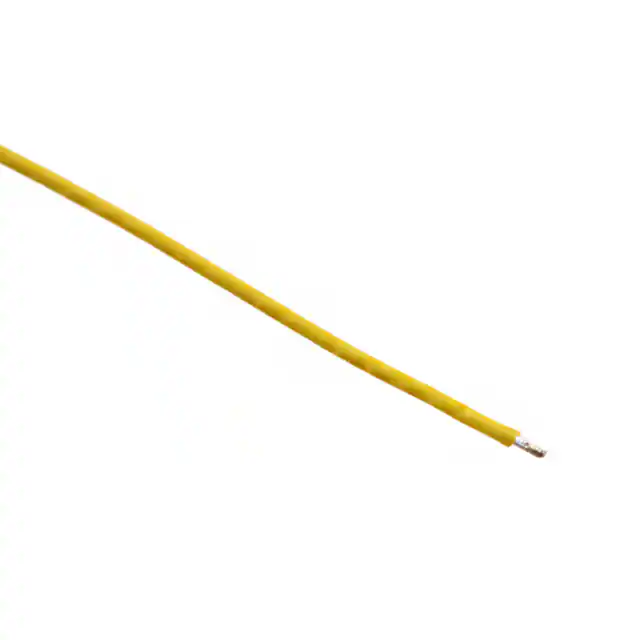

R24Y-0100WIRE WW 24AWG PVDF YELLOW 100' |
17 |
|
Таблицы данных |
- | Roll | Active | 24 AWG | 0.019" (0.50mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.030" (0.76mm) | Copper, Bare | Silver | Yellow | UL Style 1422 | - |
|

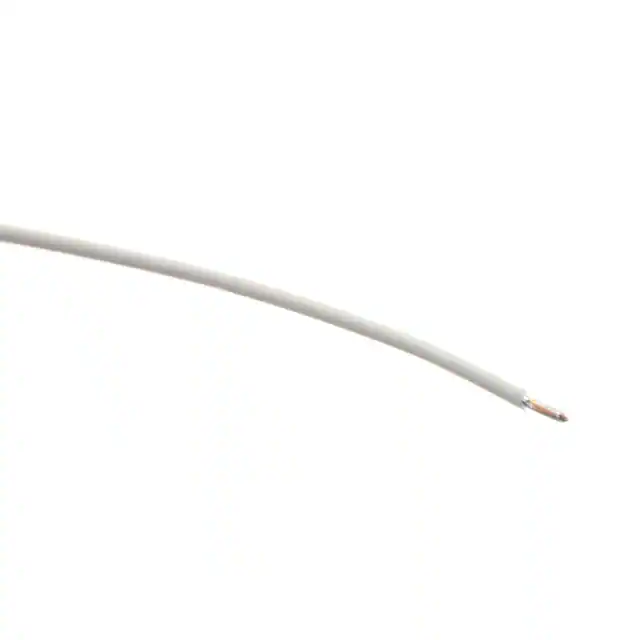

R24W-0100WIRE WW 24AWG PVDF WHITE 100' |
17 |
|
Таблицы данных |
- | Roll | Active | 24 AWG | 0.019" (0.50mm) | 100' (30.5m) | Polyvinylidene Fluoride (PVDF) | 0.030" (0.76mm) | Copper, Bare | Silver | White | UL Style 1422 | - |
