| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2047L1L1W01SWITCH TOGGLE DP3T 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Locking Lever | - | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2112LCG01SWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Таблицы данных |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2112TCW03SWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2113LCFG03SWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Таблицы данных |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|

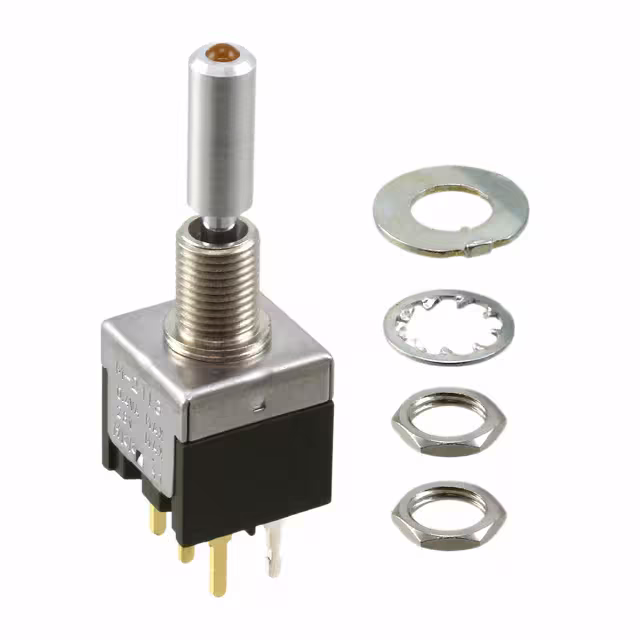

M2113LEG03SWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Таблицы данных |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.70mm | Illuminated | LED, Yellow | 2.1 VDC | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2113TCW03SWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2113TEFW03SWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green/Yellow | 2.1 VDC | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2113TFW02SWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green | 2.2 VDC | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2122TCFG01SWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
Таблицы данных |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2122TCW01/USWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2122TCW03SWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2123LEW02SWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Yellow | 2.1 VDC | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2123LFW02SWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green | 2.2 VDC | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2T12S4A5G40/CULSWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Таблицы данных |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T12S4A5W40/CULSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T12S4A5W40/USWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T12SA5A03/UCSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T12SA5A13/CULSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T13S4A5G13SWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Таблицы данных |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T13S4A5W30SWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
