Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Структура | Количество SCR, диодов | Напряжение - Выкл. | Ток - Вкл. состояние (It (AV)) (макс.) | Ток - Вкл. состояние (It (RMS)) (макс.) | Напряжение - Триггер затвора (Vgt) (макс.) | Ток - Триггер затвора (Igt) (макс.) | Ток - Неповтор. всплеск 50, 60 Гц (Itsm) | Ток - удержание (Ih) (макс.) | Рабочая температура | Марка | Квалификация | Тип крепления |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
T7S0186504DNSCR PHASE CTRL MOD 1800V 650A Powerex Inc. |
0 |
|
![]() Таблицы данных |
- | TO-200 Variation | Bulk | Obsolete | Single | 1 SCR | 1.8 kV | 650 A | 1020 A | 3 V | 150 mA | 8200A, 9000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

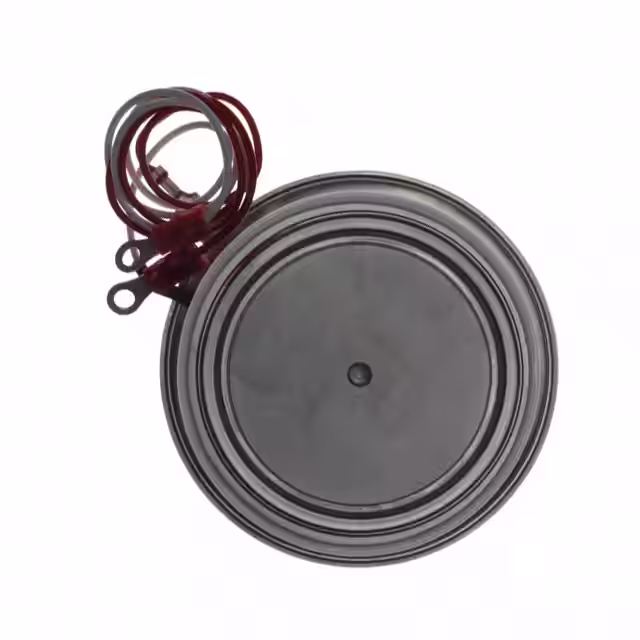

T9S0162003DHSCR PHASE CTRL MOD 1600V 2000A Powerex Inc. |
0 |
|
- |
- | TO-200 Variation | Bulk | Obsolete | Single | 1 SCR | 1.6 kV | 2000 A | 3142 A | 3 V | 200 mA | 25456A, 27000A | - | - | - | - | Chassis Mount |
![]() |
T720224504DNSCR PHASE CTRL MOD 2200V 450A Powerex Inc. |
0 |
|
![]() Таблицы данных |
- | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 2.2 kV | 450 A | 700 A | 3 V | 150 mA | 7650A, 8400A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
![]() |
T820129004DHSCR PHASE CTRL MOD 1200V 900A Powerex Inc. |
0 |
|
![]() Таблицы данных |
- | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.2 kV | 900 A | 1410 A | 3 V | 150 mA | 13700A, 15000A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
![]() |
ND421221SCR MOD ISO DUAL 1200V 210A Powerex Inc. |
0 |
|
![]() Таблицы данных |
- | POW-R-BLOK™ Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 210 A | 330 A | 3 V | 150 mA | 11190A @ 60Hz | - | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
![]() |
ND471625SCR MOD ISO DUAL 1600V 250A Powerex Inc. |
0 |
|
![]() Таблицы данных |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 250 A | 393 A | 3 V | 150 mA | 8800A @ 60Hz | - | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
![]() |
ND421225SCR MOD ISO DUAL 1200V 250A Powerex Inc. |
0 |
|
![]() Таблицы данных |
- | POW-R-BLOK™ Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 250 A | 393 A | 3 V | 150 mA | 8800A @ 60Hz | - | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
![]() |
ND430821SCR MOD ISO DUAL 800V 210A Powerex Inc. |
0 |
|
![]() Таблицы данных |
- | POW-R-BLOK™ Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 800 V | 210 A | 330 A | 3 V | 150 mA | 11190A @ 60Hz | - | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
![]() |
LS430850SCR MOD ISO SGL 800V 500A Powerex Inc. |
0 |
|
![]() Таблицы данных |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 800 V | 575 A | 900 A | 3 V | 200 mA | 16300A, 17000A | - | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
![]() |
ND430825SCR MOD ISO DUAL 800V 250A Powerex Inc. |
0 |
|
![]() Таблицы данных |
- | POW-R-BLOK™ Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 800 V | 250 A | 393 A | 3 V | 150 mA | 8800A @ 60Hz | - | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
