БОМ
Отверстия резисторов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление | Допуск | Мощность (Вт) | Состав | Особенности | Температурный коэффициент | Рабочая температура | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) | Количество окончаний | Интенсивность отказов |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

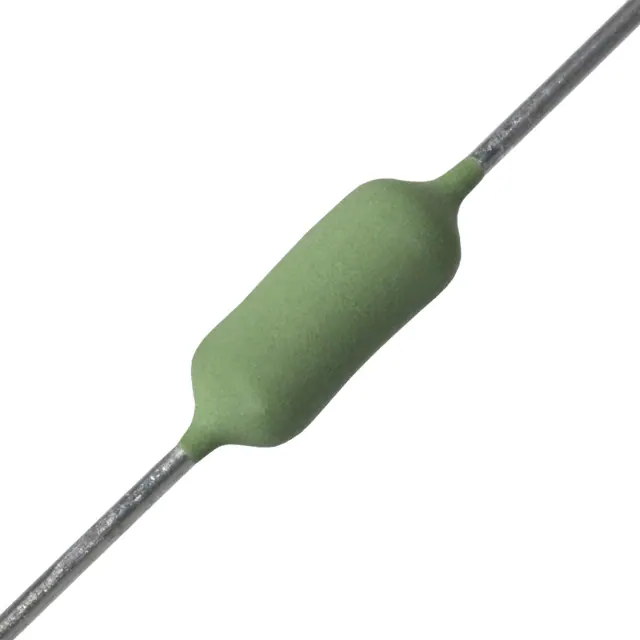

AC03000005007JAC00RES 0.5 OHM 3W 5% AXIAL |
288 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 500 mOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.189" Dia x 0.512" L (4.80mm x 13.00mm) | - | 2 | - |
|

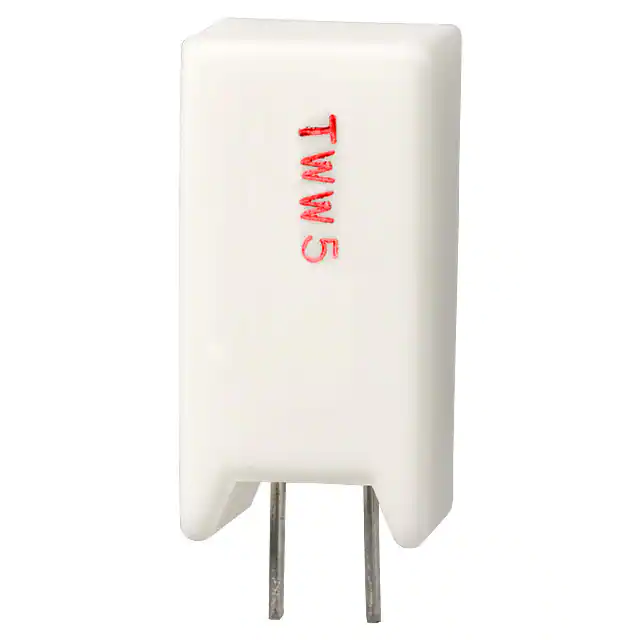

TWW5J10RERES 10 OHM 5% 5W RADIAL |
5,890 |
|
Таблицы данных |
TWW | Bulk | Active | 10 Ohms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
VR68000001005JAC00RES 10M OHM 1W 5% AXIAL |
7,039 |
|
Таблицы данных |
VR68 | Cut Tape (CT) | Active | 10 MOhms | ±5% | 1W | Metal Film | High Voltage, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.268" Dia x 0.709" L (6.80mm x 18.00mm) | - | 2 | - |
|

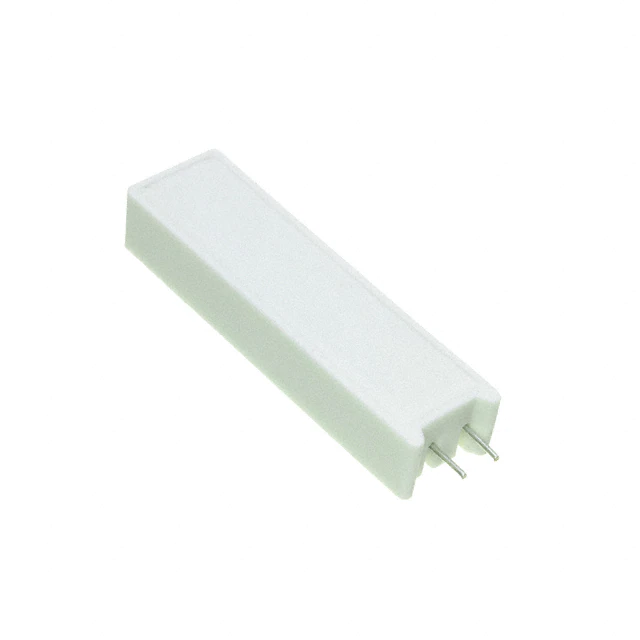

SQMR1010KJRES 10K OHM 5% 10W RADIAL |
1,100 |
|
Таблицы данных |
SQ, CGS | Bulk | Active | 10 kOhms | ±5% | 10W | Metal Film | Cement Coated, Flame Proof, Moisture Resistant, Safety | ±300ppm/°C | -55°C ~ 250°C | - | 0.512" L x 0.354" W (13.00mm x 9.00mm) | 2.047" (52.00mm) | 2 | - |
|
|
VR68000006805JAC00RES 68M OHM 1W 5% AXIAL |
8,509 |
|
Таблицы данных |
VR68 | Cut Tape (CT) | Active | 68 MOhms | ±5% | 1W | Metal Film | High Voltage, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.268" Dia x 0.709" L (6.80mm x 18.00mm) | - | 2 | - |
|

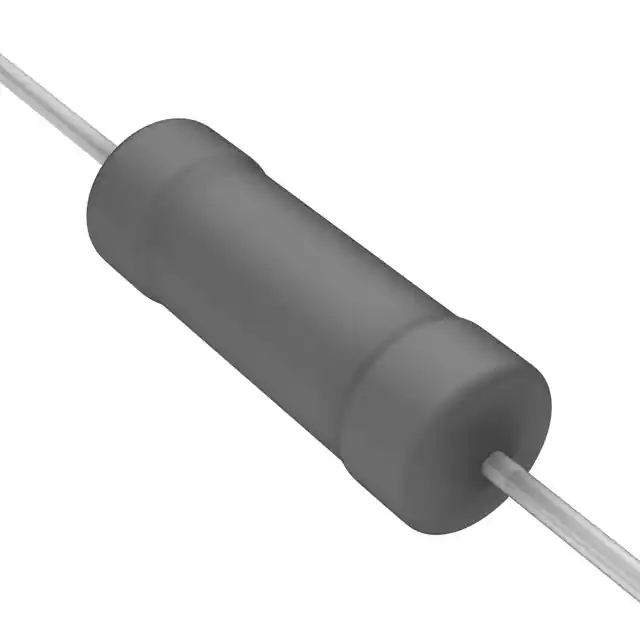

PAC300001008FAC000RES 1 OHM 3W 1% AXIAL |
39,221 |
|
Таблицы данных |
PAC | Cut Tape (CT) | Active | 1 Ohms | ±1% | 3W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±100ppm/°C | -55°C ~ 275°C | Axial | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) | - | 2 | - |
|
|
PAC300003307FAC000RES 0.33 OHM 3W 1% AXIAL |
7,038 |
|
Таблицы данных |
PAC | Cut Tape (CT) | Active | 330 mOhms | ±1% | 3W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±100ppm/°C | -55°C ~ 275°C | Axial | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) | - | 2 | - |
|

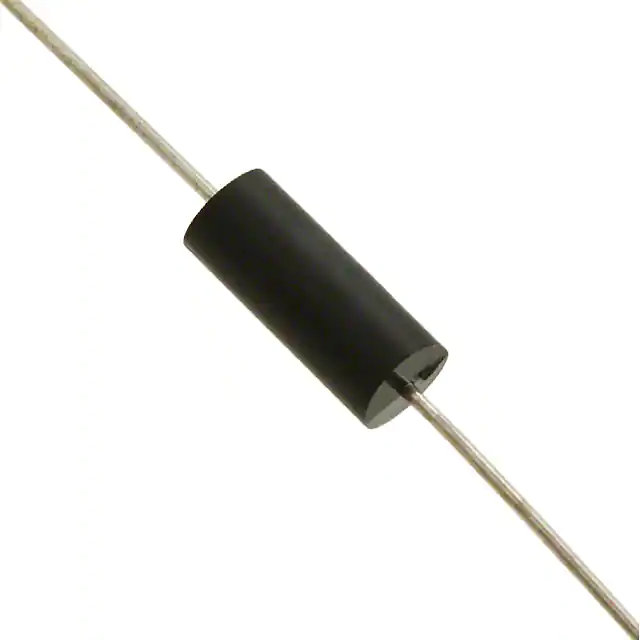

WHDR10FETRES 0.1 OHM 1% 3W AXIAL |
9,267 |
|
Таблицы данных |
WH | Tape & Reel (TR) | Active | 100 mOhms | ±1% | 3W | Wirewound | - | ±90ppm/°C | -55°C ~ 150°C | Axial | 0.217" Dia x 0.533" L (5.50mm x 13.54mm) | - | 2 | - |
|
MR3FT50L0RES 0.05 OHM 1% 3W AXIAL |
6,090 |
|
Таблицы данных |
MR | Tape & Reel (TR) | Active | 50 mOhms | ±1% | 3W | Metal Foil | Current Sense, Moisture Resistant, Non-Inductive, Non-Magnetic | - | -55°C ~ 275°C | Axial | 0.205" Dia x 0.560" L (5.21mm x 14.22mm) | - | 2 | - |
|
WHER10FETRES 0.1 OHM 1% 5W AXIAL |
26,602 |
|
Таблицы данных |
WH | Tape & Reel (TR) | Active | 100 mOhms | ±1% | 5W | Wirewound | - | ±90ppm/°C | -55°C ~ 150°C | Axial | 0.295" Dia x 0.787" L (7.50mm x 20.00mm) | - | 2 | - |
|
|
MR3FT5L00RES 0.005 OHM 1% 3W AXIAL |
1,108 |
|
Таблицы данных |
MR | Tape & Reel (TR) | Active | 5 mOhms | ±1% | 3W | Metal Foil | Current Sense, Moisture Resistant, Non-Inductive, Non-Magnetic | - | -55°C ~ 275°C | Axial | 0.205" Dia x 0.560" L (5.21mm x 14.22mm) | - | 2 | - |
|

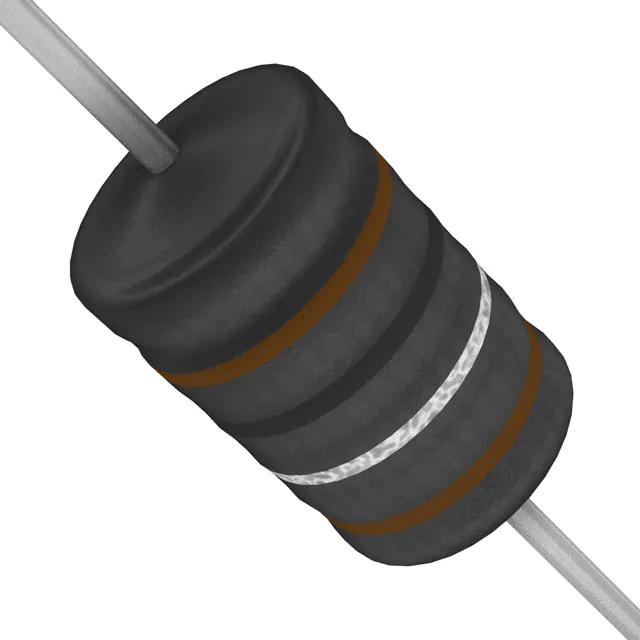

WHCR10FETRES 0.1 OHM 1% 2W AXIAL |
3,560 |
|
Таблицы данных |
WH | Tape & Reel (TR) | Active | 100 mOhms | ±1% | 2W | Wirewound | - | ±90ppm/°C | -55°C ~ 150°C | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|
VR68000001004FAC00RES 1M OHM 1W 1% AXIAL |
8,012 |
|
Таблицы данных |
VR68 | Cut Tape (CT) | Active | 1 MOhms | ±1% | 1W | Metal Film | High Voltage, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.268" Dia x 0.709" L (6.80mm x 18.00mm) | - | 2 | - |
|
|

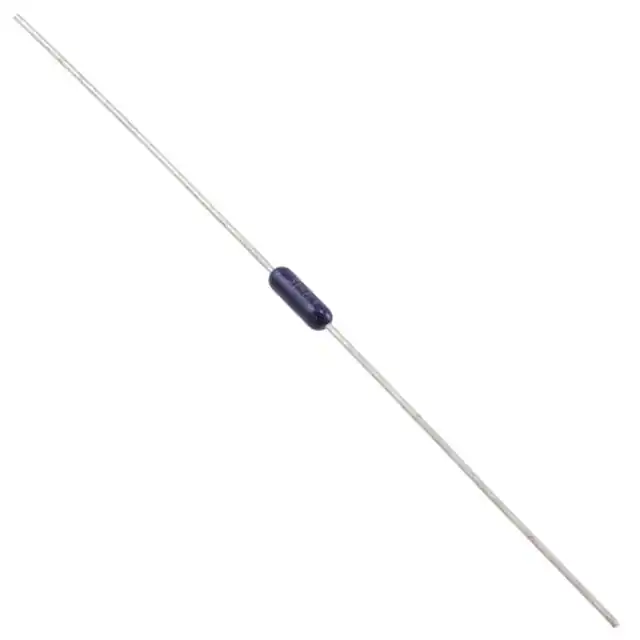

RLR07C1001FSB14RES 1K OHM 1% 1/4W AXIAL |
5,350 |
|
Таблицы данных |
Military, MIL-PRF-39017/01, RLR07 | Bulk | Active | 1 kOhms | ±1% | 0.25W, 1/4W | Metal Film | Military, Moisture Resistant, Weldable | ±100ppm/°C | -65°C ~ 150°C | Axial | 0.090" Dia x 0.250" L (2.29mm x 6.35mm) | - | 2 | S (0.001%) |
|
|
MSR3-0R005F1RES 0.005 OHM 1% 3W RADIAL |
27,408 |
|
Таблицы данных |
MSR | Bulk | Active | 5 mOhms | ±1% | 3W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety | ±20ppm/°C | -65°C ~ 275°C | - | 0.598" L x 0.067" W (15.20mm x 1.70mm) | 1.000" (25.40mm) | 2 | - |
|
RLR07C1000GSB14RES 100 OHM 2% 1/4W AXIAL |
786 |
|
Таблицы данных |
Military, MIL-PRF-39017/01, RLR07 | Bulk | Active | 100 Ohms | ±2% | 0.25W, 1/4W | Metal Film | Military, Moisture Resistant, Weldable | ±100ppm/°C | -65°C ~ 150°C | Axial | 0.090" Dia x 0.250" L (2.29mm x 6.35mm) | - | 2 | S (0.001%) |
|
|
MR5FT10L0RES 0.01 OHM 1% 5W AXIAL |
11,898 |
|
Таблицы данных |
MR | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 5W | Metal Foil | Current Sense, Moisture Resistant, Non-Inductive, Non-Magnetic | - | -55°C ~ 275°C | Axial | 0.330" Dia x 0.925" L (8.38mm x 23.50mm) | - | 2 | - |
|

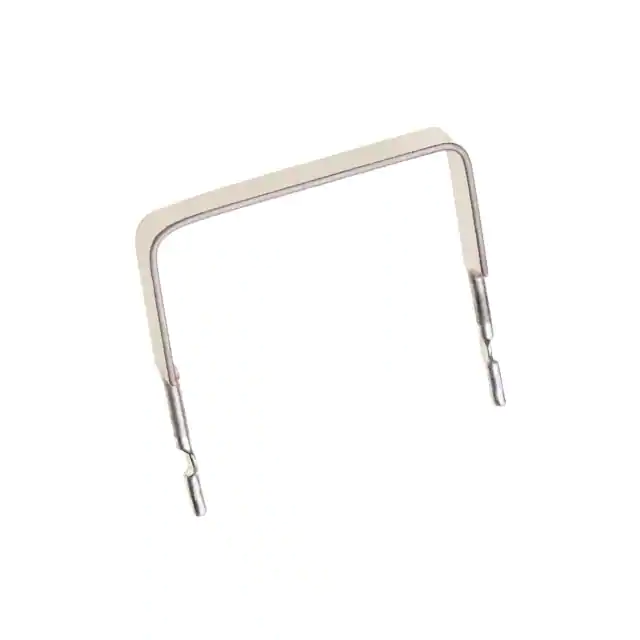

MSR5-0R01F1RES 0.01 OHM 1% 5W RADIAL |
66,828 |
|
Таблицы данных |
MSR | Bulk | Active | 10 mOhms | ±1% | 5W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety | ±20ppm/°C | -65°C ~ 275°C | - | 0.799" L x 0.067" W (20.30mm x 1.70mm) | 1.000" (25.40mm) | 2 | - |
|

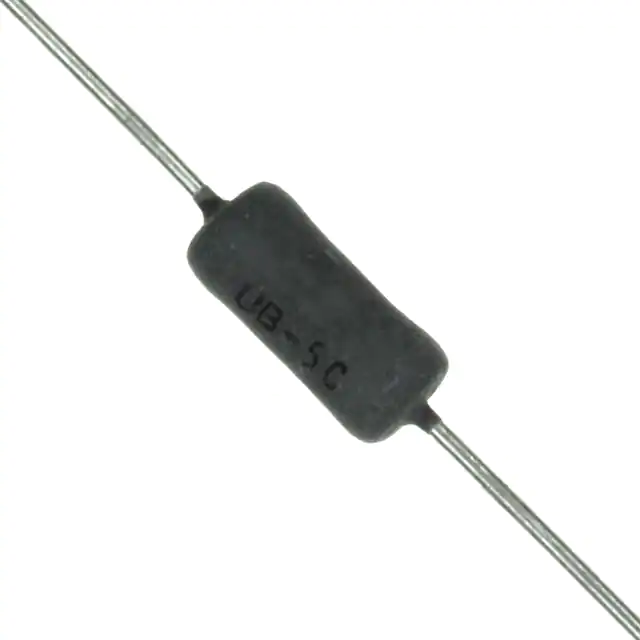

UB5C-0R5F1RES 0.5 OHM 1% 5W AXIAL |
1,743 |
|
Таблицы данных |
UB | Bulk | Active | 500 mOhms | ±1% | 5W | Wirewound | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | - | -55°C ~ 250°C | Axial | 0.250" Dia x 0.500" L (6.40mm x 12.70mm) | - | 2 | - |
|
|
43FR10ERES 0.1 OHM 1% 3W AXIAL |
15,798 |
|
Таблицы данных |
Ohmicone® 40 | Bulk | Active | 100 mOhms | ±1% | 3W | Wirewound | - | ±90ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
