БОМ
Отверстия резисторов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление | Допуск | Мощность (Вт) | Состав | Особенности | Температурный коэффициент | Рабочая температура | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) | Количество окончаний | Интенсивность отказов |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

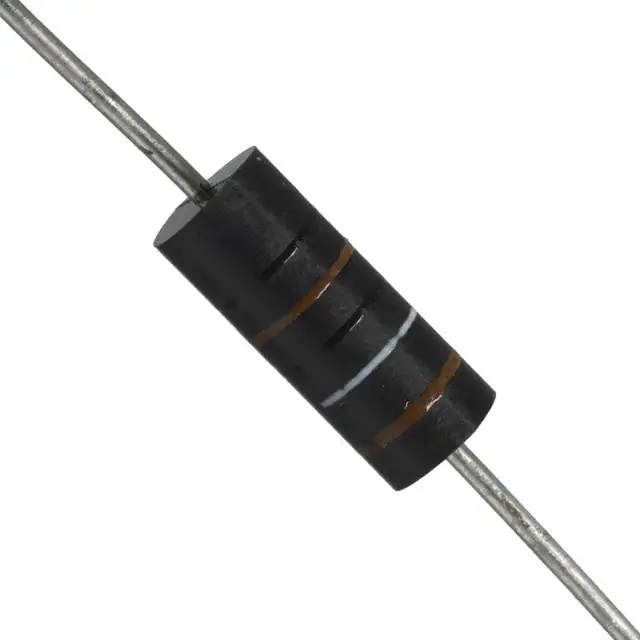

WLCR010FETRES 0.01 OHM 1% 2W AXIAL |
7,586 |
|
Таблицы данных |
WL | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 2W | Wirewound | Current Sense, Moisture Resistant | ±300ppm/°C | - | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|
CPF1500R00FKE14RES 500 OHM 1% 1W AXIAL |
3,313 |
|
Таблицы данных |
CPF | Bulk | Active | 500 Ohms | ±1% | 1W | Metal Film | Flame Proof, Moisture Resistant, Safety | ±100ppm/°C | -65°C ~ 230°C | Axial | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | - | 2 | - |
|
CMF504K9900FHEBRES 4.99K OHM 1/4W 1% AXIAL |
3,171 |
|
Таблицы данных |
CMF | Tape & Reel (TR) | Active | 4.99 kOhms | ±1% | 0.25W, 1/4W | Metal Film | Flame Retardant Coating, Moisture Resistant, Safety | ±50ppm/°C | -55°C ~ 175°C | Axial | 0.065" Dia x 0.150" L (1.65mm x 3.81mm) | - | 2 | - |
|

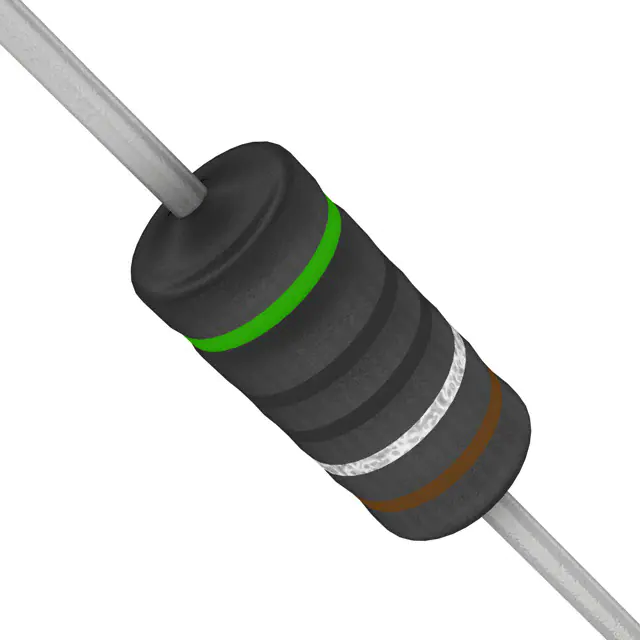

WHB5R0FETRES 5 OHM 1% 1W AXIAL |
7,448 |
|
Таблицы данных |
WH | Tape & Reel (TR) | Active | 5 Ohms | ±1% | 1W | Wirewound | - | ±50ppm/°C | -55°C ~ 150°C | Axial | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - | 2 | - |
|
|
CMF202K7000JNEARES 2.7K OHM 1W 5% AXIAL |
2,370 |
|
Таблицы данных |
CMF | Tape & Reel (TR) | Active | 2.7 kOhms | ±5% | 1W | Metal Film | Flame Retardant Coating, Moisture Resistant, Safety | ±200ppm/°C | -55°C ~ 175°C | Axial | 0.145" Dia x 0.375" L (3.68mm x 9.53mm) | - | 2 | - |
|
MR3FT20L0RES 0.02 OHM 1% 3W AXIAL |
2,234 |
|
Таблицы данных |
MR | Tape & Reel (TR) | Active | 20 mOhms | ±1% | 3W | Metal Foil | Current Sense, Moisture Resistant, Non-Inductive, Non-Magnetic | - | -55°C ~ 275°C | Axial | 0.205" Dia x 0.560" L (5.21mm x 14.22mm) | - | 2 | - |
|
AC07000004709JAC00RES 47 OHM 7W 5% AXIAL |
4,034 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 47 Ohms | ±5% | 7W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
|
AC07000002709JAC00RES 27 OHM 7W 5% AXIAL |
2,989 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 27 Ohms | ±5% | 7W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
|
AC07000003909JAC00RES 39 OHM 7W 5% AXIAL |
1,973 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 39 Ohms | ±5% | 7W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
|
AC07000002008JAC00RES 2 OHM 7W 5% AXIAL |
1,772 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 2 Ohms | ±5% | 7W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
|
AC07000002409JAC00RES 24 OHM 7W 5% AXIAL |
983 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 24 Ohms | ±5% | 7W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
|
AC07000003000JAC00RES 300 OHM 7W 5% AXIAL |
323 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 300 Ohms | ±5% | 7W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - | 2 | - |
|
EP7WS22RJRES 22 OHM 5% 7W AXIAL |
6,808 |
|
Таблицы данных |
EP, Neohm | Tray | Active | 22 Ohms | ±5% | 7W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | ±300ppm/°C | -55°C ~ 155°C | Axial | 0.335" Dia x 1.181" L (8.50mm x 30.00mm) | - | 2 | - |
|
AC03000002007JAC00RES 0.2 OHM 3W 5% AXIAL |
5,285 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 200 mOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.189" Dia x 0.512" L (4.80mm x 13.00mm) | - | 2 | - |
|
|
CMF50332R00FHEBRES 332 OHM 1/4W 1% AXIAL |
4,928 |
|
Таблицы данных |
CMF | Tape & Reel (TR) | Active | 332 Ohms | ±1% | 0.25W, 1/4W | Metal Film | Flame Retardant Coating, Moisture Resistant, Safety | ±50ppm/°C | -55°C ~ 175°C | Axial | 0.065" Dia x 0.150" L (1.65mm x 3.81mm) | - | 2 | - |
|
|
AC03000002207JAC00RES 0.22 OHM 3W 5% AXIAL |
2,857 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 220 mOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.189" Dia x 0.512" L (4.80mm x 13.00mm) | - | 2 | - |
|
|
AC03000002407JAC00RES 0.24 OHM 3W 5% AXIAL |
2,634 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 240 mOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.189" Dia x 0.512" L (4.80mm x 13.00mm) | - | 2 | - |
|
|
CMF554K0000BHEBRES 4K OHM 1/2W 0.1% AXIAL |
4,148 |
|
Таблицы данных |
CMF | Tape & Reel (TR) | Active | 4 kOhms | ±0.1% | 0.5W, 1/2W | Metal Film | Flame Retardant Coating, Moisture Resistant, Safety | ±50ppm/°C | -55°C ~ 175°C | Axial | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | - | 2 | - |
|
|
AC03000001007JAC00RES 0.1 OHM 3W 5% AXIAL |
3,175 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 100 mOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.189" Dia x 0.512" L (4.80mm x 13.00mm) | - | 2 | - |
|
|
RN55C1001BRE6RES 1K OHM 1/8W .1% AXIAL |
2,910 |
|
Таблицы данных |
Military, MIL-R-10509/7, RN55 | Tape & Reel (TR) | Active | 1 kOhms | ±0.1% | 0.125W, 1/8W | Metal Film | Flame Retardant Coating, Military, Moisture Resistant, Safety | ±50ppm/°C | -65°C ~ 175°C | Axial | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | - | 2 | - |
