Отверстия резисторов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление | Допуск | Мощность (Вт) | Состав | Особенности | Температурный коэффициент | Рабочая температура | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) | Количество окончаний | Интенсивность отказов |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AC05000004708JAC00RES 4.7 OHM 5W 5% AXIAL |
4,725 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 4.7 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
AC05000002201JAC00RES 2.2K OHM 5W 5% AXIAL |
3,954 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 2.2 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
|
AC05000001201JAC00RES 1.2K OHM 5W 5% AXIAL |
3,805 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 1.2 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|

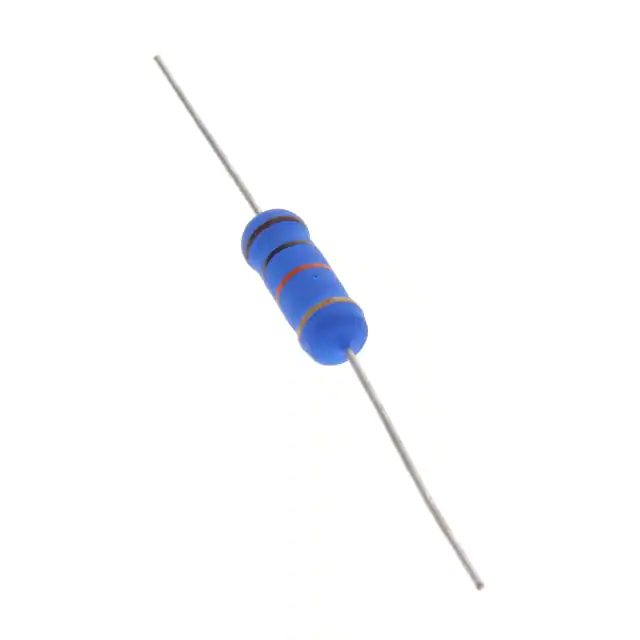

ROX5SSJ10KRES 10K OHM 5% 5W AXIAL |
3,551 |
|
Таблицы данных |
ROX, Neohm | Cut Tape (CT) | Active | 10 kOhms | ±5% | 5W | Metal Oxide Film | Flame Proof, Pulse Withstanding, Safety | ±350ppm/°C | -55°C ~ 200°C | Axial | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | - | 2 | - |
|
|
AC05000002009JAC00RES 20 OHM 5W 5% AXIAL |
3,122 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 20 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
|
AC05000001001JAC00RES 1K OHM 5W 5% AXIAL |
3,047 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 1 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
RN55E4000BRE6RES 400 OHM 1/8W .1% AXIAL |
3,028 |
|
Таблицы данных |
Military, MIL-R-10509/7, RN55 | Tape & Reel (TR) | Active | 400 Ohms | ±0.1% | 0.125W, 1/8W | Metal Film | Flame Retardant Coating, Military, Moisture Resistant, Safety | ±25ppm/°C | -65°C ~ 175°C | Axial | 0.090" Dia x 0.240" L (2.29mm x 6.10mm) | - | 2 | - |
|
|
AC05000001501JAC00RES 1.5K OHM 5W 5% AXIAL |
2,985 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 1.5 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | 100/ +180ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
VR68000001204JAC00RES 1.2M OHM 1W 5% AXIAL |
2,690 |
|
Таблицы данных |
VR68 | Cut Tape (CT) | Active | 1.2 MOhms | ±5% | 1W | Metal Film | High Voltage, Pulse Withstanding | ±200ppm/°C | -55°C ~ 155°C | Axial | 0.268" Dia x 0.709" L (6.80mm x 18.00mm) | - | 2 | - |
|
|
AC05000001508JAC00RES 1.5 OHM 5W 5% AXIAL |
2,517 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 1.5 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
|
AC05000004700JAC00RES 470 OHM 5W 5% AXIAL |
1,811 |
|
Таблицы данных |
AC | Cut Tape (CT) | Active | 470 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Pulse Withstanding, Safety | -10/ -80ppm/°C | -40°C ~ 275°C | Axial | 0.295" Dia x 0.709" L (7.50mm x 18.00mm) | - | 2 | - |
|
PNP300JR-73-0R1RES 0.1 OHM 5% 3W AXIAL |
1,421 |
|
Таблицы данных |
PNP | Tape & Reel (TR) | Active | 100 mOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | - | -40°C ~ 200°C | Axial | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) | - | 2 | - |
|
PNP300JR-73-0R56RES 0.56 OHM 5% 3W AXIAL |
8,425 |
|
Таблицы данных |
PNP | Tape & Reel (TR) | Active | 560 mOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | - | -40°C ~ 200°C | Axial | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) | - | 2 | - |
|
RN65D2202FB14RES 22K OHM 1/2W 1% AXIAL |
4,248 |
|
Таблицы данных |
Military, MIL-R-10509/2, RN65 | Bulk | Active | 22 kOhms | ±1% | 0.5W, 1/2W | Metal Film | Flame Retardant Coating, Military, Moisture Resistant, Safety | ±100ppm/°C | -65°C ~ 175°C | Axial | 0.180" Dia x 0.562" L (4.57mm x 14.27mm) | - | 2 | - |
|

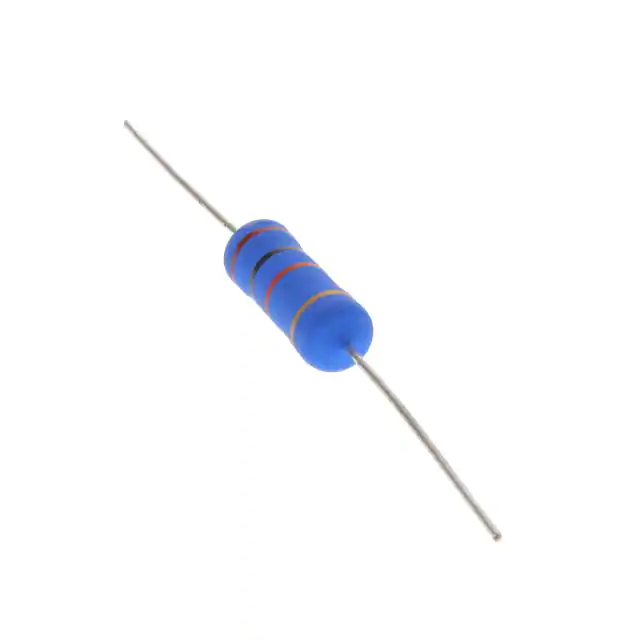

ROX5SSJ27KRES 27K OHM 5% 5W AXIAL |
4,035 |
|
Таблицы данных |
ROX, Neohm | Cut Tape (CT) | Active | 27 kOhms | ±5% | 5W | Metal Oxide Film | Flame Proof, Pulse Withstanding, Safety | ±350ppm/°C | -55°C ~ 200°C | Axial | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | - | 2 | - |
|
SQP10AJB-200RRES 200 OHM 5% 10W AXIAL |
3,517 |
|
Таблицы данных |
SQP | Tray | Active | 200 Ohms | ±5% | 10W | Cement | Flame Proof, Pulse Withstanding, Safety | - | -55°C ~ 155°C | Axial | 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) | - | 2 | - |
|
ROX5SSJ30RRES 30 OHM 5% 5W AXIAL |
2,397 |
|
Таблицы данных |
ROX, Neohm | Cut Tape (CT) | Active | 30 Ohms | ±5% | 5W | Metal Oxide Film | Flame Proof, Pulse Withstanding, Safety | ±350ppm/°C | -55°C ~ 200°C | Axial | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | - | 2 | - |
|
|
CMF5014K000FHEBRES 14.0K OHM 1/4W 1% AXIAL |
2,306 |
|
Таблицы данных |
CMF | Tape & Reel (TR) | Active | 14 kOhms | ±1% | 0.25W, 1/4W | Metal Film | Flame Retardant Coating, Moisture Resistant, Safety | ±50ppm/°C | -55°C ~ 175°C | Axial | 0.065" Dia x 0.150" L (1.65mm x 3.81mm) | - | 2 | - |
|
|
SQP10AJB-680RRES 680 OHM 5% 10W AXIAL |
1,274 |
|
Таблицы данных |
SQP | Tray | Active | 680 Ohms | ±5% | 10W | Cement | Flame Proof, Pulse Withstanding, Safety | - | -55°C ~ 155°C | Axial | 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) | - | 2 | - |
|

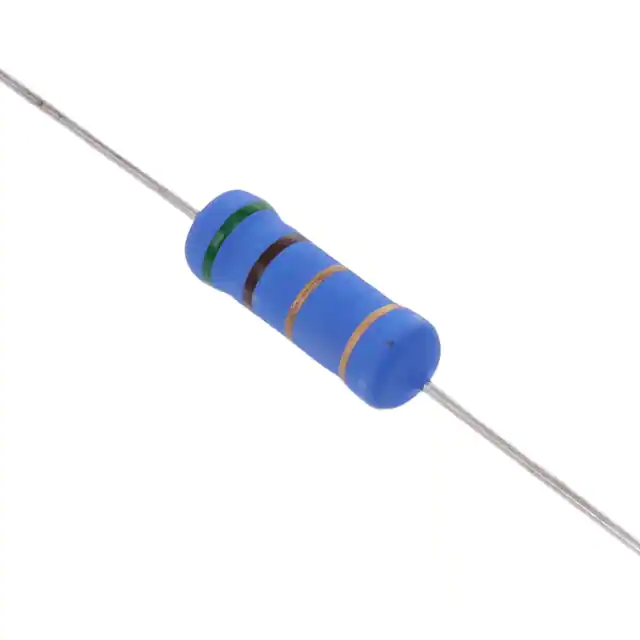

ROX5SSJ5R1RES 5.1 OHM 5% 5W AXIAL |
7,588 |
|
Таблицы данных |
ROX, Neohm | Cut Tape (CT) | Active | 5.1 Ohms | ±5% | 5W | Metal Oxide Film | Flame Proof, Pulse Withstanding, Safety | ±200ppm/°C | -55°C ~ 200°C | Axial | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | - | 2 | - |
