БОМ
Отверстия резисторов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление | Допуск | Мощность (Вт) | Состав | Особенности | Температурный коэффициент | Рабочая температура | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) | Количество окончаний | Интенсивность отказов |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM404023011FERES 3010 OHM 5W 1% RADIAL |
0 |
|
- |
Slim-Mox HT | Bulk | Active | 3.01 kOhms | ±1% | 5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 180°C | Radial | 1.000" L x 0.070" W (25.40mm x 1.78mm) | 1.000" (25.40mm) | 2 | - |
|
|
MOX94023006JTERES 300M OHM 5% 10W AXIAL |
0 |
|
Таблицы данных |
Super-Mox | Bulk | Active | 300 MOhms | ±5% | 11.7W | Metal Oxide Film | High Voltage, Moisture Resistant, Non-Inductive | ±100ppm/°C | -55°C ~ 225°C | Axial | 0.315" Dia x 3.031" L (8.00mm x 77.00mm) | - | 2 | - |
|

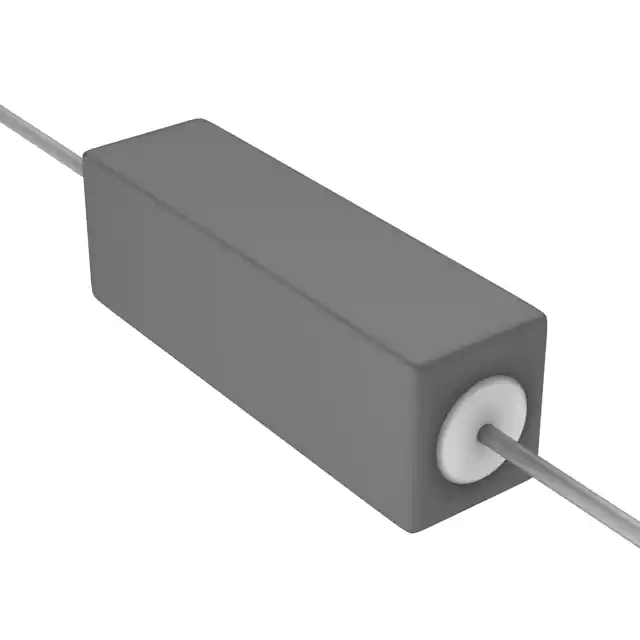

PSP500KR-0R22RES 0.22 OHM 10% 5W AXIAL |
0 |
|
Таблицы данных |
PSP | Tape & Reel (TR) | Discontinued at Digi-Key | 220 mOhms | ±10% | 5W | Wirewound | Anti-Arc, Flame Proof, Moisture Resistant, Safety | - | -55°C ~ 275°C | Axial | 0.252" Square x 0.984" L (6.40mm x 25.00mm) | - | 2 | - |
|
|
PSP500KR-100RRES 100 OHM 10% 5W AXIAL |
0 |
|
Таблицы данных |
PSP | Tape & Reel (TR) | Discontinued at Digi-Key | 100 Ohms | ±10% | 5W | Wirewound | Anti-Arc, Flame Proof, Moisture Resistant, Safety | - | -55°C ~ 275°C | Axial | 0.252" Square x 0.984" L (6.40mm x 25.00mm) | - | 2 | - |
|
|
PSP500KR-10KRES 10K OHM 10% 5W AXIAL |
0 |
|
Таблицы данных |
PSP | Tape & Reel (TR) | Discontinued at Digi-Key | 10 kOhms | ±10% | 5W | Wirewound | Anti-Arc, Flame Proof, Moisture Resistant, Safety | - | -55°C ~ 275°C | Axial | 0.252" Square x 0.984" L (6.40mm x 25.00mm) | - | 2 | - |
|
|
PSP500KR-15KRES 15K OHM 10% 5W AXIAL |
0 |
|
Таблицы данных |
PSP | Tape & Reel (TR) | Discontinued at Digi-Key | 15 kOhms | ±10% | 5W | Wirewound | Anti-Arc, Flame Proof, Moisture Resistant, Safety | - | -55°C ~ 275°C | Axial | 0.252" Square x 0.984" L (6.40mm x 25.00mm) | - | 2 | - |
|
|
PSP500KR-4K7RES 4.7K OHM 10% 5W AXIAL |
0 |
|
Таблицы данных |
PSP | Tape & Reel (TR) | Discontinued at Digi-Key | 4.7 kOhms | ±10% | 5W | Wirewound | Anti-Arc, Flame Proof, Moisture Resistant, Safety | - | -55°C ~ 275°C | Axial | 0.252" Square x 0.984" L (6.40mm x 25.00mm) | - | 2 | - |
|
|
SM204014806FERES 480M OHM 1% RADIAL |
0 |
|
Таблицы данных |
Slim-Mox | Bulk | Active | 480 MOhms | ±1% | - | Metal Foil | High Voltage, Non-Inductive | 100ppm/°C | -55°C ~ 180°C | Radial | - | - | 2 | - |
|
MOX1125263606FERES 360M OHM 1% AXIAL |
0 |
|
Таблицы данных |
Mini-Mox | Bulk | Active | 360 MOhms | ±1% | - | Thick Film | High Voltage | 50ppm/°C | -55°C ~ 220°C | - | 0.165" Dia x 1.270" L (4.19mm x 32.26mm) | - | 2 | - |
|
TNP10SA1R00FERES 1 OHM 1% 10W TO126 |
0 |
|
Таблицы данных |
TNP10 | Tube | Obsolete | 1 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -55°C ~ 155°C | TO-126 | 0.335" L x 0.122" W (8.50mm x 3.10mm) | 0.598" (15.19mm) | 2 | - |
|
|
TNP10SA1R50FERES 1.5 OHM 1% 10W TO126 |
0 |
|
Таблицы данных |
TNP10 | Tube | Obsolete | 1.5 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -55°C ~ 155°C | TO-126 | 0.335" L x 0.122" W (8.50mm x 3.10mm) | 0.598" (15.19mm) | 2 | - |
|
|
TNP10SA3R00FERES 3 OHM 1% 10W TO126 |
0 |
|
Таблицы данных |
TNP10 | Tube | Obsolete | 3 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -55°C ~ 155°C | TO-126 | 0.335" L x 0.122" W (8.50mm x 3.10mm) | 0.598" (15.19mm) | 2 | - |
|
|
TNP10SA7R50FERES 7.5 OHM 1% 10W TO126 |
0 |
|
Таблицы данных |
TNP10 | Tube | Obsolete | 7.5 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -55°C ~ 155°C | TO-126 | 0.335" L x 0.122" W (8.50mm x 3.10mm) | 0.598" (15.19mm) | 2 | - |
|
|
TNP10SC10R0FERES 10 OHM 1% 10W TO126 |
0 |
|
Таблицы данных |
TNP10 | Tube | Obsolete | 10 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 155°C | TO-126 | 0.335" L x 0.122" W (8.50mm x 3.10mm) | 0.598" (15.19mm) | 2 | - |
|
|
TNP10SC12R0FERES 12 OHM 1% 10W TO126 |
0 |
|
Таблицы данных |
TNP10 | Tube | Obsolete | 12 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 155°C | TO-126 | 0.335" L x 0.122" W (8.50mm x 3.10mm) | 0.598" (15.19mm) | 2 | - |
|
|
TNP10SC15R0FERES 15 OHM 1% 10W TO126 |
0 |
|
Таблицы данных |
TNP10 | Tube | Obsolete | 15 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 155°C | TO-126 | 0.335" L x 0.122" W (8.50mm x 3.10mm) | 0.598" (15.19mm) | 2 | - |
|
|
TNP10SC20R0FERES 20 OHM 1% 10W TO126 |
0 |
|
Таблицы данных |
TNP10 | Tube | Obsolete | 20 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 155°C | TO-126 | 0.335" L x 0.122" W (8.50mm x 3.10mm) | 0.598" (15.19mm) | 2 | - |
|
|
TNP10SC25R0FERES 25 OHM 1% 10W TO126 |
0 |
|
Таблицы данных |
TNP10 | Tube | Obsolete | 25 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 155°C | TO-126 | 0.335" L x 0.122" W (8.50mm x 3.10mm) | 0.598" (15.19mm) | 2 | - |
|
|
TNP10SC27R0FERES 27 OHM 1% 10W TO126 |
0 |
|
Таблицы данных |
TNP10 | Tube | Obsolete | 27 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 155°C | TO-126 | 0.335" L x 0.122" W (8.50mm x 3.10mm) | 0.598" (15.19mm) | 2 | - |
|
|
TNP10SC47R0FERES 47 OHM 1% 10W TO126 |
0 |
|
Таблицы данных |
TNP10 | Tube | Obsolete | 47 Ohms | ±1% | 10W | Thin Film | Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 155°C | TO-126 | 0.335" L x 0.122" W (8.50mm x 3.10mm) | 0.598" (15.19mm) | 2 | - |
