Щупы для осциллографов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Значение затухания | Пропускная способность | Сопротивление - вход | Напряжение - макс. | Емкость - вход | Длина кабеля | Цвет |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

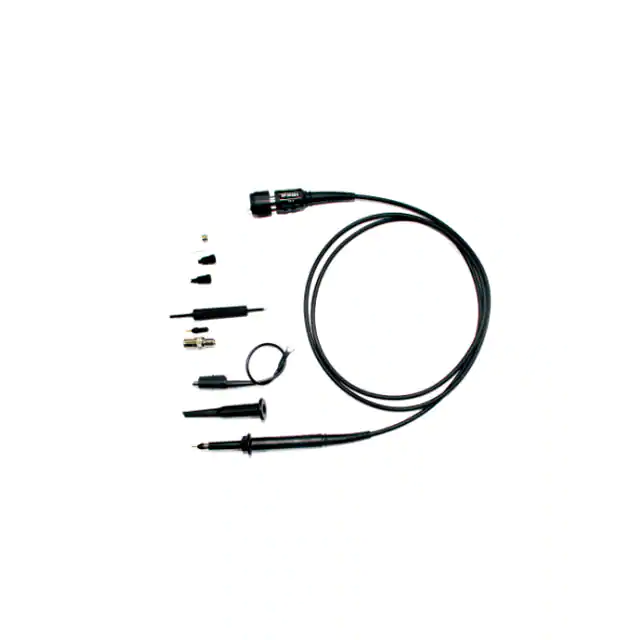

SP3050APROBE KIT OSCILLOSCOPE 500MHZ |
10 |
|
Таблицы данных |
- | Box | Active | Passive | - | 500MHz | 10M | CAT II 400VRMS | - | - | Black |
|
PP006DOSCOPE PROBE 10:1 500MHZ 10M |
4 |
|
- |
PP | Box | Obsolete | Passive | 10:1 | 500MHz | 10M | CAT II 300V | 12.5pF | 59.055" (1500.00mm) | Black |
|
PP026-1OSCOPE PROBE X10 500MHZ 10M |
2 |
|
Таблицы данных |
PP | Bag | Active | Passive | 10:1 | 500MHz | 10M | CAT I 500V, CAT II 400V | 10pF | 51.181" (1300.00mm) | Black |
|
UT-P30UNI-T UT-P30 Differential Scope |
4 |
|
- |
- | Retail Package | Active | Differential | 10:1, 100:1 | 100MHz | - | 800V (DC + AC Peak) | - | - | Black and Red |
|
|
ADP1025-UDiff. Probe 25MHZ USB 10X/100X |
5 |
|
Таблицы данных |
ADP-U | Retail Package | Active | Differential | 10:1, 100:1 | 25MHz | 10M | CAT II 600V, CAT III 300V | 1pF | 9.449" (240.00mm) | Black and Red |
|
|
ADP5100-UDiff. Probe 100MHZ USB 50X/500X |
8 |
|
Таблицы данных |
ADP-U | Retail Package | Active | Differential | 50:1, 500:1 | 100MHz | 20M | CAT I 2300V, CAT III 1000V | 1pF | 9.449" (240.00mm) | Black and Red |
|
|
ADP1100-UDiff. Probe 100MHZ USB 10X/100X |
7 |
|
Таблицы данных |
ADP-U | Retail Package | Active | Differential | 10:1, 100:1 | 100MHz | 10M | CAT II 600V, CAT III 300V | 1pF | 9.449" (240.00mm) | Black and Red |
|
DPB5150PROBE HV DIFFERENTIAL 70MHZ 2% |
11 |
|
Таблицы данных |
- | Box | Active | Differential | 50:1, 500:1 | 70MHz | - | 1500V (DC + AC Peak) | - | - | Black and Red |
|
DPB5150APROBE HV DIFFERENTIAL 100MHZ 2% |
2 |
|
Таблицы данных |
- | Box | Active | Differential | 50:1, 500:1 | 100MHz | - | 1500V (DC + AC Peak) | - | - | Black and Red |
|
DPB5700PROBE HV DIFFERENTIAL 70MHZ 2% |
2 |
|
Таблицы данных |
- | Box | Active | Differential | 100:1, 1000:1 | 70MHz | - | 7000V (7kV) (DC + AC Peak) | - | - | Black and Red |
|

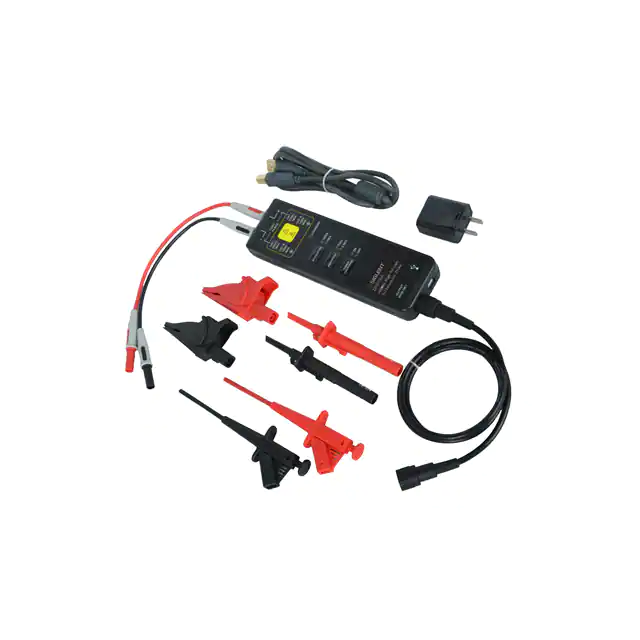

DPB5700APROBE HV DIFFERENTIAL 100MHZ 2% |
6 |
|
Таблицы данных |
- | Box | Active | Differential | 100:1, 1000:1 | 100MHz | - | 7000V (7kV) (DC + AC Peak) | - | - | Black and Red |
|
|
RP2060TELEDYNE LECROY, POWER/VOLTAGE R |
2 |
|
Таблицы данных |
RP | Box | Active | Voltage Probe | 1.2:1 | 2GHz | 50k | 60V | 0.1µF | - | - |
|
|
RP4060TELEDYNE LECROY, POWER/VOLTAGE R |
2 |
|
Таблицы данных |
RP | Box | Active | Voltage Probe | 1.2:1 | 4GHz | 50k | 60V | 0.1µF | - | - |
|
OWON-HDSPOWON HDS200 Probe |
99 |
|
- |
HDS200 | Bag | Obsolete | - | - | - | - | - | - | - | - |
|
IP2210OSCILLOSCOPE GENERAL PROBE |
100 |
|
- |
- | Bulk | Active | General Purpose | - | 100MHz | 1M, 10M | 150V | - | 47.244" (1200.00mm) | Black |
|
|
UT-P07UNI-T UT-P07 Passive Scope Probe |
5 |
|
- |
- | Retail Package | Active | Voltage Probe | 10:1 | 500MHz | 10M | CAT II 300V | 9pF | 55.118" (1400.00mm) | Black |
|
|
ADP2025-UDiff. Probe 25MHZ USB 20X/200X |
11 |
|
Таблицы данных |
ADP-U | Retail Package | Active | Differential | 20:1, 200:1 | 25MHz | 10M | CAT II 1000V, CAT III 600V | 1pF | 9.449" (240.00mm) | Black and Red |
|
|
ADP5025-UDiff. Probe 25MHZ USB 50X/500X |
10 |
|
Таблицы данных |
ADP-U | Retail Package | Active | Differential | 50:1, 500:1 | 25MHz | 20M | CAT I 2300V, CAT III 1000V | 1pF | 9.449" (240.00mm) | Black and Red |
|
|
ADP5025-BDiff. Probe 25MHZ Batt 50X/500X |
14 |
|
Таблицы данных |
ADP-B | Retail Package | Active | Differential | 50:1, 500:1 | 25MHz | 20M | CAT I 2300V, CAT III 1000V | 1pF | 9.449" (240.00mm) | Black and Red |
|
|
ADP2025-BDiff. Probe 25MHZ Batt 20X/200X |
11 |
|
Таблицы данных |
ADP-B | Retail Package | Active | Differential | 20:1, 200:1 | 25MHz | 10M | CAT II 1000V, CAT III 600V | 1pF | 9.449" (240.00mm) | Black and Red |
