Тантало-полимерные конденсаторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Емкость | Допуск | Напряжение - Номинальное | Тип | ESR (эквивалентное последовательное сопротивление) | Рабочая температура | Срок службы при темп. | Тип крепления | Размер/измерение | Высота - в сидячем положении (макс.) | Расстояние между выводами | Код размера производителя | Номинальные значения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCJX336M025R0100CAP TANT POLY 33UF 25V 2917 |
0 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | 33 µF | ±20% | 25 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | X | - | General Purpose |
|
|
TCJY156M035R0070CAP TANT POLY 15UF 35V 2917 |
0 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | 15 µF | ±20% | 35 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|
|
TCJY227M004R0015CAP TANT POLY 220UF 4V 2917 |
0 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | 220 µF | ±20% | 4 V | Molded | 15mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|
TCNX477M006R0050CAP TANT POLY 470UF 6.3V 2917 |
0 |
|
- |
TCN J-CAP | 2917 (7343 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | 470 µF | ±20% | 6.3 V | Molded | 50mOhm @ 100kHz | -55°C ~ 85°C | 2000 Hrs @ 85°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | X | - | General Purpose |
|
ATPH33MAHACAP TANT POLY 33UF 10V 1206 |
0 |
|
- |
POSCAP™ TPH | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 10 V | Molded | 150mOhm @ 100kHz | -55°C ~ 85°C | 1000 Hrs @ 85°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) | - | A09 | - | General Purpose |
|
TCQB226M006R0070CAP TANT POLY 22UF 6.3V 1411 |
0 |
|
- |
TCQ | 1411 (3528 Metric), 1210 | Tape & Reel (TR) | Discontinued at Digi-Key | 22 µF | ±20% | 6.3 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | AEC-Q200 | Automotive |
|
|
TCQB336M006R0070CAP TANT POLY 33UF 6.3V 1411 |
0 |
|
- |
TCQ | 1411 (3528 Metric), 1210 | Tape & Reel (TR) | Discontinued at Digi-Key | 33 µF | ±20% | 6.3 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | AEC-Q200 | Automotive |
|
|
TCQB476M006R0070CAP TANT POLY 47UF 6.3V 1411 |
0 |
|
- |
TCQ | 1411 (3528 Metric), 1210 | Tape & Reel (TR) | Discontinued at Digi-Key | 47 µF | ±20% | 6.3 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | AEC-Q200 | Automotive |
.jpg)
|
TCQD336M016R0070CAP TANT POLY 33UF 16V 2917 |
0 |
|
- |
TCQ | 2917 (7343 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | 33 µF | ±20% | 16 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
TCME108M002R0006CAP TANT POLY 1000UF 2.5V 2917 |
0 |
|
- |
TCM | 2917 (7343 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | 1000 µF | ±20% | 2.5 V | Molded | 6mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
|
|
TCME108M002R0010CAP TANT POLY 1000UF 2.5V 2917 |
0 |
|
- |
TCM | 2917 (7343 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | 1000 µF | ±20% | 2.5 V | Molded | 10mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
|
4TPF470M5ELCAP TANT POLY 470UF 4V 2917 |
0 |
|
- |
POSCAP™ TPF | 2917 (7343 Metric) | Tape & Reel (TR) | Obsolete | 470 µF | ±20% | 4 V | Molded | 5mOhm @ 500kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | D3L | - | General Purpose |
|

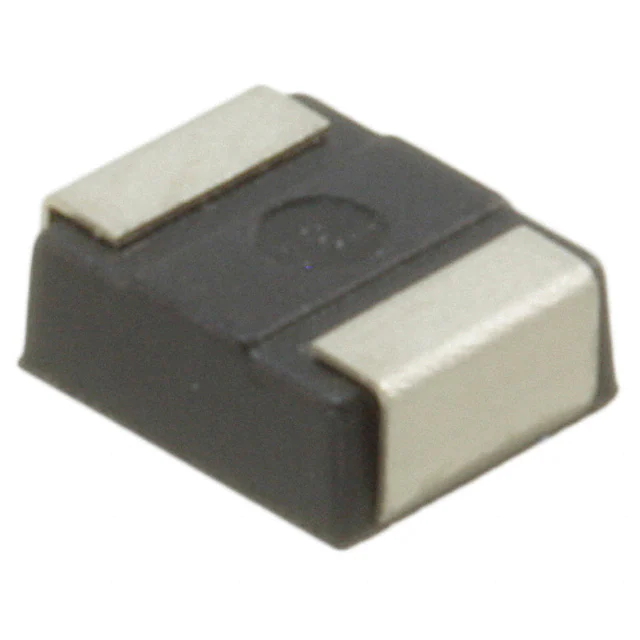

6TPG220MZGCAP TANT POLY 220UF 6.3V 1411 |
0 |
|
- |
POSCAP™ TPG | 1411 (3528 Metric) | Tape & Reel (TR) | Obsolete | 220 µF | ±20% | 6.3 V | Molded | 35mOhm @ 300kHz | -55°C ~ 105°C | 1000 Hrs @ 85°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.059" (1.50mm) | - | B15G | - | General Purpose |
|
|
ETPSF200M9EDCAP TANT POLY 200UF 2.5V 1411 |
0 |
|
- |
POSCAP™ TPSF | 1411 (3528 Metric) | Tape & Reel (TR) | Obsolete | 200 µF | ±20% | 2.5 V | Molded | 9mOhm @ 500kHz | -55°C ~ 105°C | 1000 Hrs @ 85°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.047" (1.20mm) | - | B1S | - | General Purpose |
-TCN-O-Chip-Caps.jpg)
|
TCNO106M010R0500CAP TANT POLY 10UF 10V 1206 |
0 |
|
- |
TCN | 1206 (3216 Metric) | Cut Tape (CT) | Discontinued at Digi-Key | 10 µF | ±20% | 10 V | Molded | 500mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.024" (0.60mm) | - | O | - | General Purpose |
|
TCBD226M020CRSZ0700CAP TANT POLY 22UF 20V 2917 |
0 |
|
- |
TCB | 2917 (7343 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | 22 µF | ±20% | 20 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | COTS | High Reliability |
|
|
TCBD106M035CRSZ0700CAP TANT POLY 10UF 35V 2917 |
0 |
|
- |
TCB | 2917 (7343 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | 10 µF | ±20% | 35 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | COTS | High Reliability |
|
|
TCBD686M010CRSZ0723CAP TANT POLY 68UF 10V 2917 |
0 |
|
- |
TCB | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 10 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | COTS | General Purpose |
|
|
TCBD227M004CRSZ0724CAP TANT POLY 220UF 4V 2917 |
0 |
|
- |
TCB | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 4 V | Molded | 40mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | COTS | General Purpose |
|
|
TCBD476M016CRSZ0H24CAP TANT POLY 47UF 16V 2917 |
0 |
|
- |
TCB | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 16 V | Molded | 65mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | COTS | General Purpose |
