Тантало-полимерные конденсаторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Емкость | Допуск | Напряжение - Номинальное | Тип | ESR (эквивалентное последовательное сопротивление) | Рабочая температура | Срок службы при темп. | Тип крепления | Размер/измерение | Высота - в сидячем положении (макс.) | Расстояние между выводами | Код размера производителя | Номинальные значения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCJH227M006R0170CAP TANT POLY 220UF 6.3V 1210 KYOCERA AVX |
0 |
|
- |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 170mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.059" (1.50mm) | - | H | - | General Purpose |
|
TCJD107M020S0055CAP TANT POLY 100UF 20V 2917 KYOCERA AVX |
0 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 20 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJD337M010R0025ECAP TANT POLY 330UF 10V 2917 KYOCERA AVX |
3 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
TCNT475M035R0200CAP TANT POLY 4.7UF 35V 1411 KYOCERA AVX |
0 |
|
- |
TCN J-CAP | 1411 (3528 Metric), 1210 | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 35 V | Molded | 200mOhm @ 100kHz | -55°C ~ 85°C | 2000 Hrs @ 85°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.047" (1.20mm) | - | T | - | General Purpose |
.jpg)
|
TCQD227M010R0025ECAP TANT POLY 220UF 10V 2917 KYOCERA AVX |
0 |
|
- |
TCQ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
|
TCJD107M025R0055ECAP TANT POLY 100UF 25V 2917 KYOCERA AVX |
0 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJE106M063R0150CAP TANT POLY 10UF 63V 2917 KYOCERA AVX |
0 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 63 V | Molded | 150mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
|

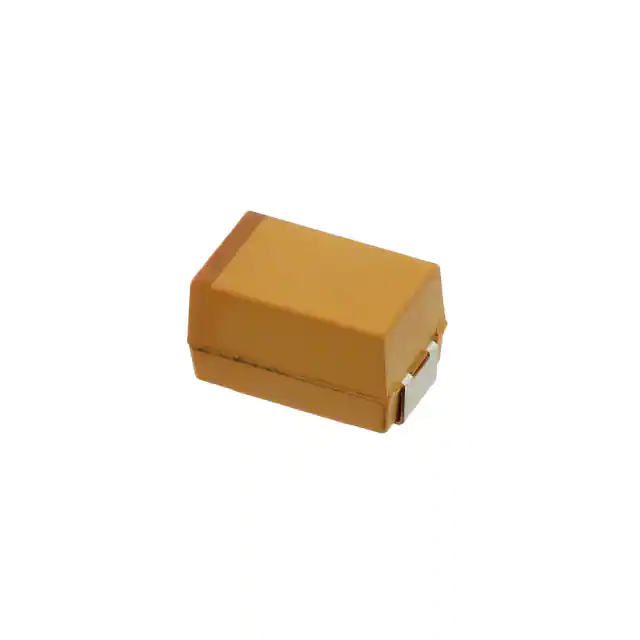

TCJE226M050R0075ECAP TANT POLY 22UF 50V 2917 KYOCERA AVX |
0 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 50 V | Molded | 75mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
|
|
TCN4227M016R0070ECAP TANT POLY 220UF 16V 2924 KYOCERA AVX |
0 |
|
- |
TCN J-CAP | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 16 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.079" (2.00mm) | - | 4 | - | General Purpose |
|
|
TCJB336M010R0200CAP TANT POLY 33UF 10V 1210 KYOCERA AVX |
0 |
|
- |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 10 V | Molded | 200mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
