Тантало-полимерные конденсаторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Емкость | Допуск | Напряжение - Номинальное | Тип | ESR (эквивалентное последовательное сопротивление) | Рабочая температура | Срок службы при темп. | Тип крепления | Размер/измерение | Высота - в сидячем положении (макс.) | Расстояние между выводами | Код размера производителя | Номинальные значения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

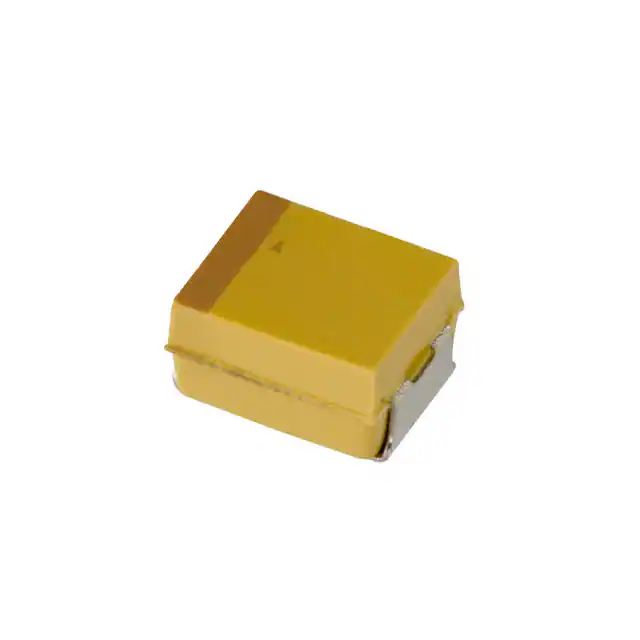

TCN4687M010R0070ECAP TANT POLY 680UF 10V 2924 KYOCERA AVX |
800 |
|
- |
TCN | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 10 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.079" (2.00mm) | - | 4 | - | General Purpose |
|
TCN4157M025R0070ECAP TANT POLY 150UF 25V 2924 KYOCERA AVX |
2,920 |
|
- |
TCN J-CAP | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 25 V | Molded | 70mOhm @ 100kHz | -55°C ~ 85°C | 2000 Hrs @ 85°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.079" (2.00mm) | - | 4 | - | General Purpose |
|
TCJE337M016R0070ECAP TANT POLY 330UF 16V 2917 KYOCERA AVX |
1,184 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
|
|
TCJU107M025R0070ECAP TANT POLY 100UF 25V 2924 KYOCERA AVX |
1,033 |
|
- |
TCJ | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.169" (4.30mm) | - | U | - | General Purpose |
|
|
TCJD685M075R0120CAP TANT POLY 6.8UF 75V 2917 KYOCERA AVX |
601 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 6.8 µF | ±20% | 75 V | Molded | 120mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
TCMU686M040R0040ECAP TANT POLY 68UF 40V 2924 KYOCERA AVX |
354 |
|
- |
TCM | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 40 V | Molded | 40mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.169" (4.30mm) | - | U | - | General Purpose |
|
TCME226M035R0025CAP TANT POLY 22UF 35V 2917 KYOCERA AVX |
842 |
|
- |
TCM | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 35 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
|
|
TCJA106M006R0300ECAP TANT POLY 10UF 6.3V 1206 KYOCERA AVX |
6,432 |
|
- |
TCJ | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 6.3 V | Molded | 300mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|
|
TCJA226M006R0300ECAP TANT POLY 22UF 6.3V 1206 KYOCERA AVX |
3,423 |
|
- |
TCJ | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 6.3 V | Molded | 300mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|
|
TCJB156M025R0150CAP TANT POLY 15UF 25V 1210 KYOCERA AVX |
851 |
|
- |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 15 µF | ±20% | 25 V | Molded | 150mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
