Тантало-полимерные конденсаторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Емкость | Допуск | Напряжение - Номинальное | Тип | ESR (эквивалентное последовательное сопротивление) | Рабочая температура | Срок службы при темп. | Тип крепления | Размер/измерение | Высота - в сидячем положении (макс.) | Расстояние между выводами | Код размера производителя | Номинальные значения | Особенности |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCJK476M006R0150ECAP TANT POLY 47UF 6.3V 1206 KYOCERA AVX |
0 |
|
- |
TCJ | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 6.3 V | Molded | 150mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) | - | K | - | General Purpose |
|
F380J476MSACAP TANT POLY 47UF 6.3V 0805 KYOCERA AVX |
0 |
|
- |
F38 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 6.3 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | 1000 Hrs @ 85°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | - | S | - | General Purpose |
|

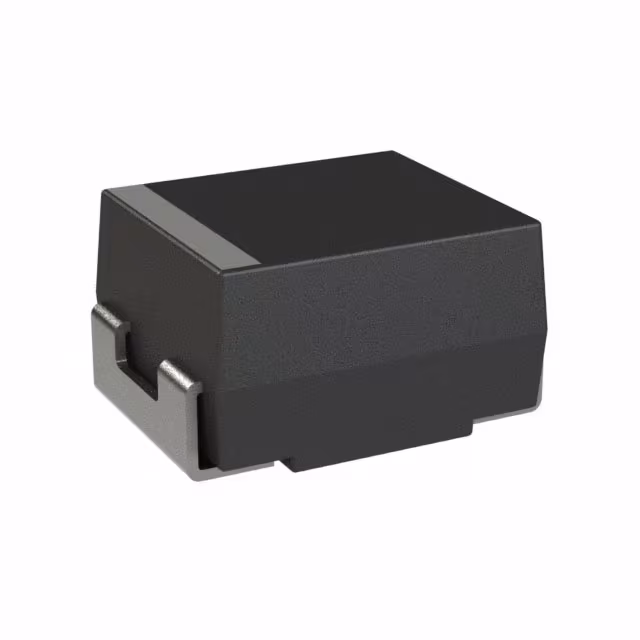

TCBB336M006CRSZ0700CAP TANT POLY 33UF 6.3V 1411 KYOCERA AVX |
0 |
|
- |
TCB | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 6.3 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | COTS | High Reliability |
|
|
TCJE685M063R0100ECAP TANT POLY 6.8UF 63V 2917 KYOCERA AVX |
0 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 6.8 µF | ±20% | 63 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
|
|
TCJE685M063R0150ECAP TANT POLY 6.8UF 63V 2917 KYOCERA AVX |
0 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 6.8 µF | ±20% | 63 V | Molded | 150mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
|
|
TCJE686M020R0045ECAP TANT POLY 68UF 20V 2917 KYOCERA AVX |
0 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 20 V | Molded | 45mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
|
|
TCJE107M016R0040ECAP TANT POLY 100UF 16V 2917 KYOCERA AVX |
0 |
|
- |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 16 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
|
TCME337M006R0015CAP TANT POLYMER KYOCERA AVX |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TCJT685M025R0150ECAP TANT POLY 6.8UF 25V 1210 KYOCERA AVX |
0 |
|
- |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 6.8 µF | ±20% | 25 V | Molded | 150mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.047" (1.20mm) | - | T | - | General Purpose |
|
|
TCJH336M016R0150ECAP TANT POLY 33UF 16V 1210 KYOCERA AVX |
0 |
|
- |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 16 V | Molded | 150mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.059" (1.50mm) | - | H | - | General Purpose |
