Преобразователь импульсов, трансформаторы SMPS

制造商	Серия	Упаковка	Состояние продукта	Тип	Применение	Предполагаемый набор микросхем	Производитель набора микросхем	Напряжение - Первичный	Напряжение - Вспомогательное	Напряжение - Изоляция	Индуктивность при частоте	Частота	Рабочая температура	Марка	Квалификация	Тип крепления	Размер/измерение	Высота - в сидячем положении (макс.)	Площадь	Стиль
Allied Components International Bourns Inc. COILCRAFT Eaton - Electronics Division EPCOS - TDK Electronics HALO Electronics, Inc. iNRCORE, LLC ITG Electronics, Inc. Mitsumi Electric Company Ltd Mornsun America, LLC PCA Electronics, Inc. Power Integrations Premier Magnetics Pulse Electronics Signal Transformer Sumida America Components Inc. Tamura TDK Corporation Vishay Vishay Dale Würth Elektronik	* - 750 B78302 B78304B B82802A B82805 CEEH E10 EM E13 EMHV ECO EFC-EFD20 EP13Plus EPC-EFD20 EPC-EFD25 EPC-EP13 EPC-SMT6 Kaschke L101374SP MID-ALIT MID-CMCP MID-FLYLT MID-FLYTI MID-FWD MID-IBMAX MID-IBTI MID-LLIT MID-OLEFD MID-OLLT MID-OLON MID-OLPI MID-OLSTM MID-OLTI MID-PLN MID-POE MID-POELT MID-POETI MID-PPMAX MID-PPTI MTPL-2516 PA08 PA08XXNL PA09 PA3964.XXXNLT PA3965.XXXNLT PA4470 PA5000.XXXNL PA5099.XXXNLT PA5100XXXNL PA5111.XXXNL PA5112.XXXNL PA5130XXXNL PA5131XXXNL PA5178NL PA5179NL PA5180NL PA5181NL PAD00x-T764 PAG6356.XXXNLT PAT6261.XXXNL PCA11/5ER PCA14.5/6ER PCA15EFD PCA20EFD PDC-EF PDC-EP PDC-FD PDC-RM PFC212138A PH08XXCNL PH9585.XXXNLT PL102 PLA51 PLN PLN0xx-ER20 PLR PM9595.XXNL PoE POE-FD POE-PD POEA1FB POEA2FB POEB1FB POEB3FB POEB3FW POEB4FW PQ2620 SIT12xxI SLLC Spyglass SUOST SUOT T201258A TTB05xx-1T TTH0505-1T VERSA-PAC® VGT WE UNIT, MID-OLIFX WE-AGDT WE-FB WE-FB, MID-FLYLT WE-FB, MID-IBMAX WE-FB, MID-IBTI WE-FB, MID-OLDIA WE-FB, MID-OLLT WE-FB, MID-OLON WE-FB, MID-OLT8 WE-FB, MID-OLTI WE-FLEX WE-FW, MID-HB WE-FW, MID-PLN WE-LLCR WE-PoE WE-PoE+ WE-PoE++ WE-PoE, MID-FLYLT WE-PoE, MID-POE WE-PoE, MID-POETI WE-PoEH WE-PP, MID-PPTI WE-PPTI WE-PSPA WE-SLIM WE-UNIT WE-UNIT, MID-FLYLT WE-UNIT, MID-OLEDF WE-UNIT, MID-OLEE WE-UNIT, MID-OLEFD WE-UNIT, MID-OLIFX WE-UNIT, MID-OLLT WE-UNIT, MID-OLNXP WE-UNIT, MID-OLON WE-UNIT, MID-OLPI WE-UNIT, MID-OLSTM WE-UNIT, MID-OLTI WE-UOST ZA9709 ZB1313-CL	Box Bulk Strip Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Last Time Buy Not For New Designs Obsolete	- Configurable (For DC/DC) For AC/DC Converters For DC/DC Converters	- Capacitor Charger Flexible Flyback Converters Forward Converters Forward, Push-Pull Converters Isolated Buck Converters Isolation LED Drivers, AC/DC SMPS Power Over Ethernet (PoE) Push-Pull Converters Resonant Converters	- 1ED3890MX12M A6986I, L6986I ACPL-32JT, ACPL-302J ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV ADP1031 ADP1032 ADP1050, ADP1051 ADP1074, LT1725, LTC3900, LT8310, LT8311 ADUM4070 AS1135 BCR450, TDA4863 CY8CLEDAC02 ERI10, ERI18, ERI25 FlyBuck™ ICE3BR4765JG ICL8001G ISL6745 ISO721, ISO722 LINK-CV LM1577, LM2577 LM25180, LM5180 LM25183, LM25183-Q1 LM25184 LM2585, LM2586, LM2587, LM2588 LM3445 LM3447 LM3448 LM3450AMT LM3481 LM5070, LM5071, LM5072 LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 LNK362 LNK564 LNK603 LNK605 LNK613 LNK616 LT1725 LT1952 LT3420 LT3511 LT3512 LT3573, LT3574, LT3575, LT3748 LT3748 LT3751 LT3751, LT3750 LT3799 LT3799, LT4180 LT42691 LT4276 LT4276A, LT4295 LT4295 LT4321, LT4295 LT8300 LT8301 LT8302 LT8304 LT8316 LTC1535 LTC3300-1, LTC6804-2, LTC3300ILXE-1, LTC6803IG-2 LTC3803 LTC3805 LTC3901, LTC3765, UCC2891, UCC2897 LTC4278 MAX13253 MAX13256 MAX14853, MAX14855 MAX14857, MAX14859 MAX14940, MAX14946 MAX14943, MAX14949 MAX17690 MAX253, MAX845 MAX253, MAX845, MAX3535 MAX253, MAX845, MAX3535, MXL1535 MAX256 MAX845 MP020-5 NCL30000 NCP1014 NCP101x, NCP105x NCP1652 NCV3064 NLC30001 PMP6001, TPS92210 RAA223182, RAA223183 RS-485 SCALE-iDriver™ Ics SCM1201ATA Si3406-GM SN6501 SN6501, SN6505B SN6505A SN6505B Sn6505x SSL1750 SSL2101 SSL2101, SSL2102 SSL2103 SSL4101 SSL5231BT TEA1521T TEA1522 TEA1522T TEA1523P TEA1623PH TEA1733 TNY255 TNY264/274 TNY266/274 TNY278 TOP202YAI TOP204Y TOP204YAI TOP224P TOP226Y TOP227Y TOP243 TOP258 TOP268E TPS2379 TPS55010 TPS92010DR TPS92210DR TPS92310 TPS92314 TPS92315 UCC25800 UCC28710 UCC287xx, UCC289xx UCC2897A VIPER15L VIPER17H VIPER17L VIPER27L VIPER28	- Analog Devices Analog Devices, Inc Analog Devices, Linear Technology Broadcom, ROHM Cypress Semiconductor Corp Dialog Semiconductor Infineon Technologies Kinetic Technologies Linear Technology Linear Technology, Texas Instruments Maxim Integrated Monolithic Power Systems Inc MORNSUN Guangzhou Science & Technology Co.,Ltd. National Semiconductor NXP Semiconductors On Semiconductor onsemi Power Integrations Renesas Electronics Corporation Skyworks Solutions, Inc. STMicroelectronics Texas Instruments	- 10 ~ 24V 10 ~ 30V 10 ~ 36V 10 ~ 40V 10 ~ 57V 100 ~ 370V 100 ~ 400V 100 ~ 425V 100 ~ 430V 100 ~ 600V 10V 110 ~ 380V 110 ~ 385V 115 ~ 390V 115V 12 ~ 18V 12 ~ 20V 12 ~ 30V 12 ~ 36V 12 ~ 42V 12 ~ 60V 12 ~ 70V 120 ~ 191V 120 ~ 200V 120 ~ 375V 120 ~ 375VDC 120 ~ 385V 120 ~ 420V 120 ~ 430V 120V 125 ~ 375V 125 ~ 382V 127 ~ 191V 127 ~ 431V 127 ~ 432V 12V 130V 13V 14 ~ 60V 140 ~ 380V 15 ~ 40V 153 ~ 187V 154 ~ 312V 15V 16 ~ 24V 16 ~ 36V 160 ~ 288V 169 ~ 312V 17 ~ 32V 17 ~ 35V 17 ~ 36V 170 ~ 230V 170 ~ 400V 18 ~ 100V 18 ~ 30V 18 ~ 32V 18 ~ 36V 18 ~ 38V 18 ~ 42V 18 ~ 60V 18 ~ 60VDC 18 ~ 72V 18 ~ 75V 18 ~ 76V 180 ~ 264V 180 ~ 265V 180 ~ 276V 184 ~ 265V 185 ~ 265V 187 ~ 264V 19 ~ 70V 190 ~ 265V 195 ~ 265V 196 ~ 264V 196 ~ 265V 2 ~ 8V 20 ~ 100V 20 ~ 48V 20 ~ 60V 200 ~ 300V 200 ~ 570V 200V 207 ~ 253V 20V 214 ~ 404V 22 ~ 72V 230V 24V 250 ~ 375V 255 ~ 275V 264 ~ 373V 280 ~ 380V 28V 3 ~ 24V 3 ~ 3.6V 3 ~ 5.2V 3 ~ 6V 3.3V 30 ~ 190V 30 ~ 57V 30 ~ 72V 30 ~ 75V 33 ~ 57V 33 ~ 75V 34 ~ 57V 34 ~ 72V 35 ~ 57V 35 ~ 75V 36 ~ 57V 36 ~ 60V 36 ~ 72V 36 ~ 75V 360 ~ 400V 36V 37 ~ 57V 375 ~ 420V 390 V 4 ~ 18V 4 ~ 36V 4 ~ 42V 4 ~ 65V 4 ~ 6V 4 ~ 8V 4.5 ~ 5.5V 4.5 ~ 60V 40 ~ 57V 40 ~ 60V 400 ~ 690V 41 ~ 57V 42 ~ 57V 44 ~ 57V 45 ~ 600V 5 ~ 32V 50 ~ 110V 54V 5V 5VDC 6 ~ 12.6V 6 ~ 18V 6 ~ 27V 6 ~ 28V 60 ~ 600V 7 ~ 26V 7 ~ 31V 7.5V 70 ~ 265V 70 ~ 820V 75 ~ 326V 78 ~ 375V 8 ~ 15V 8 ~ 16V 8 ~ 18V 8 ~ 28VDC 8 ~ 30V 8 ~ 32V 8 ~ 36V 8 ~ 40V 8 ~ 65V 8 ~ 70V 80 ~ 144V 80 ~ 276V 80 ~ 375V 80 ~ 600V 82 ~ 375V 85 ~ 130V 85 ~ 135V 85 ~ 138V 85 ~ 256V 85 ~ 264V 85 ~ 265V 85 ~ 276V 85 ~ 277V 85 ~ 305V 85 ~ 375V 85 ~ 400V 85 ~ 424V 88 ~ 269V 9 ~ 15V 9 ~ 16V 9 ~ 18V 9 ~ 30V 9 ~ 36V 9 ~ 57V 9 ~ 60V 90 ~ 264V 90 ~ 265V 90 ~ 375V 90 ~ 650V 95 ~ 265V 96 ~ 144V 96 ~ 276V	- 10.5V 10.7V @ 50mA 10V 10V @ 10mA 10V @ 15mA 10V @ 20mA 10V @ 50mA 11.2V @ 20mA 11.5V 11V 12.2V @ 10mA 12.3V @ 3.2A 12.3V @ 3.3A 12.5V 12.5V @ 30mA 12.5V @ 50mA 12.5V @ 5mA 12.5V @ 800mA, 15V @ 100mA 12.5V @ 80mA 12.7V @ 2.33A 12.7V @ 30mA 12.7V @ 600mA 12V 12V @ 1.25A, 14V @ 250mA 12V @ 1.3A 12V @ 1.5A 12V @ 100mA 12V @ 10mA 12V @ 15mA 12V @ 1A 12V @ 20mA 12V @ 250mA 12V @ 25mA 12V @ 2A, 17V @ 500mA 12V @ 300mA 12V @ 30mA 12V @ 350mA 12V @ 500mA 12V @ 50mA 12V @ 50mA, 12V @ 1.5A 12V @ 60mA 12V @ 620mA 12V @ 850mA, 17V @ 150mA 13.3V 13.5V 13V 13V @ 15mA 13V @ 20mA 13V @ 40mA 14.4V @ 50mA 14.5V 14.7V @ 50mA 14V 14V @ 100mA 14V @ 10mA 14V @ 20mA 14V @ 50mA 15V 15V @ 100mA 15V @ 10mA 15V @ 150mA, 18V @ 150mA 15V @ 200mA 15V @ 20mA 15V @ 250mA 15V @ 30mA 16.5V @ 100mA 16V @ 1A 16V @ 20mA 16V @ 50mA 16V @ 50µA 18V @ 10mA 19.5V 19.7V @ 267mA 19V @ 20mA 19V @ 5mA 20V 20V @ 10mA 20V @ 20mA 20V @ 30mA 20V @ 50mA 21.5V @ 465mA 21V @ 10mA 22V @ 1.5A 22V @ 10mA 23V @ 30mA 24V 24V @ 100mA 24V @ 20mA 25V @ 10mA 28V @ 20mA 3.3V 3.3V @ 700mA, 18V @ 500mA, 20V @ 200mA 30V @ 333mA 36.5V @ 900mA 4V @ 20mA 5.5V @ 20mA 5.7V @ 200mA, 12V @ 90mA, 12.8V @ 600mA, 15.2V @ 50mA 5V 5V @ 110mA, 12V @ 540mA, 18V @ 30mA, 19V @ 20mA 5V @ 140mA, 12.7V @ 1.18A, 20V @ 50mA, 20V @ 70mA 5V @ 1A, 24V @ 2A 5V @ 2.2A, 12V @ 200mA 5V @ 200mA, 12V @ 2.5A 5V @ 200mA, 12V @ 800mA, 17V @ 20mA, 17V @ 170mA 5V @ 20mA 5V @ 250mA, 15V @ 200mA 5V @ 300mA 5V @ 50mA 5V @ 90mA, 12.4V @ 300mA 6.6V 7.5V @ 100mA 70V @ 100mA 7V @ 100mA 7V @ 200mA 7V @ 250mA 8V 8V @ 20mA 8V @ 220mA, 8V @ 300mA, 12V @ 320mA 8V @ 25mA 9V @ 100mA 9V @ 20mA	- 1.5kVAC 1000V 1000VDC 1000Vrms 1200Vrms 1250V 1250Vrms 1500VAC 1500VDC 1500Vrms 1500Vrns 1650V 1750V 1750Vrms 1800VAC 1874VAC 1875V 1875Vrms 2000V 2000Vrms 2200V 2250V 2250VDC 2420V 2500V 2500VAC 2500Vrms 2600Vrms 2750V 3000V 3000VAC 3000VDC 3000Vrms 3100Vrms 3125Vrms 3300Vrms 3500VAC 3500Vrms 3600V 3600Vrms 3750V 3750VDC 3750Vrms 3800Vrms 3900Vrms 4000V 4000VAC 4000Vrms 4200V 4300VDC 4500Vrms 5000V 5000Vrms 500V 500VAC 500VDC 500Vrms 5500Vrms 6000Vrms 600Vrms 625VAC	- 1.02mH @ 10kHz 1.04mH @ 10kHz 1.05mH @ 10kHz 1.06mH @ 10kHz 1.07mH @ 10kHz 1.08mH @ 10kHz 1.25mH @ 100kHz 1.25mH @ 10kHz 1.2mH 1.2mH @ 10kHz 1.2mH @ 65kHz 1.31mH @ 100kHz 1.31mH @ 10kHz 1.33mH @ 10kHz 1.396mH @ 10kHz 1.39mH @ 10kHz 1.3mH @ 100kHz 1.3mH @ 10kHz 1.3mH @ 50kHz 1.3mH @ 70kHz 1.44mH @ 10kHz 1.48mH @ 10kHz 1.49mH @ 10kHz 1.4mH @ 100kHz 1.54mH @ 10kHz 1.55mH @ 66kHz 1.5mH @ 100kHz 1.5mH @ 10kHz 1.5mH @ 10kHz, 8.44µH @ 10kHz 1.67mH @ 100kHz 1.6mH @ 10kHz 1.6mH @ 50kHz 1.6mH @ 60kHz 1.72mH @ 10kHz 1.77mH @ 10kHz 1.78mH @ 70kHz 1.7mH @ 10kHz 1.84mH @ 10kHz 1.85mH @ 10kHz 1.8mH @ 10kHz 1.8µH @ 100kHz 1.99mH @ 10kHz 1.9mH @ 10kHz 10.5µH @ 150kHz 10.9µH @ 100kHz 10.9µH @ 10kHz 100.5µH @ 100kHz 1000µH @ 10kHz 100µH 100µH @ 100kHz 100µH @ 10kHz 100µH @ 200kHz 100µH @ 50kHz 105µH @ 10kHz 10mH @ 10kHz 10µH 10µH @ 100kHz 10µH @ 10kHz 11.5µH @ 100kHz 11.6µH @ 100kHz 110µH @ 100kHz 12.5µH @ 300kHz 12.6mH @ 10kHz 120µH @ 100kHz 120µH @ 10kHz 127µH 127µH @ 100kHz 128µH @ 100kHz 128µH @ 10kHz 12µH @ 100kHz 12µH @ 10kHz 12µH @ 150kHz 12µH @ 200kHz 13µH 14.2µH @ 100kHz 14.2µH @ 10kHz 14.7µH @ 100kHz 14.7µH @ 10kHz 140µH @ 100kHz 140µH @ 10kHz 143µH @ 100kHz 145µH @ 100kHz 14µH @ 10kHz 14µH @ 150kHz 14µH @ 200kHz 14µH @ 300kHz 150µH @ 100kHz 150µH @ 10kHz 150µH @ 1kHz 150µH @ 250kHz 151µH @ 100kHz 152µH @ 100kHz 153.8µH @ 100kHz 153.8µH @ 10kHz 153µH @ 100kHz 153µH @ 10kHz 155µH 155µH @ 140kHz 15µH @ 100KHz 15µH @ 10kHz 15µH @ 150kHz 15µH @ 250kHz 16.9µH @ 10kHz 160µH @ 100kHz 160µH @ 140kHz 162µH @ 100kHz 166.5µH @ 100kHz 16µH @ 100kHz 16µH @ 10kHz 17.3µH @ 100kHz 17.8µH 170µH @ 100kHz 173µH @ 140kH 175µH @ 10kHz 17µH @ 10kHz 17µH @ 50kHz 180µH @ 100KHz 180µH @ 100kHz, 95µH @ 100kHz 180µH @ 10kHz 18µH @ 100kHz 18µH @ 10kHz 18µH @ 500kHz 190µH 196µH @ 100kHz 1mH 1mH @ 10kHz 1mH @ 50kHz 1µH @ 100kHz 2.017mH @ 100kHz 2.18mH @ 70kHz 2.19mH @ 10kHz 2.28mH @ 10kHz 2.2mH @ 100kHz 2.2mH @ 10kHz 2.38mH @ 10kHz 2.3mH @ 10kHz 2.3µH @ 100kHz 2.58mH @ 10kHz 2.5mH @ 10kHz 2.5mH @ 50kHz 2.5µH @ 100kHz 2.5µH @ 50kHz 2.64mH @ 10kHz 2.6mH @ 10kHz 2.6µH @ 100kHz 2.75mH @ 10kHz 2.7mH @ 100kHz 2.7mH @ 10kHz 2.7µH @ 100kHz 2.8mH @ 10kHz 20.4µH @ 10kHz 20.5µH @ 200kHz 200µH 200µH @ 100kHz 200µH @ 10kHz 200µH @ 250kHz 205µH @ 100kHz 205µH @ 10kHz 20µH @ 150kHz 20µH @ 1kHz 21.6µH @ 100kHz 210µH @ 100kHz 21µH @ 100kHz 21µH @ 10kHz 22.3µH @ 100kHz 22.3µH @ 10kHz 220µH @ 10kHz 224.6µH @ 100kHz 22µH @ 100kHz 22µH @ 10kHz 22µH @ 150kHz 23.3µH @ 100kHz 23.3µH @ 10kHz 235µH @ 100kHz 23µH @ 100kHz 24µH @ 100kHz 24µH @ 10kHz 250µH @ 100kHz 250µH @ 10kHz 250µH @ 50kHz 253µH 256µH @ 10kHz 25µH @ 100kHz 25µH @ 10kHz 260µH @ 100kHz 260µH @ 50kHz 26µH @ 100KHz 26µH @ 10kHz 27.4µH @ 100kHz 270µH @ 100kHz, 142µH @ 100kHz 270µH @ 10kHz 270µH @ 250kHz 278µH @ 10kHz 27µH @ 100kHz 280µH @ 10kHz 280µH @ 10kHz, 2.8µH @ 10kHz, 224µH @ 10kHz 288.3µH @ 10kHz 28µH @ 100kHz 2mH @ 10kHz 2mH @ 50kHz 2µH @ 100kHz 3.18mH @ 10kHz 3.22mH @ 10kHz 3.2mH 3.2mH @ 10kHz 3.38µH @ 100kHz 3.3mH @ 100kHz 3.3mH @ 10kHz 3.45mH @ 10kHz 3.46µH @ 100kHz 3.4µH 3.4µH @ 100kHz 3.4µH @ 10kHz 3.52mH @ 10kHz 3.8µH @ 100kHz 3.9mH @ 10kHz 300µH @ 100kHz 300µH @ 10kHz 306µH @ 130kHz 30µH @ 100kHz 30µH @ 10kHz 30µH @ 300kHz 30µH @ 50kHz 32µH @ 300kHz 33.8µH @ 10kHz 33µH @ 100kHz 340µH @ 100kHz 345µH @ 10kHz 350µH @ 100kHz 350µH @ 10kHz 350µH @ 20kHz 35µH @ 100kHz 36.3µH @ 10kHz 36.5µH @ 10kHz 360µH @ 100kHz 360µH @ 10kHz 367µH @ 10kHz 36µH @ 300kHz 36µH @ 50kHz 37.5µH @ 100KHz 37µH @ 100kHz 37µH @ 100kHz, 928µH @ 100kHz 37µH @ 10kHz 380µH @ 10kHz 382µH @ 10kHz 38µH @ 100kHz 39µH @ 100KHz 3mH @ 100kHz 3mH @ 10kHz 3mH @ 50kHz 3µH @ 100kHz 4.16µH @ 1kHz, 21.1µH @ 1kHz, 150µH @ 1kHz 4.1µH @ 100kHz 4.3mH @ 10kHz 4.3µH @ 100kHz 4.3µH @ 10kHz 4.5µH 4.5µH @ 100kHz 4.72mH @ 10kHz 400µH @ 100kHz 400µH @ 10kHz 40µH 40µH @ 100kHz 40µH @ 10kHz 410µH @ 100kHz 41µH @ 100kHz 42.9µH @ 100kHz 425µH 428µH @ 10kHz 42µH @ 100kHz 42µH @ 10kHz 430µH @ 65kHz 440µH @ 1kHz 446µH @ 10kHz 45.6µH 450µH @ 100kHz 450µH @ 10kHz 45µH @ 10kHz 460µH @ 100kHz 460µH @ 10kHz 461µH @ 10kHz 469µH @ 100kHz 470µH @ 10kHz 475µH @ 100kHz 475µH @ 10kHz 476µH @ 100kHz 47µH @ 100kHz 480µH @ 100kHz 480µH @ 10kHz 489µH @ 10kHz 48µH @ 100kHz 490µH @ 10kHz 491µH @ 10kHz 4mH @ 100kHz 4mH @ 10kHz 4mH @ 50kHz 4µH 4µH @ 100kHz 5.3µH @ 10kHz 500µH @ 100kHz 500µH @ 10kHz 500µH @ 10kHz, 14µH @ 10kHz, 400µH @ 10kHz 50mH @ 10kHz 50µH 50µH @ 100kHz 50µH @ 10kHz 50µH @ 50kHz 534µH @ 10kHz 548µH @ 100kHz 54µH @ 100kHz 550µH @ 10kHz 550µH @ 60kHz 555µH @ 100kHz 563µH @ 10kHz 567µH @ 10kHz 592µH @ 10kHz 59µH @ 100kHz, 240µH @ 100kHz 5mH @ 10kHz 5µH @ 100kHz 5µH @ 50kHz 6.3mH @ 10kHz 6.6mH @ 10kHz 6.6µH @ 100kHz 6.6µH @ 10kHz 6.78µH @ 100kHz 600µH 600µH @ 100kHz 600µH @ 10kHz 60µH @ 100kHz 60µH @ 10kHz 620µH @ 100kHz 625µH @ 10kHz 628µH @ 100kHz 63µH @ 10kHz 650µH @ 100kHz 65µH @ 100kHz 65µH @ 1kHz 660µH @ 10kHz 66µH @ 50kHz 670µH @ 100kHz 670µH @ 1kHz 680µH @ 10kHz 68µH @ 10kHz 6mH @ 10kHz 6µH @ 100kHz 6µH @ 150kHz 7.2µH @ 100kHz, 13.8µH @ 100kHz, 120µH @ 100kHz 7.6µH @ 100kHz 7.6µH @ 10kHz 7.9µH @ 100kHz 7.9µH @ 10kHz 700µH @ 100kHz 700µH @ 10kHz 70µH @ 100kHz 70µH @ 10kHz 70µH @ 250kHz 710µH @ 100kHz 710µH @ 10kHz 712µH @ 10kHz 720µH @ 10kHz 722µH @ 10kHz 72µH @ 100kHz 750µH @ 100kHz 750µH @ 10kHz 75µH @ 250kHz 75µH @ 450kHz 764µH @ 100kHz 770µH @ 10kHz 77µH @ 50kHz 7µH 7µH @ 100kHz 7µH @ 250kHz 7µH @ 300kHz 8.3µH @ 100kHz 8.3µH @ 10kHz 8.5µH @ 100kHz 8.5µH @ 10kHz 8.6µH @ 10kHz 800µH @ 10kHz 803.5µH @ 100kHz, 50.2µH @ 100kHz 80µH @ 100kHz 80µH @ 200kHz 80µH @ 50kHz 816µH @ 10kHz 820µH @ 10kHz 832µH @ 100kHz 84µH @ 100kHz 850µH @ 10kHz 85µH @ 1kHz 867µH @ 10kHz 86µH @ 100kHz 86µH @ 10kHz 87.1µH @ 100kHz 87.1µH @ 10kHz 870µH @ 10kHz 890µH @ 10kHz 8mH @ 10kHz 8µH @ 100kHz 8µH @ 10kHz 8µH @ 150kHz 9.07µH @ 10kHz 9.3µH @ 100kHz 9.3µH @ 10kHz 9.5µH @ 50kHz 9.7µH @ 100kHz 9.7µH @ 10kHz 9.9µH @ 100kHz 9.9µH @ 10kHz 900µH @ 10kHz 90µH @ 100kHz 910µH @ 10kHz 925µH @ 10kHz 940µH @ 10kHz 94µH @ 50kHz 950µH @ 100kHz 95µH @ 250kHz 960µH @ 100kHz 970µH @ 10kHz 9µH @ 100KHz 9µH @ 10kHz 9µH @ 300kHz Parallel 10.6µH @ 10kHz, Series 381µH @ 10kHz Parallel 10.9µH @ 10kHz, Series 394µH @ 10kHz Parallel 11.2µH @ 10kHz, Series 402µH @ 10kHz Parallel 11.6µH @ 10kHz, Series 418µH @ 10kHz Parallel 12.2µH @ 10kHz, Series 438µH @ 10kHz Parallel 12µH @ 10kHz, Series 430µH @ 10kHz Parallel 14.2µH @ 10kHz, Series 511µH @ 10kHz Parallel 14.7µH @ 10kHz, Series 529µH @ 10kHz Parallel 160µH @ 10kHz, Series 5.8mH @ 10kHz Parallel 193µH @ 10kHz, Series 6.9mH @ 10kHz Parallel 197.3µH @ 10kHz, Series 7.14mH @ 10kHz Parallel 21.6µH @ 10kHz, Series 778µH @ 10kHz Parallel 22.3µH @ 10kHz, Series 804µH @ 10kHz Parallel 23.3µH @ 10kHz, Series 840µH @ 10kHz Parallel 27.4µH @ 10kHz, Series 985µH @ 10kHz Parallel 3.2µH @ 10kHz, Series 116µH @ 10kHz Parallel 3.4µH @ 10kHz, Series 122µH @ 10kHz Parallel 3.8µH @ 10kHz, Series 136µH @ 10kHz Parallel 4.1µH @ 10kHz, Series 146µH @ 10kHz Parallel 4.5µH @ 10kHz, Series 160µH @ 10kHz Parallel 5.3µH @ 10kHz, Series 191µH @ 10kHz Parallel 5.7µH @ 10kHz, Series 205µH @ 10kHz Parallel 6.5µH @ 10kHz, Series 235µH @ 10kHz Parallel 6.6µH @ 10kHz, Series 238µH @ 10kHz Parallel 6.8µH @ 10kHz, Series 245µH @ 10kHz Parallel 78.4µH @ 10kHz, Series 2.8mH @ 10kHz Parallel 8.3µH @ 10kHz, Series 299µH @ 10kHz Parallel 85.8µH @ 10kHz, Series 3.1mH @ 10kHz Parallel 87.7µH @ 10kHz, Series 3.2mH @ 10kHz Parallel 9.6µH @ 10kHz, Series 347µH @ 10kHz Parallel 9.9µH @ 10kHz, Series 357µH @ 10kHz	- 1 ~ 2MHz 100 ~ 300kHz 100 ~ 400kHz 100 ~ 500kHz 100kHz 100kHz ~ 500kHz 10kHz 110kHz 115kHz 120kHz 124kHz 130kHz 132kHz 133kHz 140kHz 143.5kHz 150 ~ 300kHz 150 ~ 500kHz 150kHz 163kHz 180kHz 190kHz 1MHz 200 ~ 300kHz 200 ~ 350kHz 200 ~ 400kHz 200 ~ 500kHz 200 ~ 600kHz 200 ~ 700kHz 200kHz 200kHz ~ 350kHz 210kHz 220kHz 235 ~ 700kHz 248kHz 250 ~ 400kHz 250 ~ 500kHz 250 ~ 600kHz 250 ~ 620kHz 250kHz 30 ~ 70kHz 300 ~ 600kHz 300 ~ 620kHz 300kHz 300kHz ~ 620kHz 30kHz 320kHz 33kHz 350kHz 391kHz 39kHz 40 ~ 130kHz 400kHz 40kHz ~ 130kHz 420kHz 430kHz 44kHz ~ 132kHz 450kHz 47Hz ~ 440Hz 47kHz 50 ~ 102kHz 50 ~ 140kHz 50 ~ 200kHz 50 ~ 300kHz 50 ~ 400kHz 500kHz 50kHz 51 ~ 69kHz 53 ~ 120kHz 55 ~ 85kHz 60 ~ 120kHz 60 ~ 150kHz 60 ~ 400kHz 600kHz 60kHz 65kHz 66kHz 66kHz ~ 132kHz 67kHz 68 ~ 100kHz 68 ~ 110kHz 68 ~ 120kHz 68 ~ 130kHz 68 ~ 140kHz 68 ~ 150kHz 68 ~ 170kHz 68 ~ 180kHz 68 ~ 220kHz 68kHz 70 ~ 120kHz 70 ~ 130kHz 70kHz 72kHz 75kHz 80 ~ 200kHz 80kHz 85kHz 90kHz	- -25°C ~ 125°C -30°C ~ 120°C -30°C ~ 130°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 120°C -40°C ~ 125°C -40°C ~ 130°C -40°C ~ 150°C -40°C ~ 155°C -40°C ~ 85°C -55°C ~ 125°C -55°C ~ 130°C 0°C ~ 70°C 125°C 130°C	- Automotive	- AEC-Q200	- Chassis Mount Surface Mount Through Hole	- 0.250" L x 0.242" W (6.35mm x 6.15mm) 0.256" L x 0.236" W (6.50mm x 6.00mm) 0.265" L x 0.281" W (6.73mm x 7.14mm) 0.280" L x 0.258" W (7.10mm x 6.55mm) 0.280" L x 0.320" W (7.11mm x 8.13mm) 0.281" L x 0.265" W (7.14mm x 6.73mm) 0.300" L x 0.280" W (7.62mm x 7.11mm) 0.307" L x 0.264" W (7.80mm x 6.70mm) 0.315" L x 0.236" W (8.00mm x 6.00mm) 0.315" L x 0.276" W (8.00mm x 7.00mm) 0.320" L x 0.280" W (8.13mm x 7.11mm) 0.327" L x 0.364" W (8.30mm x 9.25mm) 0.354" L x 0.315" W (9.00mm x 8.00mm) 0.355" L x 0.340" W (9.02mm x 8.64mm) 0.360" L x 0.315" W (9.14mm x 8.00mm) 0.360" L x 0.360" W (9.14mm x 9.14mm) 0.362" L x 0.508" W (9.19mm x 12.90mm) 0.364" L x 0.327" W (9.25mm x 8.30mm) 0.374" L x 0.406" W (9.50mm x 10.30mm) 0.380" L x 0.350" W (9.65mm x 8.89mm) 0.385" L x 0.360" W (9.77mm x 9.14mm) 0.385" L x 0.360" W (9.78mm x 9.14mm) 0.385" L x 0.374" W (9.78mm x 9.50mm) 0.386" L x 0.343" W (9.80mm x 8.70mm) 0.394" L x 0.346" W (10.00mm x 8.80mm) 0.394" L x 0.394" W (10.00mm x 10.00mm) 0.394" L x 0.435" W (10.00mm x 11.05mm) 0.400" L x 0.325" W (10.16mm x 8.26mm) 0.413" L x 0.386" W (10.50mm x 9.80mm) 0.413" L x 0.406" W (10.50mm x 10.30mm) 0.420" L x 0.320" W (10.67mm x 8.13mm) 0.428" L x 0.350" W (10.87mm x 8.89mm) 0.428" L x 0.372" W (10.87mm x 9.45mm) 0.433" L x 0.433" W (11.00mm x 11.00mm) 0.445" L x 0.431" W (11.30mm x 10.95mm) 0.449" L x 0.390" W (11.40mm x 9.90mm) 0.450" L x 0.327" W (11.43mm x 8.30mm) 0.450" L x 0.366" W (11.43mm x 9.30mm) 0.450" L x 0.515" W (11.43mm x 13.08mm) 0.453" L x 0.339" W (11.50mm x 8.60mm) 0.458" L x 0.364" W (11.63mm x 9.25mm) 0.461" L x 0.367" W (11.70mm x 9.33mm) 0.472" L x 0.366" W (12.00mm x 9.30mm) 0.472" L x 0.535" W (12.00mm x 13.60mm) 0.472" L x 0.642" W (11.99mm x 16.31mm) 0.475" L x 0.455" W (12.07mm x 11.56mm) 0.485" L x 0.410" W (12.32mm x 10.41mm) 0.500" L x 0.413" W (12.70mm x 10.50mm) 0.504" L x 0.394" W (12.80mm x 10.01mm) 0.508" L x 0.362" W (12.90mm x 9.20mm) 0.508" L x 0.433" W (12.90mm x 11.00mm) 0.508" L x 0.512" W (12.90mm x 13.00mm) 0.530" L x 0.591" W (13.46mm x 15.00mm) 0.530" L x 0.699" W (13.46mm x 17.75mm) 0.531" L x 0.520" W (13.50mm x 13.20mm) 0.531" L x 0.524" W (13.50mm x 13.30mm) 0.531" L x 0.768" W (13.50mm x 19.50mm) 0.535" L x 0.362" W (13.60mm x 9.20mm) 0.535" L x 0.425" W (13.60mm x 10.80mm) 0.535" L x 0.433" W (13.60mm x 11.00mm) 0.540" L x 0.775" W (13.72mm x 19.69mm) 0.540" L x 0.805" W (13.72mm x 20.45mm) 0.545" L x 0.701" W (13.84mm x 17.81mm) 0.550" L x 0.550" W (13.97mm x 13.97mm) 0.551" L x 0.516" W (14.00mm x 13.11mm) 0.551" L x 0.530" W (14.00mm x 13.46mm) 0.551" L x 0.591" W (14.00mm x 15.00mm) 0.559" L x 0.492" W (14.20mm x 12.50mm) 0.560" L x 0.560" W (14.22mm x 14.22mm) 0.560" L x 0.805" W (14.22mm x 20.45mm) 0.571" L x 0.526" W (14.50mm x 13.36mm) 0.571" L x 0.695" W (14.50mm x 17.65mm) 0.575" L x 0.575" W (14.60mm x 14.60mm) 0.580" L x 0.580" W (14.73mm x 14.73mm) 0.585" L x 0.585" W (14.86mm x 14.86mm) 0.590" L x 0.475" W (14.99mm x 12.07mm) 0.591" L x 0.433" W (15.00mm x 11.00mm) 0.591" L x 0.531" W (15.00mm x 13.50mm) 0.591" L x 0.620" W (15.00mm x 15.75mm) 0.591" L x 0.846" W (15.00mm x 21.50mm) 0.610" L x 0.512" W (15.50mm x 13.00mm) 0.614" L x 0.591" W (15.60mm x 15.00mm) 0.614" L x 0.606" W (15.60mm x 15.40mm) 0.615" L x 0.555" W (15.62mm x 14.10mm) 0.620" L x 0.591" W (15.75mm x 15.00mm) 0.630" L x 0.689" W (16.00mm x 17.50mm) 0.630" L x 0.720" W (16.00mm x 18.30mm) 0.638" L x 0.551" W (16.20mm x 14.00mm) 0.642" L x 0.472" W (16.30mm x 12.00mm) 0.642" L x 0.661" W (16.30mm x 16.80mm) 0.650" L x 0.642" W (16.50mm x 16.30mm) 0.650" L x 0.650" W (16.50mm x 16.50mm) 0.650" L x 0.681" W (16.50mm x 17.30mm) 0.654" L x 0.790" W (16.60mm x 20.06mm) 0.657" L x 0.500" W (16.70mm x 12.70mm) 0.660" L x 0.660" W (16.76mm x 16.76mm) 0.665" L x 0.740" W (16.90mm x 18.80mm) 0.669" L x 0.551" W (17.00mm x 14.00mm) 0.673" L x 0.630" W (17.10mm x 16.00mm) 0.673" L x 0.878" W (17.10mm x 22.30mm) 0.689" L x 0.630" W (17.50mm x 16.00mm) 0.689" L x 0.740" W (17.50mm x 18.80mm) 0.689" L x 0.748" W (17.50mm x 19.00mm) 0.690" L x 0.650" W (17.53mm x 16.51mm) 0.695" L x 0.740" W (17.65mm x 18.80mm) 0.699" L x 0.530" W (17.75mm x 13.46mm) 0.707" L x 0.799" W (17.96mm x 20.30mm) 0.708" L x 0.740" W (18.00mm x 18.80mm) 0.709" L x 0.650" W (18.00mm x 16.50mm) 0.709" L x 0.689" W (18.00mm x 17.50mm) 0.709" L x 0.695" W (18.01mm x 17.65mm) 0.709" L x 0.709" W (18.00mm x 18.00mm) 0.709" L x 0.969" W (18.00mm x 24.60mm) 0.713" L x 0.630" W (18.10mm x 16.00mm) 0.716" L x 0.630" W (18.19mm x 16.00mm) 0.717" L x 0.650" W (18.20mm x 16.50mm) 0.719" L x 0.550" W (18.25mm x 13.97mm) 0.728" L x 0.650" W (18.50mm x 16.50mm) 0.740" L x 1.319" W (18.80mm x 33.50mm) 0.744" L x 0.862" W (18.90mm x 21.90mm) 0.748" L x 0.669" W (19.00mm x 17.00mm) 0.768" L x 0.886" W (19.50mm x 22.50mm) 0.787" L x 0.531" W (20.00mm x 13.50mm) 0.787" L x 0.709" W (20.00mm x 18.00mm) 0.790" L x 0.920" W (20.07mm x 23.37mm) 0.795" L x 0.965" W (20.20mm x 24.50mm) 0.810" L x 0.655" W (20.57mm x 16.64mm) 0.811" L x 0.654" W (20.60mm x 16.60mm) 0.827" L x 0.669" W (21.00mm x 17.00mm) 0.827" L x 0.827" W (21.00mm x 21.00mm) 0.827" L x 0.846" W (21.01mm x 21.49mm) 0.827" L x 0.984" W (21.00mm x 25.00mm) 0.827" L x 1.122" W (21.00mm x 28.50mm) 0.830" L x 0.920" W (21.08mm x 23.37mm) 0.846" L x 0.591" W (21.50mm x 15.00mm) 0.846" L x 0.831" W (21.50mm x 21.10mm) 0.846" L x 0.866" W (21.50mm x 22.00mm) 0.846" L x 1.142" W (21.50mm x 29.00mm) 0.850" L x 0.680" W (21.59mm x 17.27mm) 0.850" L x 0.830" W (21.59mm x 21.08mm) 0.850" L x 0.920" W (21.59mm x 23.37mm) 0.850" L x 0.920" W (21.60mm x 23.37mm) 0.850" L x 0.970" W (21.59mm x 24.64mm) 0.850" L x 0.970" W (21.59mm x 24.65mm) 0.860" L x 0.930" W (21.84mm x 23.62mm) 0.866" L x 0.748" W (22.00mm x 19.00mm) 0.866" L x 0.850" W (22.00mm x 21.60mm) 0.866" L x 0.878" W (22.00mm x 22.30mm) 0.870" L x 0.860" W (22.10mm x 21.84mm) 0.874" L x 0.984" W (22.20mm x 25.00mm) 0.874" L x 1.024" W (22.20mm x 26.00mm) 0.876" L x 0.567" W (22.88mm x 14.40mm) 0.886" L x 0.768" W (22.50mm x 19.50mm) 0.886" L x 0.827" W (22.50mm x 21.00mm) 0.886" L x 0.854" W (22.50mm x 21.70mm) 0.906" L x 0.606" W (23.00mm x 15.40mm) 0.906" L x 0.709" W (23.00mm x 18.00mm) 0.906" L x 0.866" W (23.00mm x 22.00mm) 0.910" L x 1.044" W (23.11mm x 26.52mm) 0.920" L x 0.740" W (23.37mm x 18.80mm) 0.920" L x 0.830" W (23.37mm x 21.08mm) 0.920" L x 0.940" W (23.36mm x 23.88mm) 0.920" L x 1.040" W (23.37mm x 26.42mm) 0.925" L x 1.063" W (23.50mm x 27.00mm) 0.925" L x 1.161" W (23.50mm x 29.50mm) 0.945" L x 0.906" W (24.00mm x 23.00mm) 0.960" L x 1.400" W (24.38mm x 35.56mm) 0.965" L x 0.610" W (24.50mm x 15.50mm) 0.965" L x 0.795" W (24.50mm x 20.20mm) 0.969" L x 0.858" W (24.60mm x 21.80mm) 0.970" L x 1.070" W (24.64mm x 27.18mm) 0.984" L x 0.827" W (25.00mm x 21.00mm) 0.984" L x 0.874" W (25.00mm x 22.20mm) 1.000" Dia x 0.530" W (25.40mm x 13.46mm) 1.000" L x 1.160" W (25.40mm x 29.46mm) 1.004" L x 1.063" W (25.50mm x 27.00mm) 1.024" L x 0.720" W (26.00mm x 18.30mm) 1.024" L x 0.874" W (26.00mm x 22.20mm) 1.024" L x 0.969" W (26.00mm x 24.60mm) 1.024" L x 1.181" W (26.00mm x 30.00mm) 1.024" L x 1.201" W (26.00mm x 30.50mm) 1.025" L x 1.050" W (26.04mm x 26.67mm) 1.030" L x 0.925" W (26.15mm x 23.50mm) 1.039" L x 1.252" W (26.40mm x 31.80mm) 1.050" L x 1.025" W (26.67mm x 26.04mm) 1.050" L x 1.150" W (26.67mm x 29.21mm) 1.050" L x 1.154" W (26.67mm x 29.30mm) 1.055" L x 1.004" W (26.80mm x 25.50mm) 1.055" L x 1.319" W (26.80mm x 33.50mm) 1.059" L x 0.700" W (26.90mm x 17.78mm) 1.060" L x 1.050" W (26.92mm x 26.67mm) 1.065" L x 1.270" W (27.05mm x 32.25mm) 1.083" L x 0.866" W (27.50mm x 22.00mm) 1.102" L x 1.064" W (28.00mm x 27.03mm) 1.120" L x 0.740" W (28.45mm x 18.80mm) 1.122" L x 0.906" W (28.50mm x 23.00mm) 1.122" L x 0.945" W (28.50mm x 24.00mm) 1.122" L x 1.004" W (28.50mm x 25.50mm) 1.125" L x 1.150" W (28.58mm x 29.21mm) 1.142" L x 0.846" W (29.00mm x 21.50mm) 1.142" L x 1.102" W (29.00mm x 28.00mm) 1.150" L x 0.827" W (29.20mm x 21.00mm) 1.150" L x 1.100" W (29.21mm x 27.94mm) 1.160" L x 1.000" W (29.46mm x 25.40mm) 1.160" L x 1.050" W (29.46mm x 26.67mm) 1.181" L x 1.024" W (30.00mm x 26.00mm) 1.181" L x 1.417" W (30.00mm x 36.00mm) 1.184" L x 1.150" W (30.07mm x 29.20mm) 1.197" L x 1.016" W (30.40mm x 25.80mm) 1.201" L x 1.102" W (30.50mm x 28.00mm) 1.213" L x 0.740" W (30.81mm x 18.80mm) 1.220" L x 1.102" W (31.00mm x 28.00mm) 1.220" L x 1.220" W (31.00mm x 31.00mm) 1.240" L x 0.984" W (31.50mm x 25.00mm) 1.240" L x 1.043" W (31.50mm x 26.50mm) 1.240" L x 1.240" W (31.50mm x 31.50mm) 1.240" L x 1.386" W (31.50mm x 35.20mm) 1.299" L x 0.976" W (33.00mm x 24.80mm) 1.299" L x 1.035" W (33.00mm x 26.30mm) 1.319" L x 0.728" W (33.50mm x 18.50mm) 1.339" L x 1.370" W (34.00mm x 34.80mm) 1.350" L x 1.260" W (34.30mm x 32.00mm) 1.400" L x 0.984" W (35.50mm x 25.00mm) 1.400" L x 1.470" W (35.56mm x 37.34mm) 1.417" L x 1.417" W (36.00mm x 36.00mm) 1.420" L x 1.300" W (36.07mm x 33.02mm) 1.457" L x 1.260" W (37.01mm x 32.00mm) 1.559" L x 1.700" W (39.60mm x 43.18mm) 1.614" L x 1.496" W (41.00mm x 38.00mm) 1.692" L x 1.732" W (43.00mm x 44.00mm) 1.732" L x 1.437" W (44.00mm x 36.50mm) 1.732" L x 1.693" W (44.00mm x 43.00mm) 1.811" L x 1.811" W (46.00mm x 46.00mm) 1.811" L x 1.890" W (46.00mm x 48.00mm) 1.890" L x 1.811" W (48.00mm x 46.00mm) 1.969" L x 1.732" W (50.00mm x 44.00mm) 2.106" L x 2.106" W (53.50mm x 53.50mm)	- 0.088" (2.24mm) 0.142" (3.60mm) 0.145" (3.68mm) 0.157" (3.99mm) 0.161" (4.10mm) 0.162" (4.11mm) 0.165" (4.19mm) 0.165" (4.20mm) 0.170" (4.32mm) 0.171" (4.34mm) 0.187" (4.74mm) 0.197" (5.00mm) 0.200" (5.08mm) 0.210" (5.33mm) 0.215" (5.45mm) 0.224" (5.70mm) 0.225" (5.72mm) 0.232" (5.90mm) 0.235" (5.97mm) 0.236" (6.00mm) 0.237" (6.02mm) 0.240" (6.10mm) 0.244" (6.20mm) 0.250" (6.35mm) 0.252" (6.40mm) 0.256" (6.50mm) 0.260" (6.60mm) 0.264" (6.70mm) 0.266" (6.75mm) 0.270" (6.85mm) 0.276" (7.00mm) 0.280" (7.11mm) 0.291" (7.40mm) 0.300" (7.62mm) 0.305" (7.75mm) 0.307" (7.80mm) 0.315" (8.00mm) 0.327" (8.30mm) 0.331" (8.40mm) 0.335" (8.50mm) 0.339" (8.60mm) 0.340" (8.64mm) 0.341" (8.65mm) 0.342" (8.69mm) 0.345" (8.76mm) 0.348" (8.85mm) 0.350" (8.89mm) 0.354" (8.99mm) 0.354" (9.00mm) 0.355" (9.02mm) 0.358" (9.10mm) 0.360" (9.14mm) 0.362" (9.20mm) 0.365" (9.27mm) 0.368" (9.35mm) 0.375" (9.53mm) 0.378" (9.60mm) 0.382" (9.70mm) 0.384" (9.76mm) 0.385" (9.78mm) 0.386" (9.80mm) 0.388" (9.85mm) 0.390" (9.91mm) 0.394" (10.00mm) 0.395" (10.03mm) 0.398" (10.10mm) 0.399" (10.13mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.404" (10.25mm) 0.405" (10.29mm) 0.409" (10.40mm) 0.413" (10.50mm) 0.415" (10.54mm) 0.417" (10.60mm) 0.418" (10.62mm) 0.420" (10.67mm) 0.420" (10.69mm) 0.421" (10.70mm) 0.425" (10.80mm) 0.430" (10.92mm) 0.433" (11.00mm) 0.435" (11.05mm) 0.438" (11.13mm) 0.440" (11.18mm) 0.447" (11.35mm) 0.449" (11.40mm) 0.450" (11.43mm) 0.451" (11.45mm) 0.453" (11.50mm) 0.453" (11.51mm) 0.455" (11.56mm) 0.455" (11.57mm) 0.455" (11.58mm) 0.457" (11.60mm) 0.465" (11.80mm) 0.470" (11.94mm) 0.472" (11.99mm) 0.472" (12.00mm) 0.477" (12.12mm) 0.480" (12.19mm) 0.485" (12.32mm) 0.490" (12.45mm) 0.492" (12.50mm) 0.500" (12.70mm) 0.502" (12.75mm) 0.504" (12.80mm) 0.505" (12.83mm) 0.512" (13.00mm) 0.524" (13.31mm) 0.529" (13.44mm) 0.531" (13.50mm) 0.539" (13.70mm) 0.540" (13.72mm) 0.543" (13.80mm) 0.544" (13.82mm) 0.548" (13.92mm) 0.550" (13.97mm) 0.551" (14.00mm) 0.555" (14.10mm) 0.556" (14.12mm) 0.557" (14.15mm) 0.563" (14.30mm) 0.568" (14.43mm) 0.571" (14.50mm) 0.575" (14.60mm) 0.581" (14.76mm) 0.583" (14.80mm) 0.583" (14.81mm) 0.591" (15.00mm) 0.600" (15.24mm) 0.605" (15.37mm) 0.610" (15.50mm) 0.615" (15.62mm) 0.630" (16.00mm) 0.635" (16.13mm) 0.650" (16.50mm) 0.650" (16.51mm) 0.655" (16.64mm) 0.660" (16.76mm) 0.661" (16.80mm) 0.680" (17.27mm) 0.689" (17.50mm) 0.690" (17.53mm) 0.708" (17.98mm) 0.709" (18.00mm) 0.714" (18.14mm) 0.728" (18.50mm) 0.730" (18.55mm) 0.732" (18.59mm) 0.740" (18.80mm) 0.748" (19.00mm) 0.750" (19.05mm) 0.787" (20.00mm) 0.807" (20.50mm) 0.810" (20.57mm) 0.820" (20.82mm) 0.850" (21.59mm) 0.865" (21.97mm) 0.866" (22.00mm) 0.871" (22.12mm) 0.878" (22.30mm) 0.886" (22.50mm) 0.888" (22.55mm) 0.900" (22.86mm) 0.905" (22.99mm) 0.910" (23.11mm) 0.915" (23.24mm) 0.945" (24.00mm) 0.950" (24.13mm) 0.953" (24.20mm) 0.955" (24.26mm) 0.984" (25.00mm) 0.989" (25.12mm) 1.000" (25.40mm) 1.024" (26.00mm) 1.035" (26.30mm) 1.043" (26.50mm) 1.063" (27.00mm) 1.083" (27.50mm) 1.100" (27.94mm) 1.102" (28.00mm) 1.110" (28.20mm) 1.122" (28.50mm) 1.154" (29.30mm) 1.181" (30.00mm) 1.200" (30.48mm) 1.205" (30.61mm) 1.220" (31.00mm) 1.240" (31.50mm) 1.299" (33.00mm) 1.339" (34.00mm) 1.355" (34.42mm) 1.378" (35.00mm) 1.417" (36.00mm) 1.496" (38.00mm) 1.614" (41.00mm) 1.634" (41.50mm) 1.740" (44.20mm)	- 0.252" L x 0.244" W (6.40mm x 6.20mm) 0.260" L x 0.325" W (6.60mm x 8.26mm) 0.265" L x 0.395" W (6.73mm x 10.05mm) 0.272" L x 0.480" W (6.91mm x 12.19mm) 0.276" L x 0.433" W (7.01mm x 11.00mm) 0.310" L x 0.330" W (7.87mm x 8.38mm) 0.315" L x 0.374" W (8.00mm x 9.50mm) 0.315" L x 0.378" W (8.00mm x 9.60mm) 0.324" L x 0.360" W (8.23mm x 9.14mm) 0.327" L x 0.496" W (8.30mm x 12.60mm) 0.346" L x 0.264" W (8.80mm x 6.70mm) 0.360" L x 0.500" W (9.14mm x 12.70mm) 0.374" L x 0.138" W (9.50mm x 3.50mm) 0.385" L x 0.360" W (9.78mm x 9.14mm) 0.385" L x 0.374" W (9.78mm x 9.50mm) 0.386" L x 0.480" W (9.80mm x 12.20mm) 0.388" L x 0.258" W (9.85mm x 6.55mm) 0.394" L x 0.394" W (10.00mm x 10.00mm) 0.394" L x 0.475" W (10.00mm x 12.07mm) 0.394" L x 0.559" W (10.00mm x 14.21mm) 0.400" L x 0.325" W (10.16mm x 8.26mm) 0.400" L x 0.526" W (10.16mm x 13.36mm) 0.401" L x 0.265" W (10.20mm x 6.73mm) 0.402" L x 0.265" W (10.20mm x 6.73mm) 0.402" L x 0.366" W (10.20mm x 9.30mm) 0.410" L x 0.510" W (10.41mm x 12.95mm) 0.412" L x 0.265" W (10.46mm x 6.73mm) 0.425" L x 0.525" W (10.80mm x 13.35mm) 0.445" L x 0.431" W (11.30mm x 10.95mm) 0.450" L x 0.500" W (11.43mm x 12.70mm) 0.453" L x 0.512" W (11.50mm x 13.00mm) 0.458" L x 0.496" W (11.63mm x 12.60mm) 0.460" L x 0.460" W (11.68mm x 11.68mm) 0.472" L x 0.512" W (12.00mm x 13.00mm) 0.480" L x 0.535" W (12.20mm x 13.60mm) 0.485" L x 0.607" W (12.32mm x 15.41mm) 0.496" L x 0.327" W (12.60mm x 8.30mm) 0.508" L x 0.449" W (12.90mm x 11.40mm) 0.508" L x 0.559" W (12.90mm x 14.20mm) 0.510" L x 0.500" W (12.95mm x 12.70mm) 0.512" L x 0.347" W (13.00mm x 8.82mm) 0.512" L x 0.394" W (13.01mm x 10.00mm) 0.512" L x 0.508" W (13.00mm x 12.90mm) 0.518" L x 0.461" W (13.15mm x 11.70mm) 0.520" L x 0.430" W (13.21mm x 10.92mm) 0.525" L x 0.600" W (13.34mm x 15.24mm) 0.526" L x 0.425" W (13.35mm x 10.80mm) 0.530" L x 0.699" W (13.46mm x 17.75mm) 0.530" L x 0.713" W (13.46mm x 18.10mm) 0.531" L x 0.768" W (13.50mm x 19.50mm) 0.535" L x 0.433" W (13.60mm x 11.00mm) 0.535" L x 0.512" W (13.60mm x 13.00mm) 0.540" L x 0.775" W (13.72mm x 19.69mm) 0.540" L x 0.805" W (13.72mm x 20.45mm) 0.543" L x 0.941" W (13.80mm x 23.90mm) 0.550" L x 0.550" W (13.97mm x 13.97mm) 0.550" L x 0.669" W (13.97mm x 17.00mm) 0.550" L x 0.676" W (13.97mm x 17.17mm) 0.550" L x 0.695" W (13.97mm x 17.65mm) 0.551" L x 0.591" W (14.00mm x 18.10mm) 0.551" L x 0.695" W (14.00mm x 17.65mm) 0.551" L x 0.713" W (14.00mm x 18.10mm) 0.555" L x 0.456" W (14.10mm x 11.58mm) 0.559" L x 0.508" W (14.20mm x 12.90mm) 0.560" L x 0.805" W (14.22mm x 20.45mm) 0.571" L x 0.695" W (14.50mm x 17.65mm) 0.575" L x 0.575" W (14.60mm x 14.60mm) 0.580" L x 0.580" W (14.73mm x 14.73mm) 0.581" L x 0.327" W (14.75mm x 8.30mm) 0.583" L x 0.535" W (14.80mm x 13.60mm) 0.585" L x 0.585" W (14.86mm x 14.86mm) 0.591" L x 0.433" W (15.00mm x 11.00mm) 0.591" L x 0.620" W (15.00mm x 15.75mm) 0.591" L x 0.846" W (15.00mm x 21.50mm) 0.600" L x 0.500" W (15.24mm x 12.70mm) 0.600" L x 0.516" W (15.24mm x 13.10mm) 0.600" L x 0.531" W (15.24mm x 13.50mm) 0.610" L x 0.512" W (15.50mm x 13.00mm) 0.610" L x 0.670" W (15.49mm x 17.02mm) 0.614" L x 0.650" W (15.60mm x 16.50mm) 0.615" L x 0.555" W (15.62mm x 14.10mm) 0.620" L x 0.591" W (15.75mm x 15.00mm) 0.621" L x 0.800" W (15.77mm x 20.32mm) 0.622" L x 0.508" W (15.80mm x 12.90mm) 0.630" L x 0.720" W (16.00mm x 18.30mm) 0.642" L x 0.661" W (16.30mm x 16.80mm) 0.650" L x 0.875" W (16.50mm x 22.23mm) 0.650" L x 0.902" W (16.50mm x 22.90mm) 0.654" L x 1.016" W (16.60mm x 25.81mm) 0.657" L x 0.650" W (16.70mm x 16.50mm) 0.660" L x 0.660" W (16.76mm x 16.76mm) 0.661" L x 0.630" W (16.80mm x 16.00mm) 0.661" L x 0.642" W (16.79mm x 16.31mm) 0.661" L x 0.642" W (16.80mm x 16.30mm) 0.665" L x 0.740" W (16.90mm x 18.80mm) 0.673" L x 0.878" W (17.10mm x 22.30mm) 0.673" L x 0.935" W (17.10mm x 23.74mm) 0.675" L x 0.875" W (17.15mm x 22.23mm) 0.689" L x 0.531" W (17.50mm x 13.50mm) 0.689" L x 0.748" W (17.50mm x 19.00mm) 0.689" L x 0.935" W (17.50mm x 23.74mm) 0.695" L x 0.740" W (17.65mm x 18.80mm) 0.697" L x 0.531" W (17.70mm x 13.50mm) 0.697" L x 0.551" W (17.70mm x 14.00mm) 0.699" L x 0.530" W (17.75mm x 13.46mm) 0.700" L x 1.028" W (17.78mm x 26.10mm) 0.707" L x 0.799" W (17.96mm x 20.30mm) 0.709" L x 0.531" W (18.00mm x 13.50mm) 0.709" L x 0.642" W (18.00mm x 16.30mm) 0.709" L x 0.650" W (18.00mm x 16.50mm) 0.709" L x 0.740" W (18.00mm x 18.80mm) 0.709" L x 0.910" W (18.01mm x 23.11mm) 0.709" L x 1.024" W (18.00mm x 26.00mm) 0.713" L x 0.886" W (18.10mm x 22.50mm) 0.716" L x 0.630" W (18.19mm x 16.00mm) 0.719" L x 0.550" W (18.25mm x 13.97mm) 0.728" L x 0.650" W (18.50mm x 16.50mm) 0.740" L x 1.437" W (18.80mm x 36.50mm) 0.744" L x 0.862" W (18.90mm x 21.90mm) 0.764" L x 0.614" W (19.40mm x 15.60mm) 0.768" L x 0.886" W (19.50mm x 22.50mm) 0.787" L x 0.975" W (20.00mm x 24.00mm) 0.790" L x 0.920" W (20.07mm x 23.37mm) 0.795" L x 0.953" W (20.20mm x 24.20mm) 0.795" L x 0.965" W (20.20mm x 24.50mm) 0.800" L x 0.960" W (20.32mm x 24.38mm) 0.820" L x 0.880" W (20.83mm x 22.35mm) 0.827" L x 0.984" W (21.00mm x 25.00mm) 0.827" L x 1.169" W (21.00mm x 29.70mm) 0.830" L x 1.140" W (21.08mm x 28.86mm) 0.846" L x 1.142" W (21.50mm x 29.00mm) 0.846" L x 1.161" W (21.50mm x 29.50mm) 0.846" L x 1.331" W (21.50mm x 33.80mm) 0.850" L x 0.830" W (21.59mm x 21.08mm) 0.850" L x 0.920" W (21.60mm x 23.37mm) 0.850" L x 0.970" W (21.59mm x 24.65mm) 0.860" L x 1.150" W (21.84mm x 29.21mm) 0.862" L x 0.650" W (21.90mm x 16.50mm) 0.865" L x 1.130" W (21.97mm x 28.70mm) 0.866" L x 1.035" W (22.00mm x 26.30mm) 0.866" L x 1.140" W (22.00mm x 28.96mm) 0.866" L x 1.173" W (22.00mm x 29.80mm) 0.870" L x 0.689" W (22.10mm x 17.50mm) 0.874" L x 0.984" W (22.20mm x 25.00mm) 0.874" L x 1.024" W (22.20mm x 26.00mm) 0.876" L x 0.567" W (22.25mm x 14.40mm) 0.880" L x 0.700" W (22.35mm x 17.78mm) 0.886" L x 0.768" W (22.50mm x 19.50mm) 0.886" L x 0.854" W (22.50mm x 21.70mm) 0.886" L x 1.850" W (22.50mm x 47.00mm) 0.906" L x 0.606" W (23.00mm x 15.40mm) 0.910" L x 1.020" W (23.11mm x 25.91mm) 0.910" L x 1.145" W (23.11mm x 29.08mm) 0.910" L x 1.150" W (23.11mm x 29.08mm) 0.917" L x 1.075" W (23.30mm x 27.30mm) 0.920" L x 0.940" W (23.36mm x 23.88mm) 0.920" L x 1.040" W (23.37mm x 26.42mm) 0.921" L x 0.850" W (23.39mm x 21.59mm) 0.925" L x 1.063" W (23.50mm x 27.00mm) 0.925" L x 1.161" W (23.50mm x 29.50mm) 0.935" L x 0.689" W (23.74mm x 17.50mm) 0.941" L x 0.543" W (23.90mm x 13.80mm) 0.945" L x 0.787" W (24.00mm x 20.00mm) 0.945" L x 0.906" W (24.00mm x 23.00mm) 0.945" L x 0.945" W (24.00mm x 24.00mm) 0.960" L x 1.400" W (24.38mm x 35.56mm) 0.970" L x 1.070" W (24.64mm x 27.18mm) 1.000" Dia x 0.530" W (25.40mm x 13.46mm) 1.000" L x 1.160" W (25.40mm x 29.46mm) 1.024" L x 1.181" W (26.00mm x 30.00mm) 1.024" L x 1.201" W (26.00mm x 30.50mm) 1.025" L x 1.050" W (26.04mm x 26.67mm) 1.036" L x 1.250" W (26.31mm x 31.75mm) 1.039" L x 1.252" W (26.40mm x 31.80mm) 1.043" L x 0.925" W (26.50mm x 23.50mm) 1.050" L x 1.080" W (26.27mm x 27.43mm) 1.050" L x 1.150" W (26.27mm x 29.21mm) 1.050" L x 1.154" W (26.67mm x 29.30mm) 1.055" L x 1.319" W (26.80mm x 33.50mm) 1.059" L x 0.700" W (26.90mm x 17.78mm) 1.060" L x 1.050" W (26.92mm x 26.67mm) 1.063" L x 1.283" W (27.00mm x 32.60mm) 1.064" L x 1.272" W (27.03mm x 32.31mm) 1.064" L x 1.278" W (27.03mm x 32.46mm) 1.065" L x 1.270" W (27.05mm x 32.25mm) 1.120" L x 0.740" W (28.45mm x 18.80mm) 1.122" L x 0.906" W (28.50mm x 23.00mm) 1.122" L x 0.945" W (28.50mm x 24.00mm) 1.125" L x 1.150" W (28.58mm x 29.21mm) 1.150" L x 1.100" W (29.21mm x 27.94mm) 1.157" L x 1.004" W (29.40mm x 25.50mm) 1.157" L x 1.870" W (29.40mm x 47.50mm) 1.161" L x 0.846" W (29.49mm x 21.49mm) 1.161" L x 1.051" W (29.50mm x 26.70mm) 1.167" L x 0.858" W (29.65mm x 21.80mm) 1.169" L x 0.827" W (29.70mm x 21.00mm) 1.181" L x 1.417" W (30.00mm x 36.00mm) 1.220" L x 1.220" W (31.00mm x 31.00mm) 1.240" L x 0.984" W (31.50mm x 25.00mm) 1.240" L x 1.386" W (31.50mm x 35.20mm) 1.278" L x 1.064" W (32.45mm x 27.03mm) 1.299" L x 1.035" W (33.00mm x 26.30mm) 1.299" L x 1.055" W (33.00mm x 26.80mm) 1.339" L x 1.350" W (34.00mm x 34.30mm) 1.339" L x 1.370" W (34.00mm x 34.80mm) 1.400" L x 0.984" W (35.50mm x 25.00mm) 1.400" L x 1.470" W (35.56mm x 37.34mm) 1.417" L x 1.417" W (36.00mm x 36.00mm) 1.437" L x 1.653" W (36.50mm x 42.00mm) 1.460" L x 0.740" W (37.09mm x 18.80mm) 1.559" L x 1.700" W (39.60mm x 43.18mm) 1.634" L x 0.728" W (41.50mm x 18.50mm) 1.692" L x 1.732" W (43.00mm x 44.00mm) 1.811" L x 1.890" W (46.00mm x 48.00mm) 2.087" L x 2.756" W (53.00mm x 70.00mm)	- Laminated Core Planar Thick Film Toroidal Wirewound

全部重置

应用所有

结果:

Фотографии	Производитель. Часть #	Доступность	Price	Количество	Таблицы данных	Серия	Упаковка	Состояние продукта	Тип	Применение	Предполагаемый набор микросхем	Производитель набора микросхем	Напряжение - Первичный	Напряжение - Вспомогательное	Напряжение - Изоляция	Индуктивность при частоте	Частота	Рабочая температура	Марка	Квалификация	Тип крепления	Размер/измерение	Высота - в сидячем положении (макс.)	Площадь	Стиль
	7491199331 XFMR POE DC/DC CONV 127UH SMD Würth Elektronik	4	-	RFQ	Таблицы данных	WE-PoE	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770	-	34 ~ 72V	12V @ 15mA	1500Vrms	127µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.530" L x 0.591" W (13.46mm x 15.00mm)	0.500" (12.70mm)	0.530" L x 0.713" W (13.46mm x 18.10mm)	-
	750310007 XFMR POE DC/DC CONV 127UH SMD Würth Elektronik	0	-	RFQ	Таблицы данных	WE-PoE, MID-POE	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	LM5070, LM5071, LM5072	National Semiconductor	35 ~ 57V	12V @ 15mA	1500Vrms	127µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.505" (12.83mm)	0.530" L x 0.699" W (13.46mm x 17.75mm)	-
	7491194501 XFMR POE DC/DC CONV 42UH SMD Würth Elektronik	0	-	RFQ	Таблицы данных	WE-PoE+	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	36 ~ 72V	12V	1500Vrms	42µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.910" L x 1.044" W (23.11mm x 26.52mm)	0.450" (11.43mm)	0.910" L x 1.145" W (23.11mm x 29.08mm)	-
	749119450 XFMR POE DC/DC CONV 65UH SMD Würth Elektronik	0	-	RFQ	Таблицы данных	WE-PoE+	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	36 ~ 72V	15V @ 20mA	1500Vrms	65µH @ 100kHz	250 ~ 400kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.455" (11.56mm)	0.910" L x 1.145" W (23.11mm x 29.08mm)	-
	7508170310 XFMR FLYBCK AC/DC CONV 1.99MH SM Würth Elektronik	0	-	RFQ	Таблицы данных	WE-UNIT, MID-OLEE	Tape & Reel (TR)	Active	For AC/DC Converters	Flyback Converters	-	-	78 ~ 375V	16V @ 50mA	3000Vrms	1.99mH @ 10kHz	50kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.438" (11.13mm)	0.543" L x 0.941" W (13.80mm x 23.90mm)	-

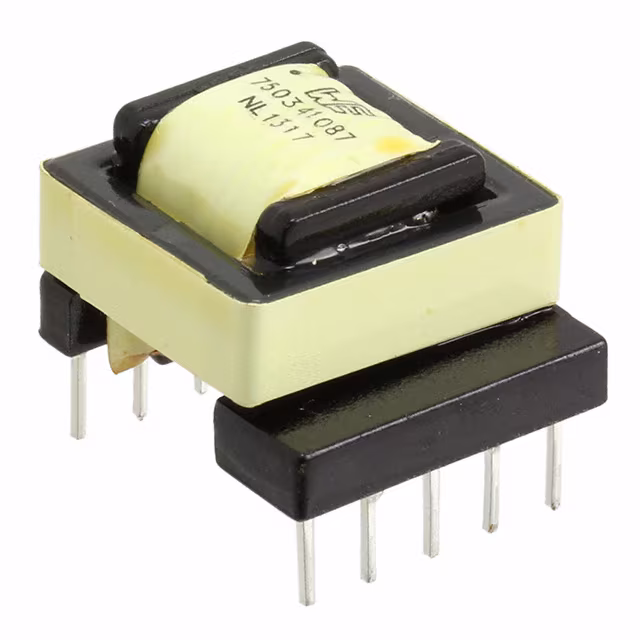

	750341087 XFMR LED DR AC/DC CONV 3MH TH Würth Elektronik	0	-	RFQ	Таблицы данных	WE-UNIT, MID-OLTI	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	180 ~ 265V	22V @ 10mA	4500Vrms	3mH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Through Hole	0.665" L x 0.740" W (16.90mm x 18.80mm)	0.529" (13.44mm)	0.665" L x 0.740" W (16.90mm x 18.80mm)	-
	750342860 XFMR FLYBACK DC/DC CONV 80UH SMD Würth Elektronik	0	-	RFQ	Таблицы данных	WE-FB, MID-IBMAX	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	18 ~ 36V	24V @ 100mA	1875Vrms	80µH @ 50kHz	-	-40°C ~ 125°C	-	-	Surface Mount	-	0.455" (11.56mm)	0.525" L x 0.600" W (13.34mm x 15.24mm)	-

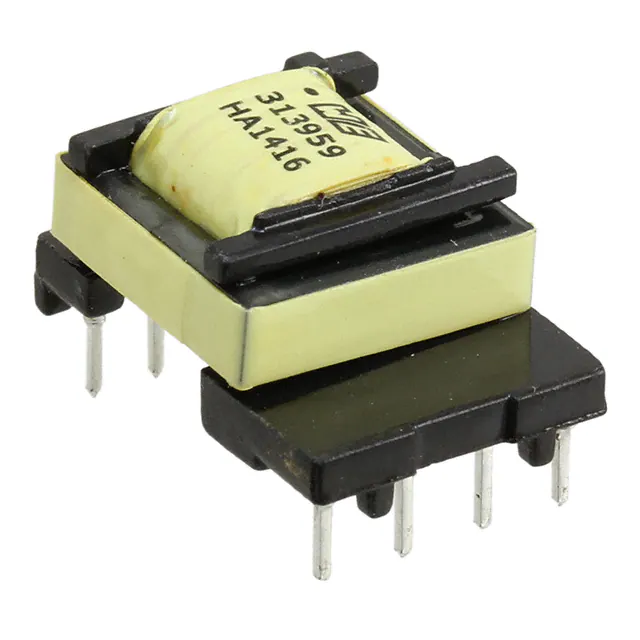

	750313959 XFMR ISOL AC/DC CONV 1.8MH TH Würth Elektronik	0	-	RFQ	Таблицы данных	WE-FB, MID-OLTI	Tray	Active	For AC/DC Converters	Isolation	-	-	120 ~ 375V	18V @ 10mA	4500Vrms	1.8mH @ 10kHz	100kHz	-40°C ~ 125°C	-	-	Through Hole	0.540" L x 0.805" W (13.72mm x 20.45mm)	0.405" (10.29mm)	0.540" L x 0.805" W (13.72mm x 20.45mm)	-
	7491196331 XFMR POE DC/DC CONV 128UH SMD Würth Elektronik	0	-	RFQ	Таблицы данных	WE-PoEH	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	33 ~ 57V	10V	1500Vrms	128µH @ 100kHz	200 ~ 400kHz	-40°C ~ 125°C	-	-	Surface Mount	0.551" L x 0.591" W (14.00mm x 15.00mm)	0.571" (14.50mm)	0.551" L x 0.591" W (14.00mm x 18.10mm)	-

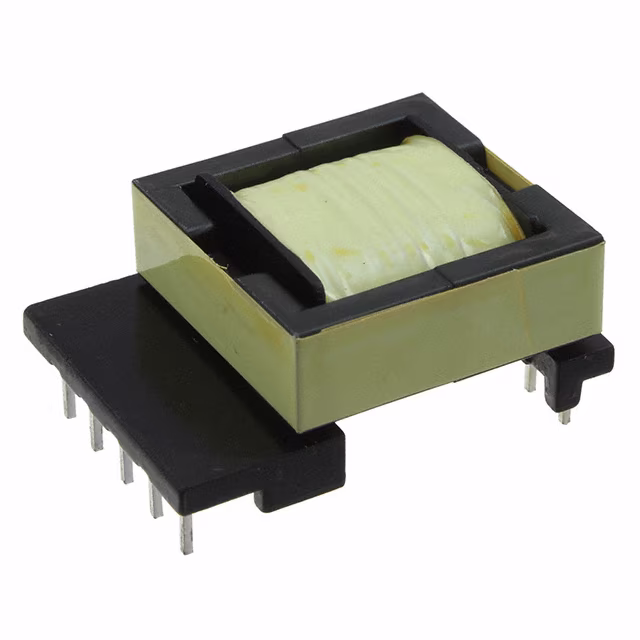

	7508112330 XFMR LED DR AC/DC CONV 800UH TH Würth Elektronik	18	-	RFQ	Таблицы данных	WE-UNIT, MID-OLEDF	Tray	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	120 ~ 375V	20V	4500Vrms	800µH @ 10kHz	68 ~ 130kHz	-40°C ~ 125°C	-	-	Through Hole	0.846" L x 1.142" W (21.50mm x 29.00mm)	0.477" (12.12mm)	0.846" L x 1.142" W (21.50mm x 29.00mm)	-

Общий 667 Записывать«Предыдущая 1... 37 38 39 404142 43 44...67 Следующий»
