Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACSNO-6123-YB-C6002-ENGRAVEDSWITCH ROTARY 12POS 10A 110V |
0 |
|
Таблицы данных |
CS | Bulk | Active | 12 | Fixed | 6 | 1 | SP12T | Not Specified | 10A (AC), 8A (DC) | 110 V | 24 V | - | - | 30° | - | - | Panel Mount | Screw Terminal | - | - |
|
|
M5D0412N-ASWITCH ROTARY 2-12POS 2.5A 120V |
0 |
|
Таблицы данных |
M5 | Bulk | Active | 2 ~ 12 | Adjustable | 4 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 2A (DC) | 120 V | 28 V | Flatted (6.35mm Dia) | 11.11mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 49.28mm |
|
|
K2C003HLHSWITCH ROTARY 2POS |
0 |
|
Таблицы данных |
Harmony K | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Not Specified | - | - | - | Knob | - | 90° | - | - | Panel Mount | Screw Terminal | - | - |
|
|
312-11ESWITCH ROTARY 11POS 30A 300V |
0 |
|
Таблицы данных |
312 | Bulk | Active | 11 | Fixed | 1 | 1 | SP11T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 57.20mm |
|
|
53M15-07B24NSWITCH ROTARY 24POS 250MA 115V |
0 |
|
Таблицы данных |
53 | Bulk | Active | 24 | Fixed | 7 | 1 | SP24T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 15° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 80.37mm |
|
|
42D36-12-2-AJNSWITCH ROTARY 2-5POS 1A 115V |
0 |
|
Таблицы данных |
42 | Bulk | Active | 2 ~ 5 | Adjustable | 12 | 2 | DP5T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 129.06mm |
|
|
53M15-02-12-02NSWITCH ROTARY 2POS 250MA 115V |
0 |
|
Таблицы данных |
53 | Bulk | Active | 2 | Fixed | 2 | 12 | 12PDT | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 15° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 31.72mm |
|

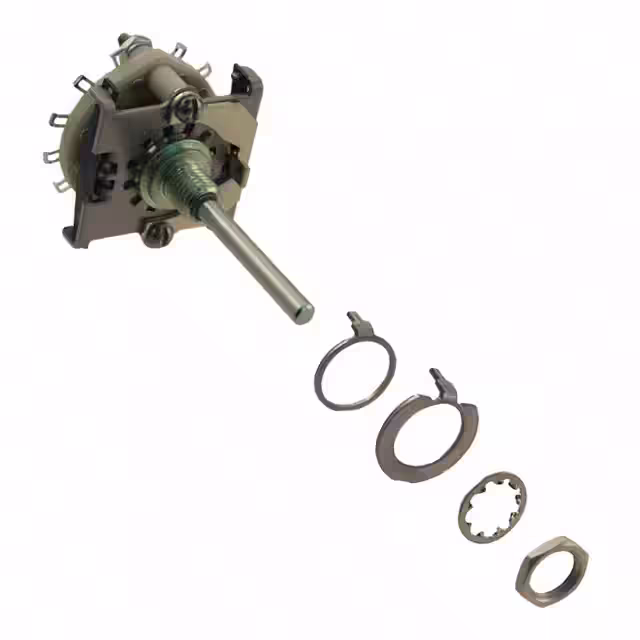

D2C0303NSWITCH ROTARY 2-3POS 250MA 115V |
0 |
|
Таблицы данных |
D2 | Bulk | Active | 2 ~ 3 | Adjustable | 1 | 3 | 3P3T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (3.17mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
412-7ESWITCH ROTARY 7POS 50A 300V |
0 |
|
Таблицы данных |
412 | Bulk | Active | 7 | Fixed | 1 | 1 | SP7T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 61.90mm |
|
|
57M22-03-6-02NSWITCH ROTARY 2POS 250MA 115V |
0 |
|
Таблицы данных |
57 | Bulk | Active | 2 | Fixed | 3 | 6 | 6PDT | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 22.5° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 40.18mm |
|
|
44M30-10B12NSWITCH ROTARY 12POS 1A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 12 | Fixed | - | 1 | SP12T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | - |
|
|
D3C0605NSWITCH ROTARY 2-5POS 500MA 115V |
0 |
|
Таблицы данных |
D3 | Bulk | Active | 2 ~ 5 | Adjustable | 3 | 2 | DP5T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 32.79mm |
|
|
44H45-11-1-07SSWITCH ROTARY 7POS 5A 115V |
0 |
|
- |
44 | Bulk | Active | 7 | Fixed | 11 | 1 | SP7T | Shorting (MBB) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | - | 120.27mm |
|
|
42M36-10-1-10NSWITCH ROTARY 10POS 1A 115V |
0 |
|
- |
42 | Bulk | Active | 10 | Continuous | 10 | 1 | SP10T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 111.48mm |
|
|
53HS15-06-2-12NSWITCH ROTARY 12POS 250MA 115V |
0 |
|
Таблицы данных |
53 | Bulk | Active | 12 | Fixed | 6 | 2 | DP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 15° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 71.91mm |
|
|
D7G0611NSWITCH ROTARY 2-11POS 1A 115V |
0 |
|
Таблицы данных |
D7 | Bulk | Active | 2 ~ 11 | Adjustable | 6 | 1 | SP11T | Non-Shorting (BBM) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 151.64mm |
|
|
44M30-08-3-04NSWITCH ROTARY 4POS 1A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 4 | Fixed | 8 | 3 | 3P4T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 93.90mm |
|
|
44HGS30-05E03NSWITCH ROTARY 3POS 1A 115V |
0 |
|
- |
44 | Bulk | Active | 3 | Fixed | - | 4 | 4P3T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | - |
|
|
59HS18-01-3-05NSWITCH ROTARY 5POS 250MA 115V |
0 |
|
Таблицы данных |
59 | Bulk | Active | 5 | Fixed | 1 | 3 | 3P5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 18° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 23.27mm |
|
|
711-5-T2ESWITCH ROTARY 5POS 7A 125V |
0 |
|
Таблицы данных |
711 | Bulk | Obsolete | 5 | Fixed | 2 | 1 | SP5T | Non-Shorting (BBM) | 7A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder, Quick Connect - 0.187" (4.7mm) | - | 45.20mm |
