Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
44M60-09-1-05NSWITCH ROTARY 5POS 5A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 5 | Fixed | 9 | 1 | SP5T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 60° | Silver Alloy | - | Panel Mount | Solder Lug | - | 102.69mm |
|
|
09A30-09-1-09NSWITCH ROTARY 9POS 250MA 115V |
0 |
|
Таблицы данных |
09 | Bulk | Active | 9 | Fixed | 9 | 1 | SP9T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 85.19mm |
|
|
59HS18-01-2-05NSWITCH ROTARY 5POS 250MA 115V |
0 |
|
Таблицы данных |
59 | Bulk | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 18° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 23.27mm |
|
|
D9G0323SSWITCH ROTARY 2-23POS 250MA 115V |
0 |
|
Таблицы данных |
D9 | Bulk | Active | 2 ~ 23 | Adjustable | 3 | 1 | SP23T | Shorting (MBB) | 250mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 15° | Brass | Silver | Panel Mount | Solder Lug | - | 39.17mm |
|
|
D6D1006NSWITCH ROTARY 2-6POS 500MA 115V |
0 |
|
Таблицы данных |
D6 | Bulk | Active | 2 ~ 6 | Adjustable | 5 | 2 | DP6T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 75.72mm |
|
|
08A36-10-1-08NSWITCH ROTARY 8POS 250MA 115V |
0 |
|
Таблицы данных |
08 | Bulk | Active | 8 | Fixed | 10 | 1 | SP8T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 91.00mm |
|
|
42D36-10-1-AJNSWITCH ROTARY 2-10POS 1A 115V |
0 |
|
Таблицы данных |
42 | Bulk | Active | 2 ~ 10 | Adjustable | 10 | 1 | SP10T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 111.48mm |
|
|
53HS15-05B24NSWITCH ROTARY 24POS 250MA 115V |
0 |
|
Таблицы данных |
53 | Bulk | Active | 24 | Fixed | 5 | 1 | SP24T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 15° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 57.10mm |
|
|
44M90-09-1-04NSWITCH ROTARY 4POS 5A 115V |
0 |
|
- |
44 | Bulk | Active | 4 | Fixed | 9 | 1 | SP4T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 90° | Silver Alloy | - | Panel Mount | Solder Lug | - | 102.69mm |
|
|
212-10ESWITCH ROTARY 10POS 20A 150V |
0 |
|
Таблицы данных |
212 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 20A (AC/DC) | 150 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 44.50mm |
|
|
53M15-05-1-10SSWITCH ROTARY 10POS 250MA 115V |
0 |
|
Таблицы данных |
53 | Bulk | Active | 10 | Fixed | 5 | 1 | SP10T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 15° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 57.10mm |
|
|
53M15-05A24NSWITCH ROTARY 24POS 250MA 115V |
0 |
|
Таблицы данных |
53 | Bulk | Active | 24 | Continuous | 5 | 1 | SP24T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 15° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 57.10mm |
|
|
53M15-05B24NSWITCH ROTARY 24POS 250MA 115V |
0 |
|
Таблицы данных |
53 | Bulk | Active | 24 | Fixed | 5 | 1 | SP24T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 15° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 57.10mm |
|
|
53M15-05B24SSWITCH ROTARY 24POS 250MA 115V |
0 |
|
Таблицы данных |
53 | Bulk | Active | 24 | Fixed | 5 | 1 | SP24T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 15° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 57.10mm |
|
|
D7C0605NSWITCH ROTARY 2-5POS 1A 115V |
0 |
|
Таблицы данных |
D7 | Bulk | Active | 2 ~ 5 | Adjustable | 3 | 2 | DP5T | Non-Shorting (BBM) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 76.68mm |
|
|
D7C0605SSWITCH ROTARY 2-5POS 1A 115V |
0 |
|
Таблицы данных |
D7 | Bulk | Active | 2 ~ 5 | Adjustable | 3 | 2 | DP5T | Shorting (MBB) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 76.68mm |
|

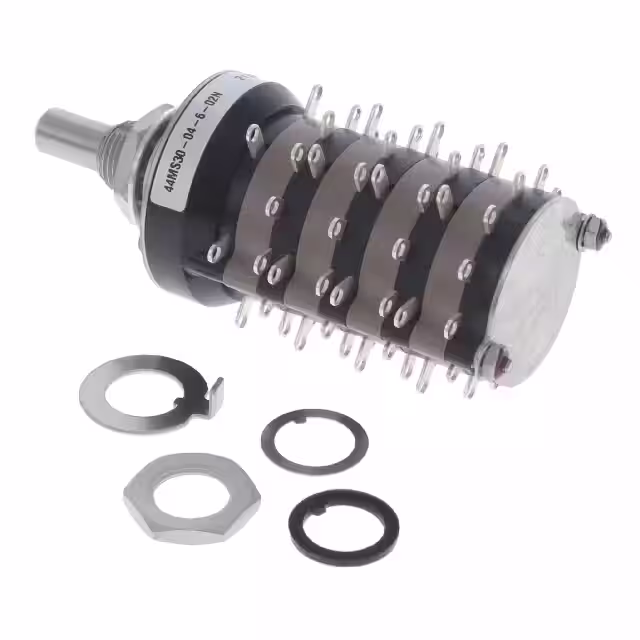

44MS30-04-6-02NSWITCH ROTARY 2POS 1A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 2 | Fixed | 4 | 6 | 6PDT | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 52.40mm |
|
|
212-11ESWITCH ROTARY 11POS 20A 150V |
0 |
|
Таблицы данных |
212 | Bulk | Active | 11 | Fixed | 1 | 1 | SP11T | Non-Shorting (BBM) | 20A (AC/DC) | 150 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 44.50mm |
|
|
312-6SWITCH ROTARY 6POS 30A 300V |
0 |
|
Таблицы данных |
312 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 57.20mm |
|
|
412-4SWITCH ROTARY 4POS 50A 300V |
0 |
|
Таблицы данных |
412 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 61.90mm |
