Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
44M45-02-1-06SSWITCH ROTARY 6POS 5A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 6 | Fixed | 2 | 1 | SP6T | Shorting (MBB) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
|
53M15-01-2-11NSWITCH ROTARY 11POS 250MA 115V |
0 |
|
Таблицы данных |
53 | Bulk | Active | 11 | Fixed | 1 | 2 | DP11T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 15° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 23.27mm |
|
|
44M60-02-1-06NSWITCH ROTARY 6POS 5A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 6 | Continuous | 2 | 1 | SP6T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 60° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
|
44M60-02B06NSWITCH ROTARY 6POS 5A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 6 | Fixed | - | 1 | SP6T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 60° | Silver Alloy | - | Panel Mount | Solder Lug | - | - |
|

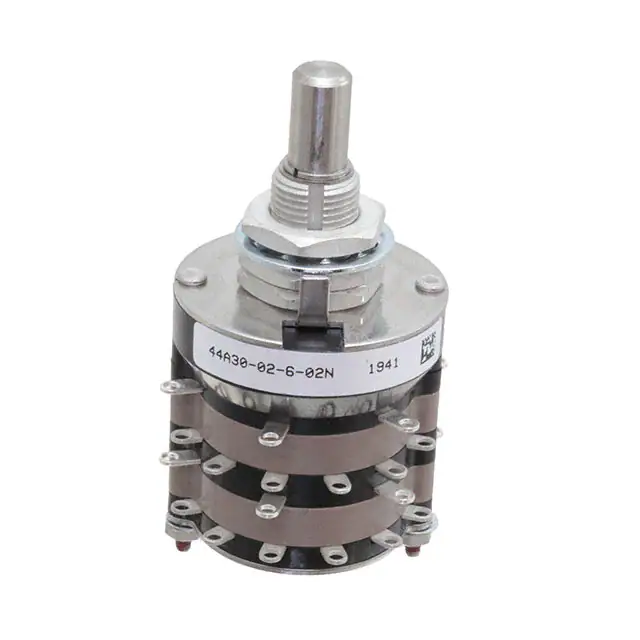

44A30-02-6-02NSWITCH ROTARY 2POS 1A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 2 | Fixed | 2 | 6 | 6PDT | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
|
D6D0406NSWITCH ROTARY 2-6POS 500MA 115V |
0 |
|
Таблицы данных |
D6 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | 2 | DP6T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 30.00mm |
|
|
D6D0406SSWITCH ROTARY 2-6POS 500MA 115V |
0 |
|
Таблицы данных |
D6 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | 2 | DP6T | Shorting (MBB) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 30.00mm |
|
|
D6D0605NSWITCH ROTARY 2-5POS 500MA 115V |
0 |
|
Таблицы данных |
D6 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 3 | 3P5T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 30.00mm |
|
|
C4D0612S-ASWITCH ROTARY 2-12POS 300MA 125V |
0 |
|
Таблицы данных |
C4 | Bulk | Active | 2 ~ 12 | Adjustable | 6 | 1 | SP12T | Shorting (MBB) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 56.18mm |
|
|
44A30-03-3-03NSWITCH ROTARY 3POS 1A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 3 | Fixed | 3 | 3 | 3P3T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 43.61mm |
|
|
44MS30-02-1-09NSWITCH ROTARY 9POS 1A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 9 | Fixed | 2 | 1 | SP9T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 34.82mm |
|
|
08S36-02-2-03NSWITCH ROTARY 3POS 250MA 115V |
0 |
|
Таблицы данных |
8 | Bulk | Active | 3 | Fixed | 2 | 2 | DPDT | Shorting (MBB) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 31.19mm |
|
|
44HS90-01-1-03NSWITCH ROTARY 3POS 5A 115V |
0 |
|
- |
44 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 5A (AC), 2A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 90° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
44HS45-01-1-03NSWITCH ROTARY 3POS 5A 115V |
0 |
|
- |
44 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
44HS60-01-1-03NSWITCH ROTARY 3POS 5A 115V |
0 |
|
- |
44 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 60° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
44MS45-01-2-04NSWITCH ROTARY 4POS 5A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
111-8SWITCH ROTARY 8POS 15A 125V |
0 |
|
Таблицы данных |
111 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 15A (AC/DC) | 125 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 28.70mm |
|
|
42M36-03-1-04SSWITCH ROTARY 4POS 1A 115V |
0 |
|
- |
42 | Bulk | Active | 4 | Fixed | 3 | 1 | SP4T | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 43.61mm |
|
|
D7G0603NSWITCH ROTARY 2-3POS 1A 115V |
0 |
|
Таблицы данных |
D7 | Bulk | Active | 2 ~ 3 | Adjustable | 2 | 3 | 3P3T | Non-Shorting (BBM) | 1A (AC), 2.25A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 43.74mm |
|
|
D3G0205SSWITCH ROTARY 2-5POS 500MA 115V |
0 |
|
Таблицы данных |
D3 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Shorting (MBB) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.17mm |
