Поворотные потенциометры, реостаты
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление (Ом) | Допуск | Мощность (Вт) | Встроенный переключатель | Количество оборотов | Особенности | Конусность | Количество групп | Тип регулировки | Температурный коэффициент | Вращение | Резистивный материал | Тип вывода | Тип привода | Длина привода | Диаметр привода | Резьба втулки | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

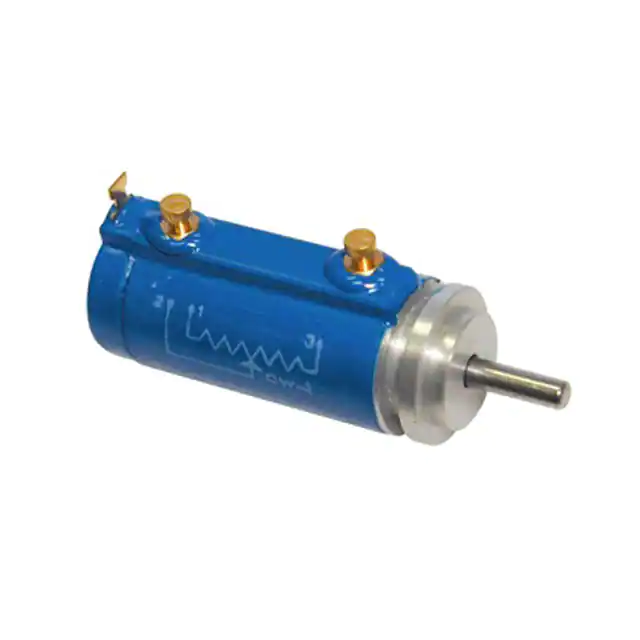

3750S-1-103LPOT 10K OHM 1W WIREWOUND LINEAR |
91 |
|
Таблицы данных |
3750 | Bulk | Active | 10k | ±5% | 1W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Turret | Round | 0.375" (9.53mm) | 0.093" (2.36mm) | - | Servo Mount |
|
3400S-1-102LPOT 1K OHM 5W WIREWOUND LINEAR |
39 |
|
Таблицы данных |
3400 | Bulk | Active | 1k | ±3% | 5W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3400S-1-101LPOT 100 OHM 5W WIREWOUND LINEAR |
48 |
|
Таблицы данных |
3400 | Bulk | Active | 100 | ±3% | 5W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
PDB12-F4251-503AFPOT 50K OHM 0.04W CARBON LOG |
1,000 |
|
Таблицы данных |
PDB12 | Tray | Active | 50k | ±20% | 0.04W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | - | 300° | Carbon | PC Pins, Board Locks | Flatted | 0.984" (25.00mm) | 0.236" (6.00mm) | - | Through Hole |
|
|
PDB12-G4201-103AFPOT 10K OHM 0.04W CARBON LOG |
1,000 |
|
Таблицы данных |
PDB12 | Tray | Active | 10k | ±20% | 0.04W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | - | 300° | Carbon | PC Pins, Board Locks | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole |
|
|
PDB12-H4201-103AFPOT 10K OHM 0.04W CARBON LOG |
1,000 |
|
Таблицы данных |
PDB12 | Tray | Active | 10k | ±20% | 0.04W | None | 1.0 | - | Logarithmic | 1 | Top Adjustment | - | 300° | Carbon | PC Pins, Board Locks | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole |
|
|
PDB12-H4301-503AFPOT 50K OHM 0.04W CARBON LOG |
1,000 |
|
Таблицы данных |
PDB12 | Tray | Active | 50k | ±20% | 0.04W | None | 1.0 | - | Logarithmic | 1 | Top Adjustment | - | 300° | Carbon | PC Pins, Board Locks | Flatted | 1.181" (30.00mm) | 0.236" (6.00mm) | - | Through Hole |
|
|
PDB12-M4251-102BFPOT 1K OHM 0.08W CARBON LINEAR |
988 |
|
Таблицы данных |
PDB12 | Tray | Active | 1k | ±20% | 0.08W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 300° | Carbon | PC Pins | Flatted | 0.984" (25.00mm) | 0.236" (6.00mm) | - | Through Hole |
|
|
PTV09A-4220U-B203POT 20K OHM 1/20W CARBON LINEAR |
2,374 |
|
Таблицы данных |
Pro Audio PTV09 | Tray | Active | 20k | ±20% | 0.05W, 1/20W | Detent | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Knurled | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PTV09A-3020F-B104POT 100K OHM 1/20W CARBON LINEAR |
1,997 |
|
Таблицы данных |
Pro Audio PTV09 | Tray | Active | 100k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PTV09A-4220F-B502POT 5K OHM 1/20W CARBON LINEAR |
996 |
|
Таблицы данных |
Pro Audio PTV09 | Tray | Active | 5k | ±20% | 0.05W, 1/20W | Detent | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PTV09A-2025F-B105POT 1M OHM 1/20W CARBON LINEAR |
994 |
|
Таблицы данных |
Pro Audio PTV09 | Tray | Active | 1M | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.984" (25.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PTV09A-4230U-B502POT 5K OHM 1/20W CARBON LINEAR |
990 |
|
Таблицы данных |
Pro Audio PTV09 | Tray | Active | 5k | ±20% | 0.05W, 1/20W | Detent | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Knurled | 1.181" (30.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PTV09A-4225U-B104POT 100K OHM 1/20W CARBON LINEAR |
989 |
|
Таблицы данных |
Pro Audio PTV09 | Tray | Active | 100k | ±20% | 0.05W, 1/20W | Detent | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Knurled | 0.984" (25.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PTV09A-4015F-A503POT 50K OHM 1/20W CARBON LOG |
983 |
|
Таблицы данных |
Pro Audio PTV09 | Tray | Active | 50k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PTV09A-4020S-A503POT 50K OHM 1/20W CARBON LOG |
977 |
|
Таблицы данных |
Pro Audio PTV09 | Tray | Active | 50k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Knurled and Slotted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
PTV09A-2020F-A502POT 5K OHM 1/20W CARBON LOG |
976 |
|
Таблицы данных |
Pro Audio PTV09 | Tray | Active | 5k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PTV09A-4020S-A105POT 1M OHM 1/20W CARBON LOG |
971 |
|
Таблицы данных |
Pro Audio PTV09 | Tray | Active | 1M | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Knurled and Slotted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PTV09A-2020F-B504POT 500K OHM 1/20W CARBON LINEAR |
970 |
|
Таблицы данных |
Pro Audio PTV09 | Tray | Active | 500k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PTV09A-4025S-A203POT 20K OHM 1/20W CARBON LOG |
970 |
|
Таблицы данных |
Pro Audio PTV09 | Tray | Active | 20k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
