БОМ
Поворотные потенциометры, реостаты
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление (Ом) | Допуск | Мощность (Вт) | Встроенный переключатель | Количество оборотов | Особенности | Конусность | Количество групп | Тип регулировки | Температурный коэффициент | Вращение | Резистивный материал | Тип вывода | Тип привода | Длина привода | Диаметр привода | Резьба втулки | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE30L0FG223KABPOT 22K OHM 3W CERMET LINEAR |
20 |
|
Таблицы данных |
PE30 | Box | Active | 22k | ±10% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

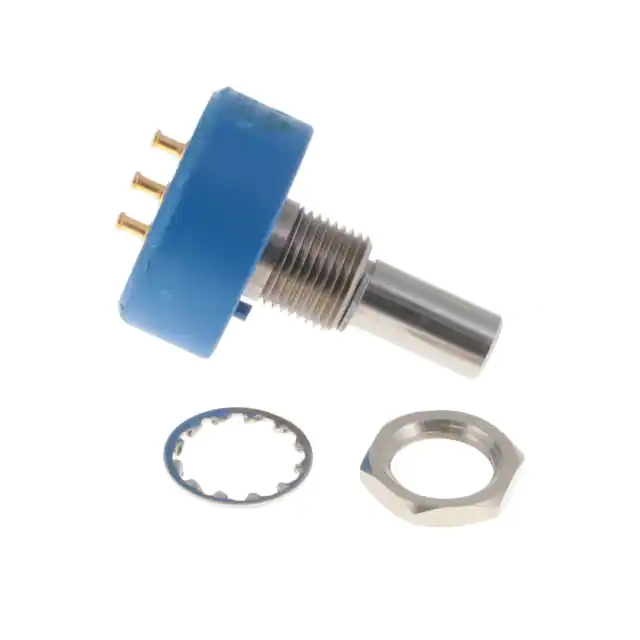

357B0103MAB251S22POT 10K OHM 1W PLASTIC LINEAR |
48 |
|
Таблицы данных |
357 | Bulk | Active | 10k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
249FGJSPXB25253KAPOT 25K OHM 1W CERMET LINEAR |
90 |
|
Таблицы данных |
249 | Box | Active | 25k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8 | Panel Mount |
|
|
PRV4F0GJS104KAB10POT |
20 |
|
Таблицы данных |
PRV4 | Box | Active | 100k | ±10% | 2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±300ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
534B1202JLPOT 2K OHM 2W WIREWOUND LINEAR |
29 |
|
Таблицы данных |
534 | Box | Active | 2k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
P13LFL222MAB10POT 2.2K OHM 1.5W CERMET LINEAR |
30 |
|
Таблицы данных |
P13 | Box | Active | 2.2k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PE30L0FL223KLBPOT 22K OHM 1.5W CERMET LOG |
40 |
|
Таблицы данных |
PE30 | Box | Active | 22k | ±10% | 1.5W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
249FGJSPXB25501KAPOT 500 OHM 1W CERMET LINEAR |
98 |
|
Таблицы данных |
249 | Box | Active | 500 | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8 | Panel Mount |
|
|
248BBHS0XB25503MAPOT 50K OHM 1/2W PLASTIC LINEAR |
62 |
|
Таблицы данных |
248 | Box | Active | 50k | ±20% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 295° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4 | Panel Mount |
|
|
MW22B-10-500POT 500 OHM 10-TU 2W WIRE LINEAR |
95 |
|
Таблицы данных |
MW22B | Bulk | Active | 500 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 80ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.820" (20.83mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
MW22B-10-2KPOT 2K 10-TURN 2W WIRE LINEAR |
67 |
|
Таблицы данных |
MW22B | Bulk | Active | 2k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 80ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.820" (20.83mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
CLU1031EPOT 10K OHM 2W CARBON LINEAR |
66 |
|
Таблицы данных |
CLU | Bulk | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
P16SNM105MLB15POT 1M OHM 0.12W CERMET LOG |
20 |
|
Таблицы данных |
P16S | Box | Active | 1M | ±20% | 0.12W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.370" (9.40mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16SNM471MLB15POT 470 OHM 1/2W CERMET LOG |
19 |
|
Таблицы данных |
P16S | Box | Active | 470 | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.370" (9.40mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
PE30L0FG102MABPOT 1K OHM 3W CERMET LINEAR |
55 |
|
Таблицы данных |
PE30 | Bulk | Active | 1k | ±20% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PE30L0FG472MABPOT 4.7K OHM 3W CERMET LINEAR |
19 |
|
Таблицы данных |
PE30 | Bulk | Active | 4.7k | ±20% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PE30L0FG222MABPOT 2.2K OHM 3W CERMET LINEAR |
18 |
|
Таблицы данных |
PE30 | Box | Active | 2.2k | ±20% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PE30L0FR102MABPOT 1K OHM 3W CERMET LINEAR |
15 |
|
Таблицы данных |
PE30 | Box | Active | 1k | ±20% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 1.969" (50.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PE30L0FL104MABPOT 100K OHM 0.9W CERMET LINEAR |
14 |
|
Таблицы данных |
PE30 | Box | Active | 100k | ±20% | 0.9W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PE30L0FR222MABPOT 2.2K OHM 3W CERMET LINEAR |
13 |
|
Таблицы данных |
PE30 | Box | Active | 2.2k | ±20% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 1.969" (50.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
