Поворотные потенциометры, реостаты
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление (Ом) | Допуск | Мощность (Вт) | Встроенный переключатель | Количество оборотов | Особенности | Конусность | Количество групп | Тип регулировки | Температурный коэффициент | Вращение | Резистивный материал | Тип вывода | Тип привода | Длина привода | Диаметр привода | Резьба втулки | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
533B1501JCPOT 500 OHM 1W WIREWOUND LINEAR |
37 |
|
Таблицы данных |
533 | Bulk | Active | 500 | ±5% | 1W | None | 3.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
535B1202JCPOT 2K OHM 1.5W WIREWOUND LINEAR |
49 |
|
Таблицы данных |
535 | Bulk | Active | 2k | ±5% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
535B1501JCPOT 500 OHM 1.5W WIREWOUND LIN |
31 |
|
Таблицы данных |
535 | Bulk | Active | 500 | ±5% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
535B1102JCPOT 1K OHM 1.5W WIREWOUND LINEAR |
25 |
|
Таблицы данных |
535 | Bulk | Active | 1k | ±5% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3548S-1BA-103BPOT 10K OHM 1.5W WIREWOUND LIN |
35 |
|
Таблицы данных |
3548 | Tray | Active | 10k | ±3% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
5322R5KL2.0POT 5K OHM 1/4W PLASTIC LINEAR |
22 |
|
Таблицы данных |
5320 | Bulk | Active | 5k | ±20% | 0.25W, 1/4W | None | 1.0 | Long Life | Linear | 1 | User Defined | - | 250° | Conductive Plastic | - | Round | 0.625" (15.88mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3548S-1AB-502BPOT 5K OHM 1.5W WIREWOUND LINEAR |
18 |
|
Таблицы данных |
3548 | Bulk | Active | 5k | ±3% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.811" (20.60mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|

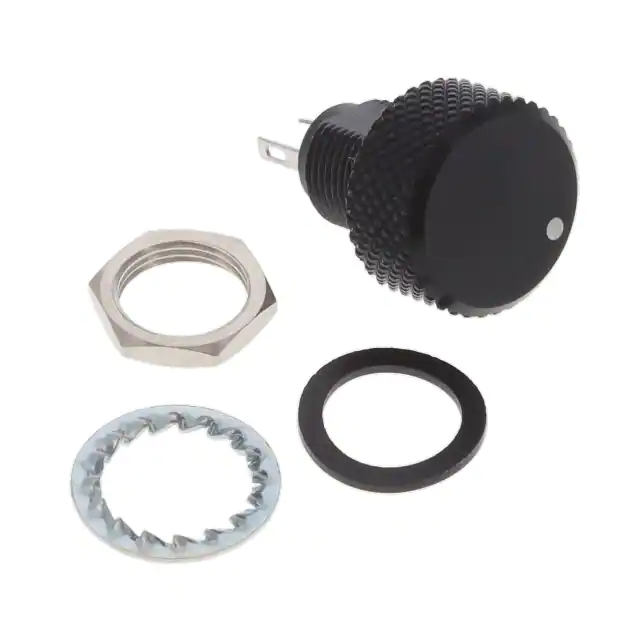

P16NM103KAB15POT 10K OHM 1W CERMET LINEAR |
32 |
|
Таблицы данных |
P16 | Box | Active | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

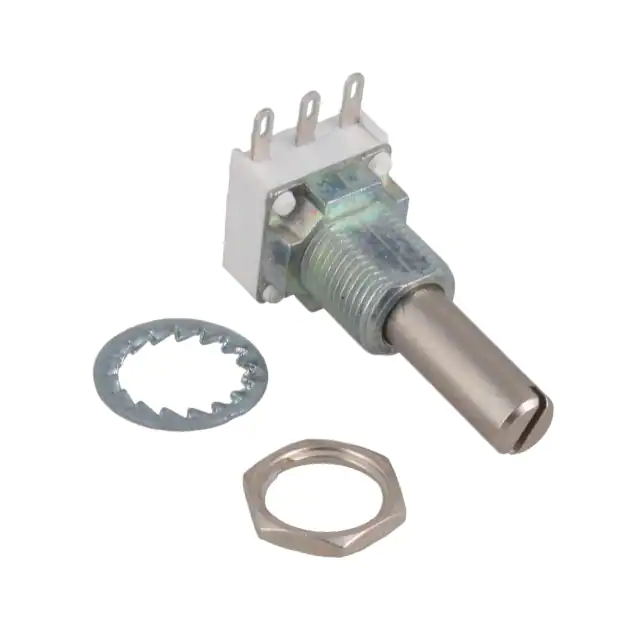

P11S1V0FLSY00101KAPOT 100 OHM 1W CERMET LINEAR |
14 |
|
Таблицы данных |
P11S | Box | Active | 100 | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
86R2A-R16-A13/R51LPOT 5K OHM 2W CERMET LINEAR |
15 |
|
Таблицы данных |
86 | Bulk | Active | 5k | ±10% | 2W | Rotary, DPDT | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Hook | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
534B1501JLPOT 500 OHM 2W WIREWOUND LINEAR |
20 |
|
Таблицы данных |
534 | Box | Active | 500 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

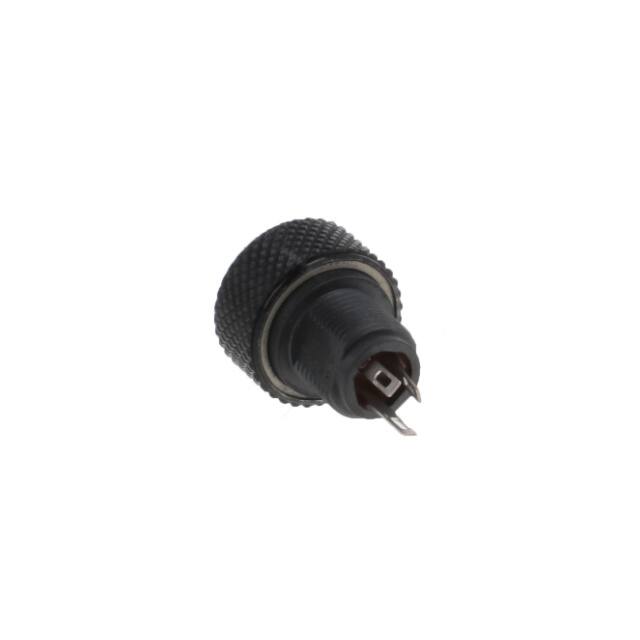

P16NM472KAB15POT 4.7K OHM 1W CERMET LINEAR |
24 |
|
Таблицы данных |
P16 | Box | Active | 4.7k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
3540S-1-501LPOT 500 OHM 2W WIREWOUND LINEAR |
78 |
|
Таблицы данных |
3540 | Tray | Active | 500 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3540S-1-202LPOT 2K OHM 2W WIREWOUND LINEAR |
78 |
|
Таблицы данных |
3540 | Tray | Active | 2k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
157B103MXPOT 10K OHM 1W PLASTIC LINEAR |
44 |
|
Таблицы данных |
157 | Bulk | Active | 10k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

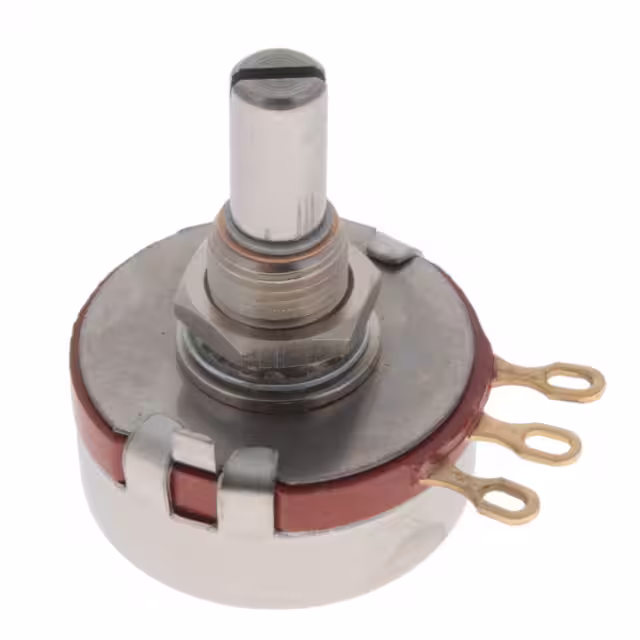

CMU1031EPOT 10K OHM 2W CARBON LINEAR |
32 |
|
Таблицы данных |
CMU | Bulk | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
7286R500L.25POT 500 OHM 2W WIREWOUND LINEAR |
68 |
|
Таблицы данных |
7280 | Bulk | Active | 500 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Turret | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
SPRU5041S28POT 500K OHM 1/2W CARBON LINEAR |
61 |
|
Таблицы данных |
SPR | Bulk | Active | 500k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 295° | Carbon | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
7286R2KL.25POT 2K OHM 2W WIREWOUND LINEAR |
69 |
|
Таблицы данных |
7280 | Bulk | Active | 2k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Turret | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
7286R100L.25POT 100 OHM 2W WIREWOUND LINEAR |
65 |
|
Таблицы данных |
7280 | Bulk | Active | 100 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Turret | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
