БОМ
РЧ-антенны
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Семейство RF/Стандарт | Группа частот | Частота (центр/полоса) | Диапазон частот | Тип антенны | Количество полос | КСВН | Обратные потери | Усиление | Мощность - макс. | Особенности | Оконечная нагрузка | Защита от проникновения | Марка | Квалификация | Тип крепления | Высота (макс.) | Применение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1513712-1RF ANT 2.5GHZ/3.6GHZ MODULE CAB |
0 |
|
Таблицы данных |
- | Bulk | Obsolete | 802.15.4, Bluetooth, WiFi | Wide Band | 2.5GHz, 3.6GHz, 5.4GHz | 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 5.875GHz | Module | 3 | 2.5 | - | 0dBi, 3dBi, 2dBi | 10 W | Cable - 800mm | QSL Type 4 | - | - | - | - | 0.931" (23.65mm) | Bluetooth, WiMax™, WLAN, Zigbee™ |
|

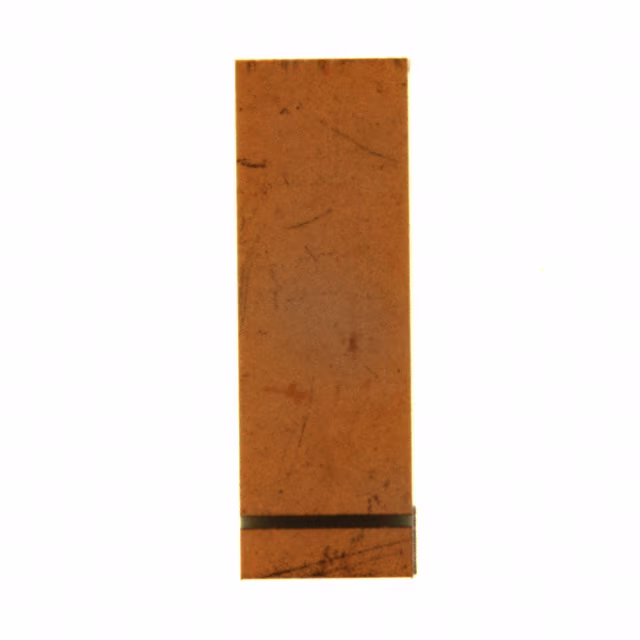

ANCW12G45SAA117RD3ANTENNA DIELECTRIC 2450MHZ SMD |
0 |
|
Таблицы данных |
- | Cut Tape (CT) | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.45GHz | - | - | 1 | 2.5 | - | - | - | - | - | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
|

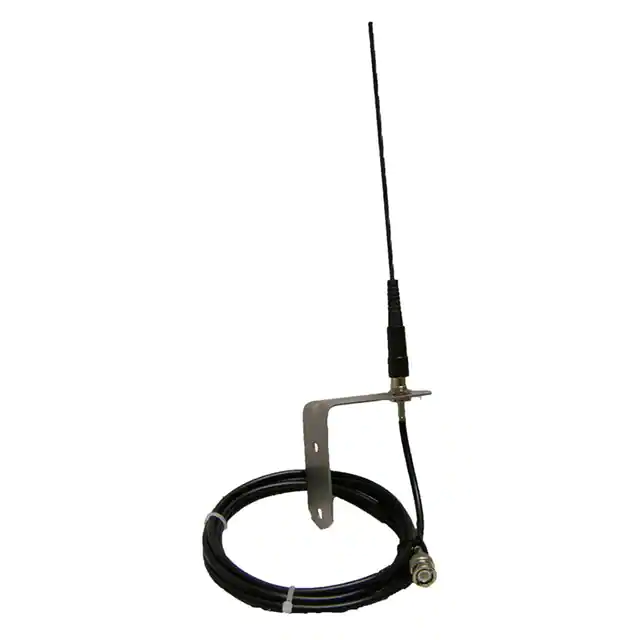

MB450-RFS433RF ANT 433MHZ WHIP STR BNC BRKT |
0 |
|
Таблицы данных |
- | Bulk | Obsolete | Cellular | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | - | - | 3dBi | - | Cable - 2m | BNC | - | - | - | Bracket Mount | 19.291" (490.00mm) | GSM |
|
ANT-24G-DPL-FPRF ANT 2.4GHZ WHP CTR F-P ML ADH |
0 |
|
Таблицы данных |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Center-Fed Double | 1 | 2 | -10dB | 2.1dBi | - | Cable - 2.5m | F-P Male | - | - | - | Adhesive | 6.181" (157.00mm) | - |
|

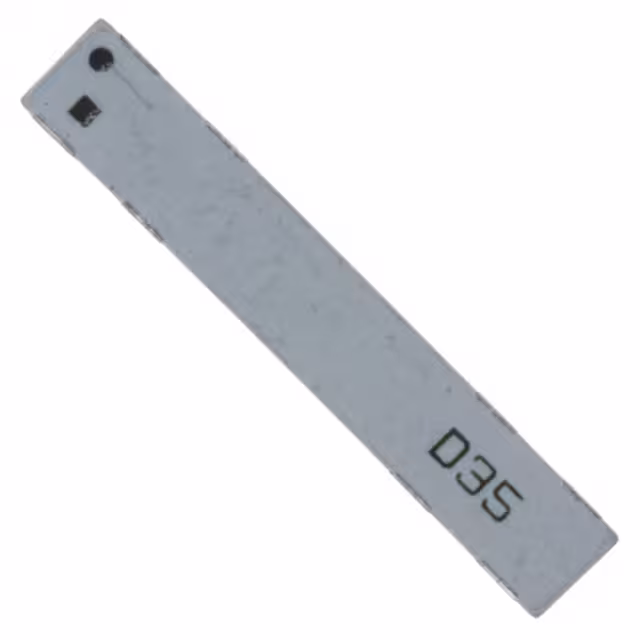

AH122F245001-TRF ANT 2.4GHZ CHIP SOLDER SMD |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, Navigation, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.037" (0.95mm) | Bluetooth, GPS, UWB, WiMax™, WLAN, Zigbee™ |
|
AH042F525001-TRF ANT 5GHZ CHIP SOLDER SMD |
0 |
|
Таблицы данных |
- | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | SHF (f > 4GHz) | 5GHz | 5.15GHz ~ 5.35GHz | Chip | 1 | 2 | - | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | Bluetooth, WLAN |
|

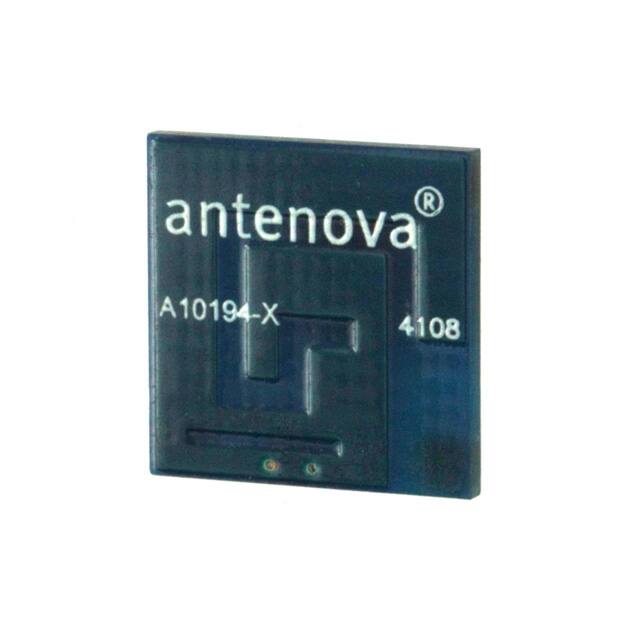

A10194RF ANT 2.4GHZ/5GHZ PCB TRACE SLD |
0 |
|
Таблицы данных |
Mixtus | Tape & Reel (TR) | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5GHz | PCB Trace | 2 | 1.4, 1.8 | -11dB, -15dB | 1.8dBi, 4.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | WLAN |
|
A10204RF ANT 1.575GHZ CHIP SOLDER SMD |
0 |
|
Таблицы данных |
Brevis | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | 1.4 | -17dB | 0dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | GPS |
|

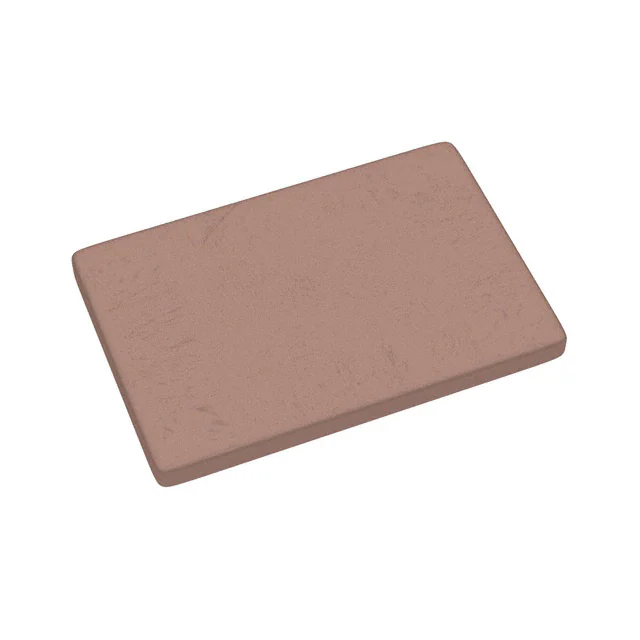

VJ6040M011SXISRA0RF ANT CHIP SOLDER SMD |
0 |
|
Таблицы данных |
- | Tape & Reel (TR) | Obsolete | - | UHF (300MHz ~ 1GHz) | - | 470MHz ~ 860MHz | Chip | 1 | - | - | -2dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
AT00047A-GRF ANT 1.575GHZ MOD SMA MALE ADH |
0 |
|
- |
- | Bulk | Obsolete | - | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 1.5 | - | 4dBi | - | - | SMA Male | - | - | - | Adhesive | 0.512" (13.00mm) | - |
|

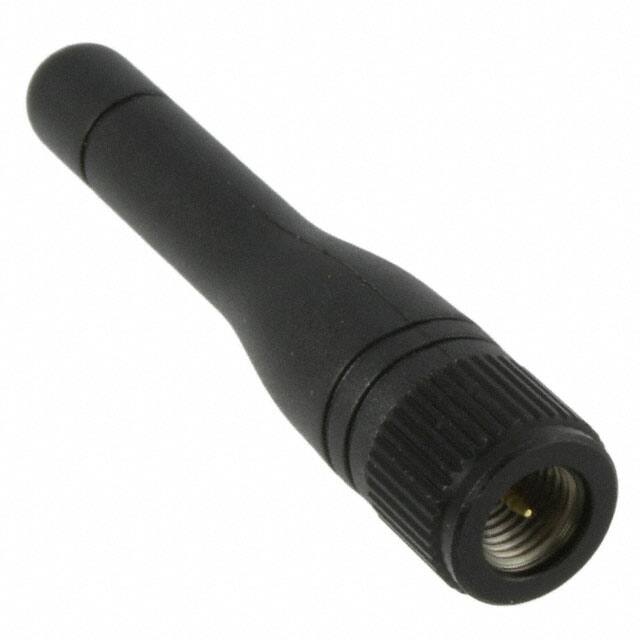

T321AT-GDPRF ANT WHIP STR SMA MALE CONN MT |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | Whip, Straight | 3 | - | - | - | - | - | SMA Male | - | - | - | Connector Mount | - | - |
|
|
W3030RF ANT 2.1GHZ CHIP SOLDER SMD |
0 |
|
Таблицы данных |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.1GHz | 2.11GHz ~ 2.17GHz | Chip | 1 | - | -10dB | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
|
|
W3032RF ANT 900MHZ CHIP SOLDER SMD |
0 |
|
Таблицы данных |
- | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz) | 900MHz | 925MHz ~ 960MHz | Chip | 1 | - | -5dB | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GSM |
|
|
W3017RF ANT 2.3GHZ CHIP SOLDER SMD |
0 |
|
Таблицы данных |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.3GHz | 2.32GHz ~ 2.345GHz | Chip | 1 | - | -12dB | 2.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | - |
|
|
W1049B070RF ANT 2.4GHZ WHIP/TILT CONN MT |
0 |
|
Таблицы данных |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 2dBi | - | Cable - 178mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 3.248" (82.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
W3029RF ANT 2GHZ CHIP SOLDER SMD |
0 |
|
Таблицы данных |
- | Tape & Reel (TR) | Active | - | UHF (1GHz ~ 2GHz) | 2GHz | 1.93GHz ~ 1.99GHz | Chip | 1 | - | -10dB | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
|
|
W3028RF ANT 1.8GHZ CHIP SOLDER SMD |
0 |
|
Таблицы данных |
- | Tape & Reel (TR) | Active | - | UHF (1GHz ~ 2GHz) | 1.8GHz | 1.805GHz ~ 1.88GHz | Chip | 1 | - | -9dB | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
|
|
W3040RF ANT 2.1GHZ CHIP SOLDER SMD |
0 |
|
Таблицы данных |
- | Tape & Reel (TR) | Active | Cellular | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 2.1GHz | 1.92GHz ~ 2.17GHz | Chip | 1 | - | -10dB | 2.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | WCDMA |
|

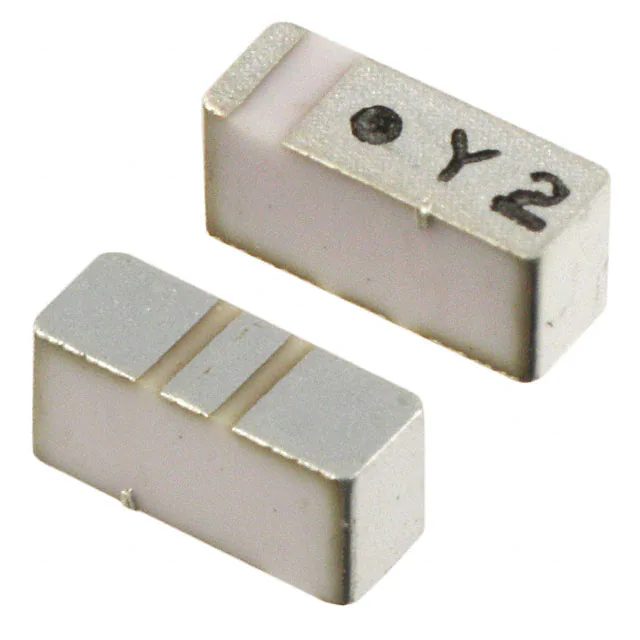

ANT040015CCS2442MA1RF ANT 2.4GHZ CHIP SOLDER SMD |
0 |
|
Таблицы данных |
- | Tape & Reel (TR) | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Chip | 1 | 3.5 | - | 2.32dBi | - | - | Solder | - | - | - | Surface Mount | 0.073" (1.85mm) | - |
|

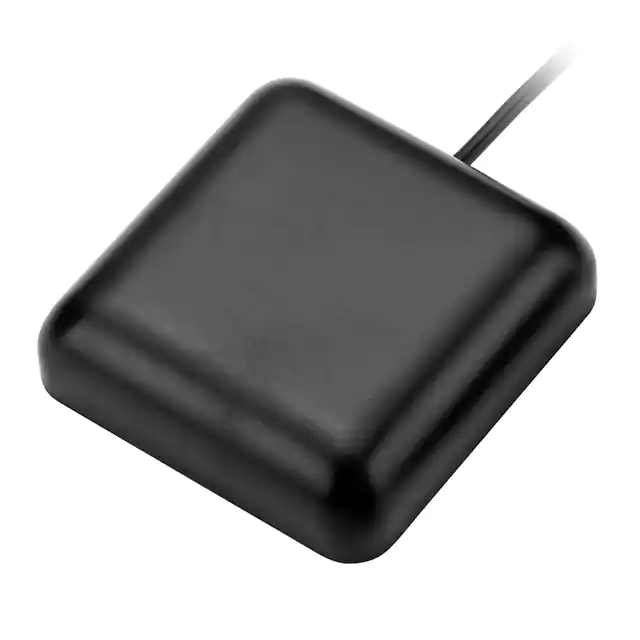

AA.160.301111RF ANT 1.575GHZ/1.602GHZ MODULE |
0 |
|
Таблицы данных |
- | Bag | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.609GHz | Module | 1 | 1.5 | - | 4dBic | - | Cable - 3m, LNA | SMA Male | - | - | - | Magnetic | 0.689" (17.50mm) | GLONASS, GPS |
