Герконовые реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D31A7100REED RELAY 1A/24V Celduc Inc. |
118 |
|
Таблицы данных |
- | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 11.2 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 50 µs | -40°C ~ 70°C | Rhodium (Rh) |
|

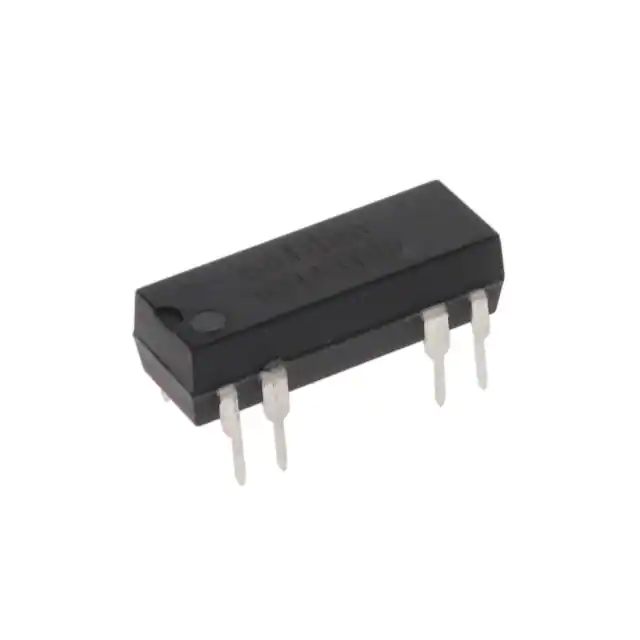

D31A3100REED RELAY 1A/5V Celduc Inc. |
251 |
|
Таблицы данных |
- | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 1 ms | 50 µs | -40°C ~ 70°C | Rhodium (Rh) |
|
|
D32A3110REED RELAY 2A/5V/DIODE/COIL 200O Celduc Inc. |
61 |
|
Таблицы данных |
- | Tray | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 35.7 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.8 VDC | 1 ms | 50 µs | -40°C ~ 70°C | Rhodium (Rh) |
|
|
D41A5100LREED RELAY 1A/12V Celduc Inc. |
0 |
|
Таблицы данных |
- | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 300 µs | 50 µs | -40°C ~ 85°C | Rhodium (Rh) |
|
|
D31A5100REED RELAY 1A/12V Celduc Inc. |
0 |
|
Таблицы данных |
- | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 50 µs | -40°C ~ 70°C | Rhodium (Rh) |
|
|
D71A2100REED RELAY 1A/5V Celduc Inc. |
0 |
|
- |
- | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 1 ms | 50 µs | -40°C ~ 85°C | Rhodium (Rh) |
|
|
D71A5100REED RELAY 1A/12V Celduc Inc. |
0 |
|
- |
- | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 50 µs | -40°C ~ 85°C | Rhodium (Rh) |
|
|
D31A3110REED RELAY 1A/5V/DIODE Celduc Inc. |
0 |
|
Таблицы данных |
- | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.8 VDC | 1 ms | 50 µs | -40°C ~ 70°C | Rhodium (Rh) |
|
|
D31A7110REED RELAY 1A/24V/DIODE Celduc Inc. |
0 |
|
Таблицы данных |
- | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 11.2 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 50 µs | -40°C ~ 70°C | Rhodium (Rh) |
|
|
D71A2110REED RELAY 1A/5V/DIODE Celduc Inc. |
0 |
|
- |
- | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.8 VDC | 1 ms | 50 µs | -40°C ~ 85°C | Rhodium (Rh) |
