Датчики приближения
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип датчика | Расстояние срабатывания | Тип выхода | Частота отклика | Экранирование | Материал - Корпус | Напряжение - Питание | Тип вывода | Рабочая температура | Защита от проникновения | Индикатор |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

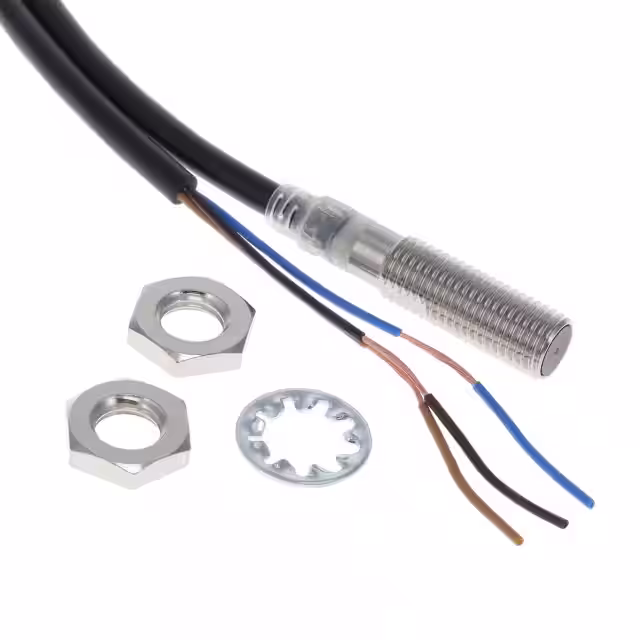

GX-308M-B-PSENSOR M8 THRD SHLD PNP NC |
2 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.047" (1.2mm) | PNP-NC, 3-Wire | 2kHz | Shielded | Stainless Steel | 10V ~ 30V | Cable Leads | -40°C ~ 85°C (TA) | IP67, IP67G, IP69K | LED |
|
GX-308M-B-N-C5SENSOR M8 THRD SHIELD NPN NC 5M |
5 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.047" (1.2mm) | NPN-NC, 3-Wire | 2kHz | Shielded | Stainless Steel | 10V ~ 30V | Cable Leads | -40°C ~ 85°C (TA) | IP67, IP67G, IP69K | LED |
|
|
GX-312M-B-NSENSOR M12 THRD SHLD NPN NC |
5 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.063" (1.6mm) | NPN-NC, 3-Wire | 1.5kHz | Shielded | Nickel-Plated Brass | 10V ~ 30V | Cable Leads | -40°C ~ 85°C (TA) | IP67, IP67G, IP69K | LED |
|

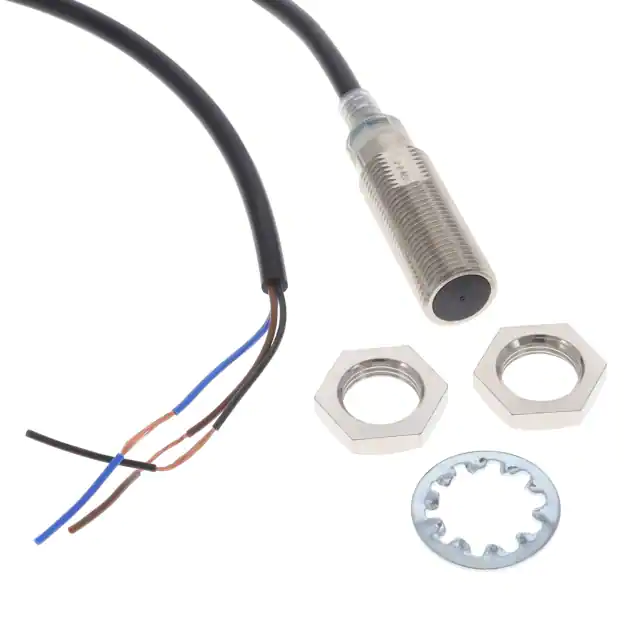

GX-312M-B-PSENSOR M12 THRD SHLD PNP NC |
7 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.063" (1.6mm) | PNP-NC, 3-Wire | 1.5kHz | Shielded | Nickel-Plated Brass | 10V ~ 30V | Cable Leads | -40°C ~ 85°C (TA) | IP67, IP67G, IP69K | LED |
|
|
GX-308M-B-N-RSENSOR M8 THRD SHLD NPN NC FLEX |
5 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.047" (1.2mm) | NPN-NC, 3-Wire | 2kHz | Shielded | Stainless Steel | 10V ~ 30V | Cable Leads | -40°C ~ 85°C (TA) | IP67, IP67G, IP69K | LED |
|
|
GX-312M-A-N-ZSENSOR M12 THR SH NPN NO M8 CON |
5 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.063" (1.6mm) | NPN-NO, 3-Wire | 1.5kHz | Shielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 85°C (TA) | IP67, IP67G, IP69K | LED |
|

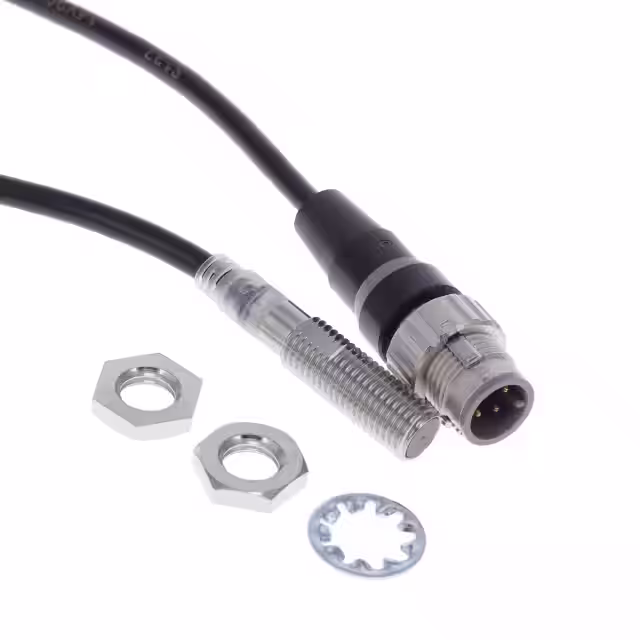

GX-308M-A-N-JSENSOR M8 THR SH NPN NO M12 PIGT |
4 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.047" (1.2mm) | NPN-NO, 3-Wire | 2kHz | Shielded | Stainless Steel | 10V ~ 30V | Cable with Connector | -40°C ~ 85°C (TA) | IP67, IP67G, IP69K | LED |
|

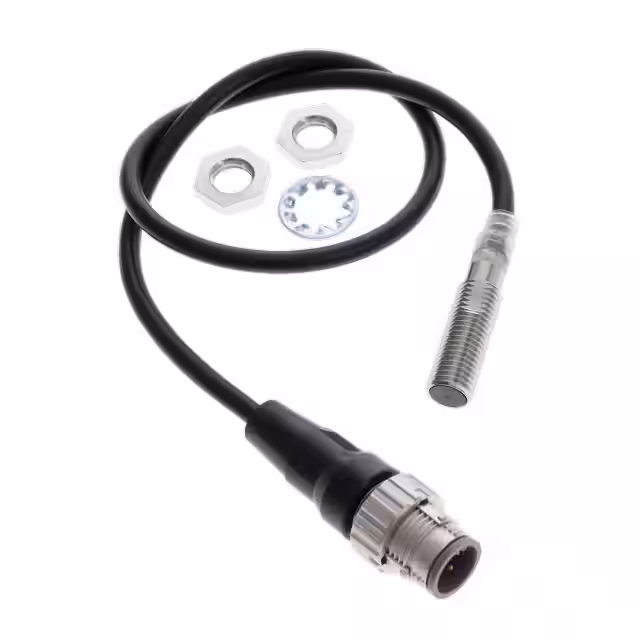

GX-308M-B-N-JSENSOR M8 THR SH NPN NC M12 PIGT |
4 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.047" (1.2mm) | NPN-NC, 3-Wire | 2kHz | Shielded | Stainless Steel | 10V ~ 30V | Cable with Connector | -40°C ~ 85°C (TA) | IP67, IP67G, IP69K | LED |
|

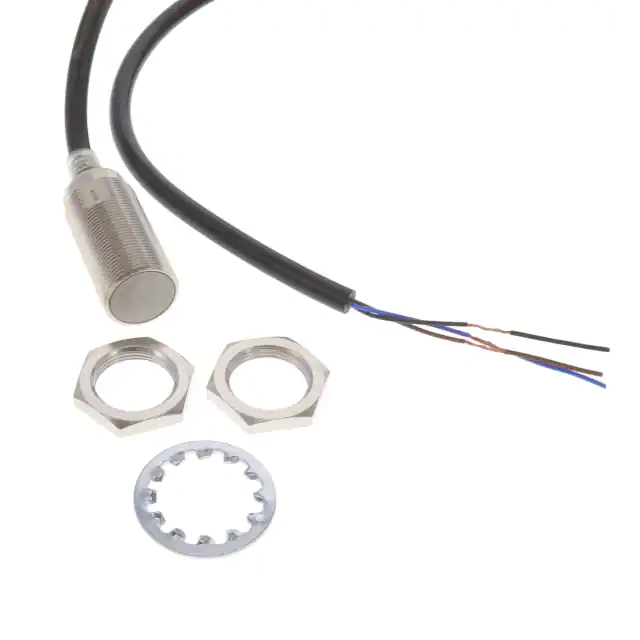

GX-318M-B-NSENSOR M18 THRD SHLD NPN NC |
3 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.157" (4mm) | NPN-NC, 3-Wire | 600Hz | Shielded | Nickel-Plated Brass | 10V ~ 30V | Cable Leads | -40°C ~ 85°C (TA) | IP67, IP67G, IP69K | LED |
|
|
GX-304S-B-N-RSENSOR M4 SHIELD NPN NC FLEX |
5 |
|
Таблицы данных |
GX-300 | Cylinder | Box | Active | Inductive | 0.033" (0.84mm) | NPN-NC, 3-Wire | 4kHz | Shielded | Stainless Steel | 10V ~ 30V | Cable Leads | -25°C ~ 70°C (TA) | IP67 | LED |
|

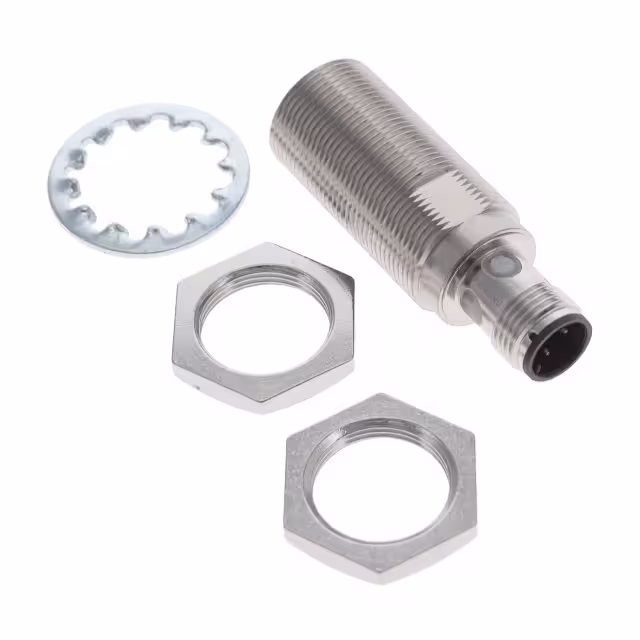

GX-318M-A-N-ZSENSOR M18 THR SH NPN NO M8 CON |
5 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.157" (4mm) | NPN-NO, 3-Wire | 600Hz | Shielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 85°C (TA) | IP67, IP67G, IP69K | LED |
|
GX-318M-B-P-ZSENSOR M18 THR SH PNP NC M8 CON |
5 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.157" (4mm) | PNP-NC, 3-Wire | 600Hz | Shielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 85°C (TA) | IP67, IP67G, IP69K | LED |
|
|
GX-312MLK-B-NSENSOR M12 THRD NPN NC LR |
6 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.252" (6.4mm) | NPN-NC, 3-Wire | 1.5kHz | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable Leads | -40°C ~ 85°C (TA) | IP67, IP67G, IP69K | LED |
|
|
GX-305M-B-N-C5SENSOR M5 THRD SHIELD NPN NC 5M |
5 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M5 | Box | Active | Inductive | 0.033" (0.84mm) | NPN-NC, 3-Wire | 4kHz | Shielded | Stainless Steel | 10V ~ 30V | Cable Leads | -25°C ~ 70°C (TA) | IP67 | LED |
|

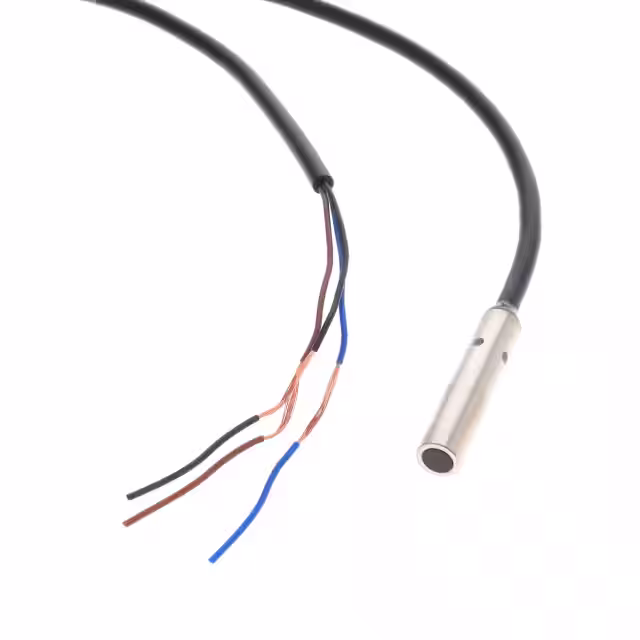

GX-305S-A-N-C5SENSOR 5.4MM DIA SHLD NPN NO 5M |
4 |
|
Таблицы данных |
GX-300 | Cylinder | Box | Active | Inductive | 0.028" (0.7mm) | NPN-NO, 3-Wire | 4kHz | Shielded | Nickel-Plated Brass | 10V ~ 30V | Cable Leads | -25°C ~ 70°C (TA) | IP67 | LED |
|

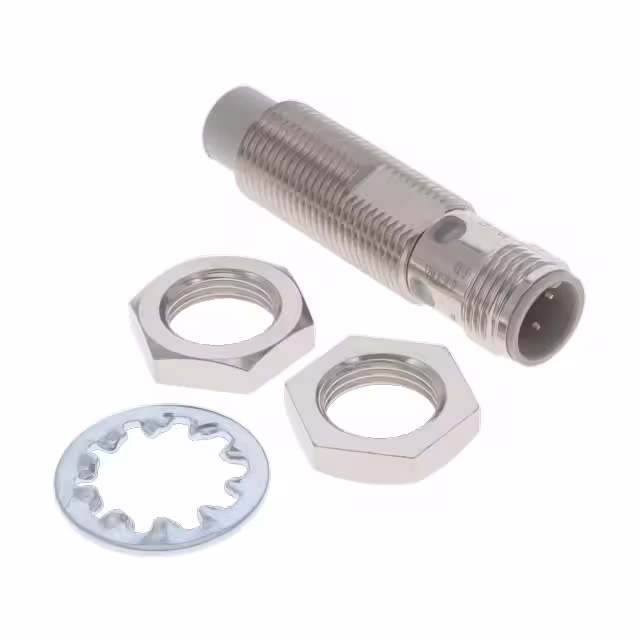

GX-312MLK-B-P-ZSENSOR M12 THRD PNP NC M8 CON LR |
5 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.252" (6.4mm) | PNP-NC, 3-Wire | 1.5kHz | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 85°C (TA) | IP67, IP69K | LED |
|
|
GX-330M-A-NSENSOR M30 THRD SHIELD NPN NO |
4 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.315" (8mm) | NPN-NO, 3-Wire | 400Hz | Shielded | Nickel-Plated Brass | 10V ~ 30V | Cable Leads | -40°C ~ 85°C (TA) | IP67, IP67G, IP69K | LED |
|

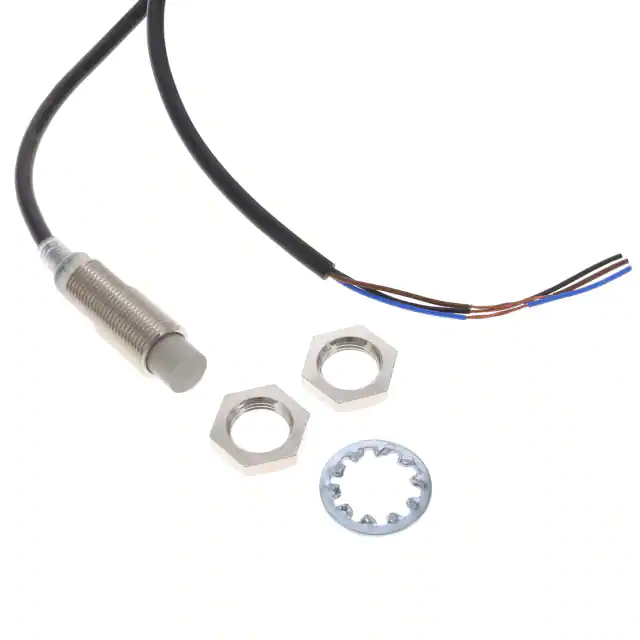

GX-312MLK-B-PSENSOR M12 THRD PNP NC LR |
4 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.252" (6.4mm) | PNP-NC, 3-Wire | 1.5kHz | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable Leads | -40°C ~ 85°C (TA) | IP67, IP67G, IP69K | LED |
|
|
GX-318MLK-B-NSENSOR M18 THRD NPN NC LR |
5 |
|
Таблицы данных |
GX-300 | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.504" (12.8mm) | NPN-NC, 3-Wire | 600Hz | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable Leads | -40°C ~ 85°C (TA) | IP67, IP67G, IP69K | LED |
|
GX-304S-B-N-R5SENSOR M4 SHIELD NPN NC FL5M |
5 |
|
Таблицы данных |
GX-300 | Cylinder | Box | Active | Inductive | 0.033" (0.84mm) | NPN-NC, 3-Wire | 4kHz | Shielded | Stainless Steel | 10V ~ 30V | Cable Leads | -25°C ~ 70°C (TA) | IP67 | LED |
