DC-DC Преобразователи
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PKM7113APIPDC DC CONVERTER 12V 100W Flex Power Modules |
26 |
|
Таблицы данных |
PKM 7000A (150W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 66V | 160V | 12V | - | - | - | 8.3A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 90% | - | - | Through Hole | Quarter Brick | Enable, Active High | CB, CSA, EN, IEC, TUV, UL | 50155; 62368-1 |
|
PKJ7217KWPI14-160 V12.4215.18 V200 W14.5 A Flex Power Modules |
34 |
|
Таблицы данных |
PKJ 7200 (200W) | Half Brick | Tray | Active | Isolated Module | 1 | 14V | 160V | 13.8V | - | - | - | 14.5A | 200 W | 4 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 90% | - | - | Through Hole | Half Brick | Enable, Active Low | cURus, UL | 62368-1 |
|
|
PME8318LSR/BDC DC CONVERTER 1.2-5.5V 11W Flex Power Modules |
279 |
|
Таблицы данных |
PME 8000 (33W) | 6-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 6A | 11 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88.1% | - | - | Surface Mount | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|

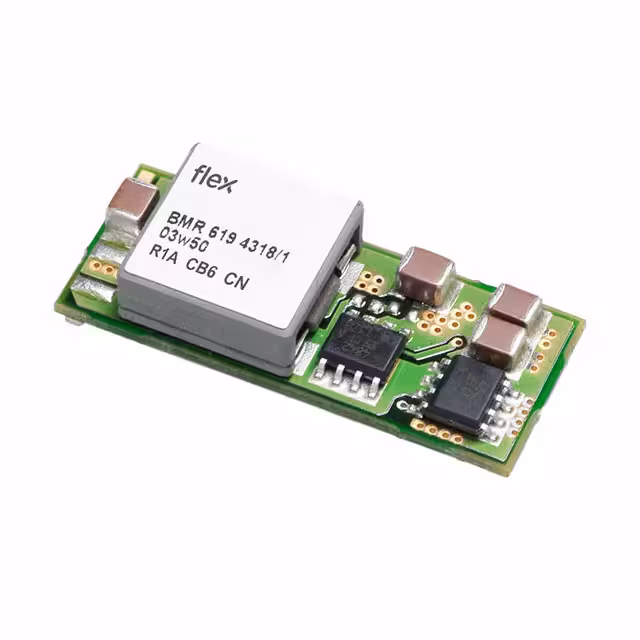

PMC4318TWSDC DC CONVERTER 0.75-3.6V 36W Flex Power Modules |
200 |
|
Таблицы данных |
PMC 4000 | 6-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 3V | 5.5V | 0.75 ~ 3.6V | - | - | - | 10A | 36 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -45°C ~ 115°C (With Derating) | 95.7% | - | - | Surface Mount | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PME8118TPDC DC CONVERTER 0.8-1.8V 11W Flex Power Modules |
279 |
|
Таблицы данных |
PME 8000 (33W) | 6-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 6A | 11 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88.1% | - | - | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMG4318TPDC DC CONVERTER 0.8-2.5V 38W Flex Power Modules |
250 |
|
Таблицы данных |
PMG 4000 (37.5W) | 10-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 0.8 ~ 2.5V | - | - | - | 15A | 38 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 94.5% | - | - | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMB8818TPDC DC CONVERTER 0.75-5.5V 88W Flex Power Modules |
200 |
|
Таблицы данных |
PMB 8000 | 10-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 8.3V | 16V | 0.75 ~ 5.5V | - | - | - | 16A | 88 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -45°C ~ 115°C (With Derating) | 94.5% | - | - | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PMG5518TPDC DC CONVERTER 0.8-3.3V 50W Flex Power Modules |
250 |
|
Таблицы данных |
PMG5000 (54W) | 10-DIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.3V | - | - | - | 15A | 50 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 95.4% | - | - | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
BMR4632002/001DC DC CONVERTER 0.6-3.3V 66W Flex Power Modules |
288 |
|
Таблицы данных |
BMR463 (82.5W) | 17-SIP Module | Tray | Obsolete | Non-Isolated PoL Module, Digital | 1 | 4.5V | 14V | 0.6 ~ 3.3V | - | - | - | 20A | 66 W | - | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 94.8% | - | - | Through Hole | - | Enable, Active High | CB, CSA, IEC, TUV, UL | 62368-1 |
|
BMR4642002/001DC DC CONVERTER 0.6-3.3V 132W Flex Power Modules |
353 |
|
Таблицы данных |
BMR464 (165W) | 20-SIP Module | Tray | Obsolete | Non-Isolated PoL Module, Digital | 1 | 4.5V | 14V | 0.6 ~ 3.3V | - | - | - | 40A | 132 W | - | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 95.5% | - | - | Through Hole | - | Enable, Active High | CB, CSA, IEC, TUV, UL | 62368-1 |
