Модули драйверов мощности
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Конфигурация | Ток | Напряжение | Напряжение - Изоляция | Марка | Квалификация | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

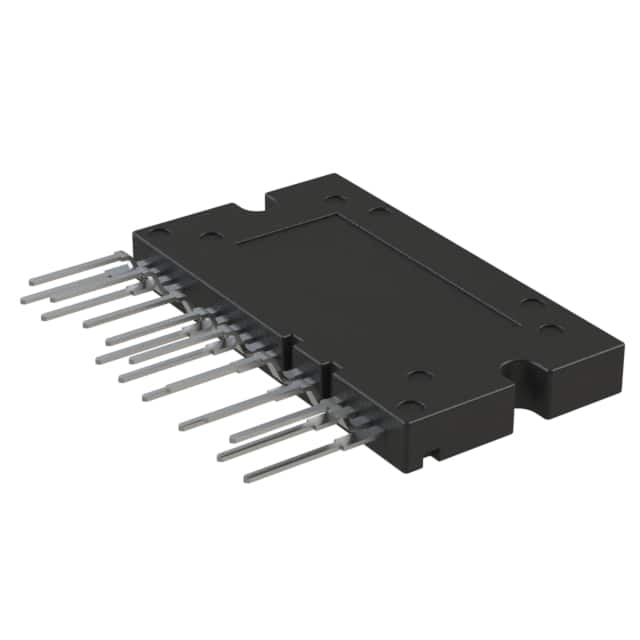

STGIB15CH60TS-LSLLIMM(TM) - 2ND SERIES IPM, 3-P |
71 |
|
Таблицы данных |
SLLIMM™ | 26-PowerDIP Module (1.134", 28.80mm) | Tube | Active | IGBT | 3 Phase Inverter | 20 A | 600 V | 1500Vrms | - | - | Through Hole |
|
NFA42060R42IPM SPM45 V4 RC 600V 20A |
45 |
|
Таблицы данных |
Motion SPM® | 26-PowerDIP Module (1.024", 26.00mm) | Tube | Active | IGBT | 3 Phase Inverter | 20 A | 600 V | 2000Vrms | - | - | Through Hole |
|
BM63363S-VAIC IPM 600V IGBT SW 25HSDIP |
35 |
|
Таблицы данных |
- | 25-PowerDIP Module (1.134", 28.80mm) | Tube | Active | IGBT | 3 Phase Inverter | 10 A | 600 V | 1500Vrms | - | - | Through Hole |
|
|
STIB1560DM2-ZSLLIMM 2ND SERIES IPM, 3-PHASE I |
100 |
|
Таблицы данных |
SLLIMM 2nd | 26-PowerDIP Module (1.327", 33.70mm) | Tube | Active | MOSFET | 3 Phase Inverter | 17 A | 600 V | 1600Vrms | - | - | Through Hole |
|
|
NFAM3065L4BTLMOD IPM 3PH INVERTER |
69 |
|
Таблицы данных |
- | 39-PowerDIP Module (1.413", 35.90mm), 29 Leads | Tube | Active | IGBT | 3 Phase Inverter | 30 A | 650 V | 2500Vrms | - | - | Through Hole |
|
NXV65HR82DZ2AUTOMOTIVE POWER MODULE, H-BRIDG |
71 |
|
Таблицы данных |
- | 16-SSIP Exposed Pad, Formed Leads | Tube | Active | MOSFET | H-Bridge | 26 A | 650 V | 5000Vrms | Automotive | AEC-Q101 | Through Hole |
|
NXV65HR82DZ1AUTOMOTIVE POWER MODULE, H-BRIDG |
71 |
|
Таблицы данных |
- | 16-SSIP Exposed Pad, Formed Leads | Tube | Active | MOSFET | H-Bridge | 26 A | 650 V | 5000Vrms | Automotive | AEC-Q101 | Through Hole |
|
|
NFAM1512L7BSPM31 FS7, 1200V/15A |
70 |
|
Таблицы данных |
- | 39-PowerDIP Module (1.413", 35.90mm), 29 Leads | Tube | Active | IGBT | 3 Phase Inverter | 15 A | 1.2 kV | 2500Vrms | - | - | Through Hole |
|
|
NFAM3512L7BSPM31 FS7, 1200V/35A |
70 |
|
Таблицы данных |
- | 39-PowerDIP Module (1.413", 35.90mm), 29 Leads | Tube | Active | IGBT | 3 Phase Inverter | 35 A | 1.2 kV | 2500Vrms | - | - | Through Hole |
|
|
FNB35060T6SIPM SPM3V 600V 50A |
23 |
|
Таблицы данных |
SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Active | IGBT | 3 Phase Inverter | 50 A | 600 V | 2500Vrms | - | - | Through Hole |
|
|
NFAM5065L4BLSPM31 650V/50A INVERTER IPM LOW |
40 |
|
Таблицы данных |
- | 39-PowerDIP Module (1.413", 35.90mm), 29 Leads | Tube | Active | IGBT | 3 Phase Inverter | 50 A | 650 V | 2500Vrms | - | - | Through Hole |
|
|
NFAM2512L7BSPM31 FS7, 1200V/25A |
51 |
|
Таблицы данных |
- | 39-PowerDIP Module (1.413", 35.90mm), 29 Leads | Tube | Active | IGBT | 3 Phase Inverter | 25 A | 1.2 kV | 2500Vrms | - | - | Through Hole |
|
|
NFA31512L72SPM3V FS7 1200V 15A |
36 |
|
Таблицы данных |
- | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Active | IGBT | 3 Phase Inverter | 15 A | 1.2 kV | 2500Vrms | - | - | Through Hole |
|
|
FAM65HR51DS2POWER MODULE |
72 |
|
Таблицы данных |
- | - | Tube | Active | MOSFET | Half Bridge | 33 A | 650 V | 5000Vrms | - | - | Through Hole |
|
|
NFVA33065L42ASPM27 V3 650V/30A (FOR TICO) |
79 |
|
Таблицы данных |
- | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Active | IGBT | 3 Phase Inverter | 30 A | 650 V | 2500Vrms | - | - | Through Hole |
|
|
IM12B10CC1XKMA1IM12B10CC1XKMA1 |
27 |
|
Таблицы данных |
CIPOS™ | 24-PowerDIP Module (1.094", 27.80mm) | Tube | Active | IGBT | 3 Phase Inverter | - | 1.2 kV | 2500Vrms | - | - | Through Hole |
|
|
NFA33012L72SPM3V FS7 1200V 30A |
25 |
|
Таблицы данных |
- | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Active | IGBT | 3 Phase Inverter | 30 A | 1.2 kV | 2500Vrms | - | - | Through Hole |
|
|
NFA32512L72SPM3V FS7 1200V 25A |
22 |
|
Таблицы данных |
- | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Active | IGBT | 3 Phase Inverter | 25 A | 1.2 kV | 2500Vrms | - | - | Through Hole |
|
|
FAM65HR51XS1APM16 CAA H-BRIDGE SF3 FRFET 51M |
72 |
|
Таблицы данных |
- | 16-SIP Exposed Pad, Formed Leads | Tube | Active | MOSFET | H-Bridge Inverter | 64 A | 650 V | - | - | - | Through Hole |
|
|
FTCO3V85A1AUTOMOTIVE POWER MODULE |
26 |
|
Таблицы данных |
- | - | Tube | Active | MOSFET | 3 Phase Inverter | 120 A | 80 V | - | - | - | - |
