БОМ
Счетчики, счетчики моточасов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Режим работы | Скорость счета | Формат времени | Количество символов в строке | Тип дисплея | Отображаемые символы - Высота | Тип входа | Тип выхода | Напряжение - Питание | Сброс | Размеры выреза панели | Тип крепления | Тип вывода | Защита от проникновения |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
731-004110-28 VDC Min Fl Spd 1.45x87 "M Trumeter |
5 |
|
Таблицы данных |
- | Retail Package | Active | Time Counter (Hour Meter) | Up | - | - | 7 | Decade Wheel | 0.140" (3.60mm) | Voltage | Analog | 10 ~ 28VDC | Non-Resettable | Rectangular - 36.83mm x 22.10mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant |
|
|
731-01007D Elemech H/M Fls Sq Mnt NRst 1 Trumeter |
5 |
|
Таблицы данных |
- | Retail Package | Active | Time Counter (Hour Meter) | Up | - | - | 7 | Decade Wheel | 0.140" (3.60mm) | Voltage | Analog | 10 ~ 28VDC | Non-Resettable | Rectangular - 33.00mm x 22.00mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant |
|
|
731-0006HR, 10-50 VDC Min Sae Spd "Meter Trumeter |
5 |
|
Таблицы данных |
- | Retail Package | Active | Time Counter (Hour Meter) | Up | - | - | 7 | Decade Wheel | 0.140" (3.60mm) | Voltage | Analog | 10 ~ 28VDC | Non-Resettable | Circular - 50.55mm Dia | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant |
|
|
731-004010-28 VDC MIN TWO HOLE RECT Trumeter |
3 |
|
Таблицы данных |
731 | Retail Package | Active | Time Counter (Hour Meter) | Up | - | 99999.99hrs | 7 | Decade Wheel | 0.140" (3.60mm) | Voltage | Analog | 10 ~ 28VDC | Non-Resettable | Rectangular - 36.83mm x 22.10mm | Panel Mount | Wire Leads | IP65 - Dust Tight, Water Resistant |
|

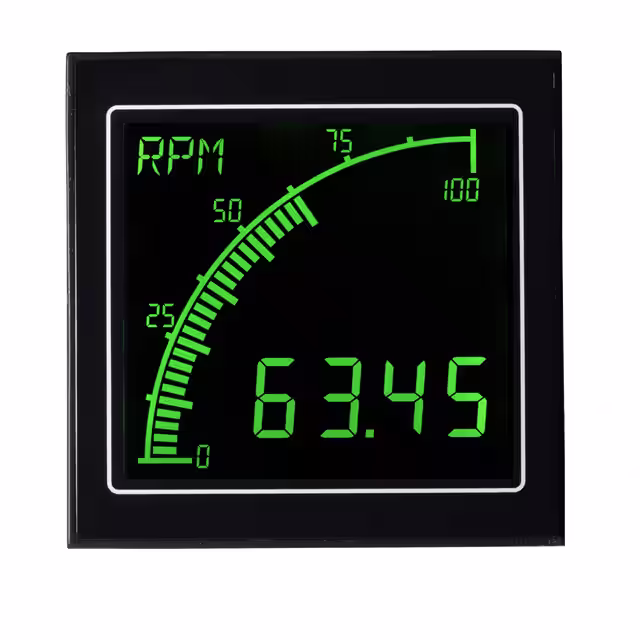

APM-RATE-ANORATEMETER NEG LCD WITH OUTPUTS Trumeter |
3 |
|
Таблицы данных |
APM | Box | Active | Tachometer | - | - | - | 4 | LCD - Tri Color Characters, Backlight | 0.472" (12.00mm) | - | - | 12 ~ 24VDC | - | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
710-000624 VAC, 60 HZ, 99999.9 HRS MAX, Trumeter |
5 |
|
Таблицы данных |
710 | Retail Package | Active | Time Counter (Hour Meter) | Up | 60Hz | 99999.9Hrs | 6 | No Display | 0.196" (5.00mm) | Voltage | Analog | 115VAC | Non-Resettable | Circular - 56.10mm Dia | Panel Mount | Wire Leads | - |
|
|
720-000710NL1 115vac 99999.9 wires 3-hol Trumeter |
5 |
|
Таблицы данных |
- | Retail Package | Active | Time Counter (Hour Meter) | Up | - | 999999.99hrs | 6 | Decade Wheel | 0.190" (4.83mm) | Voltage | Analog | 115VAC | Non-Resettable | Circular - 54.86mm Dia | Panel Mount | Wire Leads | - |
|
|
520K.2CTR, 10-30VDC, INPUT 4-30VDC, CL Trumeter |
5 |
|
Таблицы данных |
- | Retail Package | Active | Time Counter (Hour Meter) | Up | 10kHz | 999999hrs | 6 | LED - Red Characters | 0.315" (8.00mm) | Voltage | Relay | 10 ~ 30VDC | External | Rectangular - 47.75mm x 23.98mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant, NEMA 4X |
|
|
521K.2CTR, POS IND, 10-30VDC, 2 INPUT Trumeter |
5 |
|
Таблицы данных |
- | Retail Package | Active | Totalizer | Up | 10kHz | 999999hrs | 6 | LED - Red Characters | 0.315" (8.00mm) | Voltage | Relay | 10 ~ 30VDC | External | Rectangular - 47.75mm x 23.98mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant, NEMA 4X |
|
|
9415-0036-240 VAC OR VDC, PANEL MOUNT PU Trumeter |
5 |
|
Таблицы данных |
94 | Box | Active | Totalizer | Up, Down | 40Hz | - | 6 | LCD - Black Characters | 0.500" (12.70mm) | No Voltage | - | 6 ~ 240VAC/DC | Front Panel | - | Panel Mount | Wire Leads | - |
