БОМ
Счетчики, счетчики моточасов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Режим работы | Скорость счета | Формат времени | Количество символов в строке | Тип дисплея | Отображаемые символы - Высота | Тип входа | Тип выхода | Напряжение - Питание | Сброс | Размеры выреза панели | Тип крепления | Тип вывода | Защита от проникновения |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
731-0180HR, 10-80VDC Sq Bezel Fl Sct Met |
5 |
|
Таблицы данных |
- | Retail Package | Active | Time Counter (Hour Meter) | Up | - | - | 7 | Decade Wheel | 0.140" (3.60mm) | Voltage | Analog | 10 ~ 80VDC | Non-Resettable | Square - 48.01mm x 48.01mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
731-004210-28 VDC Min Fl Spd 1.45x95 "M |
5 |
|
Таблицы данных |
- | Retail Package | Active | Time Counter (Hour Meter) | Up | - | - | 7 | Decade Wheel | 0.140" (3.60mm) | Voltage | Analog | 10 ~ 28VDC | Non-Resettable | Rectangular - 36.83mm x 24.13mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant |
|
|
731-004110-28 VDC Min Fl Spd 1.45x87 "M |
5 |
|
Таблицы данных |
- | Retail Package | Active | Time Counter (Hour Meter) | Up | - | - | 7 | Decade Wheel | 0.140" (3.60mm) | Voltage | Analog | 10 ~ 28VDC | Non-Resettable | Rectangular - 36.83mm x 22.10mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant |
|
|
731-01007D Elemech H/M Fls Sq Mnt NRst 1 |
5 |
|
Таблицы данных |
- | Retail Package | Active | Time Counter (Hour Meter) | Up | - | - | 7 | Decade Wheel | 0.140" (3.60mm) | Voltage | Analog | 10 ~ 28VDC | Non-Resettable | Rectangular - 33.00mm x 22.00mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant |
|
|
731-0006HR, 10-50 VDC Min Sae Spd "Meter |
5 |
|
Таблицы данных |
- | Retail Package | Active | Time Counter (Hour Meter) | Up | - | - | 7 | Decade Wheel | 0.140" (3.60mm) | Voltage | Analog | 10 ~ 28VDC | Non-Resettable | Circular - 50.55mm Dia | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant |
|
|
731-004010-28 VDC MIN TWO HOLE RECT |
3 |
|
Таблицы данных |
731 | Retail Package | Active | Time Counter (Hour Meter) | Up | - | 99999.99hrs | 7 | Decade Wheel | 0.140" (3.60mm) | Voltage | Analog | 10 ~ 28VDC | Non-Resettable | Rectangular - 36.83mm x 22.10mm | Panel Mount | Wire Leads | IP65 - Dust Tight, Water Resistant |
|
LH2H-F-DHK-FVCOUNTER LCD 7 CHAR PANEL MOUNT |
2 |
|
Таблицы данных |
LH2H | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 999999.9hrs; 3999day23.9hrs | 7 | LCD - Black Characters | 0.343" (8.70mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
99776605COUNTER 6 CHAR 110V PANEL MOUNT |
0 |
|
Таблицы данных |
- | Box | Active | Totalizer | Up | - | 999999hrs | 6 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 110VDC | Non-Resettable | Rectangular - 33.50mm x 24.00mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP40 |
|
APM-RATE-ANORATEMETER NEG LCD WITH OUTPUTS |
3 |
|
Таблицы данных |
APM | Box | Active | Tachometer | - | - | - | 4 | LCD - Tri Color Characters, Backlight | 0.472" (12.00mm) | - | - | 12 ~ 24VDC | - | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|

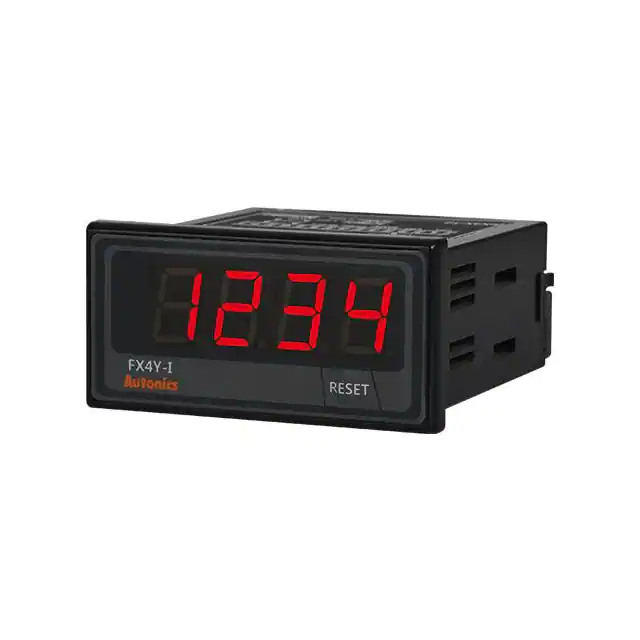

FX4Y-I2COUNTER TIMER 24VAC/24-48VDC |
22 |
|
Таблицы данных |
FXY | Box | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 4 | LED - Red Characters | 0.551" (14.00mm) | Voltage | Solid State | 24VAC, 24 ~ 48VDC | External, Front Panel | Rectangular - 68.00mm x 31.50mm | Panel Mount | Screw Terminal | IP40 |
|
FX4Y-I4COUNTER TIMER 100-240VAC |
20 |
|
Таблицы данных |
FXY | Box | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 4 | LED - Red Characters | 0.551" (14.00mm) | Voltage | Solid State | 100 ~ 240VAC | External, Front Panel | Rectangular - 68.00mm x 31.50mm | Panel Mount | Screw Terminal | IP40 |
|
|
710-000624 VAC, 60 HZ, 99999.9 HRS MAX, |
5 |
|
Таблицы данных |
710 | Retail Package | Active | Time Counter (Hour Meter) | Up | 60Hz | 99999.9Hrs | 6 | No Display | 0.196" (5.00mm) | Voltage | Analog | 115VAC | Non-Resettable | Circular - 56.10mm Dia | Panel Mount | Wire Leads | - |
|
|
85562-04COUNTER 5 CHAR 5-110V PANEL MT |
0 |
|
- |
85000 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 9999.9hrs | 5 | Decade Wheel | 0.120" (3.00mm) | - | - | 5 ~ 110VDC | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant |
|

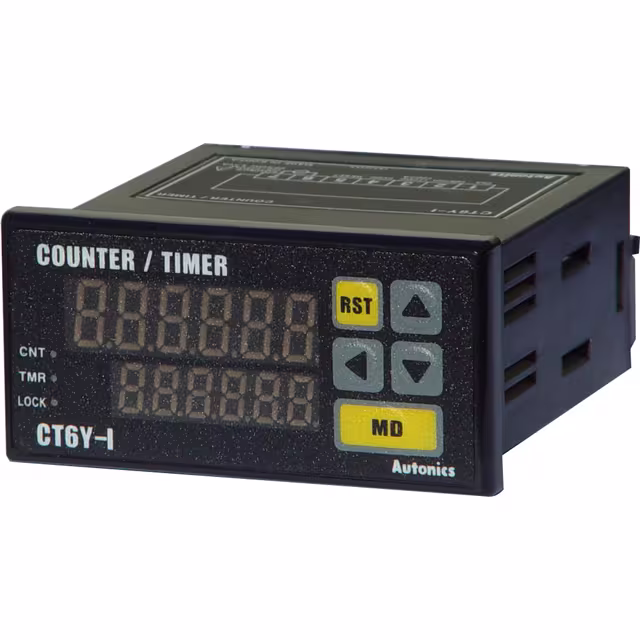

CT6Y-I2COUNTER TIMER 24VAC/24-48VDC |
7 |
|
Таблицы данных |
CT | Box | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LED - Green, Red Characters | 0.374" (9.50mm), 0.275" (7.00mm) | No Voltage, Voltage | - | 24VAC, 24 ~ 48VDC | External, Front Panel | Rectangular - 68.00mm x 31.50mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
CT6Y-I4COUNTER TIMER 100-240VAC |
3 |
|
Таблицы данных |
CT | Box | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LED - Green, Red Characters | 0.374" (9.50mm), 0.275" (7.00mm) | No Voltage, Voltage | - | 100 ~ 240VAC | External, Front Panel | Rectangular - 68.00mm x 31.50mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
FX6Y-I4COUNTER TIMER 100-240VAC |
8 |
|
Таблицы данных |
FXY | Box | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6 | LED - Red Characters | 0.315" (8.00mm) | Voltage | Solid State | 100 ~ 240VAC | External, Front Panel | Rectangular - 68.00mm x 31.50mm | Panel Mount | Screw Terminal | IP40 |
|
|
99776610COUNTER 5 CHAR 230V PANEL MOUNT |
0 |
|
Таблицы данных |
- | Box | Active | Totalizer | Up | - | 99999hrs | 5 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 230VAC | Front Panel | Rectangular - 33.50mm x 24.00mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP40 |
|
|
82014-11COUNTER HOUR METER |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
82412-81COUNTER 6 CHARACTER PANEL MT |
0 |
|
- |
82400 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | Decade Wheel | 0.120" (3.00mm) | - | - | - | - | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant |
|

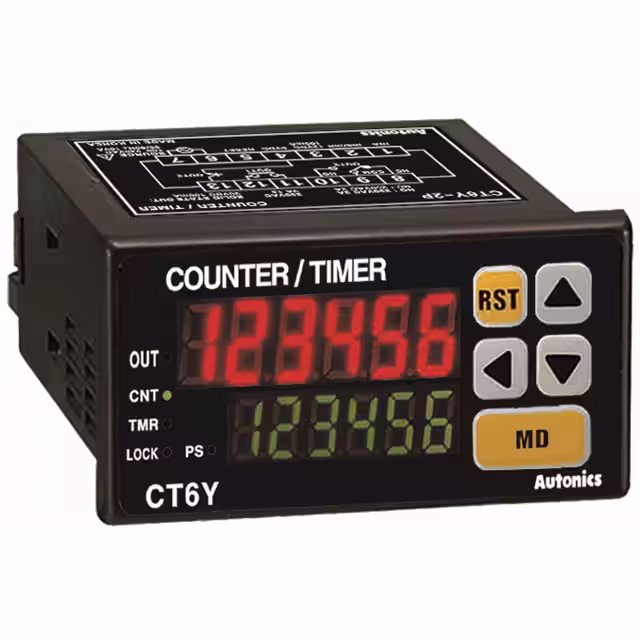

CT6Y-1P2COUNTER TIMER 24VAC/24-48VDC |
24 |
|
Таблицы данных |
CT | Box | Active | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down | Multiple | Multiple | 6, 6 | LED - Green, Red Characters | 0.374" (9.50mm), 0.276" (7.00mm) | No Voltage, Voltage | Relay, Solid State | 24VAC, 24 ~ 48VDC | External, Front Panel | Rectangular - 68.00mm x 31.50mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
