Осцилляторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Базовый резонатор | Тип | Частота | Функция | Выход | Напряжение - Питание | Стабильность частоты | Абсолютный диапазон натяжения (APR) | Рабочая температура | Ширина полосы пропускания расширенного спектра | Ток - Питание (макс.) | Номинальные значения | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-TXO-2520MV-250-AN-TRXTAL OSC TCXO 25MHZ CMOS SMD ECS Inc. |
1,603 |
|
Таблицы данных |
ECS-TXO-2520MV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 25 MHz | Enable/Disable | CMOS | 1.7V ~ 3.6V | ±2.5ppm | - | -40°C ~ 85°C | - | 5.5mA | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
ECS-TXO-2520-33-160-AN-TRXTAL OSC TCXO 16.0000MHZ HCMOS ECS Inc. |
2,224 |
|
Таблицы данных |
ECS-TXO-2520 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 16 MHz | Enable/Disable | HCMOS | 3.3V | ±2.5ppm | - | -40°C ~ 85°C | - | 4.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
ECS-100AX-080XTAL OSC XO 8.0000MHZ TTL TH ECS Inc. |
489 |
|
Таблицы данных |
ECS-100X | 14-DIP, 4 Leads (Full Size, Metal Can) | Bulk | Active | Crystal | XO (Standard) | 8 MHz | - | TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 30mA | - | Through Hole | 4-VDFN (3.2x2.5) | 0.821" L x 0.520" W (20.86mm x 13.20mm) | 0.200" (5.08mm) |
|
|
ECS-100AX-100XTAL OSC XO 10.0000MHZ TTL TH ECS Inc. |
693 |
|
Таблицы данных |
ECS-100X | 14-DIP, 4 Leads (Full Size, Metal Can) | Bulk | Active | Crystal | XO (Standard) | 10 MHz | - | TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 30mA | - | Through Hole | 4-VDFN (3.2x2.5) | 0.821" L x 0.520" W (20.86mm x 13.20mm) | 0.200" (5.08mm) |
|
ECS-2018-200-BNXTAL OSC XO 20.0000MHZ HCMOS SMD ECS Inc. |
2,369 |
|
Таблицы данных |
ECS-2018 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 20 MHz | Enable/Disable | HCMOS | 1.8V | ±50ppm | - | -40°C ~ 85°C | - | 2.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|
ECS-3225SMV-250-GP-TRXTAL OSC XO 25.0000MHZ HCMOS SMD ECS Inc. |
5,181 |
|
Таблицы данных |
ECS-3225SMV MultiVolt™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Enable/Disable | CMOS | 1.62V ~ 3.63V | ±5ppm | - | -40°C ~ 105°C | - | 10mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

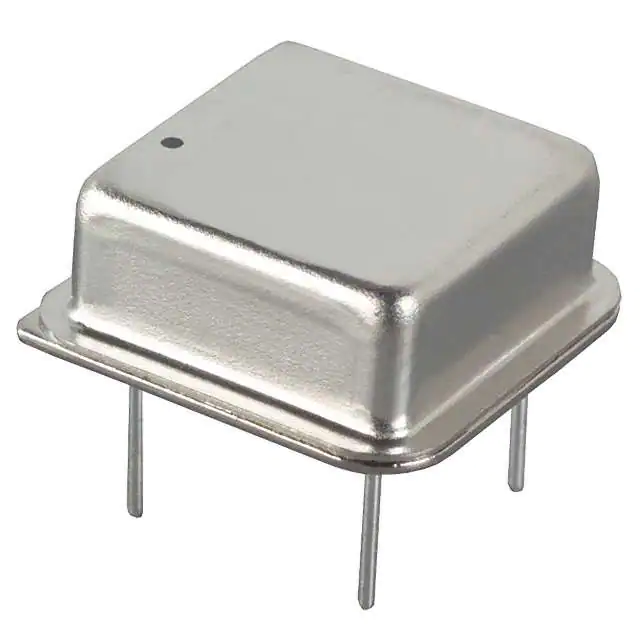

ECS-2200BX-040XTAL OSC XO 4.0000MHZ HCMOS TTL ECS Inc. |
991 |
|
Таблицы данных |
ECS-2200X | 8-DIP, 4 Leads (Half Size, Metal Can) | Bulk | Active | Crystal | XO (Standard) | 4 MHz | Enable/Disable | HCMOS, TTL | 5V | ±50ppm | - | 0°C ~ 70°C | - | 25mA | - | Through Hole | 4-VDFN (3.2x2.5) | 0.520" L x 0.520" W (13.20mm x 13.20mm) | 0.213" (5.40mm) |
|
|
ECS-100AX-500XTAL OSC XO 50.0000MHZ TTL TH ECS Inc. |
3,073 |
|
Таблицы данных |
ECS-100X | 14-DIP, 4 Leads (Full Size, Metal Can) | Bulk | Active | Crystal | XO (Standard) | 50 MHz | - | TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 70mA | - | Through Hole | 4-VDFN (3.2x2.5) | 0.821" L x 0.520" W (20.86mm x 13.20mm) | 0.200" (5.08mm) |
|
|
ECS-100AX-040XTAL OSC XO 4.0000MHZ TTL TH ECS Inc. |
2,763 |
|
Таблицы данных |
ECS-100X | 14-DIP, 4 Leads (Full Size, Metal Can) | Tube | Active | Crystal | XO (Standard) | 4 MHz | - | TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 15mA | - | Through Hole | 4-VDFN (3.2x2.5) | 0.821" L x 0.520" W (20.86mm x 13.20mm) | 0.200" (5.08mm) |
|

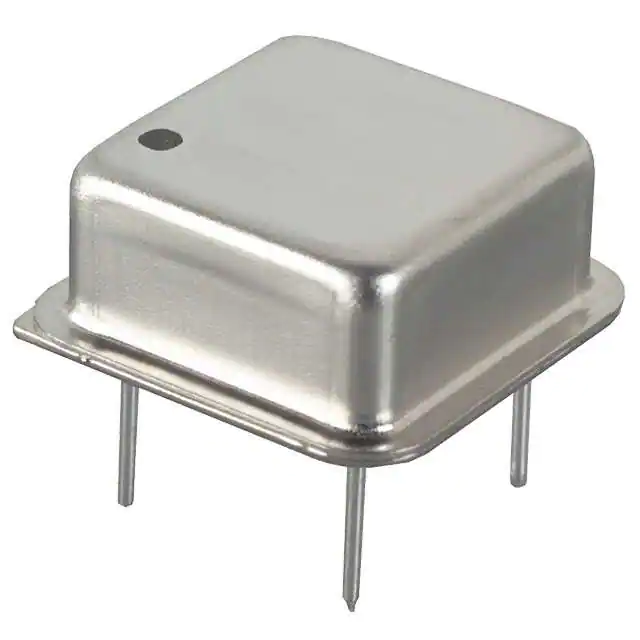

ECS-2100A-020XTAL OSC XO 2.0000MHZ HCMOS TTL ECS Inc. |
419 |
|
Таблицы данных |
ECS-2100 | 8-DIP, 4 Leads (Half Size, Metal Can) | Tube | Active | Crystal | XO (Standard) | 2 MHz | - | HCMOS, TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 25mA | - | Through Hole | 4-VDFN (3.2x2.5) | 0.520" L x 0.520" W (13.20mm x 13.20mm) | 0.213" (5.40mm) |
