Логические выходные оптоизоляторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Количество каналов | Входы - Сторона 1/Сторона 2 | Напряжение - Изоляция | Устойчивость к синфазным переходным процессам (мин.) | Тип входа | Тип выхода | Ток - выход/канал | Скорость передачи данных | Задержка распространения tpLH / tpHL (макс.) | Время нарастания/спада (тип.) | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Напряжение - Питание | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

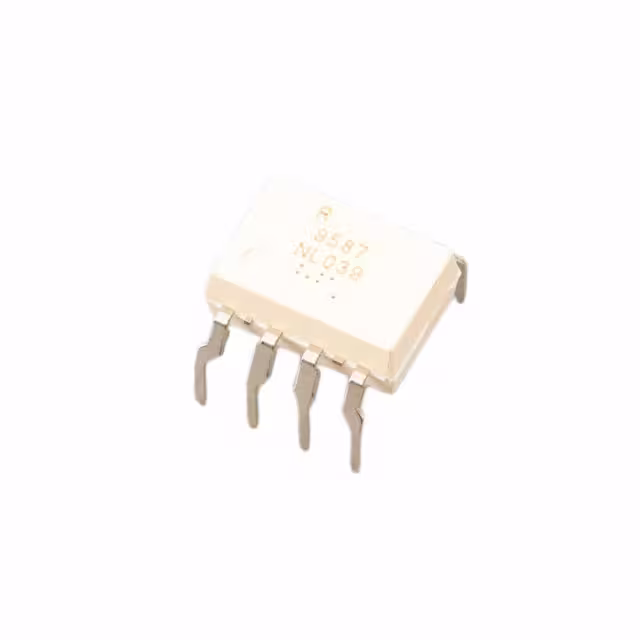

PS9587L1-AXOPTOISO 5KV OPEN COLLECTOR 8DIP CEL |
0 |
|
Таблицы данных |
NEPOC | 8-DIP (0.400", 10.16mm) | Bulk | Discontinued at Digi-Key | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
.jpg)
|
PS9313L-AXOPTOISO 5KV OPEN COLL 6DIP GW CEL |
0 |
|
Таблицы данных |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Discontinued at Digi-Key | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.56V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 110°C | Surface Mount | 6-SDIP Gull Wing |
|
PS9817A-1-F3-AXOPTOISO 2.5KV OPEN COLL 8SSOP CEL |
0 |
|
Таблицы данных |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | 1 | 1/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SSOP |
|
|
PS9821-1-F3-AXOPTOISO 2.5KV OPEN COLL 8SSOP CEL |
0 |
|
Таблицы данных |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | 1 | 1/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 15Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 20mA | 2.7V ~ 3.6V | - | - | -40°C ~ 85°C | Surface Mount | 8-SSOP |
|
PS9924-Y-F3-AXOPTOISO 7.5KV OPN COLLECTOR 8DIP CEL |
0 |
|
Таблицы данных |
- | 8-SOIC (0.543", 13.80mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | 1 | 1/0 | 7500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.56V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 8-LSDIP |
|
|
PS9924-Y-V-F3-AXOPTOISO 7.5KV OPN COLLECTOR 8DIP CEL |
0 |
|
Таблицы данных |
- | 8-SOIC (0.543", 13.80mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | 1 | 1/0 | 7500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.56V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 8-LSDIP |
|

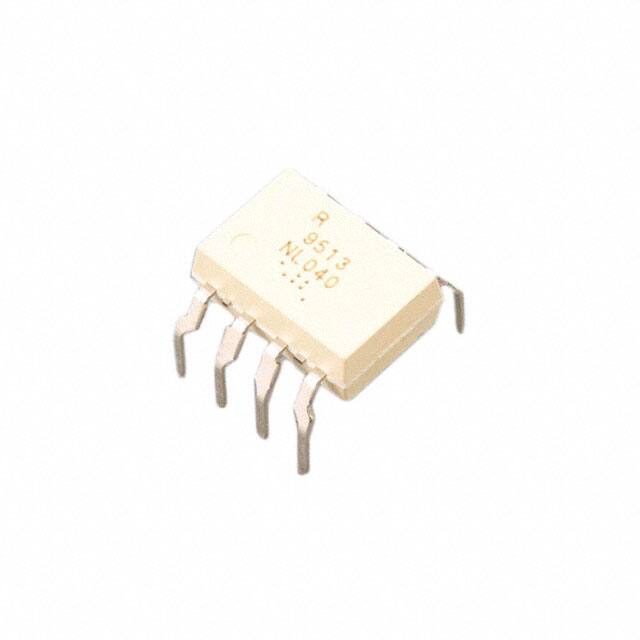

PS9513L1-AXOPTOISO 5KV OPEN COLLECTOR 8DIP CEL |
0 |
|
Таблицы данных |
- | 8-DIP (0.400", 10.16mm) | Tube | Discontinued at Digi-Key | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
PS9123-F3-AXOPTOISO 3.75KV PUSH PULL 5SO CEL |
0 |
|
Таблицы данных |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Discontinued at Digi-Key | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 13 mA | 15Mbps | 60ns, 60ns | - | 1.55V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 5-SO |
|
|
PS9817A-2-F3-AXOPTOISO 2.5KV 2CH OPEN COL 8SSOP CEL |
0 |
|
Таблицы данных |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | 2 | 2/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SSOP |
|
|
PS9821-2-F3-AXOPTOISO 2.5KV 2CH OPEN COL 8SSOP CEL |
0 |
|
Таблицы данных |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | 2 | 2/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 15Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 15mA | 2.7V ~ 3.6V | - | - | -40°C ~ 85°C | Surface Mount | 8-SSOP |
