Фотопрерыватели - слотового типа - транзисторный выход
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Расстояние срабатывания | Метод измерения | Конфигурация выхода | Ток - постоянный ток вперед (If) (макс.) | Ток - Коллектор (Ic) (Макс.) | Напряжение - Коллектор-Эмиттер Пробой (Макс.) | Время отклика | Рабочая температура | Марка | Квалификация | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

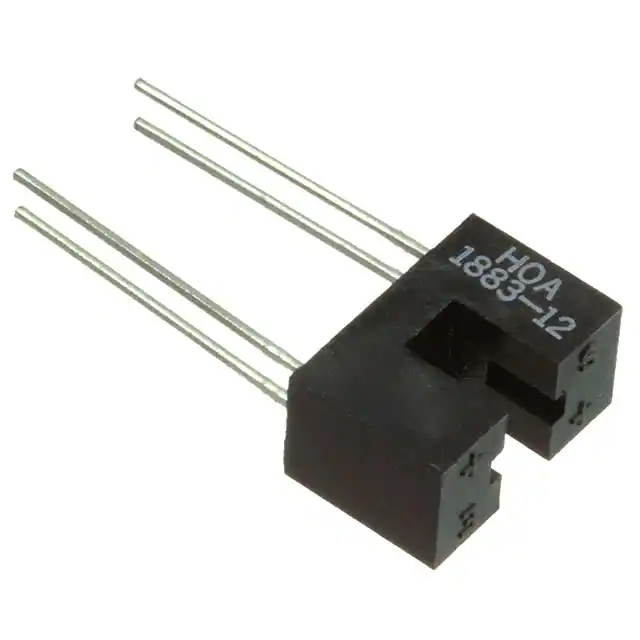

HOA1883-012SENSOR OPT SLOT PHOTOTRANS MODUL |
1,500 |
|
- |
- | Slotted Module | Bulk | Obsolete | 0.140" (3.56mm) | Through-Beam | Phototransistor | 50 mA | - | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|

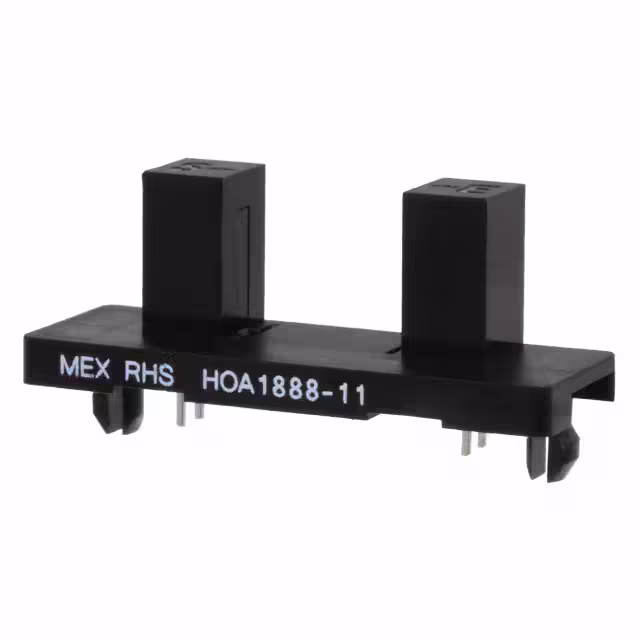

HOA1888-011SENSOR OPT SLOT PHOTOTRANS MODUL |
153 |
|
- |
- | Module, Slotted | Bulk | Obsolete | 0.472" (12mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Snap-In |
|
HOA0867-P55SENSOR OPT SLOT TRANS PCB MT |
0 |
|
Таблицы данных |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
|
HOA0861-P55SENSOR OPT SLOT TRANS PCB MT |
0 |
|
Таблицы данных |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Through Hole |
|
HOA1873-013SENSOR OPT SLOT DARL PCB MOUNT |
0 |
|
- |
- | PCB Mount | Bulk | Obsolete | 0.100" (2.54mm) | Through-Beam | Photodarlington | 50 mA | 30 mA | 15 V | 75µs | -40°C ~ 85°C | - | - | Through Hole |
|
HOA0880-T51SENSOR OPT SLOT TRANSISTOR MODUL |
0 |
|
Таблицы данных |
- | Module, Pre-Wired | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Chassis Mount, Wire Lead |
|
|
HOA0890-T51SENSOR OPT SLOT TRANSISTOR MODUL |
0 |
|
Таблицы данных |
- | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Chassis Mount, Wire Lead |
|

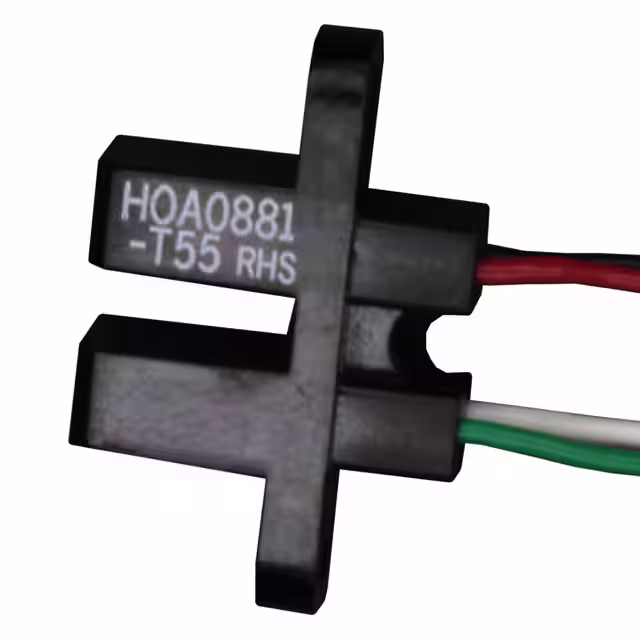

HOA0881-T55SENSOR OPT SLOT TRANSISTOR MODUL |
0 |
|
Таблицы данных |
- | Module, Pre-Wired | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Chassis Mount, Wire Lead |
|
|
HOA0881-L55SENSOR OPT SLOT TRANSISTOR MODUL |
0 |
|
Таблицы данных |
- | Module, Pre-Wired | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Chassis Mount, Wire Lead |
|
|
HOA0880-L55SENSOR OPT SLOT TRANSISTOR MODUL |
0 |
|
Таблицы данных |
- | Module, Pre-Wired | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Transistor | 50 mA | 30 mA | 30 V | 15µs | -40°C ~ 85°C | - | - | Chassis Mount, Wire Lead |
|
EE-SX1096-W1SENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
Таблицы данных |
- | Module, Pre-Wired | Bulk | Discontinued at Digi-Key | 0.134" (3.4mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 4µs, 4µs | -25°C ~ 85°C | - | - | Chassis Mount |
|
EE-SX952P-W 1MSENSOR OPT SLOT PNP MODULE 1M |
48 |
|
Таблицы данных |
EE-SX95 | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 24 V | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
EE-SX953-R 1MSENS OPT SLOT NPN MOD 1M ROBOTIC |
68 |
|
Таблицы данных |
EE-SX95 | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 24 V | - | -25°C ~ 55°C | - | - | Chassis Mount |
|

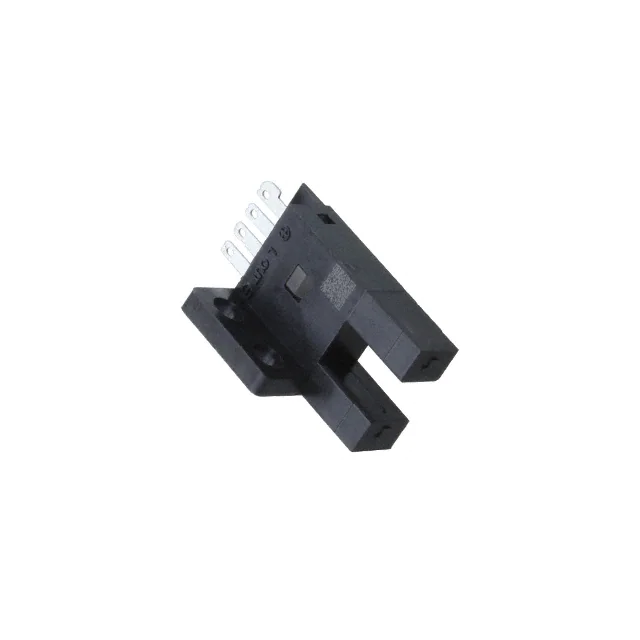

EE-SX677SENSOR OPT SLOT NPN MODULE |
13 |
|
Таблицы данных |
EE-SX67 | Module, Pre-Wired | Bulk | Active | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | - | 40 mA | - | - | -25°C ~ 55°C (TA) | - | - | Chassis Mount |
|
EE-SX972P-C1SENSOR OPT SLOT MODULE T-SHAPE-7 |
79 |
|
Таблицы данных |
- | Module, Slotted | Bulk | Active | 0.020" (0.5mm) | Through-Beam | - | 50 mA | 20 mA | 30 V | 4µs | -25°C ~ 85°C | - | - | Chassis Mount, M3 Screw |
|

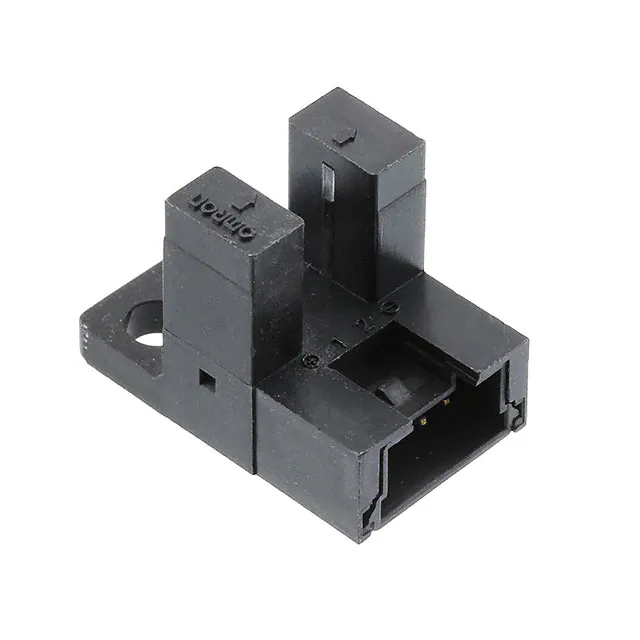

EE-SX974-C1SENSOR OPT SLOT MODULE |
22 |
|
Таблицы данных |
- | Module, Slotted | Bulk | Active | 0.020" (0.5mm) | Through-Beam | - | 50 mA | 20 mA | 30 V | 4µs | -25°C ~ 85°C | - | - | Chassis Mount, M3 Screw |
|

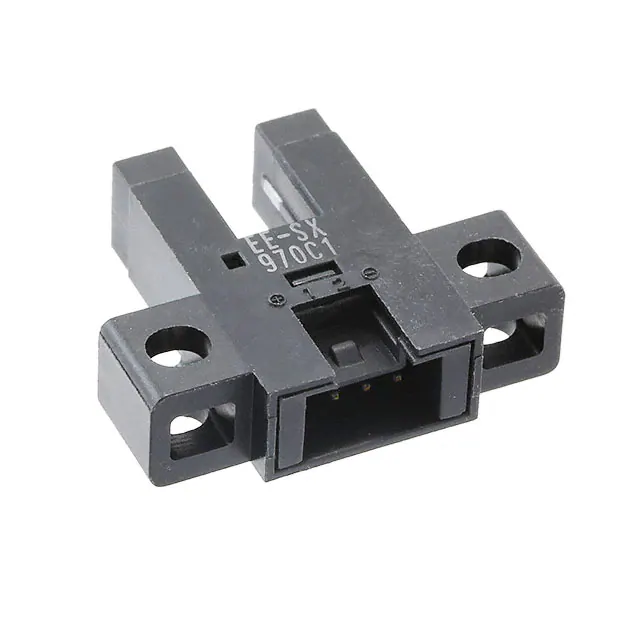

EE-SX970-C1SENSOR OPT SLOT MODULE |
48 |
|
Таблицы данных |
- | Module, Slotted | Bulk | Active | 0.020" (0.5mm) | Through-Beam | - | 50 mA | 20 mA | 30 V | 4µs | -25°C ~ 85°C | - | - | Chassis Mount, M3 Screw |
|
|
ITR9606-FSENSOR OPT SLOT PHOTOTRANS MODUL |
122 |
|
Таблицы данных |
- | Slotted Module | Bulk | Active | 0.197" (5mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 15µs | -25°C ~ 85°C | - | - | Through Hole |
|

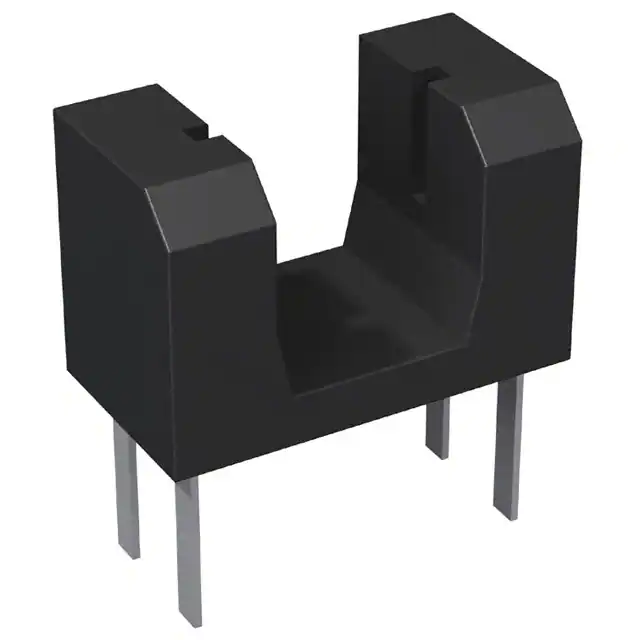

RPI-441C1ESENSOR OPT SLOT TRANSISTOR MODUL |
614 |
|
Таблицы данных |
- | Module, PC Pins, Slot Type | Bulk | Active | 0.157" (4mm) | - | Transistor | 50 mA | 30 mA | 30 V | 10µs | -25°C ~ 85°C | - | - | Through Hole |
|
EE-SV3SENSOR OPT SLOT PHOTOTRANS MODUL |
38 |
|
Таблицы данных |
- | Module, Connector, Slot Type | Bulk | Active | 0.134" (3.4mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 4µs, 4µs | -25°C ~ 85°C | - | - | Chassis Mount |
