Машинное зрение - линзы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Фокусное расстояние | Увеличение | Фокусное отношение | Совместимый размер датчика (макс.) | Поле зрения | Рабочее расстояние | Глубина резкости | Разрешение | Искажение ТВ | Размер фильтра | Диаметр | Длина | Тип крепления | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

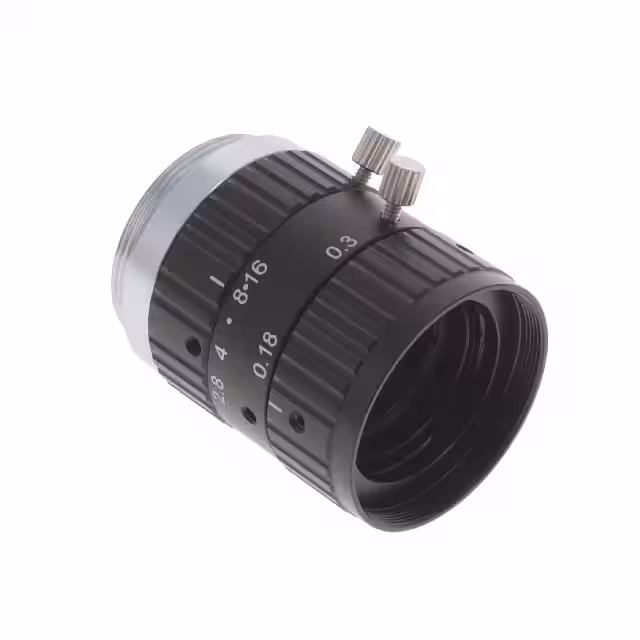

VFA1-230-10M25LENS W ANG F2.8-F16 0.005-0.246X |
3 |
|
Таблицы данных |
- | Case | Active | Wide Angle | 25.0mm | 0.005x ~ 0.246x | F2.8 ~ F16 | 2/3" | 2085.0 x 2780.0mm ~ 49.1 x 65.4mm | 5000mm ~ 100mm | 14.3mm | - | 0.1% | M27 x 0.5 | 29.0mm Dia | 33.8mm | C-Mount | -10°C ~ 50°C |
|

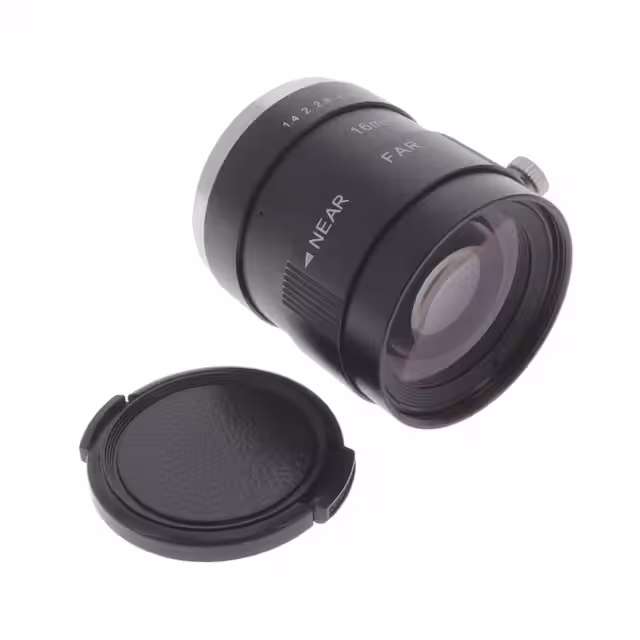

VFA1-110-5M16LENS WIDE ANG F1.4-F16 C-MOUNT |
2 |
|
- |
- | Case | Active | Wide Angle | 16.0mm | - | F1.4 ~ F16 | 1" | 604.6 x 806.9mm ~ 66.0 x 88.2mm | 1000mm ~ 100mm | 22.8mm | - | 0.1% ~ 0.2% | M46 x 0.75 | 50.0mm Dia | 58.2mm | C-Mount | -10°C ~ 50°C |
|

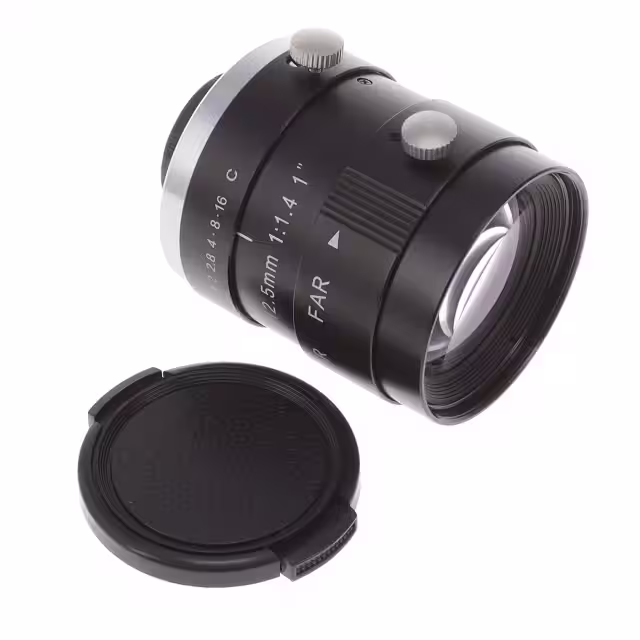

VFA1-110-5M12.5LENS WIDE ANG F1.4-F16 C-MOUNT |
2 |
|
- |
- | Case | Active | Wide Angle | 12.5mm | - | F1.4 ~ F16 | 1" | 705.9 x 941.2mm ~ 93.0 x 126.4mm | 900mm ~ 100mm | 15.7mm | - | 0.4% ~ 1.8% | M46 x 0.75 | 50.0mm Dia | 57.6mm | C-Mount | -10°C ~ 50°C |
|

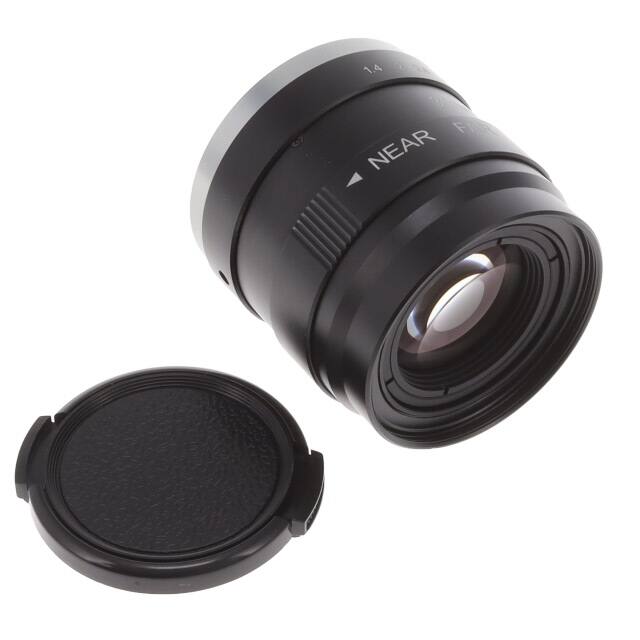

VFA1-110-5M35LENS STANDARD F1.4-F16 C-MOUNT |
2 |
|
- |
- | Case | Active | Standard | 35.0mm | - | F1.4 ~ F16 | 1" | 269.6 x 356.0mm ~ 39.7 x 53.2mm | 1000mm ~ 150mm | 11.2mm | - | 0.1% | M46 x 0.75 | 52.0mm Dia | 53.0mm | C-Mount | -10°C ~ 50°C |
|

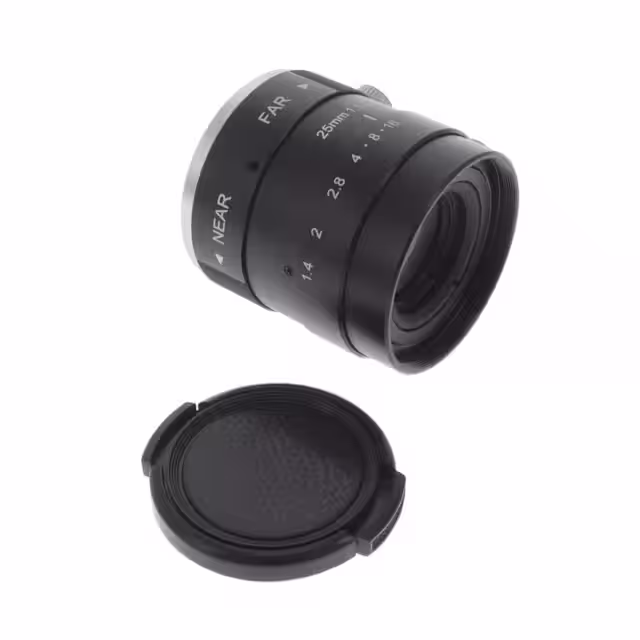

VFA1-110-5M25LENS WIDE ANG F1.4-F16 C-MOUNT |
2 |
|
- |
- | Case | Active | Wide Angle | 25.0mm | - | F1.4 ~ F16 | 1" | 295.4 x 393.9mm ~ 35.6 x 47.4mm | 800mm ~ 100mm | 23.0mm | - | 0.1% ~ 0.2% | M40.5 x P0.5 | 44.8mm Dia | 47.7mm | C-Mount | -10°C ~ 50°C |
|

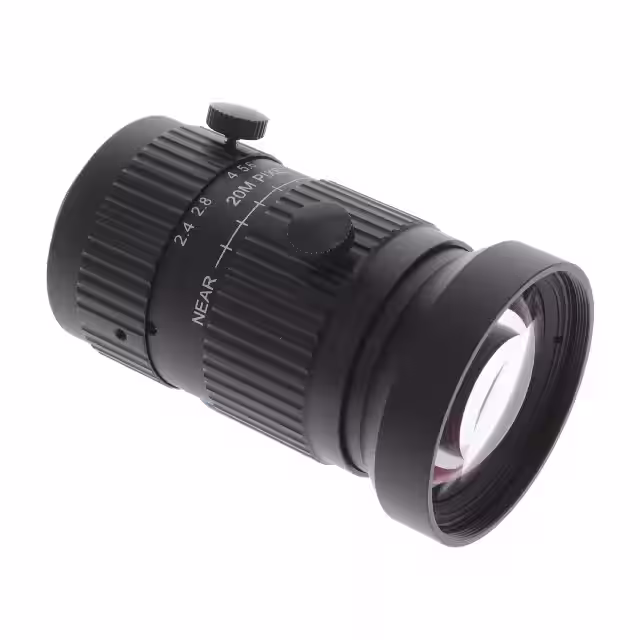

VFA4-111-20M16LENS 1.1 20MP 16MM C-MOUNT |
3 |
|
- |
- | Case | Active | - | 16.0mm | - | - | 1.1" | - | - | - | - | - | - | - | - | C-Mount | - |
|
VFA4-111-20M35LENS STD F2.4-F16 0.007X-0.376X |
3 |
|
Таблицы данных |
- | Case | Active | Standard | 35.0mm | 0.007x ~ 0.376x | F2.4 ~ F16 | 1.1" | 1559.3 x 2079.1mm ~ 28.2 x 37.5mm | 5000mm ~ 100mm | 22.2mm | - | 0.05% ~ 0.1% | M35.5 x P0.5 | 38.0mm Dia | 49.1mm | C-Mount | -40°C ~ 80°C |
|

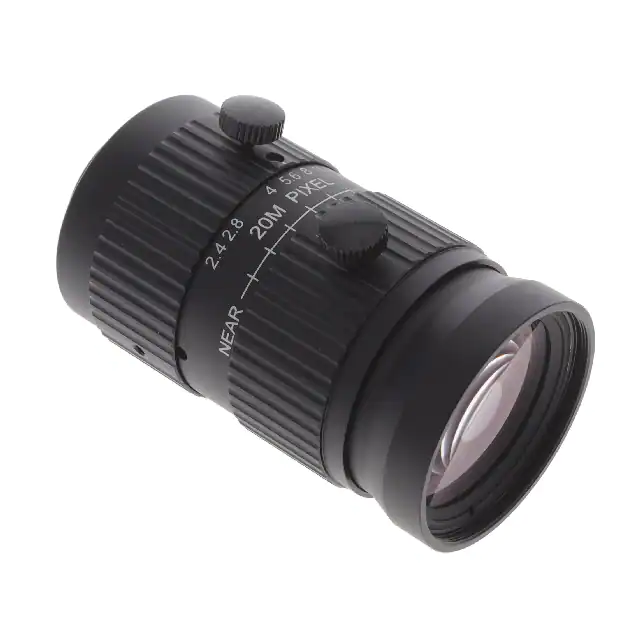

VFA4-111-20M25LENS W ANG F2.4-F16 0.005-0.216X |
3 |
|
Таблицы данных |
- | Case | Active | Wide Angle | 25.0mm | 0.005x ~ 0.216x | F2.4 ~ F16 | 1.1" | 2085.0 x 2780.0mm ~ 49.1 x 65.4mm | 5000mm ~ 100mm | 34.0mm | - | 0.1% ~ 0.2% | M35.5 x P0.5 | 38.0mm Dia | 71.9mm | C-Mount | -40°C ~ 80°C |
|
VFA1-110-5M75LENS STANDARD F1.8-F16 C-MOUNT |
2 |
|
- |
- | Case | Active | Standard | 75.0mm | - | F1.8 ~ F16 | 1" | 174.5 x 232.7mm ~ 83.5 x 111.3mm | 1400mm ~ 800mm | 16.0mm | - | 0.05% | M55 x 0.75 | 60.0mm Dia | 90.6mm | C-Mount | -10°C ~ 50°C |
|
0801-324-000-40LENS STD F4.5 0.1X-0.5X FLEXIBLE |
13 |
|
Таблицы данных |
Rogonar-S | Box | Active | Standard | 60.0mm | 0.1x ~ 0.5x | F4.5 | - | 56.0mm | 271mm ~ 729mm | - | 10µm | - | M40.5 x P0.5 | 50.0mm Dia | 36.6mm | Flexible | - |
|
|
0801-325-000-40LENS STD F4.5 0.1X-0.5X FLEXIBLE |
2 |
|
Таблицы данных |
Rogonar-S | Box | Active | Standard | 75.0mm | 0.1x ~ 0.5x | F4.5 | - | 43.3mm | 201mm ~ 793mm | - | 10µm | - | M40.5 x P0.5 | 50.0mm Dia | 36.7mm | Flexible | - |
|
|
0801-397-000-40LENS STD F2.8 0.075X-0.4X FLEX |
4 |
|
Таблицы данных |
Rogonar-S | Box | Active | Standard | 50.0mm | 0.075x ~ 0.4x | F2.8 | - | 43.3mm | 153mm ~ 707mm | - | 10µm | - | M40.5 x P0.5 | 50.0mm Dia | 37.9mm | Flexible | - |
|

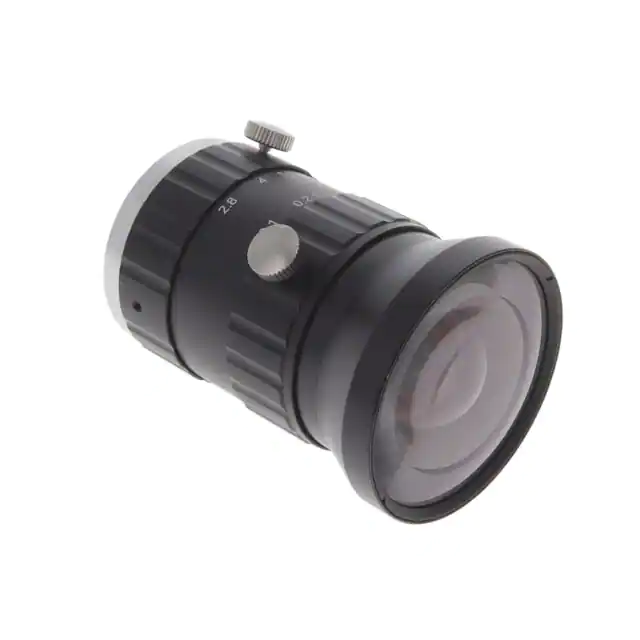

VFA1-111-20M12LENS WIDE ANG F2.8-F22 C-MOUNT |
5 |
|
- |
- | Case | Active | Wide Angle | 12.0mm | - | F2.8 ~ F22 | 1.1" | 4295.3 x 5727.0mm ~ 105.6 x 141.0mm | 5000mm ~ 100mm | 10.6mm | - | 1% ~ 1.5% | - | 48.0mm Dia | 67.8mm | C-Mount | -10°C ~ 50°C |
|
VFA1-111-20M35LENS STD F2.8-F22 0.0069-0.1805X |
3 |
|
- |
- | Case | Active | Standard | 35.0mm | 0.0069x ~ 0.1805x | F2.8 ~ F22 | 1.1" | 1528.2 x 2029.0mm ~ 58.7 x 78.2mm | 5000mm ~ 200mm | 22.9mm | - | 0.01% ~ 0.02% | M35.5 x P0.5 | 38.0mm Dia | 47.6mm | C-Mount | -10°C ~ 50°C |
|

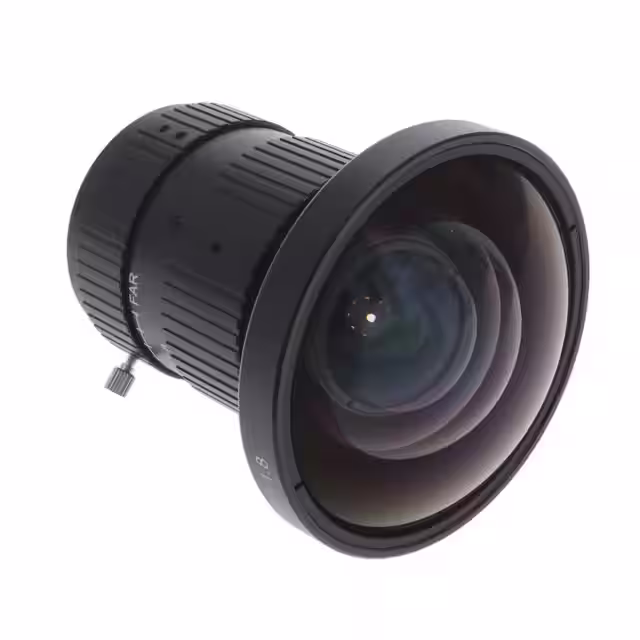

VFA1-111-10M06LENS WIDE ANG F1.8-F16 C-MOUNT |
2 |
|
- |
- | Case | Active | Wide Angle | 6.0mm | - | F1.8 ~ F16 | 1.1" | 1268.2 x 1690.9mm ~ 192.8 x 257.0mm | 800mm ~ 100mm | 13.6mm | - | 1.8% ~ 2.5% | - | 66.0mm Dia | 65.8mm | C-Mount | -10°C ~ 50°C |
|

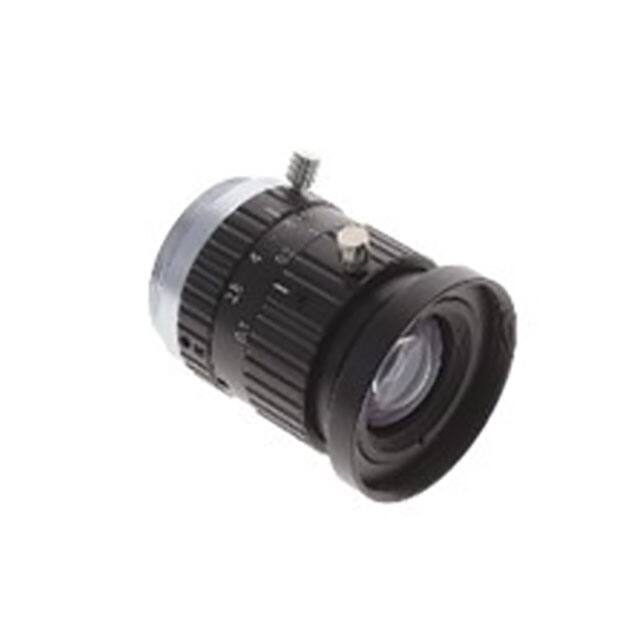

VFA1-111-10M08LENS WIDE ANG F1.4-F16 C-MOUNT |
2 |
|
- |
- | Case | Active | Wide Angle | 8.0mm | - | F1.4 ~ F16 | 1.1" | 966.9 x 1289.2mm ~ 149.4 x 199.2mm | 800mm ~ 100mm | 10.4mm | - | 3% ~ 5.5% | - | 60.0mm Dia | 77.8mm | C-Mount | -10°C ~ 50°C |
|
VFA1-111-20M25LENS W ANG F2.8-F22 0.005-0.221X |
2 |
|
- |
- | Case | Active | Wide Angle | 25.0mm | 0.005x ~ 0.221x | F2.8 ~ F22 | 1.1" | 2120.0 x 2820.0mm ~ 48.0 x 63.8mm | 5000mm ~ 100mm | 29.6mm | - | 0.03% ~ 0.1% | M35.5 x P0.5 | 37.0mm Dia | 78.0mm | C-Mount | -10°C ~ 50°C |
|

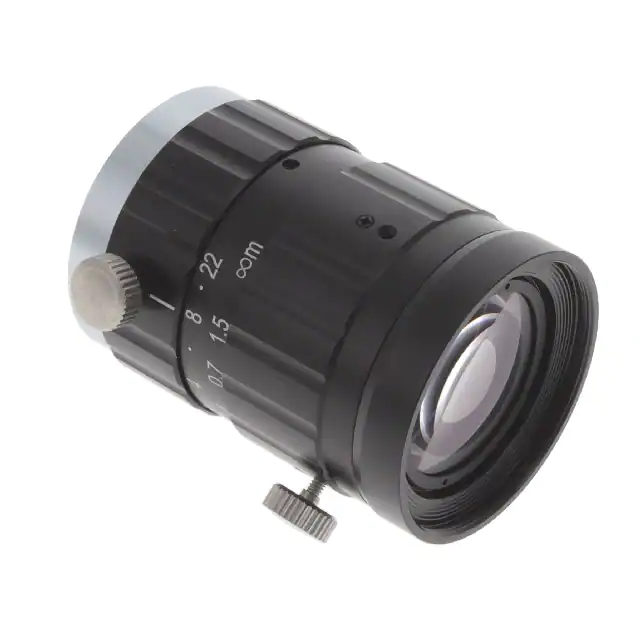

VFA1-111-20M50LENS STD F2.8-F22 0.01X-0.179X |
2 |
|
- |
- | Case | Active | Standard | 50.0mm | 0.01x ~ 0.179x | F2.8 ~ F22 | 1.1" | 1035.5 x 1379.0mm ~ 59.3 x 79.0mm | 5000mm ~ 300mm | 21.1mm | - | 0.02% ~ 0.04% | M35.5 x P0.5 | 38.0mm Dia | 53.9mm | C-Mount | -10°C ~ 50°C |
|
|
0703-119-000-26LENS STD F5.6 0.033X-0.5X M42-MT |
5 |
|
Таблицы данных |
Rodagon-M42 | Box | Active | Standard | 50.0mm | 0.033x ~ 0.5x | F5.6 | - | 46.0mm | 124mm ~ 1545mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 93.0mm | M42-Mount | - |
|
|
0703-119-000-25LENS STD F4 0.033X-0.5X M42-MT |
5 |
|
Таблицы данных |
Rodagon-M42 | Box | Active | Standard | 50.0mm | 0.033x ~ 0.5x | F4 | - | 46.0mm | 124mm ~ 1545mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 93.0mm | M42-Mount | - |
