Вентили и инверторы — многофункциональные, настраиваемые
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип логики | Количество цепей | Количество входов | Вход триггера Шмитта | Тип выхода | Ток - выход высокий, низкий | Напряжение - Питание | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLX1G97CMX1TCGIC GATE CONFIG MULTIFUNC 6-ULLGA |
0 |
|
Таблицы данных |
MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1x1) |
|
74F51SCXAND-OR-INVERT GATE |
17,500 |
|
Таблицы данных |
74F | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | AND/OR/INVERT Gate | 2 | 10 Input (3, 3, 2, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
74AUP1G58FW4-7IC GATE SGL GATE X2-DFN1010-6 |
5,000 |
|
Таблицы данных |
74AUP | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | X2-DFN1010-6 |
|
|
NLX1G58AMX1TCGIC GATE CONFIG MULTIFUNC 6-ULLGA |
0 |
|
Таблицы данных |
MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.45x1) |
|
|
NLX1G57AMX1TCGIC GATE CONFIG MULTIFUNC 6-ULLGA |
0 |
|
- |
MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.45x1) |
|
|
NLX1G98AMX1TCGIC GATE CONFIG MULTIFUNC 6-ULLGA |
0 |
|
- |
MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.45x1) |
|
NLX1G57CMUTCGIC LOGIC SMD |
0 |
|
Таблицы данных |
MiniGate™ | 6-UFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1x1) |
|
74AUP1T97GM,115NEXPERIA 74AUP1T97GM - LOGIC CIR |
45,000 |
|
Таблицы данных |
74AUP | 6-XFDFN | Bulk | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 2.3V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (1.45x1) |
|
74F51PCAND-OR-INVERT GATE |
7,996 |
|
Таблицы данных |
74F | 14-DIP (0.300", 7.62mm) | Bulk | Active | AND/OR/INVERT Gate | 2 | 10 Input (3, 3, 2, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V | 0°C ~ 70°C | - | - | Through Hole | 14-DIP |
|
|
MC14069UBFL1INVERTER |
3,000 |
|
Таблицы данных |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NLX1G57BMX1TCGIC CONFIG MULTIPLE FUNCT 6ULLGA |
0 |
|
- |
MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.2x1) |
|
|
NLX1G97BMX1TCGIC CONFIG MULTIPLE FUNCT 6ULLGA |
0 |
|
Таблицы данных |
MiniGate™ | 6-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 6-ULLGA (1.2x1) |
|
|
74AUP1G98FW4-7IC GATE SGL GATE X2-DFN1010-6 |
5,000 |
|
Таблицы данных |
74AUP | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | X2-DFN1010-6 |
|
74AUP1G97L6XIC GATE UNIV 2INPUT 6-MICROPAK |
0 |
|
Таблицы данных |
74AUP | 6-UFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|

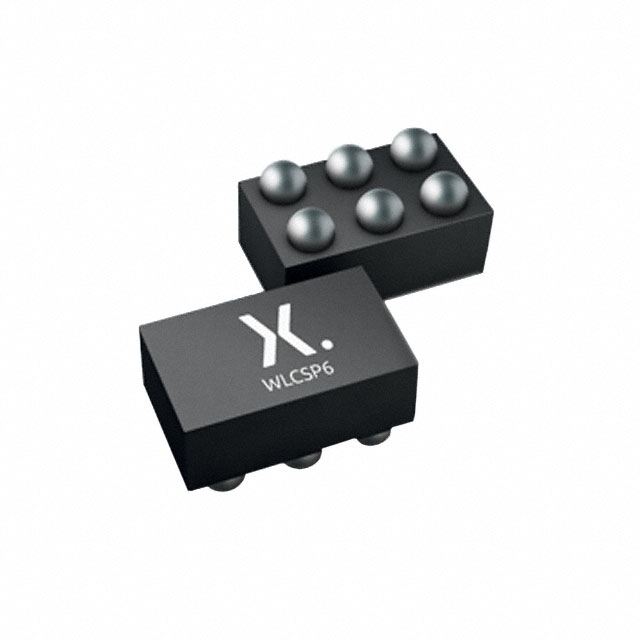

74AUP1G97UKAZIC GATE MULTIFUNCTION WLCSP6 |
0 |
|
Таблицы данных |
74AUP | 6-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-WLCSP (0.65x0.44) |
|
74LVC1G98GF,132IC CONFIG MULTI FUNC GATE 6XSON |
0 |
|
Таблицы данных |
74LVC | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT891 (1x1) |
|
|
74LVC1G97GF,132IC CONFIG MULTI FUNC GATE 6XSON |
0 |
|
Таблицы данных |
74LVC | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT891 (1x1) |
|
NLX1G99AMX1TCGIC MINIGATE MULTIFUNC 8ULLGA |
0 |
|
Таблицы данных |
MiniGate™ | 8-XFLGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 4 | Yes | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | - | - | Surface Mount | 8-ULLGA (1.95x1) |
|
|
SN72270NHEX INVERTER |
19,722 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
CD4019BPWIC QUAD AND/OR SLCT GATE 16TSSOP |
0 |
|
Таблицы данных |
4000B | 16-TSSOP (0.173", 4.40mm Width) | Tube | Discontinued at Digi-Key | AND/OR Gate | 4 | 2 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
