Переключатели блокировки клавиш
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Схема | Количество положений | Функция переключения | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Съемные позиции ключа | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Размеры выреза панели | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

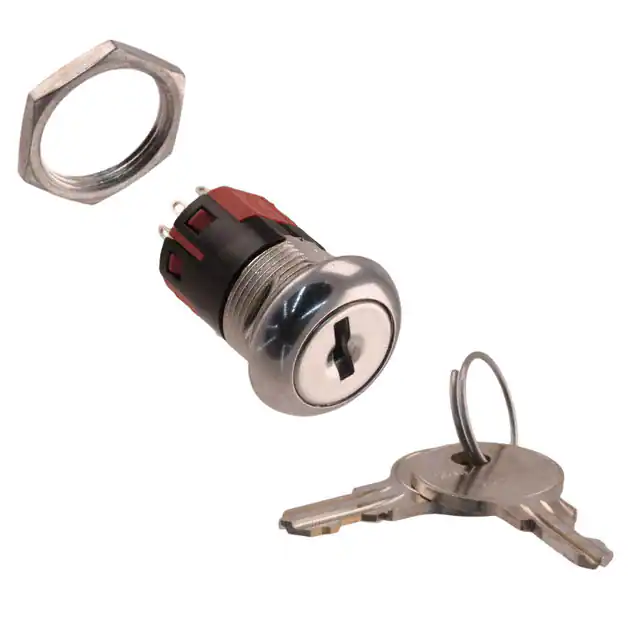

Y200AA2C203NQSWITCH KEYLOCK 3POS DP3T 4A 125V |
790 |
|
Таблицы данных |
Y | Tray | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
|
Y200822C203NQSWITCH KEYLOCK 3POS DP3T 4A 125V |
115 |
|
Таблицы данных |
Y | Tray | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|

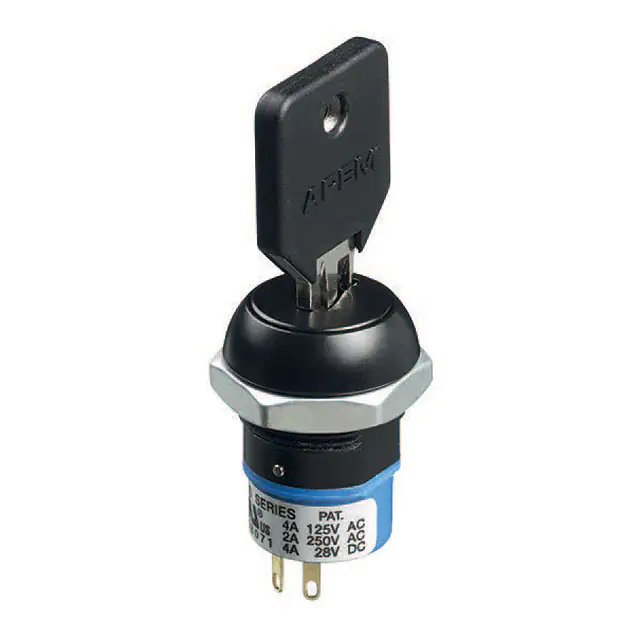

LK5AGB126M3SWITCH KEYLOCK 2POS SPDT 4A 125V |
217 |
|
Таблицы данных |
LK | Bag | Active | SPDT | 2 | On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|

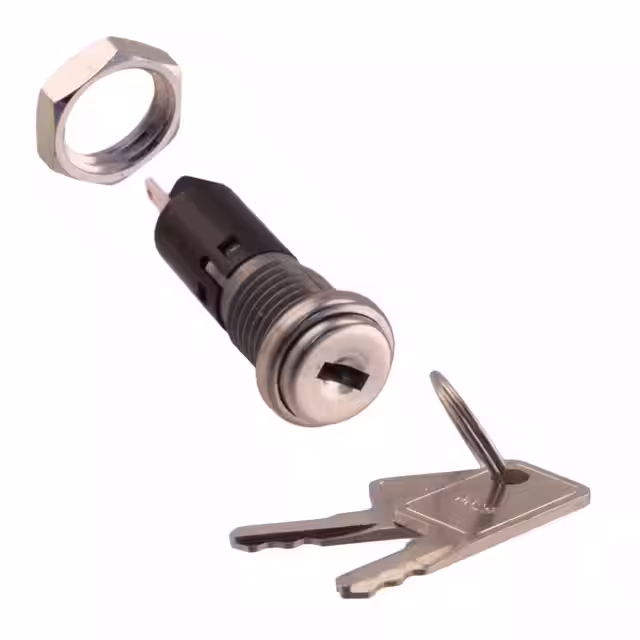

YM061U2C205NQSWITCH KEYLOCK 2POS SPST 4A 125V |
321 |
|
Таблицы данных |
YM | Tray | Active | SPST | 2 | Off-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 11.99mm Dia | - | - |
|

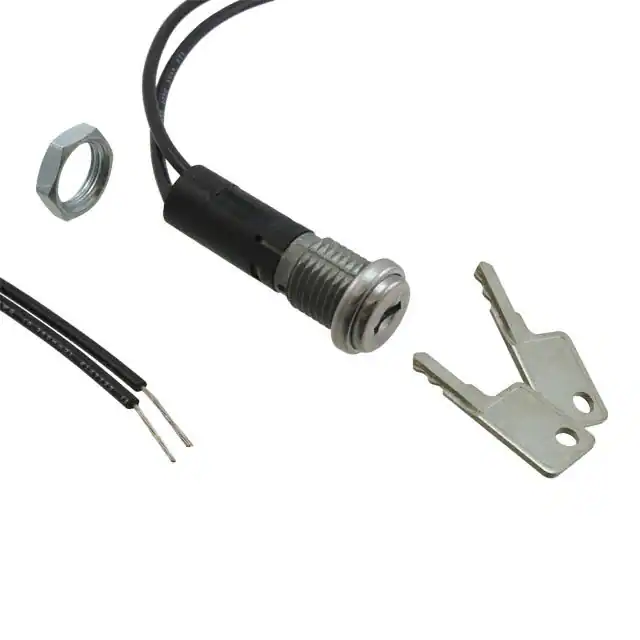

YM06132C2WCNQSWITCH KEYLOCK 2POS SPST 4A 125V |
465 |
|
Таблицы данных |
YM | Bulk | Active | SPST | 2 | Off-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 11.99mm Dia | - | - |
|

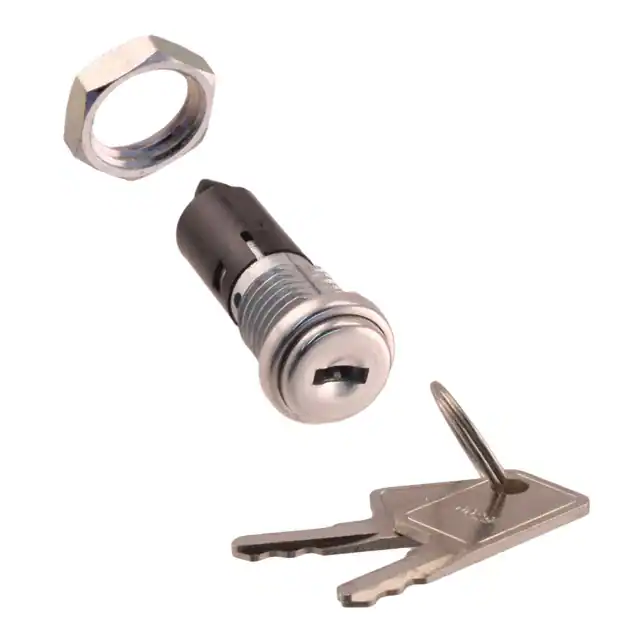

YM06132C205NQSWITCH KEYLOCK 2POS SPST 4A 125V |
526 |
|
Таблицы данных |
YM | Tray | Active | SPST | 2 | Off-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 11.99mm Dia | - | - |
|

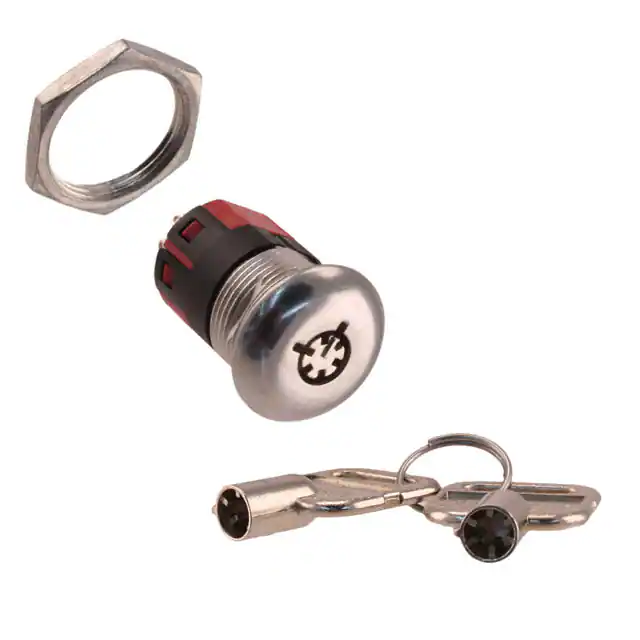

Y1011U2V203NQSWITCH KEYLOCK 2POS SPDT 4A 125V |
473 |
|
Таблицы данных |
Y | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Tubular Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
95060-26SWITCH KEYLOCK 3POS 5A 24V |
142 |
|
Таблицы данных |
95060 | Bulk | Active | - | 3 | Off-On-Mom | Not Specified | 5A (DC) | - | 24 V | Flat Key | 1 only | - | Brass | - | Panel Mount | Connector | Circular - 21.84mm Dia | - | - |
|

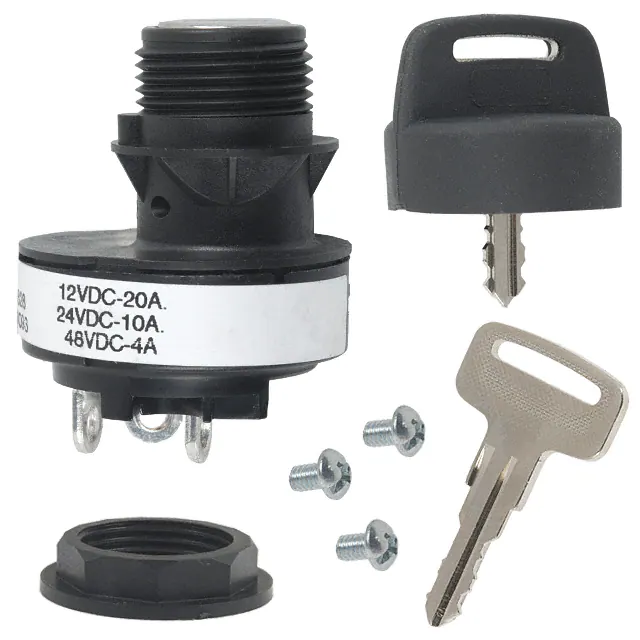

84828-07SWITCH KEYLOCK 2POS SPST 20A 12V |
191 |
|
Таблицы данных |
- | Bulk | Active | SPST | 2 | Off-On | Not Specified | 20A (DC) | - | 12 V | Flat Key | Center | 45° | Copper | - | Panel Mount | Screw Terminal | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|
84829-07SWITCH KEYLOCK 3POS SPDT 20A 12V |
546 |
|
Таблицы данных |
- | Bulk | Active | SPDT | 3 | Off-On-Mom | Not Specified | 20A (DC) | - | 12 V | Flat Key | Left | 45° | Copper | - | Panel Mount | Screw Terminal | Circular - 22.35mm Dia | - | -40°C ~ 85°C |
|

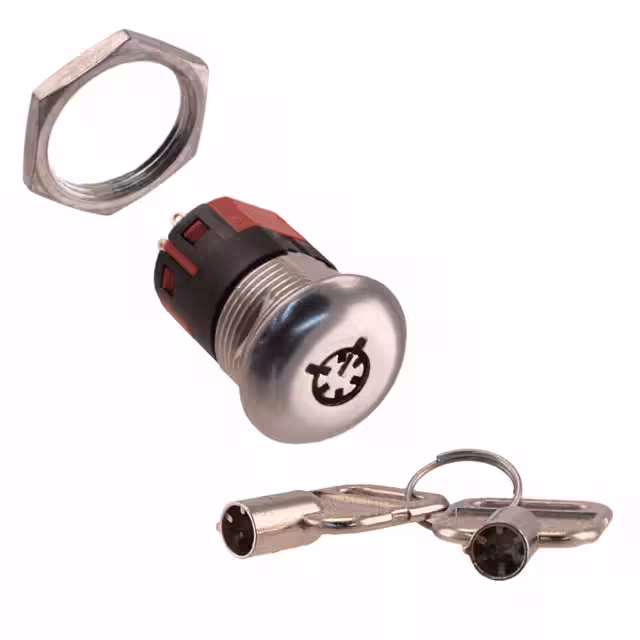

Y2011U2V203NQSWITCH KEYLOCK 2POS DPDT 4A 125V |
214 |
|
Таблицы данных |
Y | Bulk | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Tubular Key | All | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
51-135.025DSWITCH KEYLOCK 2POS DPST 5A 250V |
45 |
|
Таблицы данных |
51 | Bulk | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | All | 90° | - | - | Panel Mount | Solder Lug | Circular - 16.00mm Dia | IP65 | -25°C ~ 55°C |
|
2SWK131AL101SWITCH KEYLOCK 2POS SPST 1A 120V |
54 |
|
Таблицы данных |
SWK | Bulk | Active | SPST | 2 | Off-On | Non-Shorting (BBM) | 1A (AC) | 120 V | - | Flat Key | 1 only | 90° | Silver (Ag) | - | Panel Mount | Screw Terminal | Circular - 19.20mm Dia | - | - |
|
51-236.025DSWITCH KEYLOCK 2POS 4PST 5A 250V |
65 |
|
Таблицы данных |
51 | Bulk | Active | 4PST-2NO/2NC | 2 | On-Off, Off-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | 1 only | 90° | - | - | Panel Mount | Solder Lug | Circular - 16.00mm Dia | IP65 | -25°C ~ 55°C |
|
51-378.FADSWITCH KEYLOCK 3POS 4PST 5A 250V |
206 |
|
Таблицы данных |
51 | Bulk | Active | 4PST-2NO/2NC | 3 | On-Off-Mom | Not Specified | 5A (AC) | 250 V | - | Flat Key | Left | 42°, 90° | Silver (Ag) | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 | -25°C ~ 55°C |
|

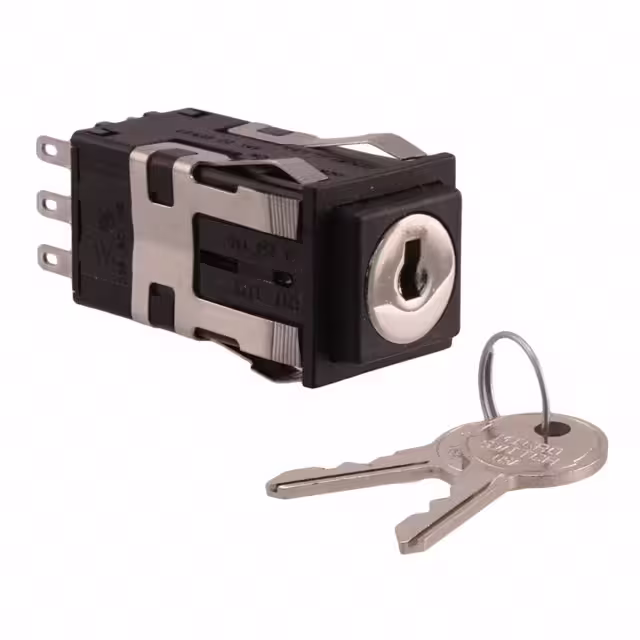

AML27ABK2AA21BASWITCH KEYLOCK 2POS SPDT 3A 125V |
59 |
|
Таблицы данных |
AML27 | Bulk | Active | SPDT | 2 | On-On | Not Specified | 3A (AC) | 125 V | - | Flat Key | Center | 90° | - | Silver | Panel Mount, Snap-In | Solder, Quick Connect - 0.110" (2.8mm) | Square - 19.05mm² | - | - |
|
SW-R-K1-ASWITCH KEYLOCK 2POS SPST 1A 125V |
245 |
|
Таблицы данных |
SW | Bag | Active | SPST | 2 | Off-On | Not Specified | 1A (AC) | 125 V | - | Flat Key | All | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 11.80mm Dia | - | -25°C ~ 85°C |
|

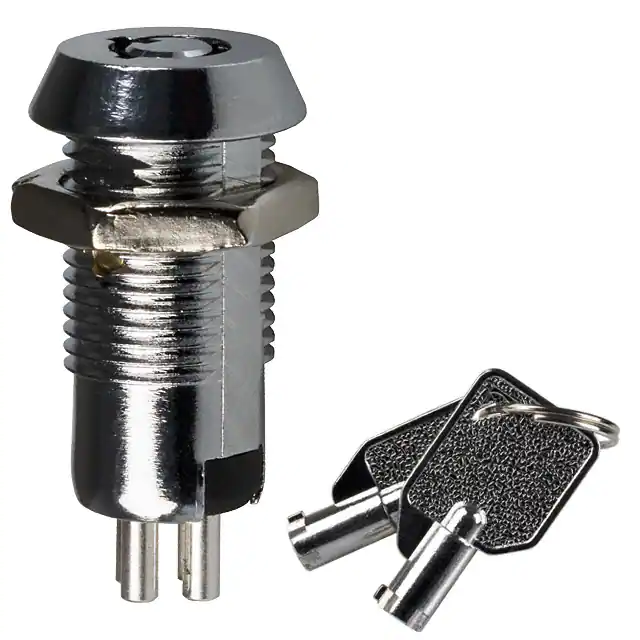

KO103C701SWITCH KEYLOCK 2POS SPDT 1A 125V |
3,504 |
|
Таблицы данных |
KO | Bulk | Active | SPDT | 2 | On-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | 1 only | 90° | Copper Alloy | Silver | Panel Mount | Solder Cup | Circular - 12.00mm Dia | - | - |
|

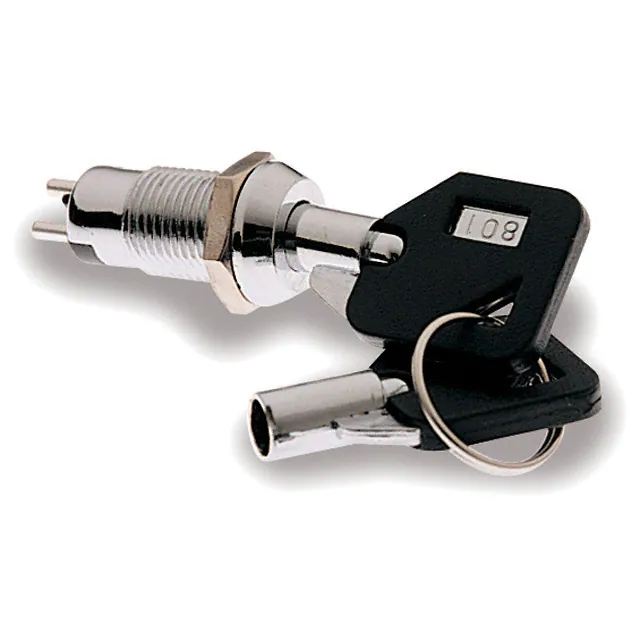

KO133A801SWITCH KEYLOCK 2POS SPST 1A 125V |
800 |
|
Таблицы данных |
KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | 1 only | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | - |
|
|
KO103A701SWITCH KEYLOCK 2POS SPST 1A 125V |
436 |
|
Таблицы данных |
KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | 1 only | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | - |
