Изоляторы - драйверы затворов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Технология | Количество каналов | Напряжение - Изоляция | Устойчивость к синфазным переходным процессам (мин.) | Задержка распространения tpLH / tpHL (макс.) | Искажение ширины импульса (макс.) | Время нарастания/спада (тип.) | Ток - выход высокий, низкий | Ток - пиковый выход | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Напряжение - Выходное питание | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI8230AB-AS1RDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8237BB-AS1RDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8232AB-AS1RDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8237AB-AS1RDGTL ISO 5KV 2CH GATE DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8231BB-AS1RDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8230BB-AS1RDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8232BB-AS1RDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8275DB-AS1RDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
SI827x | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8231BB-ASRDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8231AB-ASRDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8230AB-ASRDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8232BB-ASRDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8232AB-ASRDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8230BB-ASRDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|

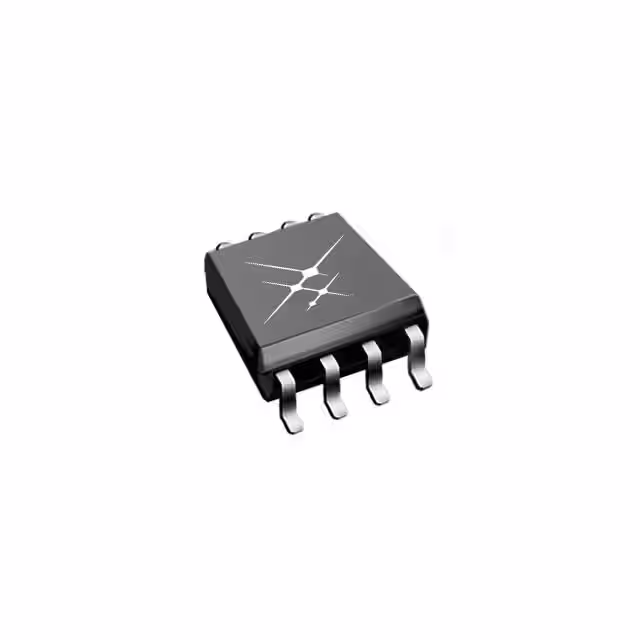

SI8271GAD-ISDGTL ISO 1KV 1CH GATE DVR 8SOIC |
0 |
|
Таблицы данных |
Si827x | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 1 | 1000Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UL, VDE |
|
|
SI8271GA-ISDGTL ISO 1KV 1CH GATE DVR 8SOIC |
0 |
|
Таблицы данных |
Si827x | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 1 | 1000Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UL, VDE |
|
|
SI8285DC-ISRDGT ISO 3.75KV 1CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 125kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2A, 4.1A | 4A | - | - | 14V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8286DC-ASRDGT ISO 3.75KV 1CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 125kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2A, 4.1A | 4A | - | - | 14V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8286EC-ASRDGT ISO 3.75KV 1CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 125kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2A, 4.1A | 4A | - | - | 16V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
SI8285EC-ISRDGT ISO 3.75KV 1CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 125kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2A, 4.1A | 4A | - | - | 16V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
