Изоляторы - драйверы затворов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Технология | Количество каналов | Напряжение - Изоляция | Устойчивость к синфазным переходным процессам (мин.) | Задержка распространения tpLH / tpHL (макс.) | Искажение ширины импульса (макс.) | Время нарастания/спада (тип.) | Ток - выход высокий, низкий | Ток - пиковый выход | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Напряжение - Выходное питание | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-K342-560EOPTOISO 5KV 1CH GATE DVR 8SO |
4,124 |
|
Таблицы данных |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 350ns, 250ns | - | 22ns, 18ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched | CSA, IEC/EN/DIN, UR |
|
NCD57090ADWR2GDGTL ISO 5KV 1CH GATE DVR 8SOIC |
3,482 |
|
Таблицы данных |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | - | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | VDE |
|
NCV57090FDWR2GDGTL ISO 5KV 1CH GATE DVR 8SOIC |
980 |
|
Таблицы данных |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | 30ns | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | Automotive | AEC-Q101 | -40°C ~ 125°C | Surface Mount | 8-SOIC | VDE |
|
|
NCD57090DDWR2GDGTL ISO 5KV 1CH GATE DVR 8SOIC |
511 |
|
Таблицы данных |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs (Max) | 90ns, 90ns | 25ns | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | VDE |
|
|
NCD57091BDWR2GDGTL ISO 5KV 1CH GATE DVR 8SOIC |
354 |
|
Таблицы данных |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | 25ns | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | VDE |
|
SID1112K-TLDGT ISO 5KV 1CH GT DVR ESOP-R16B |
990 |
|
Таблицы данных |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 340ns, 330ns | - | 1.125µs, 1.125µs (Max) | 480mA, 520mA | 1A | - | - | 22V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | VDE |
|
|
SID1112KDGT ISO 5KV 1CH GT DVR ESOP-R16B |
157 |
|
Таблицы данных |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | 50kV/µs (Typ) | 340ns, 330ns | - | 1.125µs, 1.125µs (Max) | 480mA, 520mA | 1A | - | - | 22V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | VDE |
|
|
ACPL-H312-500EOPTOISO 3.75KV 1CH GATE DVR 8SO |
2,890 |
|
Таблицы данных |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 15kV/µs | 500ns, 500ns | 300ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO Stretched | CSA, UR |
|
MAX22700DASA+DGTL ISO 3KV 1CH GATE DVR 8SOIC |
352 |
|
Таблицы данных |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 3000Vrms | 300kV/µs (Typ) | 36ns, 36ns | 2ns | 3.6ns, 1.8ns (Max) | 2.35A, 3.7A | 2.35A, 3.7A | - | - | 13V ~ 36V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, cUL, UL |
|
PS9506L3-V-AXOPTOISO 5KV 1CH GATE DVR 8DIP GW |
50 |
|
Таблицы данных |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 400ns, 400ns | 250ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 8-DIP Gull Wing | CSA, SEMKO, UL, VDE |
|
ACPL-W347-000EOPTOISO 5KV 1CH GATE DRIVER 6SO |
0 |
|
Таблицы данных |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 110ns, 110ns | 40ns | 8ns, 8ns | 800mA, 800mA | 1A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, UR |
|
|
PS9505L3-AXOPTOISO 5KV 1CH GATE DVR 8DIP GW |
240 |
|
Таблицы данных |
- | 8-SMD, Gull Wing | Tube | Not For New Designs | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 8-DIP Gull Wing | CSA, SEMKO, UL |
|
PS9031-Y-AXOPTOISO 5KV 1CH GATE DVR 5LSOP |
1,807 |
|
Таблицы данных |
- | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Cut Tape (CT) | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 175ns, 175ns | 75ns | 40ns, 40ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSOP | CSA, UL, VDE |
|

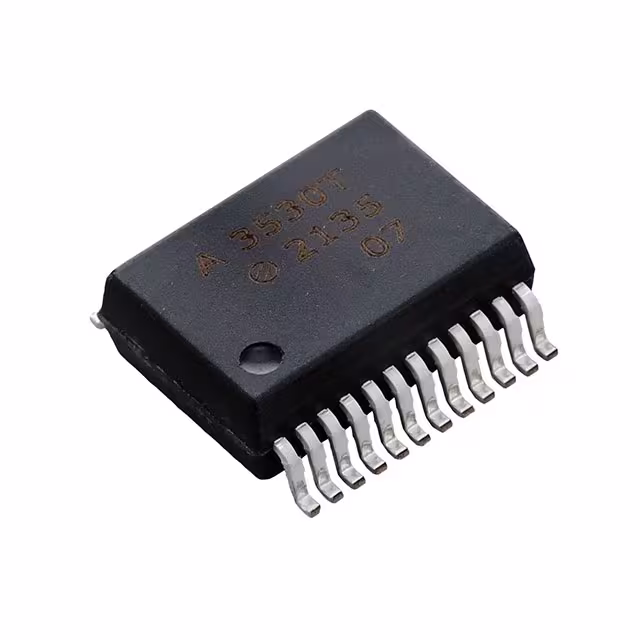

ACFJ-3530T-000EOPTOISO 5KV 1CH GATE DVR 24SOIC |
1,173 |
|
Таблицы данных |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 200ns, 200ns | 100ns | 15ns, 15ns | 1.5A, 1.5A | 2.5A | 1.55V | - | 15.2V ~ 16.8V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SOIC | CSA, UL, VDE |
|
|
SID1132KDGT ISO 5KV 1CH GT DVR ESOP-R16B |
122 |
|
Таблицы данных |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tube | Active | Magnetic Coupling | 1 | 5000Vrms | - | 340ns, 330ns | - | 450ns, 450ns (Max) | 1.2A, 1.3A | 2.5A | - | - | 22V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | - |
|
|
NCV57091ADWR2GDGTL ISO 5KV 1CH GATE DVR 8SOIC |
1,000 |
|
Таблицы данных |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | 25ns | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | VDE |
|
|
NCV57091BDWR2GDGTL ISO 5KV 1CH GATE DVR 8SOIC |
996 |
|
Таблицы данных |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | 25ns | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | VDE |
|
|
NCV57091CDWR2GDGTL ISO 5KV 1CH GATE DVR 8SOIC |
988 |
|
Таблицы данных |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | 25ns | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | VDE |
|
UCC20225QNPLRQ1DGTL ISO 2.5KV 2CH GT DVR 13VLGA |
8,540 |
|
Таблицы данных |
- | 13-VFLGA | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 100V/ns | 30ns, 30ns | 6ns | 6ns, 7ns | 4A, 6A | - | - | - | 9.2V ~ 25V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 13-VLGA (5x5) | CQC, UL, VDE |
|
SI823H4BD-IS3DGTL ISO 5KV 1CH GATE DVR 14SOIC |
531 |
|
Таблицы данных |
Si823Hx | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
