Изоляторы - драйверы затворов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Технология | Количество каналов | Напряжение - Изоляция | Устойчивость к синфазным переходным процессам (мин.) | Задержка распространения tpLH / tpHL (макс.) | Искажение ширины импульса (макс.) | Время нарастания/спада (тип.) | Ток - выход высокий, низкий | Ток - пиковый выход | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Напряжение - Выходное питание | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5962-0420401HYAOPTOISO 1.5KV 1CH GATE DVR 8DIP |
0 |
|
Таблицы данных |
- | 8-SMD Butt Joint | Tube | Active | Optical Coupling | 1 | 1500VDC | 10kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Butt Joint | - |
|
|
HCPL-5121-300OPTOISO 1.5KV 1CH GT DVR 8DIP GW |
0 |
|
Таблицы данных |
- | 8-CSMD, Gull Wing | Bulk | Active | Optical Coupling | 1 | 1500VDC | 10kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Gull Wing | - |
|
5962-0420401HXAOPTOISO 1.5KV 1CH GT DVR 8DIP GW |
0 |
|
Таблицы данных |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 1500VDC | 10kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Gull Wing | - |
|
|
ACPL-5160OPTOISO 1.5KV 1CH GATE DVR 16DIP |
0 |
|
Таблицы данных |
- | 16-DIP (0.311", 7.90mm) | Bulk | Active | Optical Coupling | 1 | 1500VDC | 9kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | - | - | -55°C ~ 125°C | Through Hole | 16-DIP | - |
|
ACPL-5160-300OPTOISO 1.5KV GATE DRVR 16SMDGW |
0 |
|
Таблицы данных |
- | 16-SMD, Gull Wing | Bulk | Active | Optical Coupling | 1 | 1500VDC | 9kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | - | - | -55°C ~ 125°C | Surface Mount | 16-SMD Gull Wing | - |
|
|
ACPL-5161OPTOISO 1.5KV 1CH GATE DVR 16DIP |
0 |
|
Таблицы данных |
- | 16-DIP (0.311", 7.90mm) | Bulk | Active | Optical Coupling | 1 | 1500VDC | 9kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | - | - | -55°C ~ 125°C | Through Hole | 16-DIP | - |
|
|
ACPL-5161-200OPTOISO 1.5KV 1CH GATE DVR 16DIP |
0 |
|
Таблицы данных |
- | 16-DIP (0.311", 7.90mm) | Bulk | Active | Optical Coupling | 1 | 1500VDC | 9kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | - | - | -55°C ~ 125°C | Through Hole | 16-DIP | - |
|
|
ACPL-5161-300OPTOISO 1.5KV GATE DRVR 16SMDGW |
0 |
|
Таблицы данных |
- | 16-SMD, Gull Wing | Bulk | Active | Optical Coupling | 1 | 1500VDC | 9kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | - | - | -55°C ~ 125°C | Surface Mount | 16-SMD Gull Wing | - |
|
TLP250(F)OPTOISO 2.5KV 1CH GATE DVR 8DIP |
0 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 2500Vrms | 5kV/µs | 500ns, 500ns | - | - | 500mA, 500mA | 1.5A | 1.6V | 20 mA | 15V ~ 30V | - | - | -20°C ~ 85°C | Through Hole | 8-DIP | UR |
|
PC923XOPTOISO 5KV 1CH GATE DVR 8DIP |
0 |
|
Таблицы данных |
OPIC™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 1.5kV/µs | 500ns, 500ns | - | 200ns, 200ns | - | 400mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -20°C ~ 80°C | Through Hole | 8-DIP | - |
|
|
PC923X11OPTOISO 5KV 1CH GATE DVR 8DIP |
0 |
|
Таблицы данных |
OPIC™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 1.5kV/µs | 500ns, 500ns | - | 200ns, 200ns | - | 400mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -20°C ~ 80°C | Through Hole | 8-DIP | - |
|
|
PC923XIOPTOISO 5KV 1CH GATE DVR 8SMD |
0 |
|
Таблицы данных |
OPIC™ | 8-SMD | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 1.5kV/µs | 500ns, 500ns | - | 200ns, 200ns | - | 400mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -20°C ~ 80°C | Surface Mount | 8-SMD | - |
|
|
HCPL-3100OPTOISO 5KV 1CH GATE DVR 8DIP |
0 |
|
Таблицы данных |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 2µs, 2µs | - | 200ns, 200ns | - | 600mA | 1.2V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | UR |
|
|
HCPL-3101OPTOISO 5KV 1CH GATE DVR 8DIP |
0 |
|
Таблицы данных |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | - | 200ns, 200ns | - | 600mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP | UR |
|

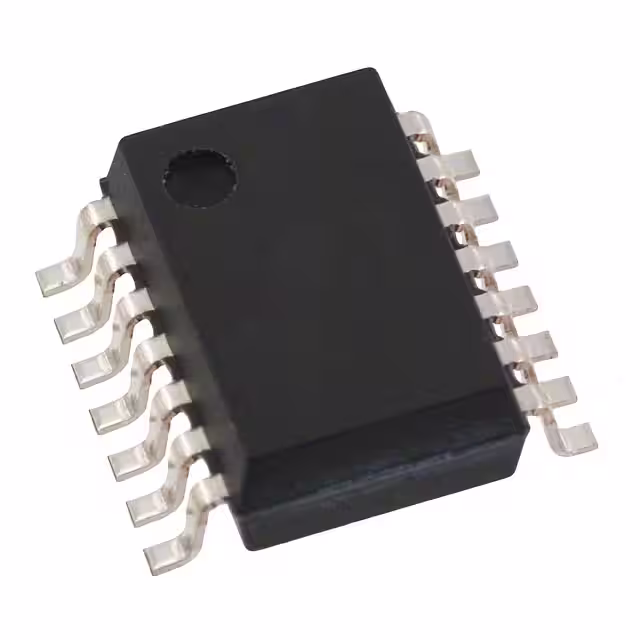

PC929J00000FOPTOISO 4KV 1CH GATE DVR 14SMT |
0 |
|
Таблицы данных |
OPIC™ | 14-SOIC (0.256", 6.50mm Width) | Tube | Obsolete | Optical Coupling | 1 | 4000Vrms | 1.5kV/µs | 500ns, 500ns | - | 200ns, 200ns | - | 400mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -25°C ~ 80°C | Surface Mount | 14-SMT | UR |
|
PC928J00000FOPTOISO 4KV 1CH GATE DVR 14SMT |
0 |
|
Таблицы данных |
OPIC™ | 14-SOIC (0.256", 6.50mm Width) | Tube | Obsolete | Optical Coupling | 1 | 4000Vrms | 1.5kV/µs | 2µs, 2µs | - | 200ns, 200ns | - | 400mA | 1.2V | 25 mA | 15V ~ 30V | - | - | -25°C ~ 80°C | Surface Mount | 14-SMT | UR |
|
|
HCPL-3100-000EOPTOISO 5KV 1CH GATE DVR 8DIP |
0 |
|
Таблицы данных |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 2µs, 2µs | - | 200ns, 200ns | - | 600mA | 1.2V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | UR |
|
|
PC923L0YSZ0FOPTOISO 5KV 1CH GATE DVR 8DIP |
0 |
|
Таблицы данных |
OPIC™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | - | 200ns, 200ns | - | 600mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP | UR, VDE |
|
|
PC929PYJ000FOPTOISO 4KV 1CH GATE DVR 14SMT |
0 |
|
Таблицы данных |
OPIC™ | 14-SOIC (0.256", 6.50mm Width) | Tape & Reel (TR) | Obsolete | Optical Coupling | 1 | 4000Vrms | 1.5kV/µs | 500ns, 500ns | - | 200ns, 200ns | - | 400mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -25°C ~ 80°C | Surface Mount | 14-SMT | UR, VDE |
|
|
PC923L0NSZ0FOPTOISO 5KV 1CH GATE DVR 8DIP |
0 |
|
Таблицы данных |
OPIC™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | - | 200ns, 200ns | - | 600mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP | UR |
