Изоляторы - драйверы затворов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Технология | Количество каналов | Напряжение - Изоляция | Устойчивость к синфазным переходным процессам (мин.) | Задержка распространения tpLH / tpHL (макс.) | Искажение ширины импульса (макс.) | Время нарастания/спада (тип.) | Ток - выход высокий, низкий | Ток - пиковый выход | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Напряжение - Выходное питание | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI8271BB-ASDGTL ISO 2.5KV 1CH GT DVR 8SOIC |
0 |
|
Таблицы данных |
SI827x | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 1 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UL, VDE |
|
|
SI8271GBD-ASDGTL ISO 2.5KV 1CH GT DVR 8SOIC |
0 |
|
Таблицы данных |
SI827x | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UL, VDE |
|
|
SI8271BBD-ASDGTL ISO 2.5KV 1CH GT DVR 8SOIC |
0 |
|
Таблицы данных |
SI827x | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UL, VDE |
|
|
SI8271DBD-ASDGTL ISO 2.5KV 1CH GT DVR 8SOIC |
0 |
|
Таблицы данных |
SI827x | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UL, VDE |
|
ACPL-335J-000EOPTOISO 5KV 1CH GATE DVR 16SO |
0 |
|
Таблицы данных |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 250ns, 250ns | 100ns | 60ns, 50ns | - | 2.5A | 1.55V | 20 mA | 12V ~ 20V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
ADUM3220WBRZ-RL7DGTL ISO 2.5KV 2CH GT DVR 8SOIC |
0 |
|
Таблицы данных |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 60ns, 60ns | - | 20ns, 20ns | - | 4A | - | - | 4.5V ~ 18V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|
|
ADUM3221WARZ-RL7DGTL ISO 2.5KV 2CH GT DVR 8SOIC |
0 |
|
Таблицы данных |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 2500Vrms | 25kV/µs | 60ns, 60ns | - | 20ns, 20ns | - | 4A | - | - | 4.5V ~ 18V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UR, VDE |
|
|
SI823H9TD-AS4RDIGITAL ISO 5KV 1CH GT DVR 8SSO |
0 |
|
Таблицы данных |
Si823Hx | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SSO | CQC, CSA, UL, VDE |
|
|
SI8230BD-AS3RDGTL ISO 5KV 2CH GATE DVR 14SOIC |
0 |
|
Таблицы данных |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI8230AD-AS3RDGTL ISO 5KV 2CH GATE DVR 14SOIC |
0 |
|
Таблицы данных |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
UCC21736QDWRQ1DGTL ISO 5.7KV 1CH GT DVR 16SOIC |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Capacitive Coupling | 1 | 5700Vrms | 150V/ns | 130ns, 130ns | 30ns | 28ns, 24ns (Max) | 10A, 10A | 10A | - | - | 13V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | UL, VDE |
|
ADUM6132ARWZ-RLDGT ISO 3.75KV 2CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 3750Vrms | 50kV/µs | 100ns, 100ns | 10ns | 15ns, 15ns (Max) | 200mA, 200mA | 200mA | - | - | 12.5V ~ 17V | - | - | -40°C ~ 85°C | Surface Mount | 16-SOIC | CSA, UR |
|
UCC5390ECQDWVQ1DGTL ISO 5KV 1CH GATE DVR 8SOIC |
15 |
|
Таблицы данных |
- | 8-SOIC (0.295", 7.50mm Width) | Tube | Last Time Buy | Capacitive Coupling | 1 | 5000Vrms | 120kV/µs | 60ns, 60ns | 20ns | 10ns, 10ns | 17A, 17A | 10A | - | - | 13.2V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | 8-SOIC | CQC, UL, VDE |
|
SI8235BB-C-IMDGTL ISO 2.5KV 2CH GT DVR 14LGA |
0 |
|
Таблицы данных |
- | 14-VFLGA | Tube | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
SI8233AB-C-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
ADUM4121CRIZ-RLDGTL ISO 5KV 1CH GATE DVR 8SOIC |
0 |
|
Таблицы данных |
iCoupler® | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 42ns, 53ns | 13ns | 18ns, 18ns | - | 2.3A | - | - | 11.6V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC-IC | CSA, UR, VDE |
|
SI8273ABD-IMDGTL ISO 2.5KV 2CH GT DVR 14LGA |
0 |
|
Таблицы данных |
Si827x | 14-VFLGA | Tube | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|

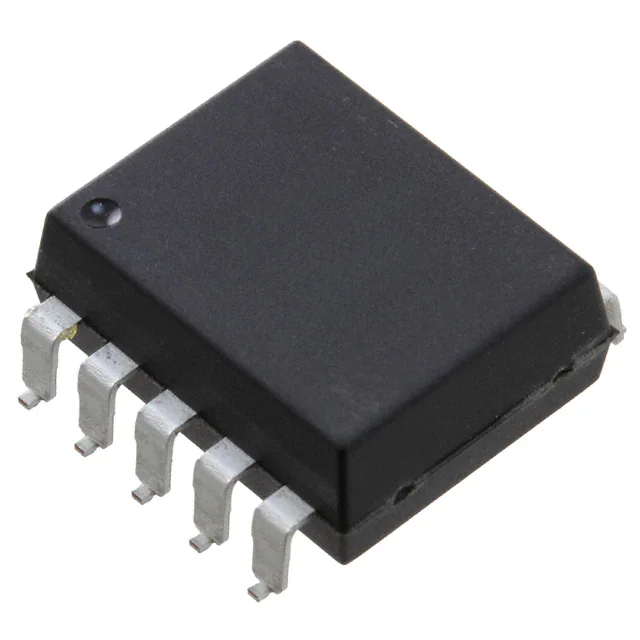

ACNV3130-300EOPTOISO 7.5KV 1CH GT DVR 10DIP |
0 |
|
Таблицы данных |
- | 10-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 7500Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 10-DIP Gull Wing | CSA, IEC/EN/DIN, UR |
|
|
SI8275ABD-IMDGTL ISO 2.5KV 2CH GT DVR 14LGA |
0 |
|
Таблицы данных |
Si827x | 14-VFLGA | Tube | Not For New Designs | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
SI8273ABD-IM1DGTL ISO 2.5KV 2CH GT DVR 14QFN |
0 |
|
Таблицы данных |
Si827x | 14-VDFN | Tray | Obsolete | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UR, VDE |
