Буферы сигналов, повторители, разветвители
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Применение | Вход | Выход | Скорость передачи данных (макс.) | Количество каналов | Время задержки | Кондиционирование сигнала | Емкость - вход | Напряжение - Питание | Ток - Питание | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC4312CMS#PBFIC MULTIPLEXR I2C HOTSWAP 16MSOP |
180 |
|
Таблицы данных |
- | 16-TFSOP (0.118", 3.00mm Width) | Tube | Active | Buffer, Multiplexer | I2C - Hotswap | 2-Wire Bus | 2-Wire Bus | 400kHz | 1 x 1:2 | - | - | 20 pF | 2.9V ~ 5.5V | 7.3mA | 0°C ~ 70°C | - | - | Surface Mount | 16-MSOP |
|
DS08MB200TSQ/NOPBIC MULTIPLEXER LVDS 4CH 48WQFN |
256 |
|
Таблицы данных |
- | 48-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, Multiplexer | LVDS | BLVDS, CML, LVDS, LVPECL | LVDS | 800Mbps | 4 x 1:2, 2:1 | 1.0ns | - | 3.5 pF | 3V ~ 3.6V | 225mA | -40°C ~ 85°C | - | - | Surface Mount | 48-WQFN (7x7) |
|
LTC4300-2IMS8#PBFIC ACCELERATOR I2C HOTSWAP 8MSOP |
195 |
|
Таблицы данных |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Buffer, Accelerator | I2C - Hotswap | 2-Wire Bus | 2-Wire Bus | 400kHz | 2 | - | - | 10 pF | 2.7V ~ 5.5V | 5.1mA | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
DS160PR412RUARPCIE 4.0, 16-GBPS, 4-CHANNEL LIN |
994 |
|
Таблицы данных |
- | 42-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | PCI Express | LVCMOS | Differential | 16Gbps | 4 | 80ps | Input Equalization, Output De-Emphasis | 1.5 pF | 3V ~ 3.6V | 145mA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-WQFN (3.5x9) |
|
LTC4300A-3CDD#PBFIC ACCELERATOR I2C HOTSWAP 8DFN |
110 |
|
Таблицы данных |
- | 8-WFDFN Exposed Pad | Tube | Active | Buffer, Accelerator | I2C - Hotswap | 2-Wire Bus | 2-Wire Bus | 400kHz | 2 | - | - | 10 pF | 2.7V ~ 5.5V | 3mA | 0°C ~ 70°C | - | - | Surface Mount | 8-DFN (3x3) |
|
PI3EQX1204EZHEXIC REDRIVER 12.5GBPS 42TQFN |
3,348 |
|
- |
- | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | SAS, SATA | CML | CML | 12.5Gbps | 4 | - | Input Equalization | - | 3.3V | - | -40°C ~ 85°C | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
TUSB1044RNQTUSB-C 10GBPS MULTI-PROT LINEAR R |
243 |
|
Таблицы данных |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | ReDriver | USB | - | - | 10Gbps | - | - | Input Equalization | 5 pF | 3V ~ 3.6V | - | 0°C ~ 70°C | - | - | Surface Mount | 40-WQFN (6x4) |
|
PI2DPX2020FLAEXACTIVE DISPLAY W-LGA4528-32 T&R |
729 |
|
Таблицы данных |
- | 32-WFLGA Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | DisplayPort | CML | CML | 20Gbps | 4 | - | Input Equalization, Output De-Emphasis | 10 pF | 1.71V ~ 1.89V | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-WLGA (4.5x2.85) |
|
LTC4309CDE#PBFIC ACCELERATOR I2C HOTSWAP 12DFN |
178 |
|
Таблицы данных |
- | 12-WFDFN Exposed Pad | Tube | Active | Buffer, Accelerator | I2C - Hotswap | 2-Wire Bus | 2-Wire Bus | 400kHz | 2 | - | - | 10 pF | 2.3V ~ 5.5V | 7mA | 0°C ~ 70°C | - | - | Surface Mount | 12-DFN (4x3) |
|
|
LTC4300A-3IDD#PBFIC ACCELERATOR I2C HOTSWAP 8DFN |
75 |
|
Таблицы данных |
- | 8-WFDFN Exposed Pad | Tube | Active | Buffer, Accelerator | I2C - Hotswap | 2-Wire Bus | 2-Wire Bus | 400kHz | 2 | - | - | 10 pF | 2.7V ~ 5.5V | 3mA | -40°C ~ 85°C | - | - | Surface Mount | 8-DFN (3x3) |
|

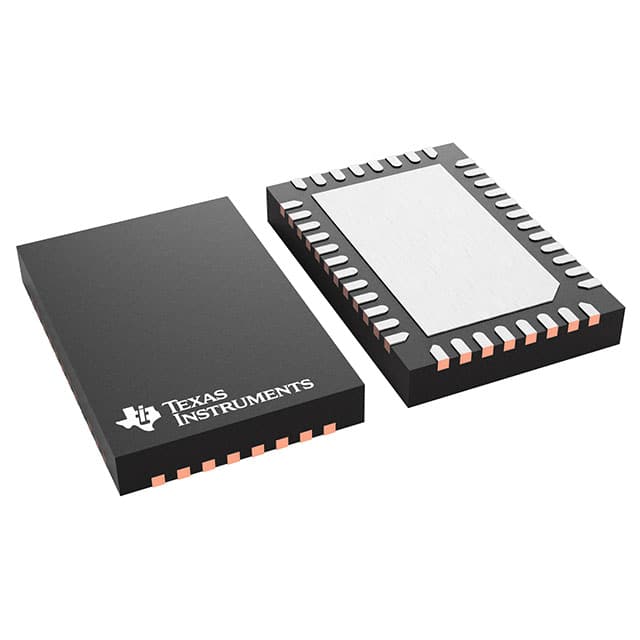

TUSB1104RNQTUSB TYPE-C 10-GBPS 3.2 X2 ADAPTI |
247 |
|
Таблицы данных |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | USB Type C | Differential | Differential | 10Gbps | 4 | 0.3ns | Input Equalization, Output De-Emphasis | 10 pF | 3V ~ 3.6V | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 40-WQFN (6x4) |
|

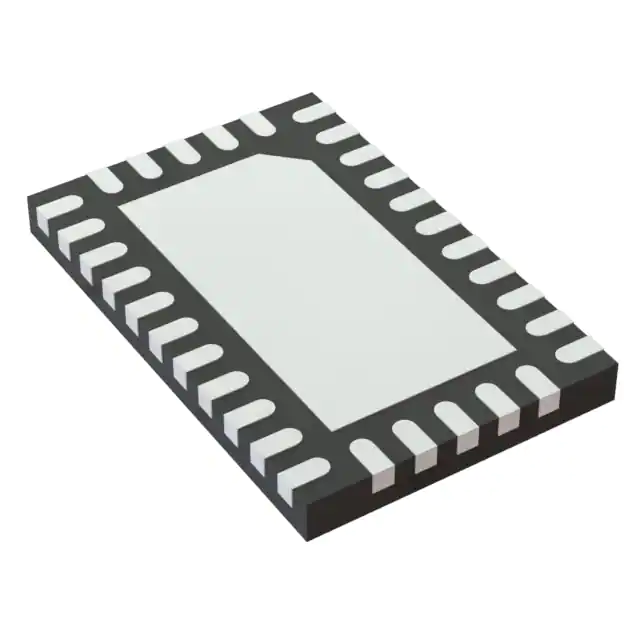

PI2EQX16924XUAEXCLOCK GENERATOR U-QFN8080-100 T& |
3,450 |
|
Таблицы данных |
- | 32-XFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | I2C, PCIe | CML | CML | 16Gbps | 4 | - | Input Equalization | 10 pF | 1.71V ~ 1.89V | 160mA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-X2QFN (2.85x4.5) |
|
|
LTC4313CDD-1#PBFIC ACCELERATOR I2C HOTSWAP 8DFN |
123 |
|
Таблицы данных |
- | 8-WFDFN Exposed Pad | Tube | Active | Buffer, Accelerator | I2C - Hotswap | 2-Wire Bus | 2-Wire Bus | 400kHz | 1 | - | - | 10 pF | 2.9V ~ 5.5V | 8.1mA | 0°C ~ 70°C | - | - | Surface Mount | 8-DFN (3x3) |
|
|
LTC4313CDD-2#PBFIC ACCELERATOR I2C HOTSWAP 8DFN |
32 |
|
Таблицы данных |
- | 8-WFDFN Exposed Pad | Tube | Active | Buffer, Accelerator | I2C - Hotswap | 2-Wire Bus | 2-Wire Bus | 400kHz | 1 | - | - | 10 pF | 2.9V ~ 5.5V | 8.1mA | 0°C ~ 70°C | - | - | Surface Mount | 8-DFN (3x3) |
|
|
PI2DPX2023FLAEXACTIVE DISPLAY W-LGA4528-32 T&R |
1,399 |
|
Таблицы данных |
- | 32-WFLGA Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | DisplayPort | CML | CML | 20Gbps | 4 | - | Input Equalization, Output De-Emphasis | 10 pF | 1.71V ~ 1.89V | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-WLGA (4.5x2.85) |
|
|
TUSB1046A-DCIRNQT10GBPS TYPEC DP ALT MODE REDRIVE |
878 |
|
Таблицы данных |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | ReDriver | USB | - | - | 10Gbps | - | - | Input Equalization | 10 pF | 3V ~ 3.6V | - | 0°C ~ 70°C | - | - | Surface Mount | 40-WQFN (6x4) |
|
TUSB1104IRNQTUSB TYPE-C 10-GBPS 3.2 X2 ADAPTI |
262 |
|
Таблицы данных |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | USB Type C | Differential | Differential | 10Gbps | 4 | 0.3ns | Input Equalization, Output De-Emphasis | 10 pF | 3V ~ 3.6V | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 40-WQFN (6x4) |
|
SN65LVDM22DIC MULTIPLEXER LVDS 1CH 16SOIC |
0 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Bulk | Active | Buffer, Multiplexer | LVDS | LVDS | LVDS | 250Mbps | 1 x 2:2 | 4.0ns | - | 3 pF | 3V ~ 3.6V | 21mA | -40°C ~ 85°C | - | - | Surface Mount | 16-SOIC |
|
TUSB1146RNQTUSB TYPE C REDRIVER /MUX |
565 |
|
Таблицы данных |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | ReDriver | USB | - | - | 10Gbps | - | - | Input Equalization | 10 pF | 3V ~ 3.6V | - | 0°C ~ 70°C | - | - | Surface Mount | 40-WQFN (6x4) |
|
|
SN75LVPE4410RNQT16G PCIE-4 REDRIVER |
145 |
|
Таблицы данных |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Buffer, ReDriver | PCI Express | Differential | Differential | 16Gbps | 4 | 70ps | Input Equalization, Output De-Emphasis | 1.5 pF | 3V ~ 3.6V | 90mA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 40-WQFN (6x4) |
