Промышленные блоки питания на DIN-рейку
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XT40.722AC/DC DIN RAIL SUPPLY 72V 960W |
5 |
|
Таблицы данных |
DIMENSION X (960W) | Box | Active | AC | 1 | 360 ~ 552 VAC (3 Phase) | - | - | 72V | - | - | - | - | - | 13A | 960W | 3 kV | ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | IP20 | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
SDN20-24-100CAC/DC DIN RAIL SUPPLY 24V 480W |
22 |
|
Таблицы данных |
SDN-C | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 275V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, cULus, cURus, EAC | - |
|
QT20.361AC/DC DIN RAIL SUPPLY 36V 480W |
5 |
|
Таблицы данных |
DIMENSION Q (480W) | Box | Active | AC | 1 | 323 ~ 552 VAC (3 Phase) | - | - | 36V | - | - | - | - | - | 13.3A | 480W | 500 V | ITE (Commercial) | 94.6% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
6EP14373BA00AC/DC DIN RAIL SUPPLY 24V |
3 |
|
Таблицы данных |
6EP1 | Box | Active | AC | 1 | 320 ~ 550 VAC | - | - | 24V | - | - | - | - | - | 40A | - | - | Industrial, ITE (Commercial) | 90% | 0°C ~ 70°C | Adjustable Output, IP20 | CE, CSA, UL | 60950-1; UL 508 |
|
QT40.242AC/DC DIN RAIL SUPPLY 24V 960W |
21 |
|
Таблицы данных |
DIMENSION Q (960W) | Box | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 500 V | ITE (Commercial) | 95.2% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
QS40.244AC/DC DIN RAIL SUPPLY 24V 960W |
18 |
|
Таблицы данных |
DIMENSION Q (960W) | Box | Active | AC | 1 | 170 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 40A | 960W | 500 V | ITE (Commercial) | 94.6% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, DNV GL, EAC, IEC, SEMI, UL | F47; 508; 60950-1; 61010-2-201 |
|
SDN2024100DAC/DC DIN RAIL SUPPLY 24V 480W |
13 |
|
Таблицы данных |
SolaHD™ | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 275V | 24V | - | - | - | - | - | 20A | 480W | - | ITE (Commercial) | 94.2% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE, cULus, cURus | 60950-1; 61010-1; 62368-1 |
|
|
QT40.481AC/DC DIN RAIL SUPPLY 48V 960W |
12 |
|
Таблицы данных |
DIMENSION Q (960W) | Box | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 20A | 960W | 500 V | ITE (Commercial) | 95.4% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, DNV GL, EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|

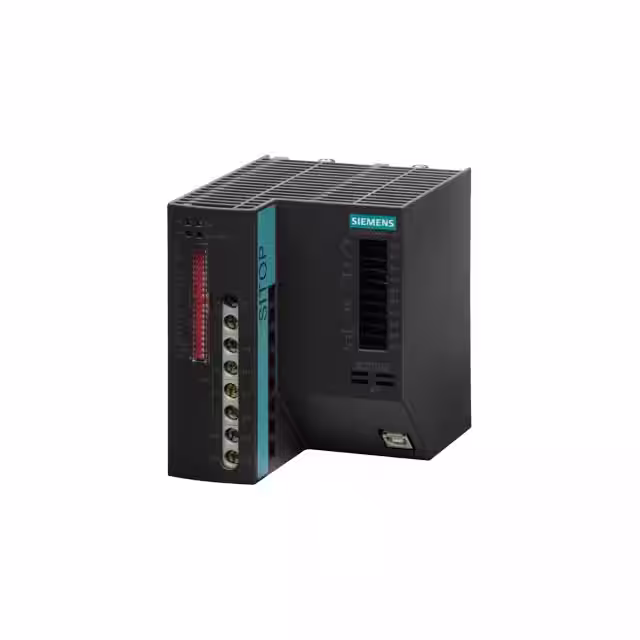

6EP19312FC21DC/DC DIN RAIL SUPPLY 24V 960W |
3 |
|
Таблицы данных |
6EP1 | Bulk | Active | DC | 1 | - | 22V | 29V | 24V | - | - | - | - | - | 40A | 960W | - | Hazardous Locations, Industrial, ITE (Commercial) | 97.2% | -25°C ~ 60°C | Adjustable Output, IP20 | CE, CSA, cULus, UL | 60950-1; UL 508 |
|
2320827AC/DC DIN RAIL SUPPLY 48V 960W |
20 |
|
Таблицы данных |
Quint | Bulk | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | 450V | 800V | 48V | - | - | - | - | - | 20A | 960W | 4 kV | ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | CB, cULus, cURus | - |
|
|
SDN40-24-100CAC/DC DIN RAIL SUPPLY 24V 960W |
6 |
|
Таблицы данных |
SDN-C | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 108V | 375V | 24V | - | - | - | - | - | 40A | 960W | - | Hazardous Locations, Industrial, ITE (Commercial) | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, cULus, cURus, EAC | - |
|

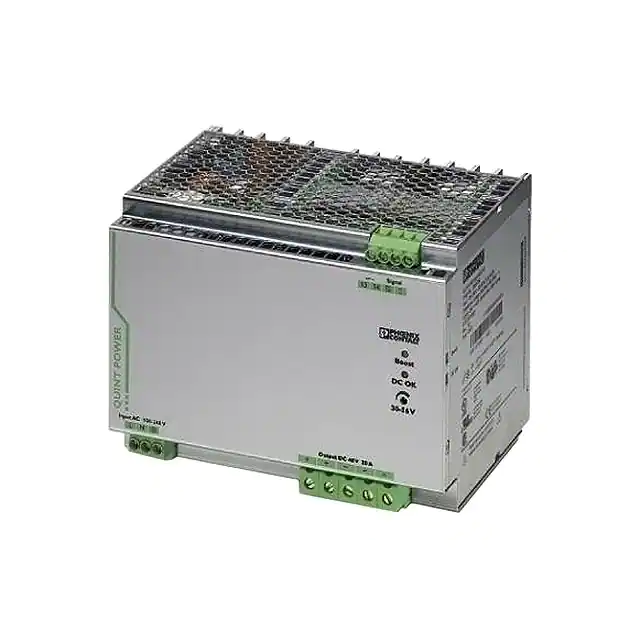

2866695AC/DC DIN RAIL SUPPLY 48V 960W |
10 |
|
Таблицы данных |
Quint | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 20A | 960W | 3 kV | ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | CB, cULus, cURus | - |
|

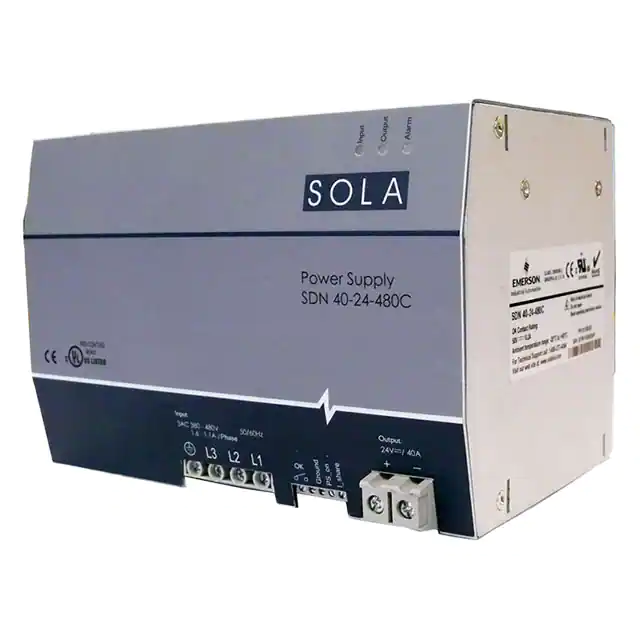

SDN40-24-480CAC/DC DIN RAIL SUPPLY 24V 960W |
4 |
|
Таблицы данных |
SDN-C | Bulk | Active | AC or DC | 1 | 320 ~ 540 VAC | 550V | 650V | 24V | - | - | - | - | - | 40A | 960W | - | Hazardous Locations, Industrial, ITE (Commercial) | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20 | CE, cULus, cURus, EAC | - |
|
|
QS40.241-C2POWER SUPPLY, 960W, 100-240VAC 1 |
5 |
|
Таблицы данных |
Q | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 40A | 240W | 500 V | Industrial, ITE (Commercial) | 94.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | cCSAus, CE, cULus, cURus | 60950-1; UL 508 |
|
QS40.361AC/DC DIN RAIL SUPPLY 36V 960W |
16 |
|
Таблицы данных |
DIMENSION Q (960W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 36V | - | - | - | - | - | 26.7A | 960W | 500 V | ITE (Commercial) | 94.6% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
HDR-30-48AC/DC DIN RAIL SUPPLY 48V 36W |
0 |
|
Таблицы данных |
HDR-30 (30W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 750mA | 36W | 4 kV | Industrial, ITE (Commercial) | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, cURus, TUV | - |
|
MDR-10-12AC/DC DIN RAIL SUPPLY 12V 10W |
66 |
|
Таблицы данных |
MDR-10 (10W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 840mA | 10W | 3 kV | Industrial, ITE (Commercial) | 81% | -20°C ~ 70°C (With Derating) | Universal Input | CB, CE, cURus, TUV | - |
|
|
MDR-10-5AC/DC DIN RAIL SUPPLY 5V 10W |
84 |
|
Таблицы данных |
MDR-10 (10W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 2A | 10W | 3 kV | Industrial, ITE (Commercial) | 77% | -20°C ~ 70°C (With Derating) | Universal Input | CB, CE, cURus, TUV | - |
|
|
MDR-10-15AC/DC DIN RAIL SUPPLY 15V 10W |
86 |
|
Таблицы данных |
MDR-10 (10W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 670mA | 10W | 3 kV | Industrial, ITE (Commercial) | 81% | -20°C ~ 70°C (With Derating) | Universal Input | CB, CE, cURus, TUV | - |
|
56YSD30S-2401250AC/DC DIN RAIL SUPPLY 24V 30W |
90 |
|
Таблицы данных |
56YSD30S (30W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.25A | 30W | - | Industrial, ITE (Commercial) | 89% | -20°C ~ 50°C | Adjustable Output, IP20 | BSMI, CE, EAC, TUV, UL | 508; 60950-1 |
