Промышленные блоки питания на DIN-рейку
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP-90WAC/DC DIN RAIL SUPPLY 24V 90W |
50 |
|
Таблицы данных |
SmartPower™ | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.75A | 90W | 3 kV | Industrial | 88% | -25°C ~ 70°C | - | CE, cUL, UL | - |
|
PMK150S-24D150W Enclosed Power Supply with |
34 |
|
Таблицы данных |
PMK150D (150W) | Tape & Box (TB) | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 6.3A | 151W | 4.242 kV | ITE (Commercial) | 75% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | cURus | 60950-1 |
|

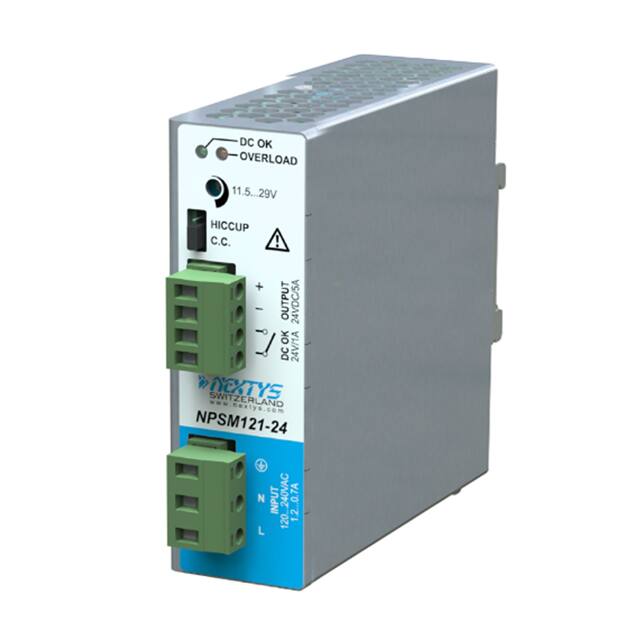

ASINPSM121-24AC/DC DIN RAIL SUPPLY 24V 120W |
100 |
|
- |
- | Box | Discontinued at Digi-Key | AC or DC | 1 | 120 ~ 240 VAC | 110V | 345V | 24V | - | - | - | - | - | 5A | 120W | - | Industrial | 90% | - | - | CB, CE, UL | - |
|
SDR-240-48AC/DC DIN RAIL SUPPLY 48V 240W |
117 |
|
Таблицы данных |
- | Box | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | - | - | - | -25°C ~ 70°C | - | - | - |
|
|
SP-110-120WAC/DC DIN RAIL SUPPLY 24V 120W |
50 |
|
Таблицы данных |
SmartPower™ | Box | Active | AC | 1 | 90 ~ 135 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial | 91.6% | -25°C ~ 70°C | - | CE, cUL, UL | - |
|
|
W16FT440AC/DC CONVERTER |
500 |
|
Таблицы данных |
- | Bulk | Active | - | 1 | - | - | - | 16V | - | - | - | - | - | - | 70W | 4.242 kV | Industrial, ITE (Commercial) | 76% | 0°C ~ 71°C | DC Input Capable, Remote Sense | CE, cULus, cURus | 60950-1; UL 508 |
|
|
DTD-360-0953-T360W Industrial DC to DC Power B |
34 |
|
Таблицы данных |
- | Retail Package | Active | - | 1 | - | - | - | 53V | - | - | - | - | - | 6.79A | 360W | - | ITE (Commercial) | - | -40°C ~ 75°C | - | - | - |
|
ML60.242PULS 60 Watt Series / 24 VDC / 2 |
267 |
|
Таблицы данных |
- | Retail Package | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | - | ITE (Commercial) | 90.4% | -40°C ~ 70°C | Adjustable Output, Universal Input | CE, cULus, FCC | - |
|
|
ASINPSM481-4848 Vdc DIN Rail Power Supply, Ul |
75 |
|
- |
- | Retail Package | Active | AC or DC | 1 | 90 ~ 264 VAC | 110V | 345V | 48V | - | - | - | - | - | 6.7A | 322W | 4.2 kV | Industrial, ITE (Commercial) | 94% | -40°C ~ 70°C (With Derating) | IP20 | cULus | 60950-1; UL 508 |
|
|
SP-110-240WAC/DC DIN RAIL SUPPLY 24V 240W |
50 |
|
Таблицы данных |
SmartPower™ | Box | Active | AC | 1 | 90 ~ 135 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial | 91.6% | -25°C ~ 70°C | - | CE, cUL, UL | - |
|
|
DTD-480-0953-T480W Industrial DC to DC Power B |
32 |
|
Таблицы данных |
- | Retail Package | Active | - | 1 | - | - | - | 53V | - | - | - | - | - | 9.05A | 480W | - | ITE (Commercial) | - | -40°C ~ 75°C | - | - | - |
|
SDR-480-48AC/DC CONVERTER 2X48V 480W |
68 |
|
Таблицы данных |
SDR-480 (480W) | Retail Package | Active | - | 1 | - | - | - | 48V | - | - | - | - | - | - | 480W | 3 kV | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | CB, CE, cULus, TUV | 62368-1; UL 508 |
|
MDR-20-12AC/DC DIN RAIL SUPPLY 12V 20W |
57 |
|
Таблицы данных |
MDR-20 (20W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 1.67A | 20W | 3 kV | Industrial, ITE (Commercial) | 80% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, TUV | - |
|
HDR-60-15AC/DC DIN RAIL SUPPLY 15V 60W |
0 |
|
Таблицы данных |
HDR-60 (60W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 4A | 60W | 4 kV | Industrial, ITE (Commercial) | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, cURus, TUV | - |
|
DDR-15L-5DC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
Таблицы данных |
DDR-15 (15W) | Box | Active | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 3A | 15W | 4 kV | ITE (Commercial) | 85% | -40°C ~ 85°C (With Derating) | Adjustable Output | CE, EAC | - |
|
|
DDR-15G-24DC/DC DIN RAIL SUPPLY 24V 15W |
0 |
|
Таблицы данных |
DDR-15 (15W) | Box | Active | DC | 1 | - | 9V | 36V | 24V | - | - | - | - | - | 630mA | 15W | 4 kV | ITE (Commercial) | 86% | -40°C ~ 85°C (With Derating) | Adjustable Output | CE, EAC | - |
|
|
1234301AC/DC DIN RAIL SUPPLY 24V 75W |
92 |
|
Таблицы данных |
- | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.125A | 75W | 4 kV | Laboratory | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | CB, UL | 61010-1 |
|
|
DDR-15G-5DC/DC DIN RAIL SUPPLY 5V 15W |
53 |
|
Таблицы данных |
DDR-15 (15W) | Box | Active | DC | 1 | - | 9V | 36V | 5V | - | - | - | - | - | 3A | 15W | 4 kV | ITE (Commercial) | 84% | -40°C ~ 85°C (With Derating) | Adjustable Output | CE, EAC | - |
|
|
DDR-15L-24DC/DC DIN RAIL SUPPLY 24V 15W |
30 |
|
Таблицы данных |
DDR-15 (15W) | Box | Active | DC | 1 | - | 18V | 75V | 24V | - | - | - | - | - | 630mA | 15W | 4 kV | ITE (Commercial) | 87% | -40°C ~ 85°C (With Derating) | Adjustable Output | CE, EAC | - |
|
DSP10-12AC/DC DIN RAIL SUPPLY 12V 10W |
77 |
|
Таблицы данных |
DSP (7.5-100W) | Bulk | Not For New Designs | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 830mA | 10W | 3 kV | ITE (Commercial) | 78% | -25°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | CE | - |
