Промышленные блоки питания на DIN-рейку
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSP 360-124 EXAC/DC DIN RAIL SUPPLY 24V 360W |
48 |
|
Таблицы данных |
TSP-EX (360W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 187 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 15A | 360W | - | Hazardous Locations, Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Remote On/Off, Universal Input | CB, CE, cURus, SIQ | - |
|
VHK200W-Q48-S24-DINDC/DC DIN RAIL SUPPLY 24V 200W |
49 |
|
Таблицы данных |
MDU (200W) | Box | Active | DC | 1 | - | 18V | 75V | 24V | - | - | - | - | - | 8.3A | 200W | - | - | 86% | -40°C ~ 85°C | - | CE | - |
|
PS6R-J24AC/DC DIN RAIL SUPPLY 24V 480W |
40 |
|
Таблицы данных |
PS6R (480W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 350V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial) | 93% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, cULus, TUV | 62368-1 |
|

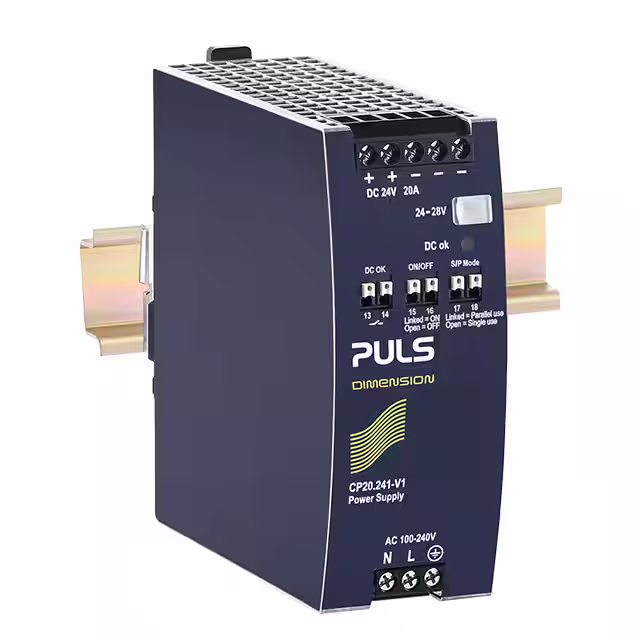

CP20.241-V1AC/DC DIN RAIL SUPPLY 24V 480W |
35 |
|
Таблицы данных |
DIMENSION CP (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 180V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 95.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | ATEX, EAC, IEC, IECEx, UL | Class I Div 2; 61010-2-201 |
|
XT40.721AC/DC DIN RAIL SUPPLY 72V 960W |
29 |
|
Таблицы данных |
DIMENSION X (960W) | Box | Active | AC | 1 | 300 ~ 460 VAC (3 Phase) | - | - | 72V | - | - | - | - | - | 13A | 960W | 3 kV | ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | IP20 | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
RPS60-12-CUAC/DC DIN RAIL SUPPLY 12V 60W |
607 |
|
Таблицы данных |
RPS60 (60W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 12V | - | - | - | - | - | 5A | 60W | 4 kV | Industrial, ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cULus | 62368-1; UL 508 |
|
56YSD60S-2402500AC/DC DIN RAIL SUPPLY 24V 60W |
244 |
|
Таблицы данных |
56YSD60S (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | - | Industrial, ITE (Commercial) | 90% | -20°C ~ 50°C | Adjustable Output, IP20 | BSMI, CE, EAC, TUV, UL | 508; 60950-1 |
|
RPS120-12-CUAC/DC DIN RAIL SUPPLY 12V 96W |
184 |
|
Таблицы данных |
RPS120 (120W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 12V | - | - | - | - | - | 8A | 96W | 4 kV | Industrial, ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cULus | 62368-1; UL 508 |
|
RPS120-48-CUAC/DC DIN RAIL SUPPLY 48V 120W |
149 |
|
Таблицы данных |
RPS120 (120W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 2.5A | 120W | 4 kV | Industrial, ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cULus | 62368-1; UL 508 |
|
DSP30-15AC/DC DIN RAIL SUPPLY 15V 30W |
190 |
|
Таблицы данных |
DSP (7.5-100W) | Bulk | Not For New Designs | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 2A | 30W | 3 kV | ITE (Commercial) | 83% | -25°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | CE | - |
|

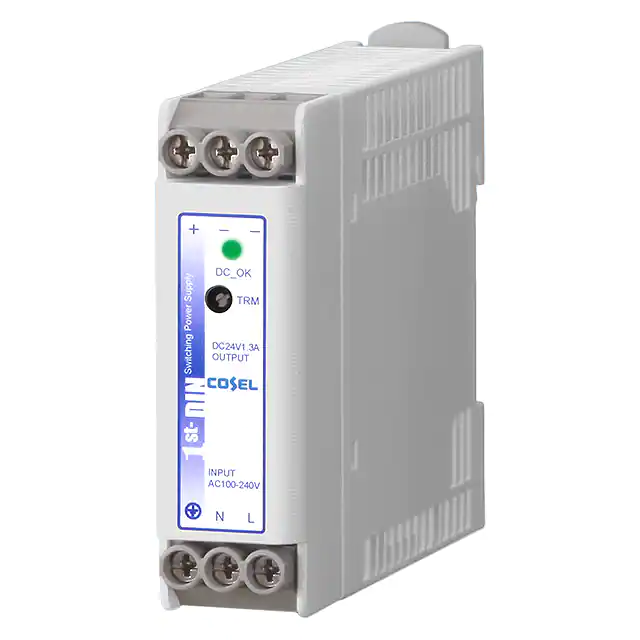

KHEA30F-24AC/DC DIN RAIL SUPPLY 24V 30W |
33 |
|
Таблицы данных |
KHEA (30W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 30W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cULus, cURus, TUV | - |
|
PS5R-VA12AC/DC DIN RAIL SUPPLY 12V 7.2W |
47 |
|
Таблицы данных |
PS5R-V (7.5W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 12V | - | - | - | - | - | 600mA | 7.2W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 79% | -25°C ~ 75°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, cULus, TUV | 62368-1 |
|
TBLC 25-124AC/DC DIN RAIL SUPPLY 24V 25W |
77 |
|
Таблицы данных |
TBLC (25W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.05A | 25W | 3 kV | Household Appliances, Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, CE, cULus, cURus, SIQ | - |
|
DSP60-15AC/DC DIN RAIL SUPPLY 15V 60W |
143 |
|
Таблицы данных |
DSP (7.5-100W) | Bulk | Not For New Designs | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 4A | 60W | 3 kV | ITE (Commercial) | 85% | -25°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | CE | - |
|
TBL 015-105AC/DC DIN RAIL SUPPLY 5V 12W |
28 |
|
Таблицы данных |
TBL (15W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 2.4A | 12W | - | Industrial, ITE (Commercial) | 73% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, CE, CSAus, cULus, cURus, SIQ | - |
|
KHEA60F-12AC/DC DIN RAIL SUPPLY 12V 60W |
56 |
|
Таблицы данных |
KHEA (60W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4.5A | 60W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cURus, TUV | - |
|
S8FS-G03012CDAC/DC DIN RAIL SUPPLY 12V 30W |
89 |
|
Таблицы данных |
S8FS-G (30W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 3A | 30W | 3 kV | ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cURus, TUV, UL | - |
|
787-1212AC/DC DIN RAIL SUPPLY 24V 60W |
58 |
|
Таблицы данных |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 125V | 375V | 24V | - | - | - | - | - | 2.5A | 60W | 4.242 kV | Household Appliances, Industrial, ITE (Commercial) | 89% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | cURus, EAC, UL | 60335-1; 60950-1; 62368-1; UL 508 |
|
CFM60C480-DRAC/DC DIN RAIL SUPPLY 48V 60W |
45 |
|
Таблицы данных |
CFM60CXXX-DR (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 1.25A | 60W | 4.242 kV | ITE (Commercial) | 88% | 0°C ~ 70°C (With Derating) | Universal Input | CE, cURus, FCC, TUV | - |
|
|

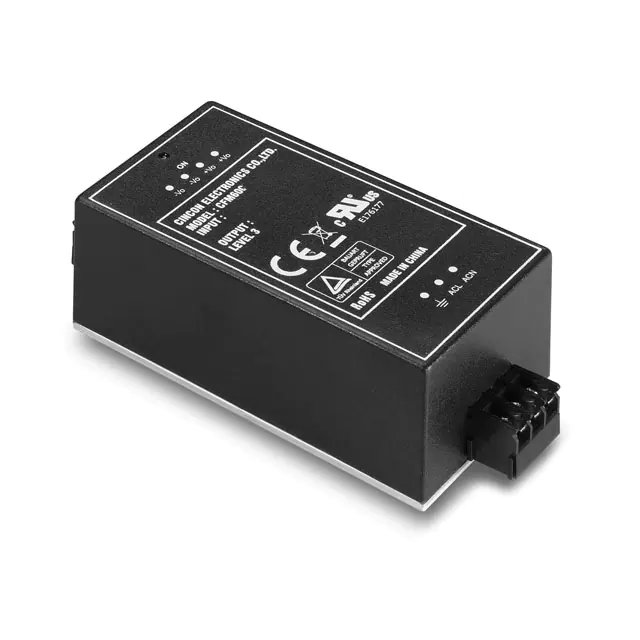

CFM60C050-DRAC/DC DIN RAIL SUPPLY 5V 40W |
37 |
|
Таблицы данных |
CFM60CXXX-DR (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 8A | 40W | 4.242 kV | ITE (Commercial) | 77% | 0°C ~ 70°C (With Derating) | Universal Input | CE, cURus, FCC, TUV | - |
