Промышленные блоки питания на DIN-рейку
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LXR1240-6M1GAC/DC DIN RAIL SUPPLY 27.3V 375W |
0 |
|
Таблицы данных |
Melcher X (375W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 27.3V | - | - | - | - | - | 12.6A | 375W | 2.8 kV | ITE (Commercial) | 87% | -40°C ~ 60°C | Adjustable Output, Load Sharing, PFC, Universal Input | cCSAus, CE | - |
|
787-1635/000-070AC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
Таблицы данных |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 48V | - | - | - | - | - | 10A | 480W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 93% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | CE, EAC | 60950-1; 61010-1; UL 508 |
|
|
SDN1024100CXEPM10A, 24V 1PH DIN, CONFORMAL COAT |
0 |
|
- |
SDN-C | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 10A | 240W | - | ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | Adjustable Output, IP20, PFC, Universal Input | 60950-1 |
|
|
AKKUTEC2403 VDSDC UPS BUFFER,115-230VAC INPUT |
0 |
|
Таблицы данных |
- | Retail Package | Active | AC | 1 | 95 ~ 265 VAC | - | - | 24V | - | - | - | - | - | 3A | - | - | Industrial | 85% | -10°C ~ 50°C | Adjustable Output, IP20, Universal Input | CE, cULus, UL | UL 508 |
|

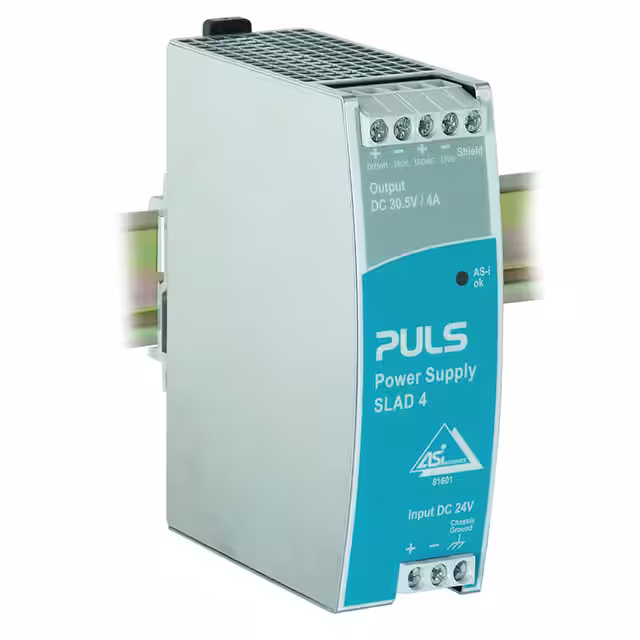

SLAD4.100DC/DC DIN RAIL SUPPLY 30.5V 122W |
1 |
|
Таблицы данных |
SilverLine | Bulk | Active | DC | 1 | - | 18V | 32.4V | 30.5V | - | - | - | - | - | 4A | 122W | - | ITE (Commercial) | 90.5% | -25°C ~ 70°C | - | EAC, IEC, UL | 508; 60950-1 |
|
|
SPD483001AC/DC DIN RAIL SUPPLY 48V 300W |
0 |
|
- |
SPD (300W) | Box | Obsolete | AC or DC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 210V | 375V | 48V | - | - | - | - | - | 6.25A | 300W | - | Hazardous Locations, Industrial, ITE (Commercial) | 90% | -30°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC | CE, cULus, TUV | - |
|
QS10.481-A1AC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
Таблицы данных |
DIMENSION Q (240W) | Box | Obsolete | AC | 1 | 85 ~ 276 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 500 V | Hazardous Locations, ITE (Commercial) | 92% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ATEX, CSA, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
XT40.361AC/DC DIN RAIL SUPPLY 36V 958W |
0 |
|
Таблицы данных |
DIMENSION X (960W) | Box | Active | AC | 1 | 300 ~ 460 VAC (3 Phase) | - | - | 36V | - | - | - | - | - | 26.6A | 958W | 500 V | Industrial, ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | IP20, PFC | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
|
15338.2AC/DC DIN RAIL SUPPLY |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
787-845AC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
Таблицы данных |
- | Box | Active | AC or DC | 1 | 340 ~ 550 VAC | 480V | 780V | 48V | - | - | - | - | - | 10A | 480W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 93% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|
|
2787-2348/000-070PSU, PRO 2 3-PH |
0 |
|
Таблицы данных |
- | Bulk | Active | AC | 1 | 340 ~ 550 VAC | - | - | 24V | - | - | - | - | - | 40A | 960W | 3.15 kV | Laboratory | 96.1% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | UL | 61010-1 |
|
|
SPD243001BAC/DC DIN RAIL SUPPLY 24V 300W |
0 |
|
- |
SPD (300W) | Box | Obsolete | AC or DC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 210V | 375V | 24V | - | - | - | - | - | 12.5A | 300W | - | Hazardous Locations, Industrial, ITE (Commercial) | 89% | -30°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC | CE, cULus, TUV | - |
|
|
S8VS-48024B-FAC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Таблицы данных |
S8VS (480W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 83% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | CE, cULus, cURus, VDE | - |
|
|
787-852/000-005AC/DC DIN RAIL SUPPLY |
0 |
|
Таблицы данных |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 4.242 kV | Industrial, ITE (Commercial) | - | -25°C ~ 85°C | IP20 | CE, cURus, UL | 60950-1; UL 508 |
|
|
2787-2358PSU, PRO 2 3-PH |
0 |
|
Таблицы данных |
- | Bulk | Active | AC | 1 | 340 ~ 550 VAC | - | - | 48V | - | - | - | - | - | 20A | 960W | 3.15 kV | Laboratory | 96% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | UL | 61010-1 |
|

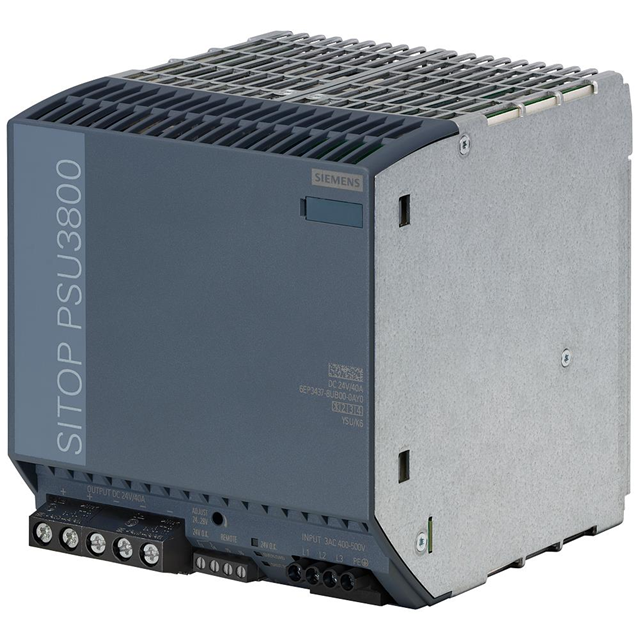

6EP34378UB000AY0AC/DC DIN RAIL SUPPLY 24V |
0 |
|
Таблицы данных |
6EP3 | Box | Active | AC | 1 | 320 ~ 575 VAC | - | - | 24V | - | - | - | - | - | 40A | - | - | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C | Adjustable Output, IP20 | cCSAus, CE, CSA, cULus, UL | 60950-1; UL 508 |
|
VFK600-D24-S12-DINDC/DC DIN RAIL SUPPLY 12V 600W |
0 |
|
Таблицы данных |
VFK600-DIN (700W) | Box | Active | DC | 1 | - | 18V | 36V | 12V | - | - | - | - | - | 50A | 600W | - | - | 89% | -40°C ~ 85°C | - | CE | - |
|
|
VFK600-D24-S24-DINDC/DC DIN RAIL SUPPLY 24V 600W |
0 |
|
Таблицы данных |
VFK600-DIN (700W) | Box | Active | DC | 1 | - | 18V | 36V | 24V | - | - | - | - | - | 25A | 600W | - | - | 91% | -40°C ~ 85°C | - | CE | - |
|
|
VFK600-D24-S28-DINDC/DC DIN RAIL SUPPLY 28V 600W |
0 |
|
Таблицы данных |
VFK600-DIN (700W) | Box | Active | DC | 1 | - | 18V | 36V | 28V | - | - | - | - | - | 21.5A | 600W | - | - | 90% | -40°C ~ 85°C | - | CE | - |
|
|
VFK600-D24-S32-DINDC/DC DIN RAIL SUPPLY 32V 608W |
0 |
|
Таблицы данных |
VFK600-DIN (700W) | Box | Active | DC | 1 | - | 18V | 36V | 32V | - | - | - | - | - | 19A | 608W | - | - | 91% | -40°C ~ 85°C | - | CE | - |
