БОМ
Промышленные блоки питания на DIN-рейку
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

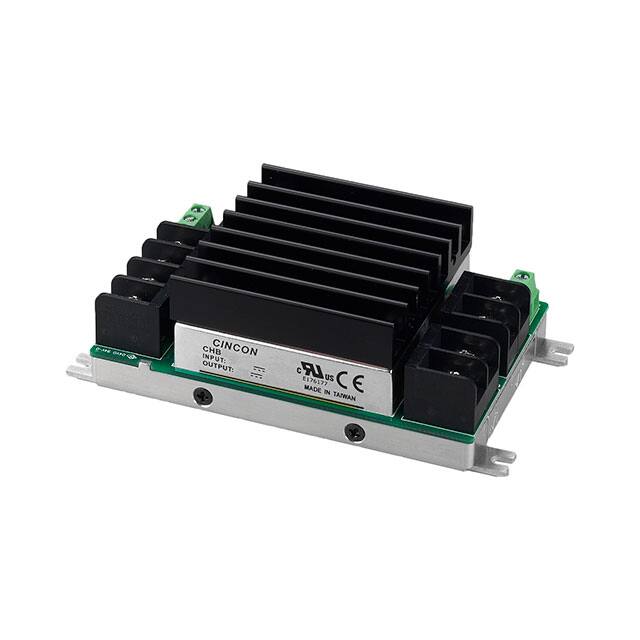

CHB100W-24S28-DINDC/DC DIN RAIL SUPPLY 28V 100W |
0 |
|
Таблицы данных |
CHB100W (100W) | Box | Active | DC | 1 | - | 9V | 36V | 28V | - | - | - | - | - | 3.57A | 100W | 1.5 kV | ITE (Commercial) | 86% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | CE, cURus | - |
|
|
CHB100W-48S3V3-DINDC/DC DIN RAIL SUPPLY 3.3V 66W |
0 |
|
Таблицы данных |
CHB100W (100W) | Box | Active | DC | 1 | - | 18V | 75V | 3.3V | - | - | - | - | - | 20A | 66W | 1.5 kV | ITE (Commercial) | 82.5% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | CE, cURus | - |
|
|
CHB100W-48S05-DINDC/DC DIN RAIL SUPPLY 5V 100W |
0 |
|
Таблицы данных |
CHB100W (100W) | Box | Active | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 20A | 100W | 1.5 kV | ITE (Commercial) | 86% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | CE, cURus | - |
|
|
CHB100W-48S12-DINDC/DC DIN RAIL SUPPLY 12V 100W |
0 |
|
Таблицы данных |
CHB100W (100W) | Box | Active | DC | 1 | - | 18V | 75V | 12V | - | - | - | - | - | 8.3A | 100W | 1.5 kV | ITE (Commercial) | 87.5% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | CE, cURus | - |
|
|
CHB100W-48S15-DINDC/DC DIN RAIL SUPPLY 15V 100W |
0 |
|
Таблицы данных |
CHB100W (100W) | Box | Active | DC | 1 | - | 18V | 75V | 15V | - | - | - | - | - | 6.7A | 100W | 1.5 kV | ITE (Commercial) | 88% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | CE, cURus | - |
|
|
CHB100W-48S24-DINDC/DC DIN RAIL SUPPLY 24V 100W |
0 |
|
Таблицы данных |
CHB100W (100W) | Box | Active | DC | 1 | - | 18V | 75V | 24V | - | - | - | - | - | 4.17A | 100W | 1.5 kV | ITE (Commercial) | 89% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | CE, cURus | - |
|
|
CHB100W-48S48-DINDC/DC DIN RAIL SUPPLY 48V 100W |
0 |
|
Таблицы данных |
CHB100W (100W) | Box | Active | DC | 1 | - | 18V | 75V | 48V | - | - | - | - | - | 2.08A | 100W | 1.5 kV | ITE (Commercial) | 84.5% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | CE, cURus | - |
|
|
CHB100W-48S28-DINDC/DC DIN RAIL SUPPLY 28V 100W |
0 |
|
Таблицы данных |
CHB100W (100W) | Box | Active | DC | 1 | - | 18V | 75V | 28V | - | - | - | - | - | 3.57A | 100W | 1.5 kV | ITE (Commercial) | 86% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | CE, cURus | - |
|

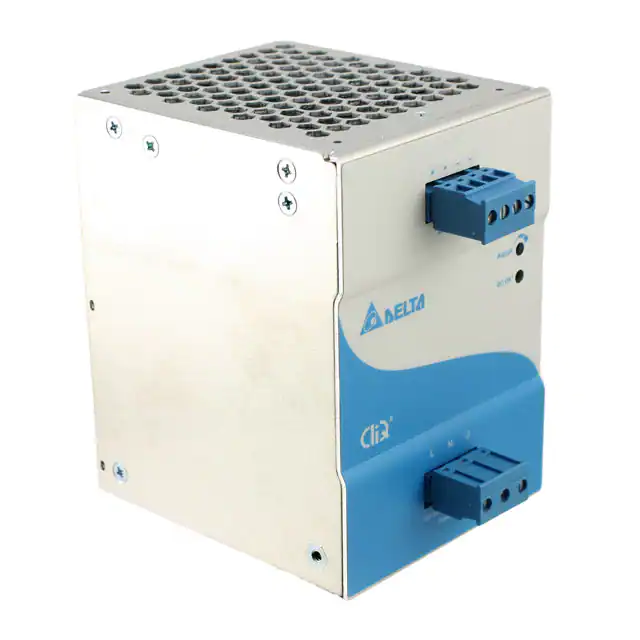

DRP024V240W1BAAC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Таблицы данных |
CliQ II (240W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 80°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | ATEX EN, CB Scheme, CE, CSA, DNV GL, EAC, EN, SIQ, UL | 107.1-01; 213, 12.12.09; 508; 1310; 50581; 55011; 55024; 55032; 60079-15; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3 |
|

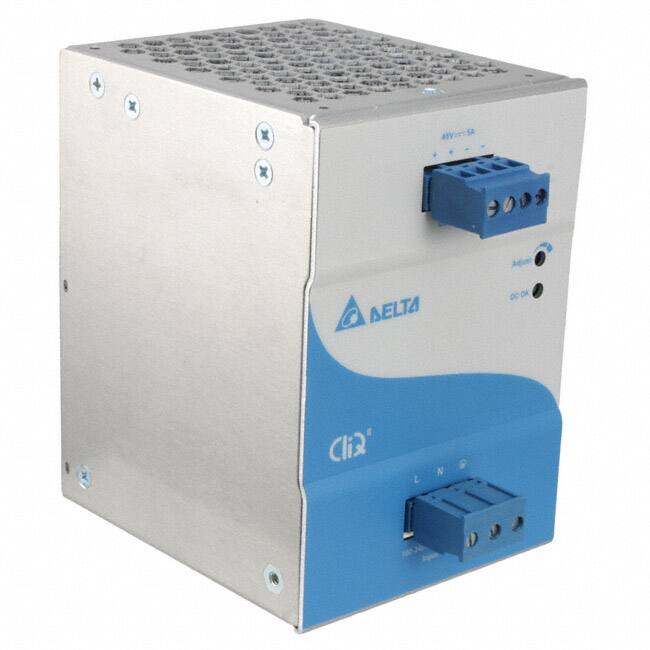

DRP048V240W1BAAC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
Таблицы данных |
CliQ II (240W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 80°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | ATEX EN, CB Scheme, CE, CSA, DNV GL, EAC, EN, SIQ, UL | 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3 |
|
1343.9DC/DC DIN RAIL SUPPLY 24V |
0 |
|
Таблицы данных |
- | Box | Active | DC | 1 | - | - | - | 24V | - | - | - | - | - | 500mA | - | - | ITE (Commercial) | 85% | -20°C ~ 50°C | - | - | - |
|
2320199AC/DC DIN RAIL SUPPLY 28V 84W |
0 |
|
Таблицы данных |
MINI | Bulk | Obsolete | AC | 1 | 10 ~ 42 VAC | - | - | 28V | - | - | - | - | - | 3A | 84W | 3 kV | ITE (Commercial) | 95.7% | -25°C ~ 70°C (With Derating) | - | - | - |
|
LDN120-12AC/DC DIN RAIL SUPPLY 12V 120W |
0 |
|
Таблицы данных |
LDN120 (120W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 7A | 120W | 4.2 kV | ITE (Commercial) | 84% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | - | - |
|
|
PSD-A120W24DIN RAIL A/D 100-240V 120W 24V |
0 |
|
Таблицы данных |
UNO-100 | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 375V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, FCC, UL | 60950-1 |
|
|
SMP21-L20-DC24V-5AAC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Таблицы данных |
SMP21 | Bulk | Obsolete | AC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial, ITE (Commercial) | 86% | -35°C ~ 71°C (With Derating) | Adjustable Output, IP20 | TUV, UL | - |
|
RPMD15-243.3SFWDC/DC DIN RAIL SUPPLY 3.3V 15W |
0 |
|
Таблицы данных |
POWERLINE Power Modules (15W) | Bulk | Active | DC | 1 | - | 9.5V | 36V | 3.3V | - | - | - | - | - | 4A | 15W | - | ITE (Commercial) | - | - | - | CE | 60950-1 |
|
|
RPMD15-2405SFWDC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
Таблицы данных |
POWERLINE Power Modules (15W) | Bulk | Active | DC | 1 | - | 9.5V | 36V | 5V | - | - | - | - | - | 3A | 15W | - | ITE (Commercial) | - | - | - | CE | 60950-1 |
|
|
RPMD15-2412SFWDC/DC DIN RAIL SUPPLY 12V 15W |
0 |
|
Таблицы данных |
POWERLINE Power Modules (15W) | Bulk | Active | DC | 1 | - | 9.5V | 36V | 12V | - | - | - | - | - | 1.25A | 15W | - | ITE (Commercial) | - | - | - | CE | 60950-1 |
|
|
RPMD15-2415SFWDC/DC DIN RAIL SUPPLY 15V 15W |
0 |
|
Таблицы данных |
POWERLINE Power Modules (15W) | Bulk | Active | DC | 1 | - | 9.5V | 36V | 15V | - | - | - | - | - | 1A | 15W | - | ITE (Commercial) | - | - | - | CE | 60950-1 |
|
|
RPMD15-483.3SFWDC/DC DIN RAIL SUPPLY 3.3V 15W |
0 |
|
Таблицы данных |
POWERLINE Power Modules (15W) | Bulk | Active | DC | 1 | - | 9.5V | 36V | 3.3V | - | - | - | - | - | 4A | 15W | - | ITE (Commercial) | - | - | - | CE | 60950-1 |
