Промышленные блоки питания на DIN-рейку
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LEC240-12AC/DC DIN RAIL SUPPLY 12V 192W |
0 |
|
Таблицы данных |
LEC240 (240W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 16A | 192W | 3 kV | Industrial, ITE (Commercial), Laboratory | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE | 61010-1; 62368-1; UL 508 |
|
|
EC7AW18-72D12-EDRTP10WENCLOSED DINRAIL MOUNT DC-DC, |
0 |
|
- |
EC7AW18 (10W) | Box | Active | DC | 2 | - | 10V | 160V | 12V | -12V | - | - | - | - | 416mA, 416mA | 10W | 3 kV | ITE (Commercial), Railway | 85% | -40°C ~ 100°C (With Derating) | Remote On/Off | CE, UKCA | 62368-1 |
|
|
EC7AW18-72S05-EDRTP10W ENCLOSED DIN RAIL MOUNT DC-D |
0 |
|
- |
EC7AW18 (10W) | Box | Active | DC | 1 | - | 10V | 160V | 5V | - | - | - | - | - | 2A | 10W | 3 kV | ITE (Commercial), Railway | 82% | -40°C ~ 100°C (With Derating) | Remote On/Off | CE, UKCA | 62368-1 |
|
|
EC7AW18-72S15-EDRTP10W ENCLOSED DIN RAIL MOUNT DC-D |
0 |
|
- |
EC7AW18 (10W) | Box | Active | DC | 1 | - | 10V | 160V | 15V | - | - | - | - | - | 668mA | 10W | 3 kV | ITE (Commercial), Railway | 87% | -40°C ~ 100°C (With Derating) | Remote On/Off | CE, UKCA | 62368-1 |
|
|
EC7AW18-72S12-EDRTP10W ENCLOSED DIN RAIL MOUNT DC-D |
0 |
|
- |
EC7AW18 (10W) | Box | Active | DC | 1 | - | 10V | 160V | 12V | - | - | - | - | - | 835mA | 10W | 3 kV | ITE (Commercial), Railway | 87% | -40°C ~ 100°C (With Derating) | Remote On/Off | CE, UKCA | 62368-1 |
|
|
EC7AW18-72D15-EDRTP10WENCLOSED DINRAIL MOUNT DC-DC, |
0 |
|
- |
EC7AW18 (10W) | Box | Active | DC | 2 | - | 10V | 160V | 15V | -15V | - | - | - | - | 333mA, 333mA | 10W | 3 kV | ITE (Commercial), Railway | 85% | -40°C ~ 100°C (With Derating) | Remote On/Off | CE, UKCA | 62368-1 |
|
|
EC7AW18-72D05-EDRTP10WENCLOSED DINRAIL MOUNT DC-DC, |
0 |
|
- |
EC7AW18 (10W) | Box | Active | DC | 2 | - | 10V | 160V | 5V | -5V | - | - | - | - | 1A, 1A | 10W | 3 kV | ITE (Commercial), Railway | 81% | -40°C ~ 100°C (With Derating) | Remote On/Off | CE, UKCA | 62368-1 |
|

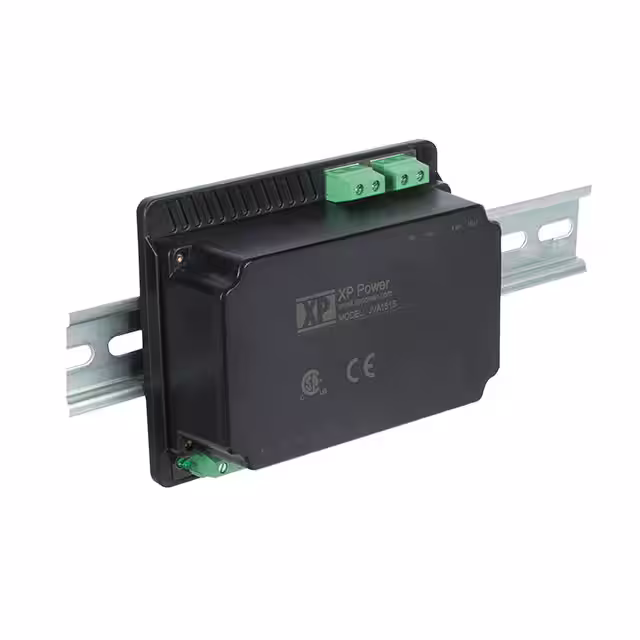

JVA151500S05-DDC/DC DIN RAIL SUPPLY 5V 10W |
0 |
|
Таблицы данных |
JVA15 (15W) | Bulk | Obsolete | DC | 1 | - | 200V | 1500V | 5V | - | - | - | - | - | 2A | 10W | 4 kV | ITE (Commercial) | 72% | -40°C ~ 70°C (With Derating) | Remote On/Off | UL | - |
|
|
JVA151500S15-DDC/DC DIN RAIL SUPPLY 15V 15W |
0 |
|
Таблицы данных |
JVA15 (15W) | Bulk | Obsolete | DC | 1 | - | 200V | 1500V | 15V | - | - | - | - | - | 1A | 15W | 4 kV | ITE (Commercial) | 72% | -40°C ~ 70°C (With Derating) | Remote On/Off | UL | - |
|

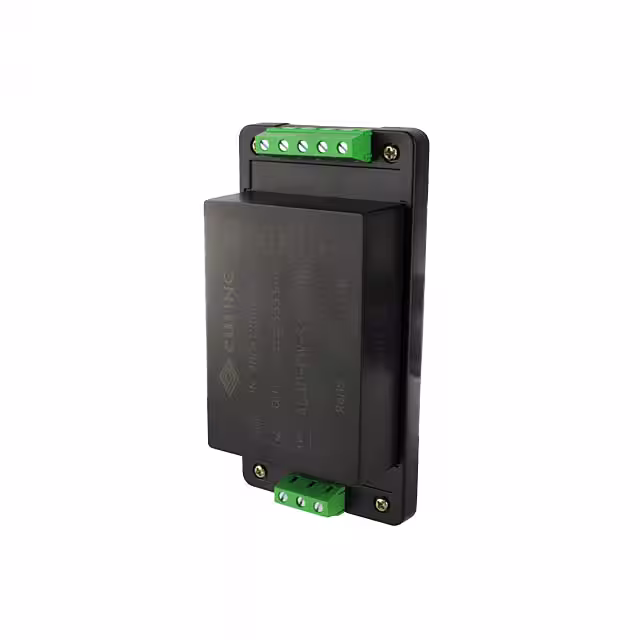

AE40-EW-S12-DINDC/DC DIN RAIL SUPPLY 12V 40W |
0 |
|
Таблицы данных |
AE40-EW-DIN (40W) | Tray | Not For New Designs | DC | 1 | - | 200V | 1200V | 12V | - | - | - | - | - | 3.33A | 40W | 4 kV | - | 83% | -25°C ~ 70°C (With Derating) | - | - | - |
|
PSC-9615AC/DC DIN RAIL SUPPLY 15V 96W |
0 |
|
Таблицы данных |
PSC-96 (96W) | Box | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 15V | - | - | - | - | - | 6.4A | 96W | 4.242 kV | Industrial, ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cULus, TUV, UR | 508; 60950-1 |
|
SPMA15301AC/DC DIN RAIL SUPPLY 15V 30W |
0 |
|
Таблицы данных |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 15V | - | - | - | - | - | 2A | 30W | 4 kV | Industrial, ITE (Commercial) | 86.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE | 62368-1; UL 508 |
|
|
SPMA05301AC/DC DIN RAIL SUPPLY 5V 30W |
0 |
|
Таблицы данных |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 5V | - | - | - | - | - | 6A | 30W | 4 kV | Industrial, ITE (Commercial) | 81% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE | 62368-1; UL 508 |
|
|
LITF480-26B24SDIN-RAIL ACDC POWER SUPPLY 480W |
0 |
|
Таблицы данных |
LITF480-26BxxS (480W) | Bulk | Not For New Designs | AC or DC | 1 | 320 ~ 550 VAC (3 Phase) | 450V | 800V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | Industrial, ITE (Commercial), Laboratory | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC | CE, cULus, TUV, UKCA | 61010-1; 62368-1; UL 508 |
|
|
LITF480-26B48SDINRAIL AC DC CONVERTER 480W 1 O |
0 |
|
Таблицы данных |
LITF480-26BxxS (480W) | Box | Not For New Designs | AC or DC | 1 | 320 ~ 550 VAC (3 Phase) | 450V | 800V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | Industrial, ITE (Commercial), Laboratory | 95% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE, cULus, EN, TUV, UKCA, UL | 61010-1; 62368-1; UL 508 |
|
|
RWS100B-24/DINAC-DC, 115-230VAC, OUTPUT 24V 4. |
0 |
|
Таблицы данных |
RWS-B (100W) | Bulk | Active | AC or DC | 1 | 85 ~ 265 VAC | 120V | 370V | 24V | - | - | - | - | - | 4.5A | 108W | 3 kV | ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Universal Input | - | 60950-1; 62368-1 |
|
ECE60US15-SDAC/DC DIN RAIL SUPPLY 15V 60W |
0 |
|
Таблицы данных |
ECE60 (60W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 4A | 60W | 3 kV | ITE (Commercial) | 88% | -40°C ~ 70°C (With Derating) | Universal Input | CB, TUV, UL | 62368-1 |
|
|
ECE60US36-SDAC/DC DIN RAIL SUPPLY 36V 60W |
0 |
|
Таблицы данных |
ECE60 (60W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 36V | - | - | - | - | - | 1.67A | 60W | 3 kV | ITE (Commercial) | 88% | -40°C ~ 70°C (With Derating) | Universal Input | CB, TUV, UL | 62368-1 |
|
|
ECE60US48-SDAC/DC DIN RAIL SUPPLY 48V 60W |
0 |
|
Таблицы данных |
ECE60 (60W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 1.25A | 60W | 3 kV | ITE (Commercial) | 86% | -40°C ~ 70°C (With Derating) | Universal Input | CB, TUV, UL | 62368-1 |
|
CRPS24VDC-240AC/DC DIN RAIL SUPPLY 24V 5W |
0 |
|
Таблицы данных |
CRPS | Bulk | Active | AC | 1 | 240VAC | - | - | 24V | - | - | - | - | - | 200mA | 5W | - | ITE (Commercial) | - | - | Universal Input | CE | - |
