Высокочастотные (РЧ) реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MW3HPS-5PGRELAY RF 5PG 3GHZ MICROWAVE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MW3HPS-5AERELAY RF 5AE 3GHZ MICROWAVE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

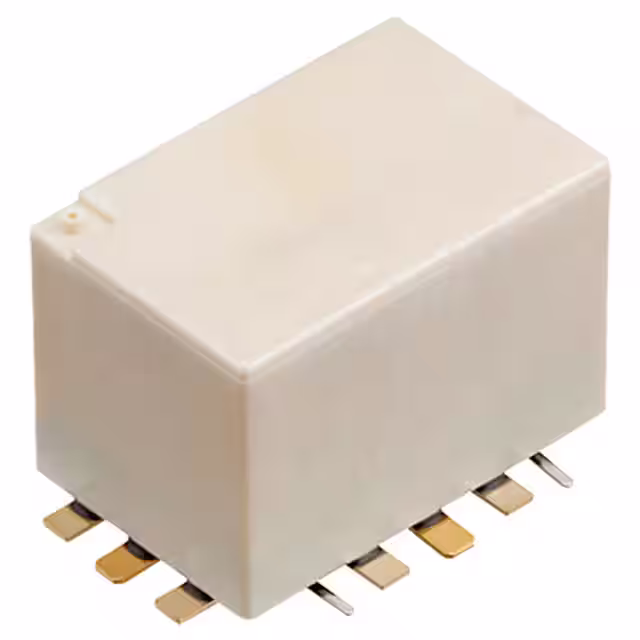

ARN10A4HXRELAY RF SPDT 4.5V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Non Latching | 71.1 mA | 4.5VDC | SPDT (1 Form C) | - | - | 3.38 VDC | 0.45 VDC | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN10A12XRELAY RF SPDT 12V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Non Latching | 26.7 mA | 12VDC | SPDT (1 Form C) | - | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN10A24XRELAY RF SPDT 24V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Non Latching | 13.3 mA | 24VDC | SPDT (1 Form C) | - | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN12A4HXRELAY RF SPDT 4.5V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Latching, Dual Coil | 88.9 mA | 4.5VDC | SPDT (1 Form C) | - | - | 3.38 VDC | - | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN12A12XRELAY RF SPDT 12V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Latching, Dual Coil | 33.3 mA | 12VDC | SPDT (1 Form C) | - | - | 9 VDC | - | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN10A4HZRELAY RF SPDT 4.5V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Non Latching | 71.1 mA | 4.5VDC | SPDT (1 Form C) | - | - | 3.38 VDC | 0.45 VDC | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN10A12ZRELAY RF SPDT 12V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Non Latching | 26.7 mA | 12VDC | SPDT (1 Form C) | - | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN10A24ZRELAY RF SPDT 24V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Non Latching | 13.3 mA | 24VDC | SPDT (1 Form C) | - | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN12A4HZRELAY RF SPDT 4.5V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Latching, Dual Coil | 88.9 mA | 4.5VDC | SPDT (1 Form C) | - | - | 3.38 VDC | - | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN12A12ZRELAY RF SPDT 12V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Latching, Dual Coil | 33.3 mA | 12VDC | SPDT (1 Form C) | - | - | 9 VDC | - | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN30A4HXRELAY RF SPDT 4.5V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Non Latching | 71.1 mA | 4.5VDC | SPDT (1 Form C) | - | - | 3.38 VDC | 0.45 VDC | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN30A12XRELAY RF SPDT 12V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Non Latching | 26.7 mA | 12VDC | SPDT (1 Form C) | - | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN30A24XRELAY RF SPDT 24V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Non Latching | 13.3 mA | 24VDC | SPDT (1 Form C) | - | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN12A24XRELAY RF SPDT 24V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Latching, Dual Coil | 16.7 mA | 24VDC | SPDT (1 Form C) | - | - | 18 VDC | - | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN30A4HZRELAY RF SPDT 4.5V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Non Latching | 71.1 mA | 4.5VDC | SPDT (1 Form C) | - | - | 3.38 VDC | 0.45 VDC | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN30A12ZRELAY RF SPDT 12V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Non Latching | 26.7 mA | 12VDC | SPDT (1 Form C) | - | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN30A24ZRELAY RF SPDT 24V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Non Latching | 13.3 mA | 24VDC | SPDT (1 Form C) | - | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARN12A24ZRELAY RF SPDT 24V |
0 |
|
Таблицы данных |
ARN | Tape & Reel (TR) | Active | Latching, Dual Coil | 16.7 mA | 24VDC | SPDT (1 Form C) | - | - | 18 VDC | - | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
