Высокочастотные (РЧ) реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6K-2F-RF-T-TR09 DC9RELAY RF DPDT 1A 9V |
0 |
|
Таблицы данных |
G6K-RF | Tape & Reel (TR) | Active | Non Latching | 11.3 mA | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 7.2 VDC | 0.9 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-T-TR09 DC3RELAY RF DPDT 1A 3V |
0 |
|
Таблицы данных |
G6K-RF | Tape & Reel (TR) | Active | Non Latching | 33 mA | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 2.4 VDC | 0.3 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6KU-2F-RF-TR09DC12RELAY RF DPDT 1A 12V |
0 |
|
Таблицы данных |
G6K-RF | Tape & Reel (TR) | Active | Latching, Single Coil | 9.1 mA | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 9 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6KU-2F-RF-TR09DC3RELAY RF DPDT 1A 3V |
0 |
|
Таблицы данных |
G6K-RF | Tape & Reel (TR) | Active | Latching, Single Coil | 33 mA | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 2.25 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6KU-2F-RF-TR09DC4.5RELAY RF DPDT 1A 4.5V |
0 |
|
Таблицы данных |
G6K-RF | Tape & Reel (TR) | Active | Latching, Single Coil | 23.2 mA | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.38 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-T-TR09 DC12RELAY RF DPDT 1A 12V |
0 |
|
Таблицы данных |
G6K-RF | Tape & Reel (TR) | Active | Non Latching | 9.1 mA | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 9.6 VDC | 1.2 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-T-TR09 DC24RELAY RF DPDT 1A 24V |
0 |
|
Таблицы данных |
G6K-RF | Tape & Reel (TR) | Active | Non Latching | 4.6 mA | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 19.2 VDC | 2.4 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
1462052-1RELAY RF SPDT 2A 3V |
0 |
|
Таблицы данных |
HF6, AXICOM | Bulk | Active | Non Latching | 46.9 mA | 3VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 2.25 VDC | 0.3 VDC | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
|
G6K-2F-RF-T DC3RELAY RF DPDT 1A 3V |
0 |
|
Таблицы данных |
G6K-RF | Tray | Active | Non Latching | 33 mA | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 2.4 VDC | 0.3 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6KU-2F-RF DC12RELAY RF DPDT 1A 12V |
0 |
|
Таблицы данных |
G6K-RF | Tray | Active | Latching, Single Coil | 9.1 mA | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 9 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6KU-2F-RF DC3RELAY RF DPDT 1A 3V |
0 |
|
Таблицы данных |
G6K-RF | Tray | Active | Latching, Single Coil | 33 mA | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 2.25 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6KU-2F-RF DC6RELAY RF DPDT 1A 6V |
0 |
|
Таблицы данных |
G6K-RF | Tray | Active | Latching, Single Coil | 17.6 mA | 6VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4.5 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6KU-2F-RF-TR03 DC4.5RELAY RF DPDT 1A 4.5V |
0 |
|
Таблицы данных |
G6K-RF | Tape & Reel (TR) | Active | Latching, Single Coil | 23.2 mA | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.38 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
2-1462050-7RELAY RF SPDT 2A 12V |
0 |
|
Таблицы данных |
HF3S, AXICOM | Bulk | Active | Non Latching | 11.7 mA | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 9 VDC | 1.2 VDC | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
|
G6K-2F-RF-T DC6RELAY RF DPDT 1A 6V |
0 |
|
Таблицы данных |
G6K-RF | Tray | Active | Non Latching | 17.6 mA | 6VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4.8 VDC | 0.6 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-T DC9RELAY RF DPDT 1A 9V |
0 |
|
Таблицы данных |
G6K-RF | Tray | Active | Non Latching | 11.3 mA | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 7.2 VDC | 0.9 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-T DC24RELAY RF DPDT 1A 24V |
0 |
|
Таблицы данных |
G6K-RF | Tray | Active | Non Latching | 4.6 mA | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 19.2 VDC | 2.4 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6KU-2F-RF-TR09DC24RELAY RF DPDT 1A 24V |
0 |
|
Таблицы данных |
G6K-RF | Tape & Reel (TR) | Active | Latching, Single Coil | 4.6 mA | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 18 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
4-1462051-1RELAY RF 50 OHM 140MW 9V |
0 |
|
- |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

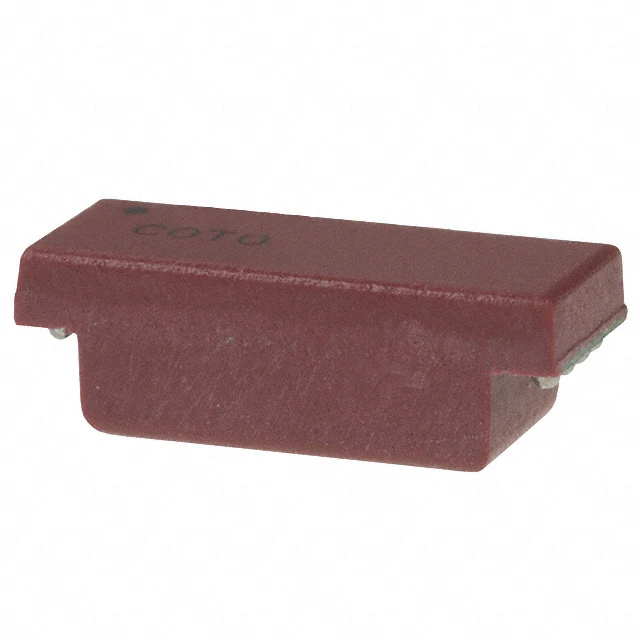

B10-03BRELAY RF SPST-NO 250MA 3.3V |
0 |
|
Таблицы данных |
B10 | Tape & Reel (TR) | Obsolete | Non Latching | 60 mA | 3.3VDC | SPST-NO (1 Form A) | 250 mA | 125VAC, 125VDC - Max | 2.4 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
