БОМ
Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTCDRH105RF-180N18UH SMD SHIELDED POWER INDUCTOR |
5 |
|
Таблицы данных |
CTCDRH105RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±30% | - | 3.2A | Shielded | 46mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
CTCDRH2D09F-4R7N4.7UH SMD SHIELDED POWR INDUCTOR |
5 |
|
Таблицы данных |
CTCDRH2D09F | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 640 mA | 410mA | Shielded | 288mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.039" (1.00mm) |
|
|
CTCDRH105RF-220N22UH SMD SHIELDED POWER INDUCTOR |
5 |
|
Таблицы данных |
CTCDRH105RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | - | 2.95A | Shielded | 61mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
|
CTCDRH105RF-101N100UH SMD SHIELDED POWR INDUCTOR |
4 |
|
Таблицы данных |
CTCDRH105RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±30% | - | 1.35A | Shielded | 253mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
CTMMP1808F-3R3MSMD Shielded Power Inductor |
25 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 3.3 µH | ±20% | 4 A | - | Shielded | 87mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|
CT1008CSF-182JSMD CER CORE WIRE-WOUND INDUCTOR |
20 |
|
Таблицы данных |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±5% | - | - | - | 2.6Ohm | - | 160MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CTMMP1808F-2R2MSMD Shielded Power Inductor |
20 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 5 A | - | Shielded | 58mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|

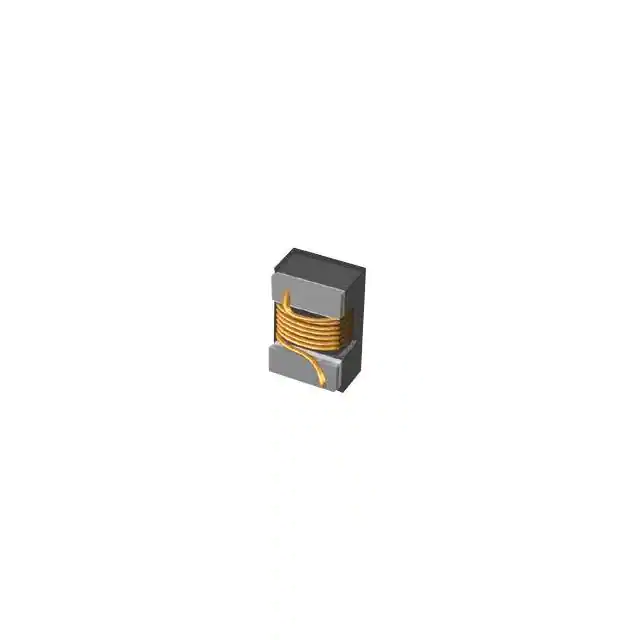

CT0603LSF-272JSMD FER CORE WIRE-WOUND INDUCTOR |
10 |
|
Таблицы данных |
ct0603lsf | - | Tape & Reel (TR) | Active | Wirewound | - | 2.7 µH | ±5% | - | - | - | 1.5Ohm | - | 105MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTMMP1808F-R47MSMD Shielded Power Inductor |
10 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 0.47 µH | ±20% | 9.5 A | - | Shielded | 14mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|

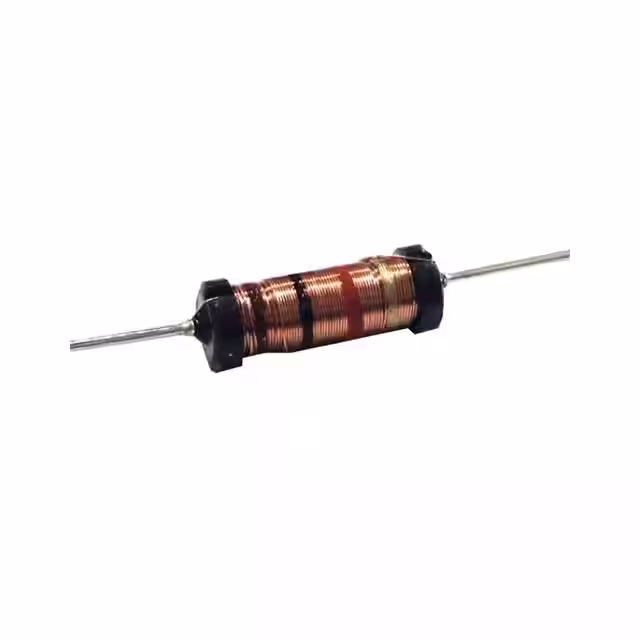

CTCVCF-102JAXIAL LEAD CLEAR POWER INDUCTOR |
5 |
|
Таблицы данных |
CTCVCF | Axial | Tape & Reel (TR) | Active | - | - | 1 mH | ±5% | 400 mA | 490mA | Unshielded | 4.2Ohm Max | 70 @ 252kHz | 720kHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Axial | 0.236" Dia x 0.630" L (6.00mm x 16.00mm) | - |
|

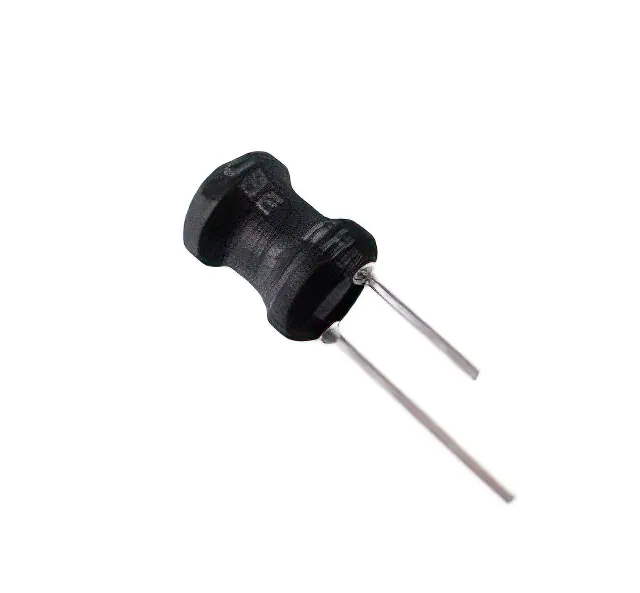

CTRL5480F-3-683K68000UH RADIAL FIXED INDUCTR |
5 |
|
- |
CTRL5480F-3 | Radial, Vertical Cylinder | Bulk | Active | - | - | 68 mH | ±10% | 36 mA | 40mA | Unshielded | 115Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.374" Dia (9.50mm) | 0.449" (11.40mm) |
|
|
CTRL5480F-3-100K10UH RADIAL FIXED INDUCTOR |
5 |
|
- |
CTRL5480F-3 | Radial, Vertical Cylinder | Bulk | Active | - | - | 10 µH | ±10% | 1.6 A | 4.2A | Unshielded | 34mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.374" Dia (9.50mm) | 0.449" (11.40mm) |
|
|
CTRL5480F-3-103K100UH RADIAL FXED INDUCTR |
5 |
|
- |
CTRL5480F-3 | Radial, Vertical Cylinder | Bulk | Active | - | - | 10 mH | ±10% | 76 mA | 130mA | Unshielded | 20.4Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.374" Dia (9.50mm) | 0.449" (11.40mm) |
|
|
CTMMP1808F-4R7MSMD Shielded Power Inductor |
5 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 3 A | - | Shielded | 105mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|

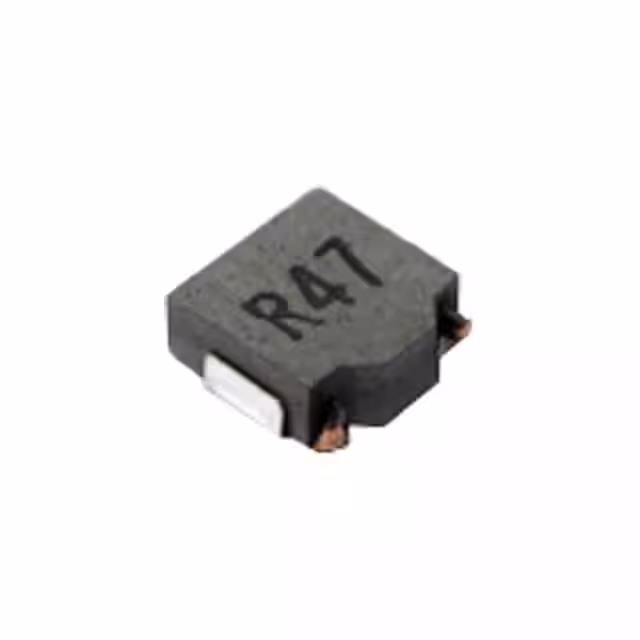

CTSPMA5020F-R47MPOWR INDUCTOR SMD SHIELDED .47UH |
10 |
|
Таблицы данных |
CTSPMA5020F | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 11.2 A | 18A | Shielded | 7.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.079" (2.00mm) |
|
CTHSC1008F-R22K0.22UH SMD POWER INDUCTOR |
8 |
|
Таблицы данных |
CTHSC1008F | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±10% | 56 A | 50A | Shielded | 0.29Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.295" (7.50mm) |
|
|
CTHSC1008F-R30K0.30UH SMD POWER INDUCTOR |
8 |
|
Таблицы данных |
CTHSC1008F | Nonstandard | Tape & Reel (TR) | Active | - | - | 300 nH | ±10% | 56 A | 35A | Shielded | 0.29Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.295" (7.50mm) |
|

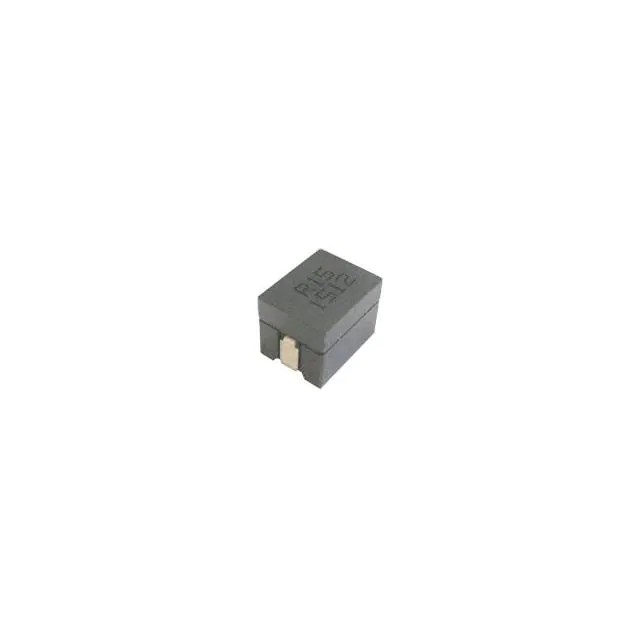

CTHSC1107F-R33L0.33UH SMD POWER INDUCTOR |
8 |
|
Таблицы данных |
CTHSC1107F | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±15% | 37 A | 28A | Shielded | 0.37mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.295" W (11.00mm x 7.50mm) | 0.276" (7.00mm) |
|
|
CTHSC1107F-R22L0.22UH SMD POWER INDUCTOR |
8 |
|
Таблицы данных |
CTHSC1107F | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±15% | 37 A | 40A | Shielded | 0.37mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.295" W (11.00mm x 7.50mm) | 0.276" (7.00mm) |
|
|
CTHSC1107F-R12L0.12UH SMD POWER INDUCTOR |
8 |
|
Таблицы данных |
CTHSC1107F | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±15% | 37 A | 60A | Shielded | 0.37mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.295" W (11.00mm x 7.50mm) | 0.276" (7.00mm) |
