Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTMMP2012CF-4R7MSMD Shielded Power Inductor |
5 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 6 A | - | Shielded | 50mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.110" (2.80mm) |
|
|
CTMMP2012CF-R47MSMD Shielded Power Inductor |
5 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 0.47 µH | ±20% | 16 A | - | Shielded | 6.4mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.110" (2.80mm) |
|
CT1008CSF-822GSMD CER CORE WIRE-WOUND INDUCTOR |
25 |
|
Таблицы данных |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±2% | - | - | - | 9.5Ohm | - | 35MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-103JSMD CER CORE WIRE-WOUND INDUCTOR |
25 |
|
Таблицы данных |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±5% | - | - | - | 12Ohm | - | 25MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-821JSMD CER CORE WIRE-WOUND INDUCTOR |
20 |
|
Таблицы данных |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 820 nH | ±5% | - | - | - | 1.6Ohm | - | 350MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-151JSMD CER CORE WIRE-WOUND INDUCTOR |
20 |
|
Таблицы данных |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 150 nH | ±5% | - | - | - | 700mOhm | - | 850MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-562JSMD CER CORE WIRE-WOUND INDUCTOR |
20 |
|
Таблицы данных |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±5% | - | - | - | 7Ohm | - | 55MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-331JSMD CER CORE WIRE-WOUND INDUCTOR |
15 |
|
Таблицы данных |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±5% | - | - | - | 1.1Ohm | - | 570MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1008CSF-330GSMD CER CORE WIRE-WOUND INDUCTOR |
15 |
|
Таблицы данных |
ct1008csf | - | Tape & Reel (TR) | Active | Wirewound | - | 33 nH | ±2% | - | - | - | 140mOhm | - | 1.6GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CTMMP1808AF-150MSMD Shielded Power Inductor |
5 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 15 µH | ±20% | 1.9 A | - | Shielded | 374mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.071" (1.80mm) |
|
|
CTMMP1808AF-220MSMD Shielded Power Inductor |
5 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 22 µH | ±20% | 1.4 A | - | Shielded | 500mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.071" (1.80mm) |
|
|
CTMMP1808AF-R68MSMD Shielded Power Inductor |
5 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 0.68 µH | ±20% | 10 A | - | Shielded | 19mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.071" (1.80mm) |
|
|
CTMMP1808AF-5R6MSMD Shielded Power Inductor |
5 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 5.6 µH | ±20% | 3 A | - | Shielded | 125mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.071" (1.80mm) |
|
|
CTMMP1808AF-1R2MSMD Shielded Power Inductor |
5 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 1.2 µH | ±20% | 7.8 A | - | Shielded | 30mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.071" (1.80mm) |
|
CT1812CSF-4R7JSMD CER CORE WIRE-WOUND INDUCTOR |
20 |
|
Таблицы данных |
ct1812csf | - | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±5% | - | - | - | 5.4Ohm | - | 115MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|

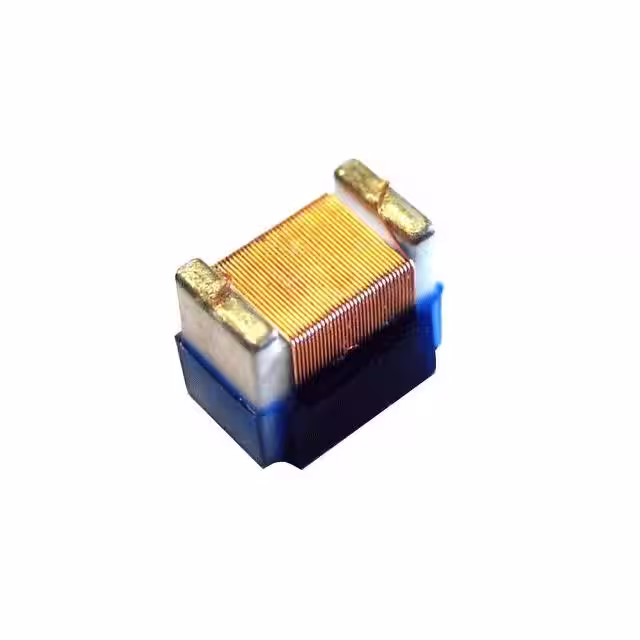

CT1812CSF-1R8JSMD CER CORE WIRE-WOUND INDUCTOR |
20 |
|
Таблицы данных |
ct1812csf | - | Tape & Reel (TR) | Active | Wirewound | - | 1.8 µH | ±5% | - | - | - | 2Ohm | - | 190MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT1812CSF-8R2JSMD CER CORE WIRE-WOUND INDUCTOR |
20 |
|
Таблицы данных |
ct1812csf | - | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±5% | - | - | - | 7Ohm | - | 80MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
CTLQ1210NF-121K120UH 75MA SMD WW INDUCTOR |
10 |
|
Таблицы данных |
CTLQ1210NF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±10% | 75 mA | - | Unshielded | 8Ohm Max | 40 @ 796kHz | 7.5MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
CTSPI2D15F-1R2MSMD SHIELDED POWER INDUCTOR |
5 |
|
Таблицы данных |
CTSPI2D15F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 1.74 A | 1A | Shielded | 41mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.063" (1.60mm) |
|
|
CTSPI2D15F-100MSMD SHIELDED POWER INDUCTOR |
5 |
|
Таблицы данных |
CTSPI2D15F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 800 mA | 380mA | Shielded | 244mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.063" (1.60mm) |
