Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ME3220-472MLCFIXED IND 4.7UH 1.3A 190MOHM SM Coilcraft |
1,327 |
|
Таблицы данных |
ME3220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.3 A | 1.5A | Unshielded | 190mOhm Max | - | 58.2MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.110" W (3.20mm x 2.80mm) | 0.094" (2.40mm) |
|
0603DC-R22XJRWFIXED IND 220NH 390MA 1.69OHM SM Coilcraft |
42,917 |
|
Таблицы данных |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 390 mA | - | Unshielded | 1.69Ohm Max | - | 900MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|

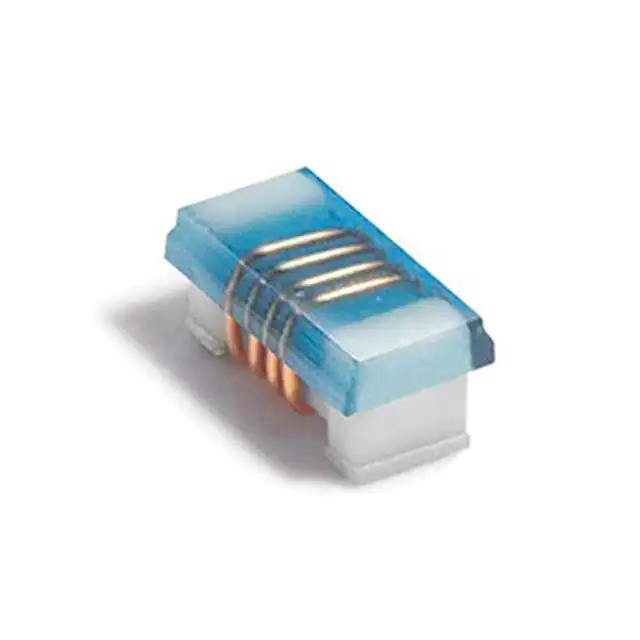

0603DC-12NXJRWFIXED IND 12NH 2.17A 65MOHM SMD Coilcraft |
6,066 |
|
Таблицы данных |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±5% | 2.17 A | - | Unshielded | 65mOhm Max | 94 @ 900MHz | 3.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-43NXJRWFIXED IND 43NH 1.3A 176MOHM SMD Coilcraft |
5,828 |
|
Таблицы данных |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 43 nH | ±5% | 1.3 A | - | Unshielded | 176mOhm Max | 82 @ 900MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-R47XJRWFIXED IND 470NH 220MA 5.4OHM SMD Coilcraft |
5,398 |
|
Таблицы данных |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±5% | 220 mA | - | Unshielded | 5.4Ohm Max | - | 600MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-39NXJRWFIXED IND 39NH 1.35A 163MOHM SMD Coilcraft |
5,371 |
|
Таблицы данных |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±5% | 1.35 A | - | Unshielded | 163mOhm Max | 73 @ 900MHz | 2.15GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-7N5XJRWFIXED IND 7.5NH 2.45A 53MOHM SMD Coilcraft |
5,110 |
|
Таблицы данных |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±5% | 2.45 A | - | Unshielded | 53mOhm Max | 88 @ 900MHz | 5.2GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-11NXJRWFIXED IND 11NH 2.17A 65MOHM SMD Coilcraft |
5,061 |
|
Таблицы данных |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 11 nH | ±5% | 2.17 A | - | Unshielded | 65mOhm Max | 94 @ 900MHz | 4.25GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-16NXJRWFIXED IND 16NH 2.04A 74MOHM SMD Coilcraft |
4,906 |
|
Таблицы данных |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 16 nH | ±5% | 2.04 A | - | Unshielded | 74mOhm Max | 82 @ 900MHz | 3.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
|
|
0603DC-5N1XJRWFIXED IND 5.1NH 2.65A 46MOHM SMD Coilcraft |
4,806 |
|
Таблицы данных |
0603DC | 0603 (1608 Metric) | Strip | Active | Drum Core, Wirewound | Ceramic | 5.1 nH | ±5% | 2.65 A | - | Unshielded | 46mOhm Max | 88 @ 900MHz | 7.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.039" W (1.70mm x 0.99mm) | 0.035" (0.89mm) |
