Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SER2918H-682KLPOWER INDUCTOR, HIGH CURRENT, 10 Coilcraft |
1,145 |
|
Таблицы данных |
SER2900 | Nonstandard | Strip | Active | - | Ferrite | 6.8 µH | ±10% | 20 A | 42A | Shielded | 2.86mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - | 1.100" L x 1.098" W (27.94mm x 27.90mm) | 0.700" (17.78mm) |
|
|
SER2918H-472KLPOWER INDUCTOR, HIGH CURRENT, 10 Coilcraft |
748 |
|
Таблицы данных |
SER2900 | Nonstandard | Strip | Active | - | Ferrite | 4.7 µH | ±10% | 20 A | 59A | Shielded | 2.86mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - | 1.100" L x 1.098" W (27.94mm x 27.90mm) | 0.700" (17.78mm) |
|
|
SER2918H-332KLPOWER INDUCTOR, HIGH CURRENT, 10 Coilcraft |
245 |
|
Таблицы данных |
SER2900 | Nonstandard | Strip | Active | - | Ferrite | 3.3 µH | ±10% | 20 A | 91A | Shielded | 2.86mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - | 1.100" L x 1.098" W (27.94mm x 27.90mm) | 0.700" (17.78mm) |
|

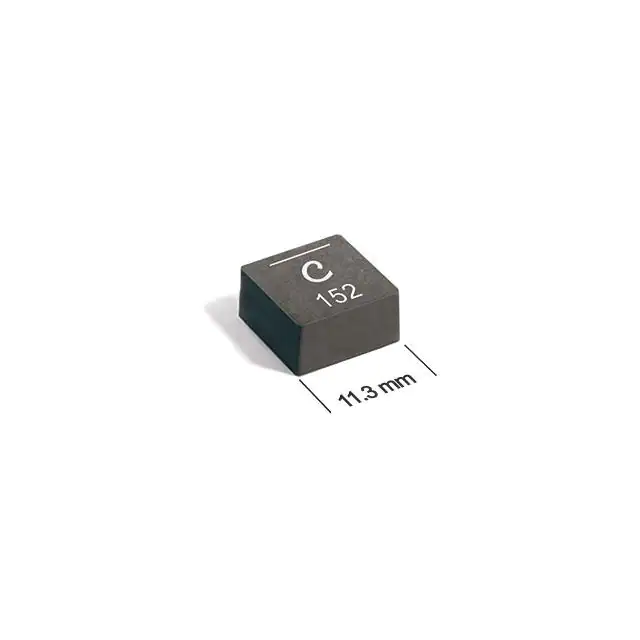

XAL1060-681MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
55,777 |
|
Таблицы данных |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | 680 nH | ±20% | 22.4 A | 52A | Shielded | 1.5mOhm Max | - | 51MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XAL1060-152MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
4,144 |
|
Таблицы данных |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.5 µH | ±20% | 24.4 A | 36A | Shielded | 3.3mOhm Max | - | 36MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XAL1060-122MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
4,052 |
|
Таблицы данных |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.2 µH | ±20% | 17.9 A | 43A | Shielded | 2.75mOhm Max | - | 44MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XAL1060-401MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
3,214 |
|
Таблицы данных |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | 400 nH | ±20% | 25.9 A | 82A | Shielded | 0.88mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
XGL1060-332MECFIXED IND 3.3UH 22A 5.7MOHM SM Coilcraft |
1,305 |
|
Таблицы данных |
XGL1060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 22 A | 26A | Shielded | 5.7mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XAL1060-181MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
1,194 |
|
Таблицы данных |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | 180 nH | ±20% | 28.8 A | 120A | Shielded | 0.55mOhm Max | - | 68MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
|
|
XAL1060-332MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
993 |
|
Таблицы данных |
XAL1060 | Nonstandard | Strip | Active | Molded | Metal Composite | 3.3 µH | ±20% | 11.2 A | 26A | Shielded | 7.92mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.445" L x 0.394" W (11.30mm x 10.00mm) | 0.236" (6.00mm) |
