Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XGL6060-183MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
1,310 |
|
Таблицы данных |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 18 µH | ±20% | 4.7 A | 5.5A | Shielded | 37.3mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
XEL6060-152MECFIXED IND 1.5UH 21.6A 4.71MOHM Coilcraft |
1,288 |
|
Таблицы данных |
XEL6060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 21.6 A | 19A | Shielded | 4.71mOhm Max | - | 41MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.240" (6.10mm) |
|
|
XGL6060-122MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
982 |
|
Таблицы данных |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.2 µH | ±20% | 21.5 A | 20.5A | Shielded | 3.4mOhm Max | - | 41MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
|
XGL6060-822MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
857 |
|
Таблицы данных |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 8.2 µH | ±20% | 7.4 A | 8.1A | Shielded | 16.8mOhm Max | - | 14MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
|
XGL6060-682MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
850 |
|
Таблицы данных |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 6.8 µH | ±20% | 11.5 A | 8.9A | Shielded | 14mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
|
XEL6060-102MECFIXED IND 1UH 23.2A 4.07MOHM SM Coilcraft |
807 |
|
Таблицы данных |
XEL6060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 23.2 A | 20A | Shielded | 4.07mOhm Max | - | 47MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.240" (6.10mm) |
|
|
XEL6060-682MECFIXED IND 6.8UH 9.8A 22.9MOHM SM Coilcraft |
771 |
|
Таблицы данных |
XEL6060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 9.8 A | 7.9A | Shielded | 22.9mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.240" (6.10mm) |
|
|

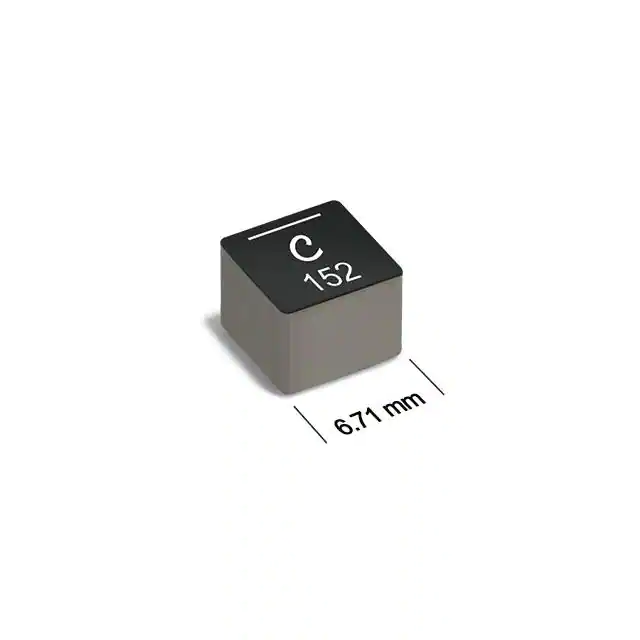

XGL6060-123MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
731 |
|
Таблицы данных |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 12 µH | ±20% | 6.1 A | 6.7A | Shielded | 24.2mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
|
|
XEL6060-821MECFIXED IND 820NH 25.7A 3.33MOHM Coilcraft |
719 |
|
Таблицы данных |
XEL6060 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 820 nH | ±20% | 25.7 A | 20A | Shielded | 3.33mOhm Max | - | 52MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.258" L x 0.250" W (6.56mm x 6.36mm) | 0.240" (6.10mm) |
|
|
XGL6060-562MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
535 |
|
Таблицы данных |
XGL6060 | Nonstandard | Strip | Active | Molded | Metal Composite | 5.6 µH | ±20% | 9.1 A | 9.6A | Shielded | 11.7mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.264" L x 0.256" W (6.71mm x 6.51mm) | 0.240" (6.10mm) |
